Page 1

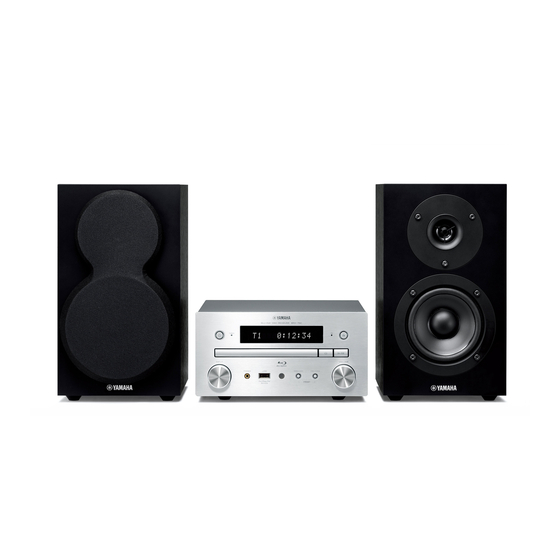

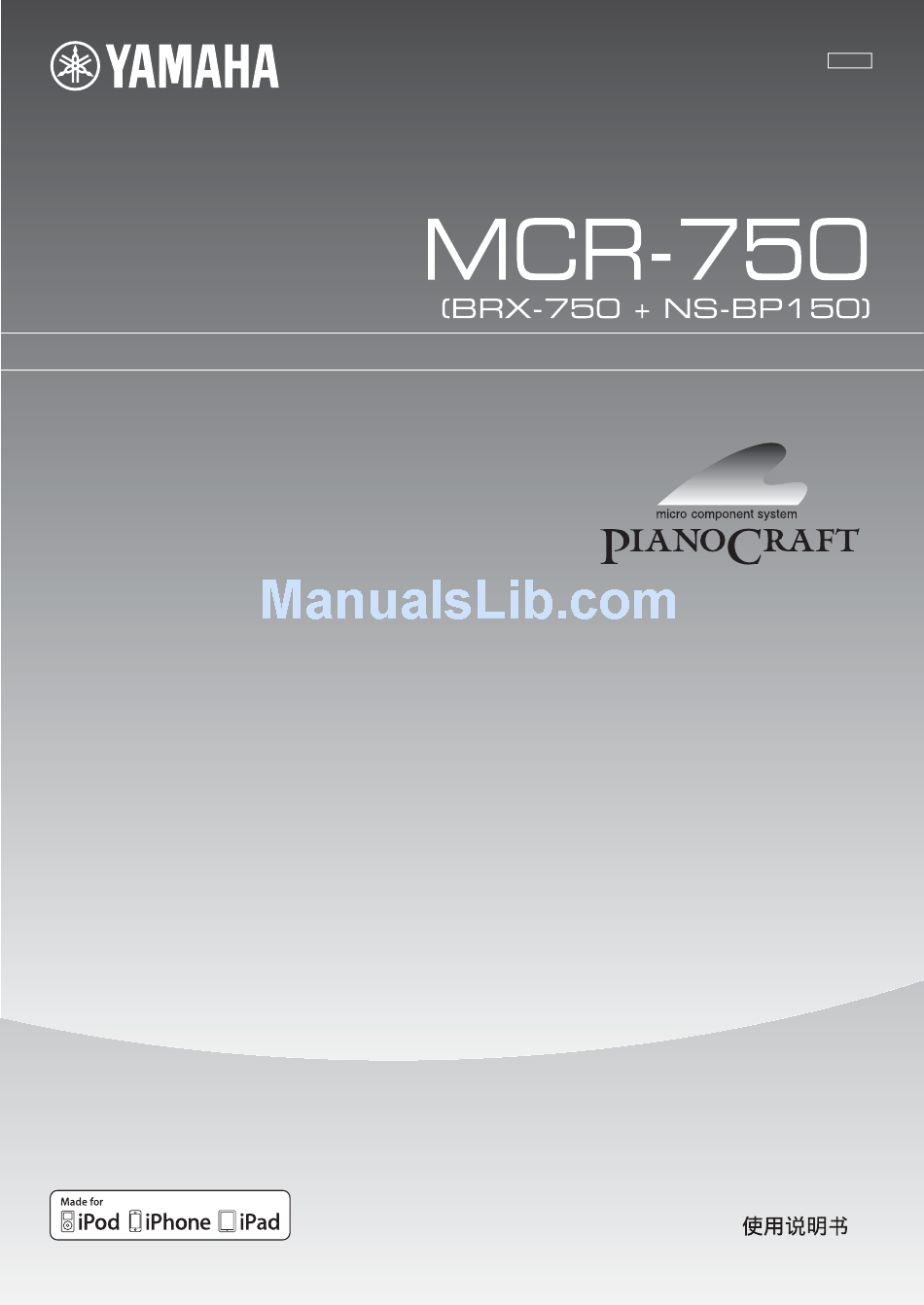

Micro Component System OWNER’S MANUAL MANUAL DE INSTRUCCIONES...
Page 2
CAUTION The laser component in this product is capable of emitting radiation exceeding the limit for Class 1. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous El componente láser de este producto es capaz de emitir radiación radiation exposure.
Page 3
Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.
CONTENTS INTRODUCTION SETTINGS WHAT YOU CAN DO WITH THIS UNIT ..2 SETUP MENU............31 SUPPLIED PARTS ..........2 Operation for SETUP menu ........33 General Setting ............34 ABOUT DISCS AND FILES ......... 3 Display Setting ............36 Types of discs/files that can be used with this unit ... 3 Audio Setting ............
Play back high-quality virtual surround sounds by AIR p. 16 SURROUND XTREME You can enjoy Yamaha’s exclusive AIR SURROUND XTREME that reproduces high-quality virtual surround sounds. *1 For details on playable discs and files, refer to page 3. *2 Network setting is needed to use this function.
ABOUT DISCS AND FILES Region management information Types of discs/files that can be Destination BD-Video DVD-Video used with this unit Europe Region code “B” or Region number “2” “ALL” or “ALL” • 12 cm and 8 cm discs can be played back in this unit. Do not use an 8 cm to 12 cm adapter.
ABOUT DISCS AND FILES Loading a disc Notice for watching 3D video images • Insert the disc with the label facing up. • In case of the disc recorded on both sides, face down the • Some people may experience discomfort (such as eye side you want to play back.
FRONT PANEL AND BASIC OPERATION This unit has an automatic standby function. • When the source is set to Disc/USB/Network, this unit automatically switches to standby mode if it is left turned on for 1 hour without playback or any other operation being performed. •...
REMOTE CONTROL 1 Infrared signal transmitter (p. 9) Note 2 MARKER VIDEO : Sets Bookmark at a specified will appear on the top left corner of the screen when the point of a movie (p. 23). After Bookmark is set, press pressed button is not available.
Page 10
REMOTE CONTROL VIDEO PHOTO I ZOOM : Zooms in/out. The size of the screen will change each time you press the button (zoom in/out: 3 steps each). J Color buttons : Use these buttons according to on- screen instructions. K SLEEP: Sets to sleep mode (p. 29). L TIMER: Sets to timer mode (p.
Page 11
REMOTE CONTROL T TOP MENU : Displays the top menu screen (p. 49) if the disc contains a menu. Select the desired item using 5/a /2/3 and ENTER. Note PROGRAM MARKER DIGEST ZOOM Specific operations may be different depending on the disc. Follow the instructions of each menu screen.
REMOTE CONTROL Installing the batteries in the Using the remote control remote control The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the front panel of this unit during operation.
PREPARATIONS CONNECTION Connecting component system to this unit Make sure you read the following procedure and note carefully before connecting the system. ■ Connecting the system 1 Connect the speaker terminals (L) of this unit to the speaker terminals of the left speaker and the speaker terminals (R) of this unit to the speaker terminals of the right speaker using the speaker cables supplied with the speaker set (NS-BP150).
• If there is a problem of weak radio wave reception in your area or you want to improve radio reception, we recommend that you use commercially available outdoor antennas. For details, consult the nearest authorized Yamaha dealer or service center. Other connection ■ Connecting iPod You can enjoy music stored in your iPod by connecting it to this unit.
CONNECTION Connecting to a TV Make sure you refer the following illustration carefully so that connections between this unit and your TV are properly made. CAUTION Do not connect the power cable of this unit until all connections are completed. This unit Video cable SPEAKERS...
Notes (commercially (commercially available) available) • Yamaha cannot guarantee that all brands’ USB memory devices will operate with this unit. To save BD-Live data on the USB • For more notes on using USB memory devices, refer to To LAN memory device on the front page 15.
OPERATIONS INITIAL WIZARD/EASY SETUP Setting with the Initial Wizard/Easy Setup Initial Wizard/Easy Setup allows you to set language, resolution, and screen aspect ratio easily. Initial Wizard screen is displayed when you turn this unit on for the first time after purchase or upgrade. Same setting can be performed from SETUP menu = [System] = [Easy Setup] (p.
The reading time may exceed 30 seconds depending on the number of files/folders. · Yamaha and suppliers accept no liability for the loss of data saved on the USB devices connected to this unit. As a precaution, it is recommended that the files are made backup copies.
(p. 7). Press HOME to move to HOME menu screen. When it is set to on: – plays back surround sounds using Yamaha’s exclusive AIR SURROUND XTREME (p. 48) if the sources is a surround playback source such as a BD.
Page 20
BASIC OPERATION Select the Photo, Music, Video or AVCHD folder Select the file you want to play back, then press you want to play back, then press ENTER. ENTER. To return to the parent folder, press 2 or select When a video file is selected, playback starts. When a music file is selected, Status menu is displayed and playback starts.
• To play the file on the DLNA server, this unit and the server must be connected to the same access point. • Yamaha does not represent or warrant that content • The file requirements may not always be compatible. There...
(p. 7). (p. 7). When it is set to on: – plays back surround sounds using Yamaha’s exclusive AIR SURROUND XTREME (p. 48) if the sources is a surround playback source such as a BD.
BASIC OPERATION ■ Repeat play Operation for iPod You can repeat playback as you want. You can operate playback of your iPod by using the Press REPEAT repeatedly for repeat play. buttons on the remote control. Each press cycles as follows: DISPLAY DISPLAY SETUP...
ADVANCED PLAYBACK OPERATION This chapter explains playback of commercially available – Normal BD/DVD/CD discs, and recorded DVD-RW/R discs. – Shuffle CH (chapter) – Shuffle TT (title) Note – Shuffle All For the basic playback operation, refer to page 6. – Random CH (chapter) –...
ADVANCED PLAYBACK OPERATION Status menu MUSIC Example: Icons when playing a music file This shows various settings, such as subtitles, angle settings and the title/chapter/track number currently played back. To display Status menu, press STATUS. Status menu contains following menus. VIDEO Example: Icons when playing a BD disc (Playback status)
ADVANCED PLAYBACK OPERATION Using Bookmark Press ENTER to program playback order. For audio disc, press 5/a to select a desired track, This allows you to set Bookmark at the specified point of then press ENTER. the video. After Bookmark is set, you can move to the For DVD-Video discs, select a desired title (shown as point you set using this function.
ADVANCED PLAYBACK OPERATION Using search Enjoying BONUSVIEW™ and BD- Live™ This allows you to jump to the specified point during playback. This unit supports BONUSVIEW (p. 48) (BD-ROM Profile 1 Version 1.1) and BD-Live (p. 48) (BD-ROM VIDEO MUSIC Profile 2) playback functions. Example: Searching to the specified point Note Press SEARCH during playback.
Page 28
ADVANCED PLAYBACK OPERATION ■ Using the feature of BD-Live™ Set the Network setting (p. 35). Connect the USB memory device to this unit (p. 13). • BD-Live data is saved in a USB memory device connected to this unit. • Connect a USB memory device (2 GB or greater and formatted with FAT 32/16) supporting USB 2.0 High Speed (480 Mbit/s) to the USB port that you select on Local Storage (p.
LISTENING TO FM RADIO STATIONS ■ Manual preset tuning Tuning to radio stations Select a favorite radio station by pressing << / >> TUNING (TUNING). <<, >> (TUNING) PRESET DIMMER STATUS Press MEMORY. SUBTITLE AUDIO MEMORY SHUFFLE REPEAT Select the preset number you want to store to by TUNER iPod TUNER...
USING USEFUL FUNCTIONS Using option menu on the front panel display The option menu appears on the front panel display by pressing OPTION. You can set various useful functions with option menu. Option menu Parameter or control range Reference page PRESET DEL (Displays only when the input source is set to FM.) TREBLE...
USING USEFUL FUNCTIONS Setting the clock/timer and sleep Change the settings by pressing 5/a or Numeric buttons. timer Press ENTER to confirm the setting. Repeat steps 2 through 5 to set each setting item. PROGRAM MARKER DIGEST ZOOM • To clear the entry, press CLEAR. SLEEP SLEEP •...
USING USEFUL FUNCTIONS Volume Operating this unit by TV remote The volume level can be set between [1] - control (the HDMI control function) [MAX] and [– – –] . When the timer is executed while this unit is in standby mode, the You can use the TV remote control to operate this unit if volume level you set at this point is applied.
Page 33
USING USEFUL FUNCTIONS • In order to make the HDMI control function available, set up If the HDMI control function is not working settings for the HDMI control function on ALL components Check the following: (this unit, TV, and other components). Certain operation may •...
SETTINGS SETUP MENU The SETUP menu enables various audio/visual settings and adjustments for functions using the remote control unit. Menu/Submenu Item Function Page System Screen Saver Sets screen saver to On/Off. Auto Power Off Disc/USB/Net: Sets auto power off mode to On/Off. Other Inputs: Sets auto power off mode to on by hours or Off.
Page 35
SETUP MENU Menu/Submenu Item Function Page 3D Output Selects 3D or 2D videos. TV Screen Sets the screen aspect ratio of the connected TV, and adjust the video output. Video Out Select Selects the resolution of video output. Display Setting TV System Selects the TV System from NTSC/PAL/Multi.
SETUP MENU Operation for SETUP menu Select a menu item. Press 5/a to select [Parental Control], then press You need to display SETUP menu screen to perform ENTER or cursor 3. settings for this unit. The following is the explanation for basic operations of SETUP menu.
SETUP MENU [Local Storage] General Setting You can display Local Storage information, format Local Storage, and select [Front USB]/[Rear USB] to save the The default settings are marked with “ ”. BD-Live data. To format (empty) the “BUDA” folder in the USB ■...
Page 38
SETUP MENU ■ Playback [Country Code] You can set the Country Code you live in. The password [Closed Caption] (refer to “[Change Password]” on page 35) needs to be You can set to display the closed caption (p. 48) when a entered before the Country Code is set.
SETUP MENU [Video Out Select] Display Setting You can select the video output resolution from [Composite], [HDMI Auto], [HDMI 1080p], [HDMI The default settings are marked with “ ”. 1080i], [HDMI 720p], [HDMI 480p/576p], and [HDMI ■ TV 480i/576i]. When set to [HDMI Auto], resolution is set to the maximum resolution according to the connected TV.
Page 40
SETUP MENU [HDMI 1080p 24Hz] [Color Adjust] This outputs the BD-Video encoded in 24Hz frame rate in You can adjust Brightness/Saturation/Hue for each color HDMI 1080p 24Hz. Smoother video playback may be (Red/Green/Blue/Yellow/Cyan/Magenta). To use this available with this function. This function is available function, set [Video Mode] to [Custom].
SETUP MENU Audio Setting The default settings are marked with “ ”. ■ Audio Output [HDMI] You can select the output mode of the HDMI terminal. Bitstream, PCM, Off Notes • To output sound from the speakers or headphones, select [Off]. •...
To check for the availability of a software upgrade, visit http://download.yamaha.com/ Note Do not remove the USB memory device, set this unit to standby mode or unplug the power cable/LAN cable while the software upgrade is being performed.
Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off this unit, disconnect the power cable, and contact the nearest authorized Yamaha dealer or service center. General...
TROUBLESHOOTING Problem Cause Remedy Page The power is The sleep timer is set. This is not malfunction. Turn on this unit and play suddenly turned off. the source again. [Auto Power Off] is set to [On]. Set [Auto Power Off] to [Off]. The clock setting has The power cable has been disconnected.
TROUBLESHOOTING iPod Note In case of a transmission error without a status message appearing on the front panel display of this unit, check the connection to your iPod (refer to page 11). Status message Cause Remedy Page READING This unit is in the middle of recognizing If the message continues to appear on the front panel —...
TROUBLESHOOTING Problem Cause Remedy Page The iPod does not The iPod is not connected correctly. Connect the iPod and this unit by a USB cable charge up. correctly. The iPod is not supported by this unit. Only iPod classic, iPod nano (2nd, 3rd, 4th, 5th and 6th generation), iPod touch (1st, 2nd, 3rd, and 4th generation), iPhone, iPhone 3G/3GS, iPhone 4, and iPad are supported.
Page 48
TROUBLESHOOTING Problem Cause Remedy Page Disc playback does The disc is not finalized. The CD-R/RW, DVD+R/RW/R DL, and DVD-R/ not start. RW/R DL must be finalized. Disc is loaded upside-down. Remove the disc and then load the disc with the —...
TROUBLESHOOTING Remote control Problem Cause Remedy Page The remote control The remote control is operated outside its For information on the remote control operation does not work nor “Using the remote control” operation range. range, refer to function properly. The remote control sensor on this unit is Change the lighting or orientation of this unit.
TROUBLESHOOTING Messages on the screen The following messages appear on the TV screen in case the disc you tried to play back is not appropriate or the operation is not correct. Error message Cause Remedy Page Unsupported File The file is not supported by this unit. Refer to “Types of discs/files that can be used with this unit”.
GLOSSARY AIR SURROUND XTREME AVCHD This unit employs new technologies and algorithms that AVCHD is a new format (standard) for high definition make it possible to achieve 5-channel surround sound video cameras that can be used to record and play high- with only front speakers, and without using wall resolution HD images.
Page 52
GLOSSARY Dolby Digital Plus Mac address A sound system developed as an extension to Dolby The Mac address is a unique value assigned to a network Digital. This audio coding technology supports 7.1 device for identification purposes. multi-channel surround sound. Pan Scan (PS 4:3) A screen size that cuts off the sides of the image to allow Dolby TrueHD...
SPECIFICATIONS PLAYER SECTION INPUT/OUTPUT • HDMI output ..........Type A connector × 1 iPod/iPhone/iPad 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p/24Hz, • Supported iPod/iPhone/iPad ........iPod classic, Deep Color, x.v.Color, 3D, iPod nano (2nd, 3rd, 4th, 5th and 6th generation), ARC(Audio Return Channel) support iPod touch (1st, 2nd, 3rd, and 4th generation), •...
Page 54
SPECIFICATIONS ■ Copyright • iPad, iPhone, iPod, iPod classic, iPod nano, and iPod touch are • Manufactured under license under U.S. Patent Nos: 5,956,674; trademarks of Apple Inc., registered in the U.S. and other 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; countries. 7,392,195;...
Page 55
CONTINUA A UN VOLUMEN ELEVADO, YA QUE SU incendio, daños en el aparato y/o lesiones a las personas. Yamaha no se hará responsable de ningún daño debido PARTE INFERIOR PODRÍA ACUMULAR MUCHO CALOR al uso de este aparato con una tensión diferente de la Y PODRÍA SUFRIR LESIONES O QUEMADURAS.
CONTENIDO INTRODUCCIÓN AJUSTES FUNCIONES DE ESTA UNIDAD......2 MENÚ SETUP............31 PIEZAS INCLUIDAS ..........2 Utilización del menú SETUP ........33 Configuración General..........34 INFORMACIÓN SOBRE DISCOS Configuración de pantalla........36 Y ARCHIVOS............. 3 Configuración de audio ........... 38 Tipos de discos/archivos que se pueden utilizar Acerca de los formatos de salida de vídeo....
Reproducir sonidos envolventes virtuales de alta calidad con AIR pág. 16 SURROUND XTREME Puede disfrutar del exclusivo sistema AIR SURROUND XTREME de Yamaha, que reproduce sonidos envolventes virtuales de alta calidad. *1 Para obtener información sobre los discos y archivos que se pueden reproducir, consulte la página 3.
INFORMACIÓN SOBRE DISCOS Y ARCHIVOS Información de gestión de la región Tipos de discos/archivos que se Destino Vídeo BD Vídeo DVD pueden utilizar con esta unidad Europa Código de región “B” Número de región “2” o “ALL” o “ALL” • En esta unidad se pueden reproducir discos de 12 cm y 8 cm.
INFORMACIÓN SOBRE DISCOS Y ARCHIVOS Para cargar un disco Aviso para ver imágenes de vídeo en 3D • Inserte el disco con la etiqueta hacia arriba. • En el caso de un disco grabado por ambas caras, • Algunas personas pueden sufrir molestias (como vista ponga boca abajo el lado que desea reproducir.
PANEL DELANTERO Y FUNCIONAMIENTO BÁSICO Esta unidad cuenta con una función de espera automática. • Al utilizar Disco/USB/Red como fuente, se activa automáticamente el modo de espera si la unidad está encendida durante 1 hora sin reproducir contenidos ni realizar ninguna otra operación. •...
MANDO A DISTANCIA 1 Transmisor de señal infrarroja (pág. 9) Nota 2 MARKER VIDEO : crea un Marcador en un En la esquina superior izquierda de la pantalla aparecerá punto especificado de una película (pág. 23). Tras definir un cuando la tecla pulsada no esté disponible. Marcador, pulse DIGEST para seleccionar el punto de ajuste al que desea saltar.
Page 62
MANDO A DISTANCIA PHOTO G DIGEST : muestra 12 fotografías en miniatura. Cuando se muestran las miniaturas, puede ir a la página siguiente o anterior con VIDEO : muestra la barra de selección Marcador (pág. 23). : enciende la unidad o activa el modo de reposo. VIDEO PHOTO I ZOOM...
Page 63
MANDO A DISTANCIA T TOP MENU : muestra la pantalla del menú principal (pág. 49) si el disco contiene un menú. Seleccione la opción deseada con 5/a /2/3 y ENTER. Nota PROGRAM MARKER DIGEST ZOOM Las operaciones concretas pueden diferir dependiendo del disco.
MANDO A DISTANCIA Colocación de las pilas Utilización del mando a distancia en el mando a distancia El mando a distancia transmite una señal mediante un haz infrarrojo. Oriente siempre el mando a distancia hacia el sensor del mando a distancia del panel delantero de esta unidad cuando lo utilice.
PREPARACIÓN CONEXIÓN Conexión de un sistema con distintos componentes a esta unidad Asegúrese de leer el siguiente procedimiento y la nota con atención antes de conectar el sistema. ■ Conexión del sistema 1 Conecte los terminales de los altavoces (L) de esta unidad a los terminales de los altavoces del altavoz izquierdo y los terminales de los altavoces (R) de esta unidad a los terminales de los altavoces del altavoz derecho con los cables de altavoz suministrados con el juego de altavoces (NS-BP150).
• Si la recepción de las ondas de radio es débil en su zona o desea mejorar la recepción, le recomendamos usar antenas exteriores comercializadas en tiendas. Para obtener más información, consulte al concesionario Yamaha o centro de servicio autorizado más cercano. Otra conexión ■...
CONEXIÓN Conexión de un televisor Es importante que tome nota de las indicaciones de esta ilustración para realizar correctamente las conexiones entre esta unidad y el televisor. PRECAUCIÓN No conecte el cable de alimentación de esta unidad hasta que haya realizado todas las conexiones. Esta unidad Cable de vídeo Televisor...
Notas Para guardar datos de BD-Live en Al terminal el dispositivo de memoria USB • Yamaha no puede garantizar que todas las marcas de conectado al panel frontal, ajuste dispositivos de memoria USB funcionen con esta unidad. [Almacenamiento Local] en •...
FUNCIONAMIENTO ASISTENTE INICIAL/CONFIGURACIÓN SENCILLA Configuración con el Asistente inicial/Configuración Sencilla Asistente inicial/Configuración Sencilla le permite definir con facilidad el idioma, la resolución y la relación de aspecto de pantalla. La pantalla Asistente inicial se muestra cuando enciende la unidad por primera vez después de la compra o actualización.
El tiempo de lectura puede superar los 30 segundos en función del número de archivos/carpetas. · Yamaha y los distribuidores no se harán responsables de las pérdidas de datos almacenados en dispositivos USB conectados a esta unidad. Como medida de precaución, se recomienda realizar copias de seguridad de los archivos.
HOME. – Se reproducen sonidos envolventes gracias a la tecnología AIR SURROUND XTREME exclusiva de Yamaha (pág. 48) si la fuente es una fuente de reproducción envolvente, como por ejemplo BD. – Se reproducen sonidos estéreo más anchos si la fuente es una fuente de reproducción estéreo,...
Page 72
FUNCIONAMIENTO BÁSICO Seleccione la carpeta de Foto, Música, Vídeo Seleccione el archivo que desea reproducir y, o AVCHD que desea reproducir y, a continuación, a continuación, pulse ENTER. pulse ENTER. Cuando se selecciona un archivo de vídeo se inicia Para volver a la carpeta principal, pulse 2 la reproducción.
• Para reproducir el archivo en el servidor DLNA, la unidad y el servidor deben estar conectados al mismo punto de acceso. • Yamaha no manifiesta ni garantiza que los servicios • Es posible que los requisitos de archivo no siempre sean de contenido se seguirán proporcionando o estarán...
Si está activado: – Se reproducen sonidos envolventes gracias a la tecnología AIR SURROUND XTREME exclusiva de Yamaha (pág. 48) si la fuente es una fuente de reproducción envolvente, como por ejemplo BD. – Se reproducen sonidos estéreo más anchos si la fuente es una fuente de reproducción estéreo,...
FUNCIONAMIENTO BÁSICO ■ Repetición de reproducción Funcionamiento para iPod Puede repetir la reproducción como desee. Puede controlar la reproducción de un iPod a través de los Pulse varias veces REPEAT para la repetición de botones del mando a distancia. reproducción. DISPLAY Con cada pulsación se avanza en la siguiente DISPLAY...
FUNCIONAMIENTO DE REPRODUCCIÓN AVANZADO En este capítulo se explica la reproducción de discos – Normal BD/DVD/CD comercializados en tiendas y discos – Shuffle CH (capítulo) DVD-RW/R grabados. – Shuffle TT (título) – Shuffle All Nota – Aleatorio CH (capítulo) Para conocer el funcionamiento básico de reproducción, consulte –...
FUNCIONAMIENTO DE REPRODUCCIÓN AVANZADO Menú de estado MUSIC Ejemplo: iconos cuando se reproduce un archivo de Muestra varios ajustes, cómo los subtítulos, el ángulo y el música número de título/capítulo/pista reproducido actualmente. Para mostrar el menú de estado, pulse STATUS. El menú de estado consta de los siguientes menús.
FUNCIONAMIENTO DE REPRODUCCIÓN AVANZADO Uso de Marcador Pulse ENTER para programar el orden de reproducción. Para un disco de audio, pulse 5/a para seleccionar Le permite establecer un Marcador en un punto una pista deseada y, a continuación, pulse ENTER. especificado del vídeo.
FUNCIONAMIENTO DE REPRODUCCIÓN AVANZADO Uso de la búsqueda Disfrutar de BONUSVIEW™ y BD-Live™ Esta opción le permite saltar a un punto específico durante la reproducción. Esta unidad admite las funciones de reproducción de BONUSVIEW (pág. 48) (BD-ROM Perfil 1 Versión 1.1) VIDEO MUSIC y BD-Live (pág.
Page 80
FUNCIONAMIENTO DE REPRODUCCIÓN AVANZADO ■ Utilización de la función BD-Live™ Ajuste la configuración de Red (pág. 35). Conecte el dispositivo de memoria USB a la unidad (pág. 13). • Los datos BD-Live se guardan en un dispositivo de memoria USB conectado a esta unidad. •...
ESCUCHAR EMISORAS DE RADIO FM ■ Presintonización manual Sintonización de emisoras de radio Seleccione una emisora de radio que le guste pulsando << / >> (TUNING). TUNING Pulse MEMORY. <<, >> (TUNING) PRESET DIMMER STATUS Seleccione el número de presintonía en la que desea SUBTITLE AUDIO MEMORY...
UTILIZACIÓN DE FUNCIONES ÚTILES Utilización del menú de opciones del visor del panel delantero El menú de opciones aparece en el visor del panel delantero al pulsar OPTION. Desde el menú de opciones puede ajustar diversas funciones útiles. Página de Menú...
UTILIZACIÓN DE FUNCIONES ÚTILES Ajuste del reloj/temporizador y del Modifique los ajustes pulsando 5/a o los botones numéricos. temporizador de apagado Pulse ENTER para confirmar el ajuste. Repita los pasos del 2 al 5 para ajustar todas las opciones. PROGRAM MARKER DIGEST ZOOM...
UTILIZACIÓN DE FUNCIONES ÚTILES Volume Control de esta unidad con el El nivel de volumen puede ajustarse entre [1] – mando a distancia del televisor [MAX] y [– – –] . Si el temporizador se activa con esta unidad en modo de espera, se aplica el (función de control HDMI) nivel de volumen definido en este punto.
Page 85
UTILIZACIÓN DE FUNCIONES ÚTILES • Para que la función de control HDMI esté disponible, configure Si la función de control HDMI no funciona los ajustes de la función de control HDMI en TODOS los Realice las siguientes comprobaciones: componentes (esta unidad, el televisor y otros componentes). Es •...
AJUSTES MENÚ SETUP El menú SETUP permite realizar diversos ajustes y configuraciones audiovisuales en las funciones utilizando el mando a distancia. Menú/submenú Elemento Función Página Sistema Protector de pantalla Ajusta el protector de pantalla en Activar/Desactivar. Apagado Disc/USB/Net: ajusta el modo de apagado automático Automático en Activar/Desactivar.
Page 87
MENÚ SETUP Menú/submenú Elemento Función Página Salida 3D Selecciona vídeos en 3D o 2D. Pantalla de TV Ajusta la relación de aspecto de la pantalla del televisor conectado y ajusta la salida de vídeo. Seleccionar Salida Selecciona la resolución de la salida de vídeo. Configuración de Vídeo de pantalla...
MENÚ SETUP Utilización del menú SETUP Seleccione un elemento del menú. Pulse 5/a para seleccionar [Control Paterno] y, Debe acceder a la pantalla de menú SETUP para realizar a continuación, pulse ENTER o el cursor 3. los ajustes en esta unidad. A continuación se explican las operaciones básicas del menú...
MENÚ SETUP [Almacenamiento Local] Configuración General Puede mostrar información de Almacenamiento Local, formatear Almacenamiento Local y seleccionar [USB Los ajustes predeterminados están marcados con “ ”. Frontal]/[USB Trasera] para guardar los datos de BD-Live. ■ Sistema Para formatear (vaciar) la carpeta “BUDA” en el [Protector de pantalla] dispositivo de memoria USB, seleccione [Información] y pulse ENTER mientras [Formato] está...
Page 90
MENÚ SETUP ■ Reproducción [Código de país] Puede ajustar el Código de país en el que vive. Es [Subtítulos] necesario introducir la contraseña (consulte “[Cambiar Puede ajustar que se visualicen los subtítulos (pág. 48) Contraseña]” en página 35) antes de ajustar el Código de cuando se reproduce un disco BD/DVD con subtítulos.
MENÚ SETUP [Seleccionar Salida de Vídeo] Configuración de pantalla Puede seleccionar la resolución de salida de vídeo entre [Compuesta], [HDMI Auto], [HDMI 1080p], [HDMI 1080i], Los ajustes predeterminados están marcados con “ ”. [HDMI 720p], [HDMI 480p/576p] y [HDMI 480i/576i]. ■...
Page 92
MENÚ SETUP [HDMI 1080p 24Hz] [Ajuste de color] Permite la salida del Vídeo BD codificado con una Ajusta Brillo/Saturación/Tonalidad para cada color velocidad de fotogramas de 24 Hz en HDMI 1080p 24Hz. (Rojo/Verde/Azul/Amarillo/Cian/Magenta). Para utilizar Con esta función es posible que disponga de una esta función, configure [Modo de vídeo] como reproducción de vídeo más suave.
MENÚ SETUP Configuración de audio Los ajustes predeterminados están marcados con “ ”. ■ Salida de audio [HDMI] Puede seleccionar el modo de salida del terminal HDMI. Bitstream, PCM, Desactivar Notas • Para emitir sonido desde los altavoces o auriculares, seleccione [Desactivar].
MENÚ SETUP Acerca de los formatos de salida de vídeo Si [Sistema de TV] se define en [NTSC] HDMI HDMI HDMI HDMI HDMI 1080p Resolución Compuesta HDMI Auto 480i/576i 480p/576p 720p 1080i 24 Hz Otros Reproducción 1080p 24 Hz de BD HDMI 480p Máx.
Para comprobar la disponibilidad de una actualización de software, visite http://download.yamaha.com/ Nota No saque el dispositivo de memoria USB, no ponga la unidad en modo de espera ni desenchufe el cable de alimentación o el cable LAN mientras se lleva a cabo la actualización de software.
Consulte la tabla de abajo cuando esta unidad no funcione correctamente. Si el problema no está en la lista de abajo o las instrucciones no sirven de ayuda, apague esta unidad, desconecte el cable de alimentación y póngase en contacto con el centro de servicio o concesionario autorizado de Yamaha más cercano. Problemas generales...
SOLUCIÓN DE PROBLEMAS Problema Causa Remedio Página La unidad se apaga Está configurado el temporizador de No se trata de ningún error. Encienda esta unidad de forma repentina. apagado. y reproduzca la fuente de nuevo. [Apagado Automático] está ajustado en Ajuste [Apagado Automático] en [Desactivar].
SOLUCIÓN DE PROBLEMAS iPod Nota En caso de producirse un error de transmisión sin que aparezca un mensaje de estado en el visor del panel delantero de esta unidad, compruebe la conexión de su iPod (consulte la 11). Mensaje de estado Causa Remedio Página...
SOLUCIÓN DE PROBLEMAS Problema Causa Remedio Página La batería del iPod no El iPod no está conectado correctamente. Conecte el iPod con esta unidad mediante un cable USB. se carga. El iPod no es compatible con esta unidad. Esta unidad solo es compatible con el iPod classic, iPod nano (2ª, 3ª, 4ª, 5ª...
Page 100
SOLUCIÓN DE PROBLEMAS Problema Causa Remedio Página El disco no se El disco no está finalizado. Los discos CD-R/RW, DVD+R/RW/R DL y DVD-R/ reproduce. RW/R DL deben estar finalizados. El disco está cargado al revés. Extraiga el disco y, a continuación, cárguelo con la —...
SOLUCIÓN DE PROBLEMAS Mando a distancia Problema Causa Remedio Página El mando a distancia Está utilizando el mando a distancia fuera Para obtener más información sobre la distancia de no funciona bien. de la distancia de funcionamiento. funcionamiento del mando a distancia, consulte “Utilización del mando a distancia”...
SOLUCIÓN DE PROBLEMAS Mensajes en pantalla Los mensajes siguientes aparecerán en la pantalla del televisor si el disco que intenta reproducir no es apropiado o la operación no es correcta. Mensaje de error Causa Remedio Página Fichero no compatible El archivo no es compatible con esta Consulte “Tipos de discos/archivos que se pueden unidad.
GLOSARIO AIR SURROUND XTREME AVCHD Esta unidad utiliza nuevas tecnologías y algoritmos que AVCHD es un nuevo formato (estándar) para cámaras permiten obtener un sonido envolvente de cinco canales de vídeo de alta definición que se puede utilizar para con solo altavoces frontales y sin necesidad de reflejar grabar y reproducir imágenes de alta definición (HD).
Page 104
GLOSARIO Dolby Digital Sincronismo de labios Un sistema de sonido desarrollado por Dolby Sincronismo de labios, una abreviatura de Laboratories Inc. que da un ambiente de sala de cine a la “lip synchronization”, o sincronización de labios, salida de audio cuando el producto está conectado con es un término que hace referencia tanto a un un amplificador o procesador Dolby Digital.
ESPECIFICACIONES SECCIÓN DEL REPRODUCTOR ENTRADA/SALIDA • Salida HDMI ...........Conector tipo A × 1 iPod/iPhone/iPad 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p/24 Hz, • Modelos de iPod/iPhone/iPad ....iPod classic compatibles, Compatibilidad con Deep Color, x.v.Color, 3D, iPod nano (2ª, 3ª, 4ª, 5ª y 6ª generación), ARC (canal de retorno de audio) iPod touch (1ª, 2ª, 3ª...
Page 106
ESPECIFICACIONES ■ Propiedad intelectual • iPad, iPhone, iPod, iPod classic, iPod nano y iPod touch son • Fabricado con licencia en virtud de las patentes de EE. UU. marcas comerciales de Apple Inc., registradas en EE.UU. y número: 5,956,674; 5,974,380; 6,226,616; 6,487,535; otros países.
AUDIO IN 或拔掉电源线。 • 将 USB 存储设备连接到本机的 USB 端口时, 请勿使用 USB 延 长线。使用 USB 延长线可能会妨碍本机正确工作。 至 USB 端口 至 NETWORK 端子 注意 • Yamaha不保证本机可与所有品牌的USB存储设备配合操作。 USB 存储设备 • 有关使用 USB 存储设备的更多注意事项,请参阅第 15 页。 (市售) 网线 (市售) 若要在前面板的 USB 存储设备 至 LAN 端...
基本操作 ■ 重复播放 iPod 操作 可根据需要重复播放。 通过使用遥控器上的按钮可以操作 iPod 的播放。 反复按 REPEAT 进行重复播放。 DISPLAY 每按一次,如下循环: DISPLAY SETUP VOLUME OPTION HOME TOP MENU POP-UP MENU ENTER CD 操作 RETURN ON SCREEN 您也可以操作 CD 的音乐播放。 TUNING ■ 播放控制 , , PRESET DIMMER STATUS ,...
设置菜单 设置菜单操作 选择菜单项目。 按 5/a 选择 [ 父母锁 ],然后按 ENTER 或光标 您需要显示设置菜单画面来执行本机的设定。以下说 3。 明设置菜单的基本操作。 SLEEP 数字按钮 TIMER SURROUND CLEAR SEARCH MUTE SETUP DISPLAY SETUP VOLUME VOLUME OPTION HOME OPTION HOME TOP MENU POP-UP MENU ENTER ENTER RETURN ON SCREEN 用数字按钮输入密码。 –...
Page 158
规格 ■ 版权 • iPad、iPhone、iPod、iPod classic、iPod nano 和 iPod • Blu-ray Disc 、Blu-ray 、Blu-ray 3D 、BD-Live 、 touch 是 Apple Inc. 在美国和其他国家注册的商标。 BONUSVIEW 和标志是 Blu-ray Disc Association 的商 标。 “Made for iPod” 、 “Made for iPhone”和 “Made for iPad”指的是分别专用于连接 iPod、iPhone 或 iPad 的电 子附件,并且已通过开发者的认证可满足...
Page 159
Information about software This product uses the following software. For information (copyright, etc) about each software, read the original sentences stated below. ■ About Linux, Busybox, SquashFS, LIRC, U-boot These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered GNU GENERAL PUBLIC LICENSE independent and separate works in themselves, then this License, and its terms, do not...
Page 160
This section is intended to make thoroughly clear what is believed to be a consequence <signature of Ty Coon>, 1 April 1989 of the rest of this License. Ty Coon, President of Vice 8. If the distribution and/or use of the Program is restricted in certain countries either This General Public License does not permit incorporating your program into by patents or by copyrighted interfaces, the original copyright holder who places proprietary programs.
Page 161
GNU LESSER GENERAL PUBLIC LICENSE If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND satisfies the requirement to distribute the source code, even though third parties are not MODIFICATION compelled to copy the source along with the object code.
Page 162
9. You are not required to accept this License, since you have not signed it. However, If you develop a new library, and you want it to be of the greatest possible use to the nothing else grants you permission to modify or distribute the Library or its public, we recommend making it free software that everyone can redistribute and derivative works.
Page 163
Original SSLeay License o We don’t promise that this software works. However, we will be interested in any kind of bug reports. (‘as is’ distribution) Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. o You can use this software for whatever you want, in parts or full form, without This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
Page 164
■ About Expat This package contains C software to implement JPEG image encoding, decoding, and transcoding. JPEG (pronounced “jay-peg”) is a standardized compression method for Copyright (C) 1998, 1999, 2000 Thai Open Source Software Center Ltd full-color and gray-scale images. and Clark Cooper This software implements JPEG baseline, extended-sequential, and progressive compression processes.
Page 165
Communications of the ACM, April 1991 (vol. 34 no. 4), pp. 30-44. FILE FORMAT WARS The ISO JPEG standards committee actually promotes different formats like JPEG- (Adjacent articles in that issue discuss MPEG motion picture compression, applications 2000 or JPEG-XR which are incompatible with original DCT-based JPEG and which of JPEG, and related topics.) If you don’t have the CACM issue handy, a PostScript file are based on faulty technologies.
Page 166
Greg Roelofs 1.0.1. 1.1. “Contributor” means each entity that creates or contributes to the creation of Tom Tanner Modifications. libpng versions 0.5, May 1995, through 0.88, January 1996, are Copyright (C) 1995, 1.2. “Contributor Version” means the combination of the Original Code, prior 1996 Guy Eric Schalnat, Group 42, Inc.
Page 167
Any Modification created by You will be provided to the Initial Developer in Source 7 DISCLAIMER OF WARRANTY. Code form and are subject to the terms of the License. COVERED CODE IS PROVIDED UNDER THIS LICENSE ON AN “AS IS” BASIS, 3.3.
Page 168
Software distributed under the License is distributed on an “AS IS” basis, WITHOUT Permission is hereby granted, free of charge, to any person obtaining a copy of the fonts WARRANTY OF ANY KIND, either express or implied. See the License for the accompanying this license (“Fonts”) and associated documentation files (the “Font specific language governing rights and limitations under the License.
