Toshiba VN-250SE Installation Manual

Heat exchange ventilators.
Hide thumbs


Advertisement

FY250_CON-CV.fm Page 1 Friday, June 7, 2002 8:52 PM
Heat Exchange Ventilators
Installation Manual
VN-500SE
Model No.
VN-250SE
VN-350SE
VN-500SE
VN-800SE
VN-1KSAE

Advertisement

Table of Contents

   Also See for Toshiba VN-250SE

   Related Manuals for Toshiba VN-250SE

No related manuals

   Summary of Contents for Toshiba VN-250SE

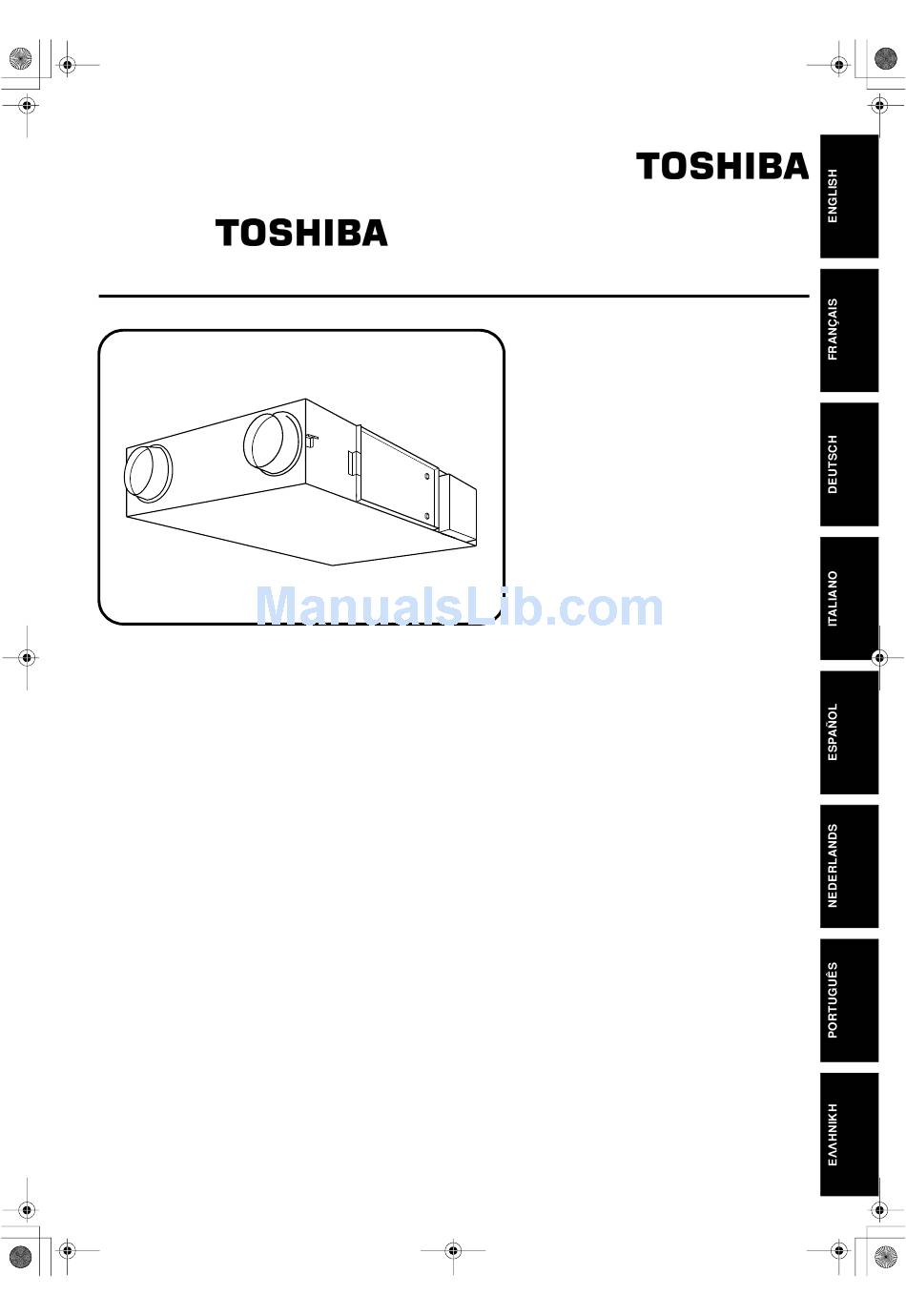

  • Page 1 FY250_CON-CV.fm Page 1 Friday, June 7, 2002 8:52 PM Heat Exchange Ventilators Installation Manual VN-500SE Model No. VN-250SE VN-350SE VN-500SE VN-800SE VN-1KSAE...
  • Page 2 FY250_CON-EN.fm Page 1 Friday, June 7, 2002 7:19 PM I Read through this “Cautions on Safety” with care before installing the unit. I Described below are the way we are stimulating your attention to what you are supposed to observe to prevent dangers to the users or other people as well as loss to the property.
  • Page 3 OA (Outside Air) Heat Exchange Element Exchange Elements, Fans, Motors and Damper.) Heat Exchange Element and Damper.) Note) Model VN-250SE has one Heat Exchange Element. Note) Model VN-1KSAE has four Heat Exchange Elements. Unit: mm Unit: mm Model No. Model No.
  • Page 4 FY250_CON-EN.fm Page 3 Friday, June 7, 2002 7:19 PM Local Procurements I Switches are to be locally procured. We recommend that you use a switch having more than 3mm distance to break contact and more than 15A rated current. Reference Sketch Supply Air Duct Outside Intake Duct Ceiling Suspension Bolt...
  • Page 5 (Outside Air) (Supply Filter Air) Damper Damper Motor 4-13x30 Oval Hole Ceiling Suspension Fixture Electrical Equipment Box Applicable Duct Note) Model No. VN-250SE has one Heat Model No. Nominal Diameter Exchange Element. VN-250SE φ 150 VN-350SE φ 200 VN-500SE Unit: mm Model No.
  • Page 6 I Connect the broken lines in the wiring diagram. I We recommend that you use a switch having more than 3 mm distance to break contact and more than 15A rated current. Damper Motor Model No. VN-250SE Supply Exhaust Capacitor Capacitor...
  • Page 7 FY250_CON-EN.fm Page 6 Friday, June 7, 2002 7:19 PM Damper Motor Exhaust Supply Air Model No. VN-800SE Capacitor Capacitor Air Fan VN-1KSAE Orange Orange Yellow Yellow Blue Black Blue White White Black High Common High Extra Common Extra High High Power Source 1 2 3 4 5 6 7 1 2 3 4 5...
  • Page 8 FY250_CON-EN.fm Page 7 Friday, June 7, 2002 7:19 PM Duct Installation I Wind the junction of an adaptor and a duct with an aluminum tape firmly to prevent any air leakage. I The room intake opening should be positioned as far as possible from the inside supply opening. I Use the specified ducts.
  • Page 9: Declaration Of Conformity

    FY250_CON-CV.fm Page 2 Friday, June 7, 2002 8:52 PM DECLARATION OF CONFORMITY We, TOSHIBA CARRIER CORPORATION, 336 Tadewara, Fuji-shi, Shizuoka-ken, 416-8521, Japan, declare under our sole responsibility that the product, Heat Exchange Ventilator, to which this declaration relates is in conformity with the provisions of Council Directive 89/336/EEC Electromagnetic Compatibility and 73/23/EEC Low Voltage Directive.
