Summary of Contents for Toshiba F-DSB35HK

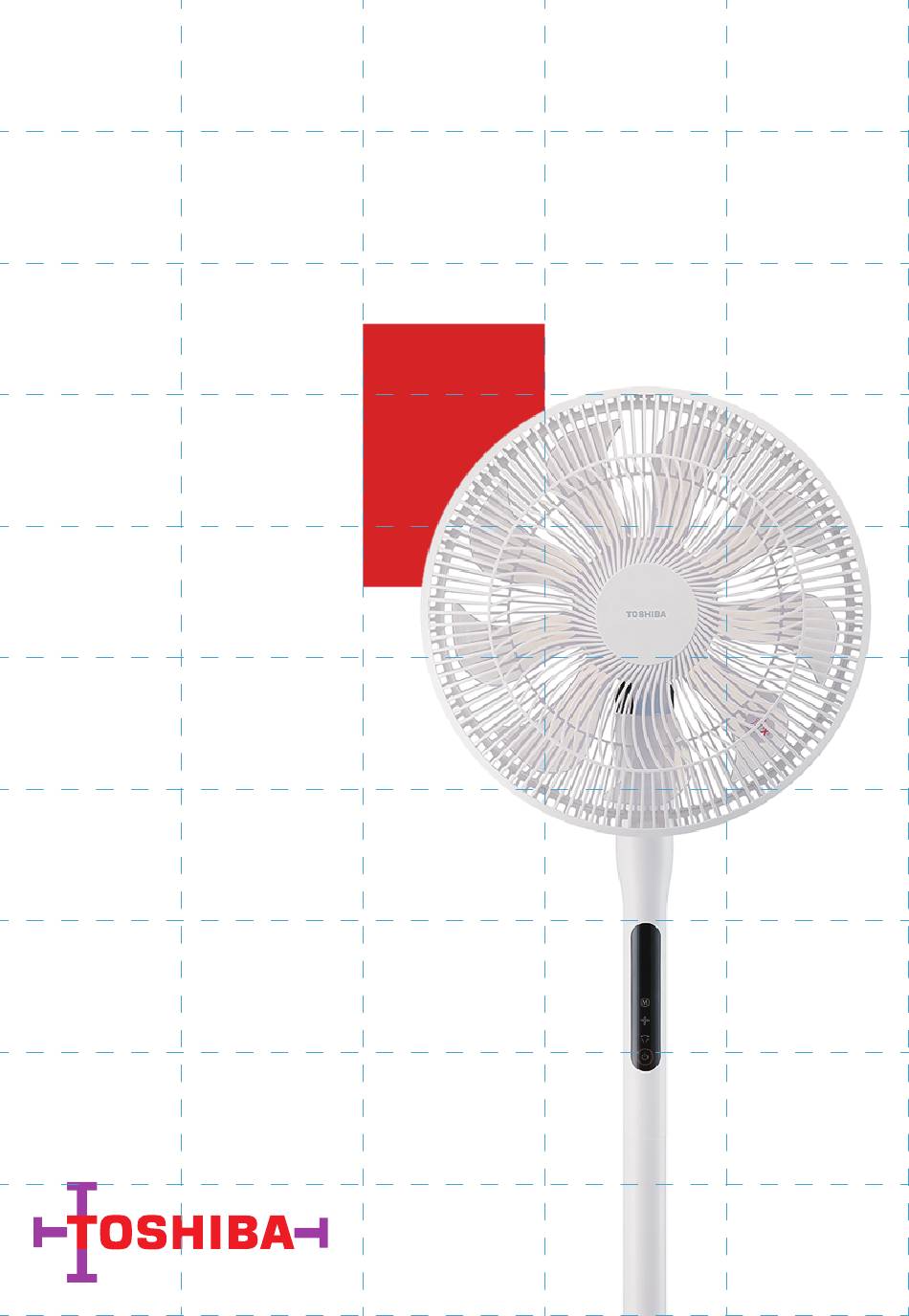

  • Page 1 使用說明書 電風扇 F-DSB35HK(W)
  • Page 3: Table Of Contents

    目錄 ........................... 安全注意事項 ............................產品簡介 ............................安裝說明 ............................使用說明 ............................產品參數 ............................清潔保養 ............................故障排除 非常感謝您購買東芝電風扇。 • 為了正確、安全地使用本風扇,請在使用前仔細閲讀本用戶手冊,並充分理解其內容。 • 請妥善保管本用戶手冊, 以備於將來參考之用。...
  • Page 5 •...
  • Page 7: 產品簡介

    產品簡介 各部件名稱 網罩索母 電機 風葉索母 機身 後網罩 立柱管 風葉 前網罩 底盤 墊片 螺絲...
  • Page 8: 安裝說明

    安裝說明 安裝準備 注意 安裝前,請先從機頭螺紋上逆時針旋轉網罩索母並將其取出。 底盤安裝 將立柱管和底盤對位卡穩,並用螺絲和墊片固定。 凹 對位 凸 機身與立柱管安裝 先將機身與立柱管的孔位對準,然後順時針旋轉進行固 定。 後網罩安裝及鎖定 將機頭和後網罩對位,掛上並用網罩索母鎖定。 凸對凹 順時針旋緊以固定後網罩...
  • Page 9 安裝說明 風葉安裝及鎖定 將風葉和電機軸對位並穿上, 再用風葉索母鎖定風葉。 凸位對準 風葉凹位 逆時針旋緊 以鎖定風葉 前網罩安裝及固定 找准前網罩卡扣,東芝標誌擺正。 東芝標誌擺正 前網罩卡穩後網 雙手按順序按壓網罩,聽到“啪”一聲, 卡扣 即安裝到位, 並固定螺絲。 自扣式安裝 網扣...
  • Page 10: 使用說明

    使用說明 機身操作說明 顯示區 操作區 功能 操作說明 1. 關機狀態下短按,進入開機狀態。 2. 開機狀態下短按,進入關機狀態。 調節風速。 設定搖頭操作, 短按搖頭 一 (60°) → (停止) → 二 (90°) → (停止) → 三 (120°) → (停止) 循環。 切換風類模式, 按正常風→ AI風→睡眠風 循環。 1. 開機狀態下, 顯示當前風速; 搖頭設定下, 顯示搖頭檔位; 設定定時關機時, 顯示關 機時間。 2.
  • Page 11 使用說明 機身操作說明 調節風向的時候 …… 左右調節 上下調節 約 90° 約 5° 約 60° 約 60° ※調節時請注意不要把手指夾到可動部分。 調節高度的時候 …… 請先從插座拔下適配器插頭,切斷電源。 請一邊轉動高度調節杆,一邊拿著支柱進 行調節。 高度調節杆 (為了安全,操作力度 稍微變強了)。 ※ 調解時請注意不要把 手指夾到可動部分。...
  • Page 12 使用說明 遙控器按鍵說明 遙控器在產品正面5米內,左右角度在30度範圍內正常使用。 電池中含有許多重金屬和酸堿等物質,威脅人類健康; 廢舊電池應分類回收。 開/關機 開啟或停止 搖頭送風 切換風類模式 開啟/關閉AI風 調整風速或 設定定時關機/ 定時時間 預約開機 電池 功能 操作說明 設定搖頭操作, 短按搖頭 一 (60°) → (停止) → 二 (90°) → (停止)->三 (120°) → (停止) 循環。 1. 開機狀態下短按,設定定時關機狀態, 或者調節定時時間, 最高設定8小時。 2. 關機狀態下短按,設定預約開機狀態, 或者調節定時時間, 最高設定8小時。 1.
  • Page 13: 產品參數

    產品參數 型號 輸入 工作電壓 額定功率 噪音 待機功率 產品尺寸 (mm) 100-240V~ F-DSB35HK(W) 400x370x1080~1180 50/60Hz 1.5A 清潔保養 請勿自行修理電風扇。如果需要維修,請把它交給有資質的維修人員。 1. 在清潔和組裝之前,必須拔下風扇的電源線。 2. 為確保電機有充分的通風,請確保電機背面的通風孔沒有灰塵。請勿拆 卸風扇以清除灰塵。 3. 請用軟布蘸中性清潔劑擦拭外部部件。 4. 請勿使用任何有研磨性清潔劑或溶劑,以免刮傷表面。請勿使用以下任 何一種清潔劑:汽油、稀釋劑。 5. 請勿讓水或任何其他液體進入電機外殼或內部零件。 6. 塑膠部件應使用蘸有中性肥皂液的軟布清潔。用乾布徹底清除肥皂膜。 故障排除 • • • • • • •...
  • Page 15 INSTRUCTION MANUAL Stand fan F-DSB35HK(W)
  • Page 17 SPECIFICATIONS..............................10 CLEANING ANDMAINTENANCE ........................10 TROUBLESHOOTING............................10 Thank you very much for purchasing Toshiba electric fan. • In order to use this fan correctly and safely, please carefully read this instruction manual to fully understand the content before using it. • Keep this owner’s manual in a handy place for future reference..
  • Page 18: Safety Instructions

    SAFETY INSTRUCTIONS Safety precautions Always follow these instructions! This manual provides instructions that must be observed when using the fan in order to prevent danger to the user, other persons, and property. CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly quali ed person in order to avoid a hazard.
  • Page 19 SAFETY INSTRUCTIONS 1. Never insert ngers, pencils, or any other object through the grille when fan is running. 2. Do not place the fan near the window, or the rainy day may cause electric shock. 3. Household use only. NOTE •...
  • Page 20 SAFETY INSTRUCTIONS Matters that may cause minor injury or property damage Before use, please check whether the voltage used is the same Warning as the voltage marked on the product. When you leave the machine or when the machine is not in use, Warning turn o the power and unplug the power plug to avoid circuit failure and accidents.
  • Page 21: Product Introduction

    PRODUCT INTRODUCTION Parts name Grille lock nut Motor Blade lock nut Body Rear grille Blade Pole Front grille Base Screw washer Base screw...
  • Page 22: Installation Instruction

    INSTALLATION INSTRUCTION Preparation for installation ATTENTION Before installation, please rotate the grille lock nut counterclockwise from the head thread and take it out. 1 Assembly of base Align the pole and the base and secure them with base screw and screw washer.
  • Page 23 Tighten counterclockwise to lock the blade 5 Assembly and lock of front grille Locate the front grille buckle and align the Toshiba logo. Place the Toshiba logo properly The front grille snaps Press the grille in order with both hands...
  • Page 24: Operating Instruction

    OPERATING INSTRUCTION Instructions for Operation of Body Display area Operation area Function Operation instruction 1. In power o state, press it to enter the power on state. 2. In power on state, press it to enter the power o state. Adjust wind speed.
  • Page 25 OPERATING INSTRUCTION Instructions for Operation of Body When adjusting the wind direction Adjust left Adjust up and and right down About 90° About 5° About 60° About 60° ※ Please be careful not to get your ngers caught in the movable part when adjusting. When adjusting the height Please unplug the adapter from the socket rst and cut o the power supply.
  • Page 26: Instructions For Remote Control

    OPERATING INSTRUCTION Instructions for Remote Control Note • The remote control should be normally used within 5 meters of the front of the product and 30° of the deviation angle. • The battery contains many heavy metals, acids and bases, etc., which may threaten human's health.
  • Page 27: Specifications

    Rated Voltage Rated power (W) Noise dB(A) Model Rated input Unit Dimensions 100-240V~ F-DSB35HK(W) 400x370x1080~1180 50/60Hz 1.5A CLEANING ANDMAINTENANCE The fan requires little maintenance. Do not try to repair it by yourself. Refer it to qualified service personnel if service is needed.
  • Page 28 Matter Details...
