Guardian Battery Charger Series
Installation and Operations Manual
00-02-0615
02-29-08
Section 75

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BCEG-12-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Murphy BCEG-12-10

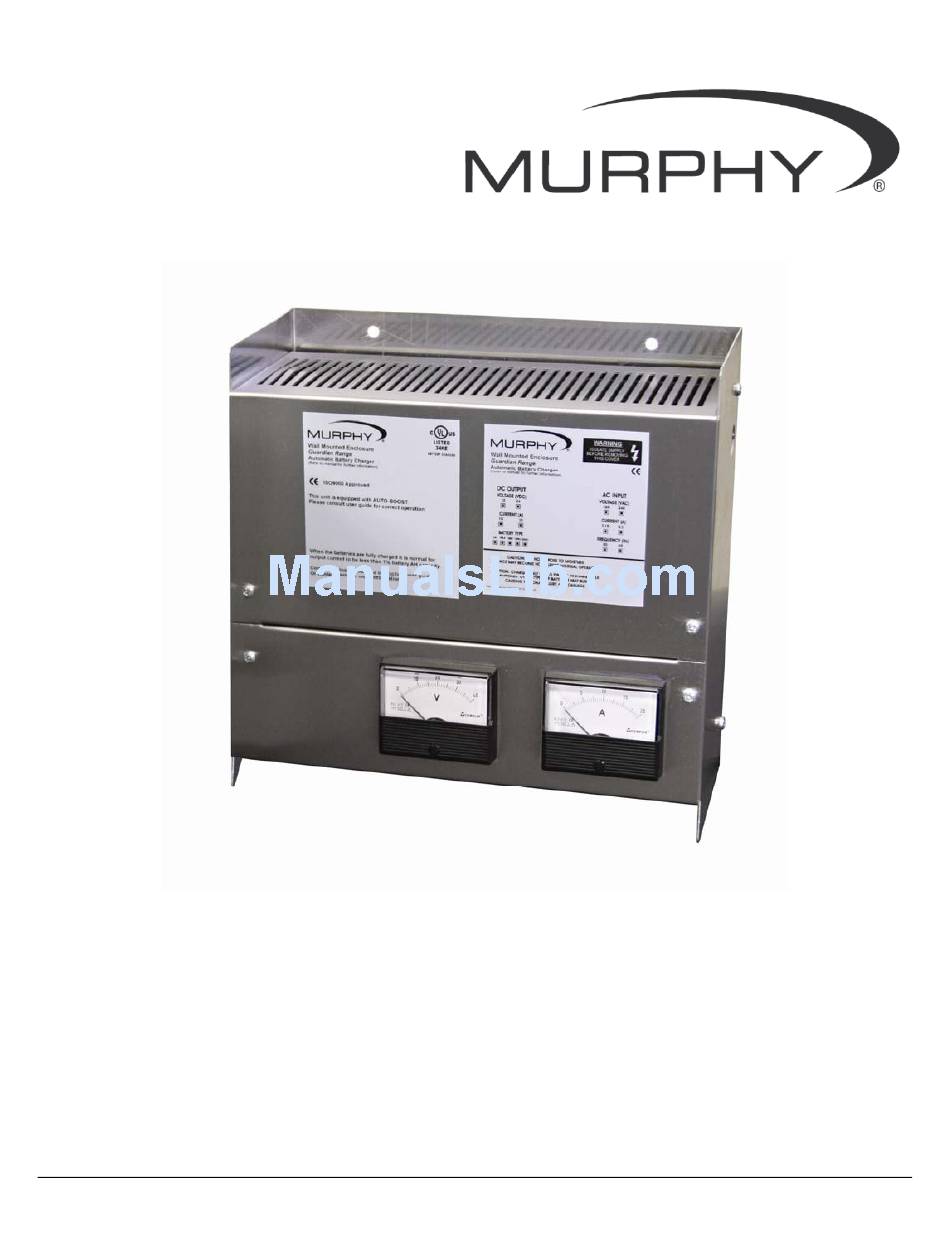

  • Page 1 Guardian Battery Charger Series Installation and Operations Manual 00-02-0615 02-29-08 Section 75...
  • Page 2 The latest version of this manual can be found at www.fwmurphy.com. Warranty A limited warranty on materials and workmanship is given with this FW Murphy product. A copy of the warranty may be viewed or printed by going to www.fwmurphy.com/support/warranty.htm Please read the following information before installing.
  • Page 3: Table Of Contents

    Operating Instructions ... 7 Terminal Connection Information ...7 Troubleshooting... 10 Measuring Charging Voltage and Current ...11 Output Voltage ...11 Using Correct Size Battery Charger ...12 Factors Contributing to Electrolyte Loss...12 Battery Life ...12 Specifications... 14 Power Supply ...14 DC Charge Output ...14 Charge Fail Output...14...
  • Page 4 NOTES...
  • Page 5: Safety Instructions

    • Switch on unit at electrical supply. • Do not expose charger to rain or snow. • Use of an attachment not recommended or sold by the battery charger manufacturer may result in risk of fire, electric shock, or injury to persons.
  • Page 6: Personal Precautions

    • Use charger only for charging batteries as marked on the charger. Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage to property.
  • Page 7: Charger Location And Connection

    • Never allow battery acid to drip on charger when reading specific gravity or filling battery. • The battery charger should be connected to a grounded, metal, permanent wiring system. • Connections to battery charger should comply with all local codes and ordinances.
  • Page 8: General Product Information

    General Product Information Please read the following information before installing. A visual inspection of this product for damage during shipping is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product. The Guardian charger provides automatic, current limited and voltage controlled charging of vented lead acid batteries.
  • Page 9: Current Limiting

    Current Limiting The Guardian battery charger is current limited and will only output the rated current of the charger. Guardian Current Ratings Model Rating BCEG-12-10 BCEG-24-10 BCEG-24-20 Battery Charged Condition When charged, the battery will only accept a charge to replace the losses within the battery (approximately 1mA per AH of battery).
  • Page 10: Installation And Mounting Instructions

    Installation and Mounting Instructions Mounting hole dimensions: Width (between holes) – 6.77” (172mm) Height (between holes) – 10.04” (255mm) Mounting holes 0= 0.2” (6mm) • The charger must be mounted as shown in the figure above. By unscrewing the mounting screws the faces can be opened on their hinges to allow access to the internal connections.
  • Page 11: Operating Instructions

    Operating Instructions Before operating the battery charger, ensure that the charger is assembled and installed as per the installation instructions. WARNING: DANGER OF INJURY OR DEATH Before connection, disconnection or handling of Guardian battery charger, be sure AC power supplies are off.
  • Page 12 The BCEG-12-10 and BCEG-24-10 models are fitted with a self-resetting polyfuse on the DC output. If reverse polarity or short circuit faults occur, turn off AC power and disconnect the outputs. This will allow the polyfuse to reset. The charger can then be re-connected and switched back on.
  • Page 13 Over Voltage, Under Voltage, and Charge Fail Connection In a de-energized state the COM – N/C contact is alarmed. The relay energizes on power up and changes state to COM – N/O. These contacts are volt-free contacts rated at 1A @ 30VDC.
  • Page 14: Troubleshooting

    Troubleshooting Section 75 00-02-0615 02-29-08 - 10 -...
  • Page 15: Measuring Charging Voltage And Current

    Measuring Charging Voltage and Current To check the charger is working, follow these steps then consult the expected conditions listed below. 1. VOLTAGE – Place voltmeter across battery terminals (“V” in diagram). 2. CURRENT – Turn off AC power supply before breaking into the line to measure DC Amps.
  • Page 16: Using Correct Size Battery Charger

    Using Correct Size Battery Charger The battery charger will need to provide both the standing load and minimum charge current. If a charging current of 2 amps is required, and the standing load is 1 amp, then the charger needs to be able to output a total of 3 amps.
  • Page 17 NOTE: On this method, providing batteries have been sized correctly for engine and charged correctly, an open terminal voltage of 12.5V or greater should be present. The following table is for Lead Acid batteries with removable vent caps that can have electrolyte or distilled water added to them for routine maintenance.
  • Page 18: Specifications

    • Operating temperature - +14°F to +131°F (-10°C to +55°C) • Wall mounted enclosure models • BCEG-12-10, BCEG-24-10 – dimensions 10.9”/278mm(W) x 4.7”/120mm(L) x 11”/280mm(H); weight 22 pounds / 10.0Kg • BCEG-24-20 – dimensions 11.8”/300mm(W) x 11.8”/300mm(L) x 8.3”/210mm(H), weight 38.5 pounds / 17.5Kg...
  • Page 19 Murphy Industries, Inc., with all rights reserved. (c) 2007 Murphy Industries, Inc. Other third party product or trade names referenced herein are the property of their respective owners and are used for identification purposes only.
