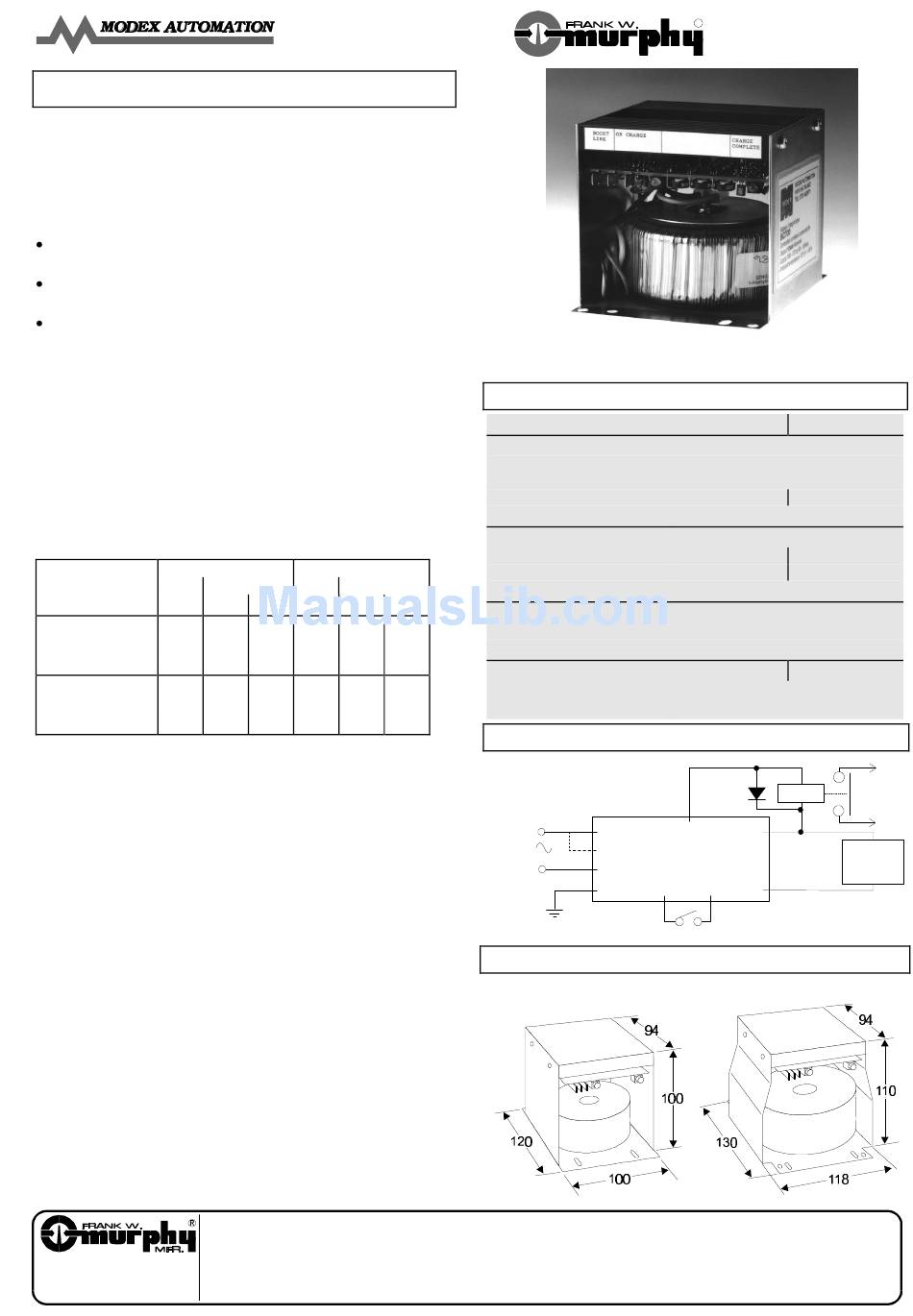

Murphy Modex BC700 Series Product Specifications

BC700/701 series
AUTOMATIC BATTERY CHARGERS
3 AMP CONSTANT CURRENT
The Modex range of 3 Amp constant current chargers
provide for the fully automatic monitoring and charging of
standby diesel generator battery packs.
The advantages of this type of charger are primarily:–
Rapid recovery of battery charge, equivalent to a
considerably higher rating 'taper' type charger.
Protection from overcharging. The unit switches off
automatically once the batteries are fully charged.
Prolonged battery life, from the reduction of gassing
and continual exercising of the cells.
When connected, the charger measures the battery
terminal voltage. If this is below a pre-calibrated threshold,
the unit outputs a series of charge pulses to the battery,
regulating the average current to a constant 3 Amps.
Between charge pulses, the BC700 continues to monitor
the battery terminal voltage. When the measured voltage
has climbed to a suitable threshold the charger turns off,
allowing the battery to decay back to the lower voltage
threshold before the cycle is repeated. The 'switch off'
and 'switch on' voltage thresholds are factory calibrated
according to the type of battery used:–
BC700 (12 V)
Lead
Calibration: Acid
Normal operation:
Switch on, VDC
12.6
Switch off, VDC
13.7
Boost operation:
Switch on, VDC
14.9
Switch off, VDC
15.7
The rate of the charge/decay cycle depends on the
capacity and condition of the battery and the static load
across it (the charger itself presents negligible load).
The 'boost' mode of operation may be selected by
linking two terminals, either through a remote panel
switch, relay or timer. This increases the switch on and
switch off voltage thresholds, and may be used for short
periods to increase the battery charge level.
The charge cycle state is indicated by two LEDs:
amber for 'on charge' and green for 'charge complete'.
Two –ve DC (open collector transistor) outputs are provided
for the remote signalling of 'on charge' and 'charger fail'
conditions.
The BC700 series uses an open-chassis, metal cased
design, suitable for bolt or stud mounting in an enclosed
panel. Electrical connection is by ¼" blade terminals on
the main PCB.
When ordering, please specify:–
a) Product type: BC700 (12V) or BC701 (24V)
b) Battery type: lead acid, or number of Ni-Cd cells,
or special calibration requirements
Accessories:–
CVT502/506 Battery voltage trips, DIN rail mounted
CVT102/106 Battery voltage trips, 11 pin plug-in
Frank W. Murphy Ltd.
Church Road, Laverstock, Salisbury U.K.
Tel: + 44 1722 410055 Fax + 44 1722 410088
Since 1939
Pour service en Français, tél: + 44 1722 410697
Frank W. Murphy Manufacturer
email: sales@fwmurphy.co.uk
PO Box 470248, Tulsa, Oklahoma 74147, USA
web: http://www.fwmurphy.co.uk
Tel: + 1 918 627 3550 Fax: + 1 918 664 6146
email: sales@fwmurphy.com
web: http://www.fwmurphy.com
The Generator Controls Division of
BC701 (24 V)
Ni-Cd Lead Ni-Cd
9 cell 10 cell Acid 18 cell 20 cell
12.3 13.8 25.4 24.7
13.2 14.8 27.4 26.6
13.6 15.0 29.5 27.2
14.5 15.9 31.5 28.9
Frank W. Murphy Ltd. en France
Incorporating Modex Automation
Tel: +33 (1) 30 76 26 26 Fax: +33 (1) 30 76 39 89
Direct usine Tel: + 44 1722 410697
email: sales@fwmurphy.co.uk
Frank W. Murphy Pte, Ltd.
No. 2 Tuas South Street 2, Sprintecs Building
02-01/02, Singapore 637895
Tel: + 65 863 1398 Fax: + 65 863 0208
email: fwmsales@fwmurphy.com.sg
Product Specifications
Power supply:
Nominal voltages
Voltage ranges
Frequency range
Power consumption
DC charge output:
Charge current
Switch off threshold range
Switch on/off hysteresis
Charge fail output:
Type/rating
27.6
General:
29.5
Weight
Ambient temperature range
EMC emission/immunity
29.9
31.9
Connection
AC
supply
Dimensions (mm)
BC700
Frank W. Murphy Southern Division
PO Box 1819, Rosenberg, Texas 77471, USA
Tel: + 1 281 342 0297 Fax: + 1 281 341 6006
email: sales@fwmurphy.com
Murphy Switch of California
PO Box 900788, Palmdale, California 93590, USA
Tel: + 1 805 272 4700 Fax: + 1 805 947 7570
email: sales@murphyswitch.com
web: http://www.murphyswitch.com
R
BC700
110 or 230 V AC (pin selectable)
95 – 135 V AC or 190 – 270 V AC
45 – 65 Hz.
< 80 VA
3 Amps
13.0 – 15.9 V DC
approx. 1 V DC
– ve DC (open collector transistor)
max. 150 mA @ 33 V DC
approx. 1.75 kg
–10 to +55
to EN50081-2/EN50082-2
+
Charge
230V
Fail
110V
BC700/701
N
–
Boost
E
Boost switch/timer
BC701
Murphek Pty. Ltd.
1620 Hume Highway, Campbellfield, Vic. 3061 Australia
Tel: + 61 3 9358 5555 Fax: + 61 3 9358 5558
email: murphy@macquarrie.com.au
Murphy de Mexico S.A. de C.V.
Blvd. Antonio Rocha Cordero 300, Fracción del Aguaje
San Luis Potosí, S.L.P. México 78384
Tel: + 52 48 206264 Fax: + 52 48 206336
email: murmexsl@sanluis.podernet.com.mx
M020101
Issue 4, revised 07/98
Catalogue section 75
BC701
< 160 VA
26.1 – 31.9 V DC
approx. 2 V DC
approx. 2.55 kg
o C
charge
RCF
fail
+
battery
–
