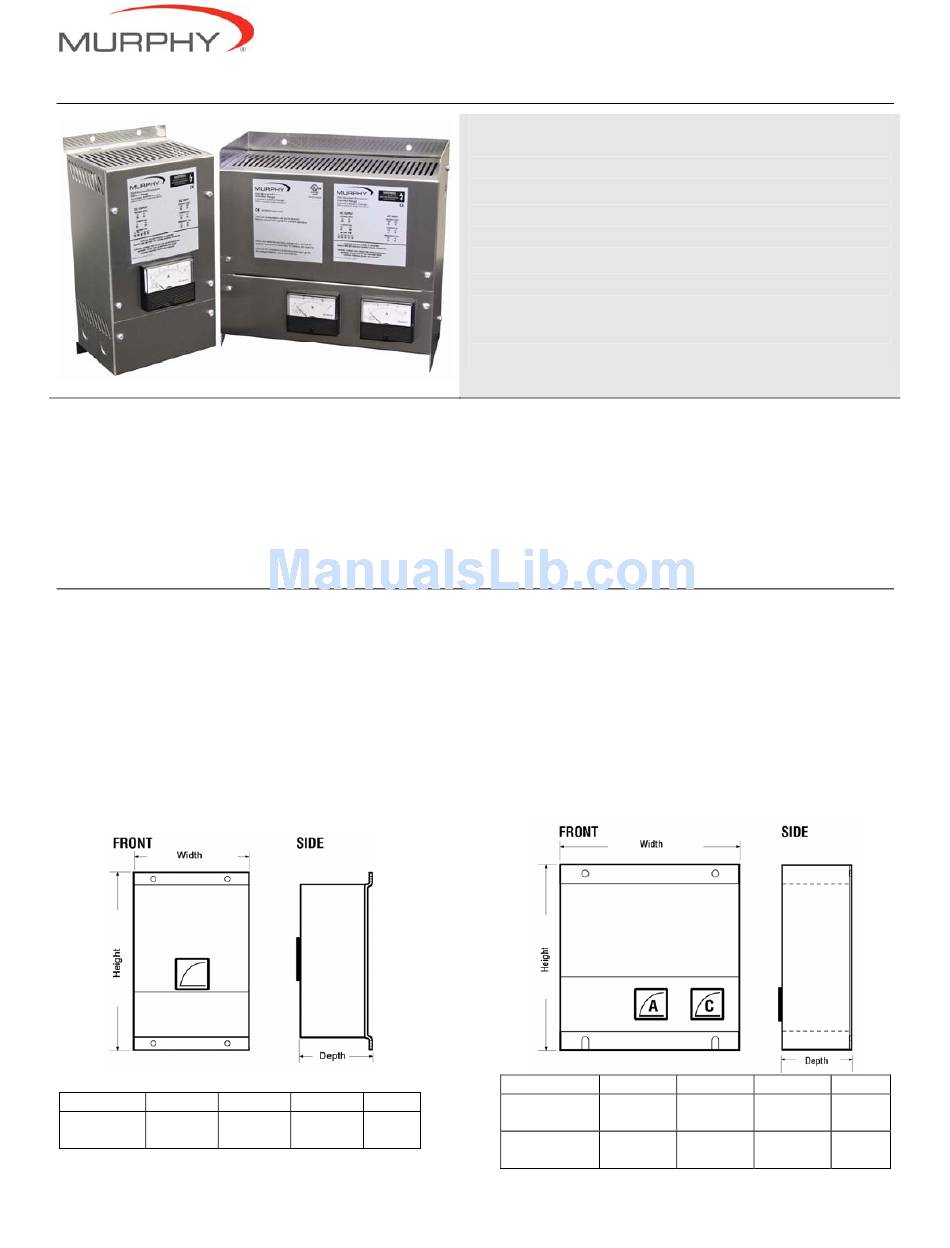

Murphy BCES-12-5 Specifications

Battery Chargers – Sentry and Guardian Models
The Sentry and Guardian battery chargers provide automatic, current limited and voltage controlled
charging to vented lead acid batteries. They may be used in a wise range of industrial charging
applications, including standby engines, pumps and generators.
Each unit consists of a transformer, rectifier and thyristor control circuit. The control circuit ensures that
the charger maintains a battery voltage at the pre-calibrated float level, while supplying any additional
load current up to the specified maximum.
Sentry Model
•
CE and UL approvals
•
Float Charging 5A at 12v
•
Auto boost operation
•
Electronic self-resetting output fuse protection
•
Temperature compensation
•
Charge fail relay output
•
Stainless steel enclosure
Model W
BCES-12-5 11.1"
(281mm) (115mm)
In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time.
MURPHY and the Murphy logo, are registered and/or common law trademarks of Murphy Industries, Inc. This document, including textual matter and
illustrations, is copyright protected by Murphy Industries, Inc., with all rights reserved. (c) 2007 Murphy Industries, Inc.
D H Weight
4.6" 5.5" 11.9 lbs
(140mm) 5.6Kg
Features
•
High-quality constructed stainless steel cases,
suitable for wall mounting
•
Auto boost operation provides increased
output voltage when batteries are below a
preset point
•
Remote temperature compensation provides
control of output voltage based on temperature
•
Current limiting will only output the rated
current of the charger
Guardian Model
•
CE and UL approvals
•
Heavy duty float charging: 10A at 12/24 VDC,
20A at 24 VDC
•
Short circuit and reverse polarity protection
•
Lead acid calibrations
•
Auto boost operation
•
Charge fail relay output
•
Under volts and over volts alarms
•
Temperature compensation
•
NFPA 110 alarms
Model W
BCEG-12-10 10.83"
BCEG-24-10 (275mm)
BCEG-24-20 13.9"
(335mm)
0710182
02-29-08
Section 75
D H Weight
4.92" 11" 22 lbs
(125mm) (280mm) 10.0Kg
5.71" 12.20" 38.5 lbs
(145mm) (310mm) 17.5Kg
