HOW TO USE THIS INSTRUCTION MANUAL
These instructions are separated
A
into main sections, indicated by
numbers, and subsections,
indicated by capital letters. The
manual is set-up this way to 2
allow you to take a break at any
point after completing a section
or subsection without affecting
Property Damage: Do not pinch or break copper tubing.
the installation process.
Do not distort the last 25mm of tubing.
Provides a step-by-step narrative describing the installation step, with tick boxes that can be marked as you
1
progress through the installation.
2 Contains simple illustrations that provide visual instruction to support the narrative.
3 CAUTIONS and WARNINGS that will require your attention during the step.
A potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Caution, used with the safety alert symbol, indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
Caution, without the safety alert symbol, is used to address practices not related to
personal injury.

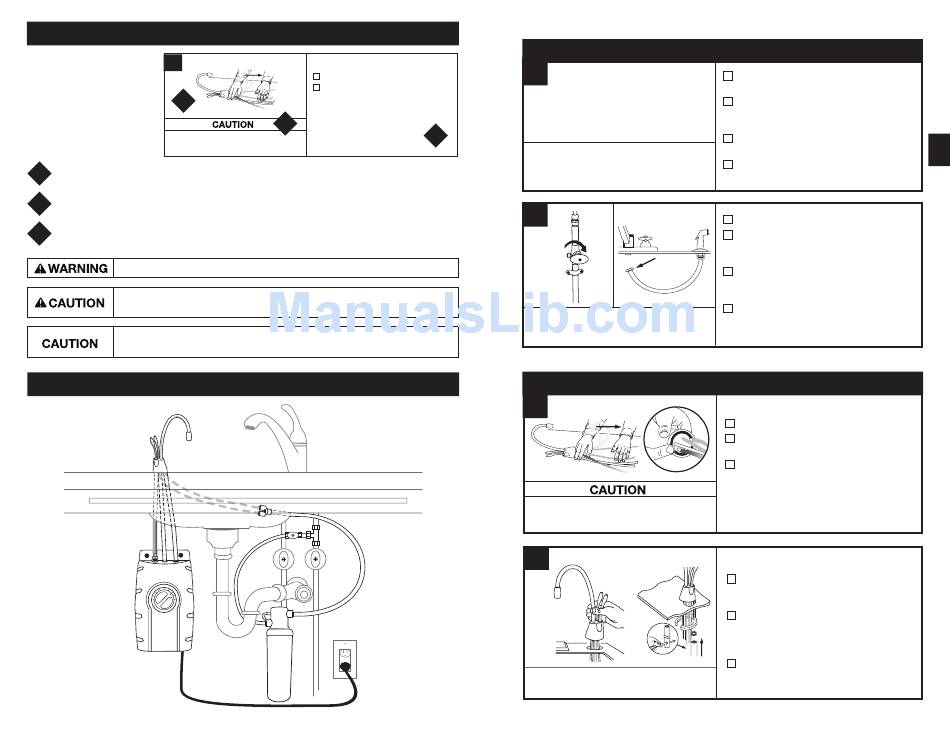

OVERVIEW OF A COMPLETED SET-UP
HC1100/GN1100
I
Unpack hot water tap components.
I
On a firm, flat surface, carefully
straighten the copper tubing.
3
1

START HERE

PROPER INSTALLATION SHOULD TAKE ABOUT 2-4 HOURS
1
PREPARATION
A
Required minimum from centre of hole to wall
HC3300 ............. 64mm
H3300 ............... 64mm
HC1100 ............. 67mm
GN1100 ............. 83mm
Maximum counter thickness is 76mm.
The wall outlet for the tap must have power
supplied to it continuously and must be fused.
It should not be controlled by the same wall
switch that operates the food waste disposer.
B
If you have to drill through sink or
worktop, you may need to rent or
purchase the appropriate tools.
2
INSTALLING THE TAP - HC1100/GN1100
A
Property Damage: Do not pinch or break copper tubing.
Do not distort the last 25mm of tubing.
B
An assistant may be needed to hold
the tap in place while securing.
I Identify locations for the tap, tank and
filter (if applicable).
I
Check to make sure there is proper
clearance (see chart at left) for tap
handles to be fully opened.
I
Check to make sure counter is not too
thick (see chart at left).
I
Make sure there is an earth (grounded)
electrical outlet under the sink.
I
Turn off water supply.
I If using the sink sprayer hose hole,
remove nut that connects sprayer hose
at bottom of tap.
I
Using adjustable spanner, remove nut
connecting sprayer washer flange in
sprayer hole.
I
Close hose opening with either a plug
or a cap (not supplied).
HC1100/GN1100
I
Unpack hot water tap components.
I
On a firm, flat surface, carefully
straighten the copper tubing.
I
Ensure that the black O-ring is properly
seated in the base of the tap head (the
groove on the underside of the tap).
HC1100/GN1100
I Feed tubes down through the hole
in the sink or countertop until the base
is at rest.
I
From under the sink, place the
semi-circular mounting plate and hex
nut onto the threaded stud. Ensure tap
head is at desired angle.
I
Insert screwdriver into hole on side of
hex tool (creating a "T"), and use tool
to tighten nut and secure tap.
