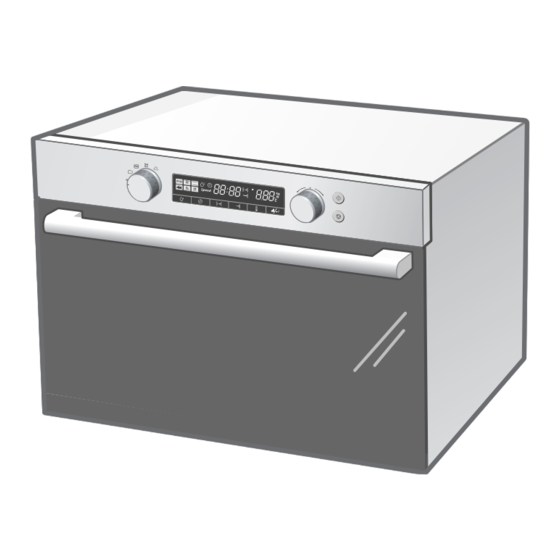

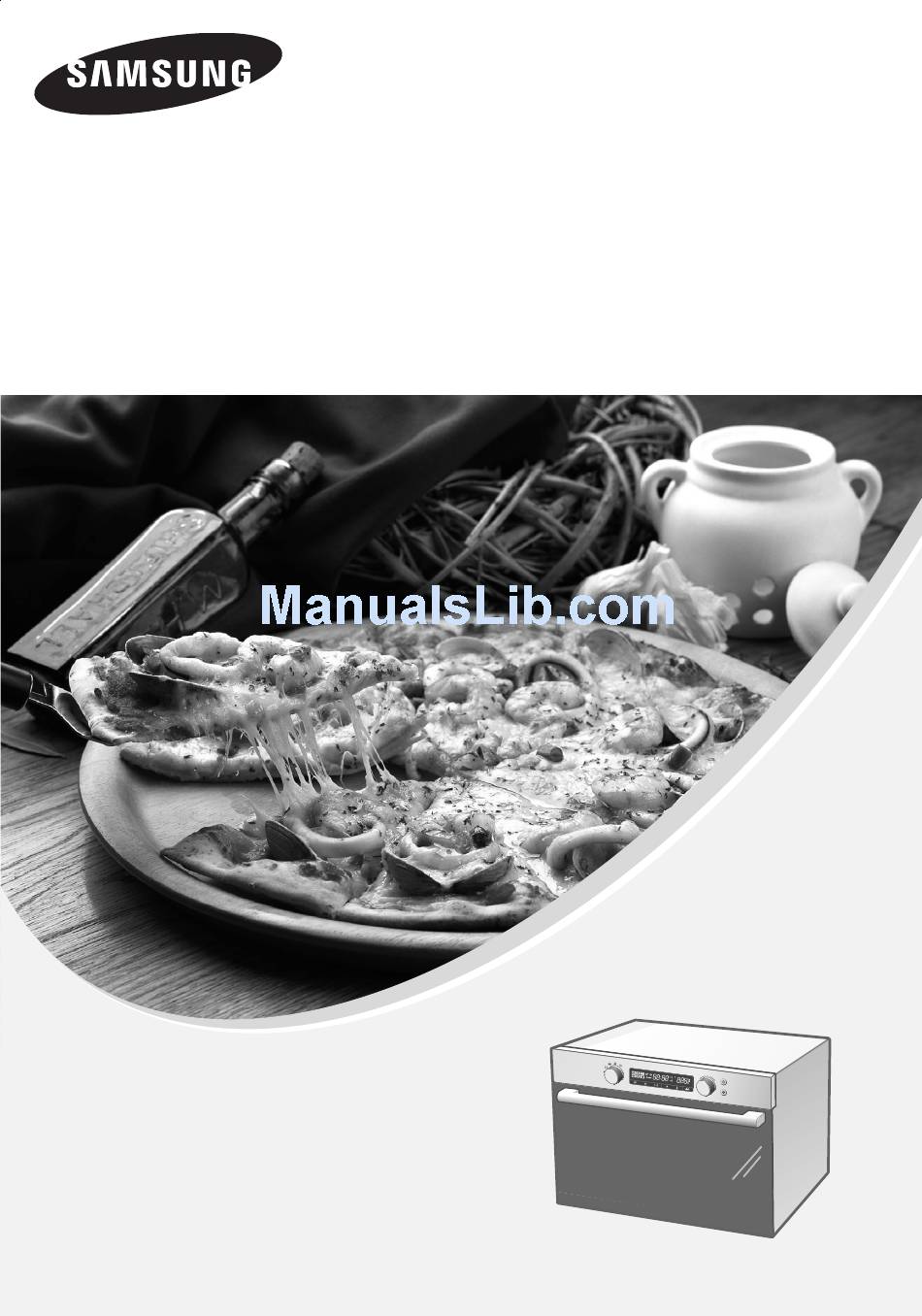

- Page 1 Operating Instructions and Cooking Guide SPEED COOK OVEN CQ1570-B / CQ1570U-B Owner’s Manual...
-
Page 3: Table Of Contents
Contents Using This Manual ............4 Important Safety Instructions . -
Page 4: Using This Manual
Using This Manual Thank you for purchasing a SAMSUNG speed cook oven. Your Owner’s Manual contains important safety instructions and essential information on using and caring for your new speed cook oven. Before using your oven, please read all the information in this manual and keep it for future reference. - Page 5 Important Safety Instructions (Continued) Read carefully and keep for future reference. Before cooking food or liquids in your oven, please check that the following safety precautions are taken. 1. DO NOT use any metallic cookware when using microwave function: ● Metallic containers ●...
- Page 6 Important Safety Instructions (Continued) 8. Take particular care when heating liquids and baby foods using microwaves function. ● ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to equalize. ●...
- Page 7 Important Safety Instructions (Continued) 13. If the microwave mode is operating without any load, the power will cut off automatically for safety. After standing for over 30 min, you can operate the oven normally. ● Do not worry if the oven continues to work after cooking has finished. Reason This product is designed to run the cooling fan for 5 minutes after the cooking has finished to cool down internal electronic parts.
-
Page 8: Installing Your Microwave Oven
Installing Your Microwave Oven This microwave oven can be placed almost anywhere (kitchen work surface or shelf, movable trolley, table). When you install your oven, make sure there is adequate ventila- tion for your oven by leaving at least 10 cm (4 inches) of space behind, and on the sides of the oven and 20 cm (8 inches) of space above the oven and 85 cm (33 inches) of the floor. -
Page 9: Setting The Clock
Setting the Clock When the appliance is first plugged in, the DISPLAY lights up. After three sec- onds, the Clock symbol and “12:00” blink on the DISPLAY. Setting the Clock Press CLOCK . The “12” starts Turn MULTI-FUNCTION SELECTOR blinking. to set hour. -
Page 10: Oven Features
Oven Features Contro Panel Top Heating Elements Oven Light Level 5 Level 4 Oven Levels Level 3 Level 2 Microwave Level 1 Safety Door Lock Door Door Handle Note ● Shelf levels are numbered from the bottom up. ● The levels 4 and 5 are mainly used for grill function. ●... -
Page 11: Accessories
Accessories The following accessories are provided with your microwave oven: Ceramic Tray Two Baking Trays (Useful for Microwave Mode) (DO NOT use for Microwave Mode.) Grill insert Ceramic Tray Grill Insert for Ceramic Tray Oven Rack (Useful for Speed Menu and Grill (DO NOT use for Microwave Mode.) Mode) Rotisserie... -
Page 12: Control Panel
Control Panel 2 3 4 5 1. OFF 9. CLOCK 2. OVEN MODE 10. COOK TIME 3. SPEED MENU MODE 11. END TIME 4. SPEED DEFROST MODE 12. TEMPERATURE 5. MICROWAVE MODE 13. POWER LEVEL / ENTER 6. MODE SELECTOR 14. -
Page 13: Types Of Heating
Types of Heating The following chart summarizes the various heating modes and settings avail- able on your oven. Use the Cooking Guides in the pages that follow to determine the appropriate mode and setting for all your recipes. OVEN MODE Dual Convection Setting Food is heated by hot air from the left and right sides of the oven. -
Page 14: Using Oven Mode
Using Oven Mode Five settings are available under this mode. Check Cooking Guides on pages 14 - 21 to determine appropriate setting. Setting Oven Mode Turn MODE SELECTOR Dial to oven Turn MULTI-FUNCTION SELECTOR mode position. Dial to desired oven mode. The oven mode and recommended temperature will be displayed . - Page 15 Using Oven Mode (Continued) Press START. ► The TEMPERATURE indicator on display will be lit and the indicator will blink after the temperature is reached. Note 1) During cooking, COOK TIME and TEMPERATURE are available to change the setting. 2) In Oven Mode settings, the convection heater and top and bottom heating elements switch off and on throughout cooking to regulate the temperature.
-
Page 16: Dual Convection Setting
Using Oven Mode (Continued) Dual Convection ( ) Setting Food is heated by hot air from the left and right sides of the oven. This setting provides uniform heating and is ideal for baking. When you cook on two baking trays at the same time, place the trays on level , and level... -
Page 17: Convection + Top Heat Setting
Using Oven Mode (Continued) Convection + Top Heat ( ) Setting Hot air and top heating element combine, making this setting ideal for crisping and browning. This setting is especially recommended for cooking meats. When cooking meat, place on rack on Level and set baking tray on Level to catch drippings. -
Page 18: Conventional Heat Setting
Using Oven Mode (Continued) Conventional Heat ( ) Setting Heat comes from top and bottom heating elements. This setting is suitable for baking and roasting. Baking tray or oven rack is usually placed on Level *Please ensure that glass baking dishes are suitable for 40 ~ 250 °C cooking temperatures. Cooking Guide Use temperatures and times in this table as guidelines for baking. -
Page 19: Grill & Rotisserie Setting
Using Oven Mode (Continued) Grill & Rotisserie ( ) Setting Food is heated by the top heating elements. For grilling, ceramic tray with grill insert is usually placed on Level *Please ensure that glass baking dishes are suitable for 40 ~ 250 °C cooking temperatures. Cooking Guide Use temperatures and times in this table as guidelines for grilling. -
Page 20: Grill & Rotisserie Setting
Using Oven Mode (Continued) Grill & Rotisserie ( ) Setting Food is heated by the top heating elements. For grilling with the rotisserie, the rotis- serie holder is placed on level 5. The rotis- serie is placed in the holder, the central spit must be inserted in the slot in the back of the oven. -
Page 21: Convection + Bottom Heat Setting
Using Oven Mode (Continued) Convection + Bottom Heat ( ) Setting Hot air and the bottom heating element combine to heat food. This is a useful setting for crisping and browning. Baking tray or oven rack is often used on Level *Please ensure that glass baking dishes are suitable for 40 ~ 250 °C cooking temperatures. -
Page 22: Setting Cook Time
Setting Cook Time Select the desired oven function Press COOK TIME. and temperature. (See also section “Changing the oven function and temperature) Note If there is no further entry on the control panel for 5 seconds, start key will blink. Turn MULTI-FUNCTION SELECTOR Press START the oven will start to set desired cook time. -
Page 23: Setting End Time
Setting End Time Select the desired oven function and Press END TIME. temperature. The current time will be shown blinking on the DISPLAY. Example Current time is 13:00 The current time’s digit “13:00” will blink. Turn MULTI-FUNCTION SELEC- Press END TIME again. TOR to set desired hour and minute. -
Page 24: Cooking Time Reservation Function
Cooking Time Reservation Function Example: Current time : 12:00 Cook time : 2:00 you wish to end cooking at 18:00 Select Oven Mode and desired Select Cook Time and enter the function. desired cook time. (2:00) Press END TIME. Press END TIME. ►... -
Page 25: Using Speed Menu Mode
Using Speed Menu Mode Speed Menu Mode allows you to choose from twelve pre-programmed settings to conveniently cook, roast or bake your favourite foods. Cooking time and power level are automatically set. Simply select one of the twelve settings and set the weight to start cooking. -
Page 26: Guide To Auto Speed Menu Settings
Using Speed Menu Mode (continued) Guide to Auto Speed Menu Settings The following table presents 12 Auto Programmes for Speed Cooking, Roasting and Baking. It contains quantities, standing times and appropriate recommendations. These auto pro- grammes contain special cook modes, which have been developed for your convenience. Weight Shelf Food Item... - Page 27 Using Speed Menu Mode (continued) Weight Shelf Food Item Accessory Recommendation (kg) Level Marinate roast beef and put on grill insert, set on ceramic 0.7 - 0.8 tray with the fat side down. 0.9 - 1.0 Grill insert with Roast Beef Turn over as soon as the oven 1.1 - 1.2 ceramic tray...
-
Page 28: Using Speed Defrost Mode
Using Speed Defrost Mode Setting Speed Defrost Mode Choose from five pre - programmed microwave settings for defrosting. Defrosting time and power level are automatically set. Simply select the setting and weight to start defrosting. Open the door. Place the frozen food in the centre of the ceramic tray. Position is level 1. -
Page 29: Guide To Auto Speed Defrost Settings
Using Speed Defrost Mode (Continued) Guide to Auto Speed Defrost Settings The following table presents the various Auto Defrost programmes, quantities, standing times and appropriate recommendations. These programmes use microwave energy only. Remove all packaging material before defrosting. Place meat, poultry and fish on the ceramic tray. Food Weight Acces-... -
Page 30: How A Microwave Oven Works
How a Microwave Oven Works Microwaves are high - frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. You can use your microwave to: • Defrost • Cook Cooking Principle The microwaves generated by the magnetron are distributed uniformly by using a stirrer distribution... -
Page 31: Using Microwave Mode
Using Microwave Mode Microwaves are high frequency electromagnetic waves. In microwave cooking, microwave energy penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food. -
Page 32: Guide To Microwave Power Levels
Using Microwave Mode (Continued) Guide to Microwave Power Levels PERCENTAGE OUTPUT POWER LEVEL REMARK POWER (W) HIGH For heating up liquids. HIGH LOW For heating up and cooking food. MEDIUM HIGH For heating up and cooking food. MEDIUM For cooking meat and heating up delicate foods. -
Page 33: Microwave Cookware Guide
Using Microwave Mode (Continued) Microwave Cookware Guide Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves. Therefore, do not use cookware made of metallic materials. Cookware marked microwave - safe is always safe for use. - Page 34 Using Microwave Mode (Continued) MICROWAVE- COOKWARE COMMENTS SAFE Paper • Plates, cups, For short cooking times and warming. napkins and Also to absorb excess moisture. Kitchen paper • Recycled paper May cause arcing. Plastic • Containers Particularly if heat-resistant thermoplas- ...
-
Page 35: Microwave Cooking Guide
Using Microwave Mode (Continued) Microwave Cooking Guide GENERAL GUIDELINES Food Suitable for Microwave Cooking Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. - Page 36 Using Microwave Mode (Continued) COOKING GUIDE FOR FRESH VEGETABLES Use a suitable glass Pyrex bowl with lid. Add 30 - 45 ml cold water (2 - 3 tbsp) for every 250 g unless another water quantity is recommended (see table) Cook covered for the minimum time (see table) Continue cooking to get the result you prefer.
- Page 37 Using Microwave Mode (Continued) COOKING GUIDE FOR RICE AND PASTA Rice Use a large glass Pyrex bowl with lid. (Note that rice doubles in volume during cooking.) Cook covered. After cooking time is over, stir before letting stand. Add salt or herbs and butter. Note that rice may not have absorbed all water after the cooking time is finished.
- Page 38 Using Microwave Mode (Continued) REHEATING LIQUIDS Take special care when heating liquids. To prevent eruptive boiling and possible scalding, place a spoon or glass stick in the beverage. Stir during heating and always stir after heating. Allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out.
- Page 39 Using Microwave Mode (Continued) Time Standing Food Portion Instructions (Min) Time (Min) Meat Minced Beef 250 g 6 - 7 15 - 30 Place the meat on the ceramic plate. 500 g 10 - 12 Shield thinner edges with aluminium foil.
- Page 40 Using Microwave Mode (Continued) QUICK & EASY Melting Butter Put 50 g of butter into a small deep glass dish. Cover with plastic lid. Heat for 30 - 40 seconds using 900 W. Melting Chocolate Put 100 g of chocolate into a small deep glass dish. Heat for 3 - 5 minutes using 450 W.
-
Page 41: Switching Off The Beeper
Switching Off the Beeper The oven beeps at the end of cooking and “End” blinks 4 times on the display. To switch beeper off, press STOP / To switch beeper back on, press CANCEL ( ) and START ( STOP / CANCEL ( ) and START at the same time and hold for one ) again at the same time and hold... -
Page 42: Child Safety Lock
Child Safety Lock The oven’s Child Safety Lock allows you to lock the control panel to protect the oven against unintended use. To Lock Oven Press STEAM CLEAN and CLOCK at Lock symbol appears on DISPLAY the same time and hold for 3 seconds. indicating all functions locked. -
Page 43: Using The Steam Clean Feature
Using the Steam Clean Feature The Steam Clean feature allows you to sanitize your oven in just 15 minutes. Turn MODE SELECTOR to “Off” Press STEAM CLEAN. The oven will position. start automatically. ► Pour about 100 ml water onto the ►... -
Page 44: Cleaning Your Microwave Oven
Storing and Repairing Your Microwave Oven Repairs should only be made by a qualified service technician. If oven requires servicing, unplug the oven and contact the nearest Samsung Customer Service Center. When calling, please have the following information ready: The model number and serial number (Can be found at rear of the oven.) -
Page 45: Troubleshooting
Troubleshooting If you have problems with your oven, try the solutions suggested below. They may save you the time and inconvenience of an unnecessary service call. Food remains uncooked. ● Ensure timer has been set correctly and START button pressed. ●... -
Page 46: Error Codes
Error Codes Error Code General Functions TEMP SENSOR OPEN In case the value of the temperature sensor is more than 250 °C during operation / cancellation. TEMP SENSOR SHORT In case the value of the temperature sensor is less than 5 °C during operation / cancellation. -
Page 47: Technical Specifications
Technical Specifications “ Samsung strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change with- out notice. ” Model CQ1570-B / CQ1570U-B Power Source 230 V ~ 50 Hz... - Page 48 Code No.: DG68-00015D...
