EN

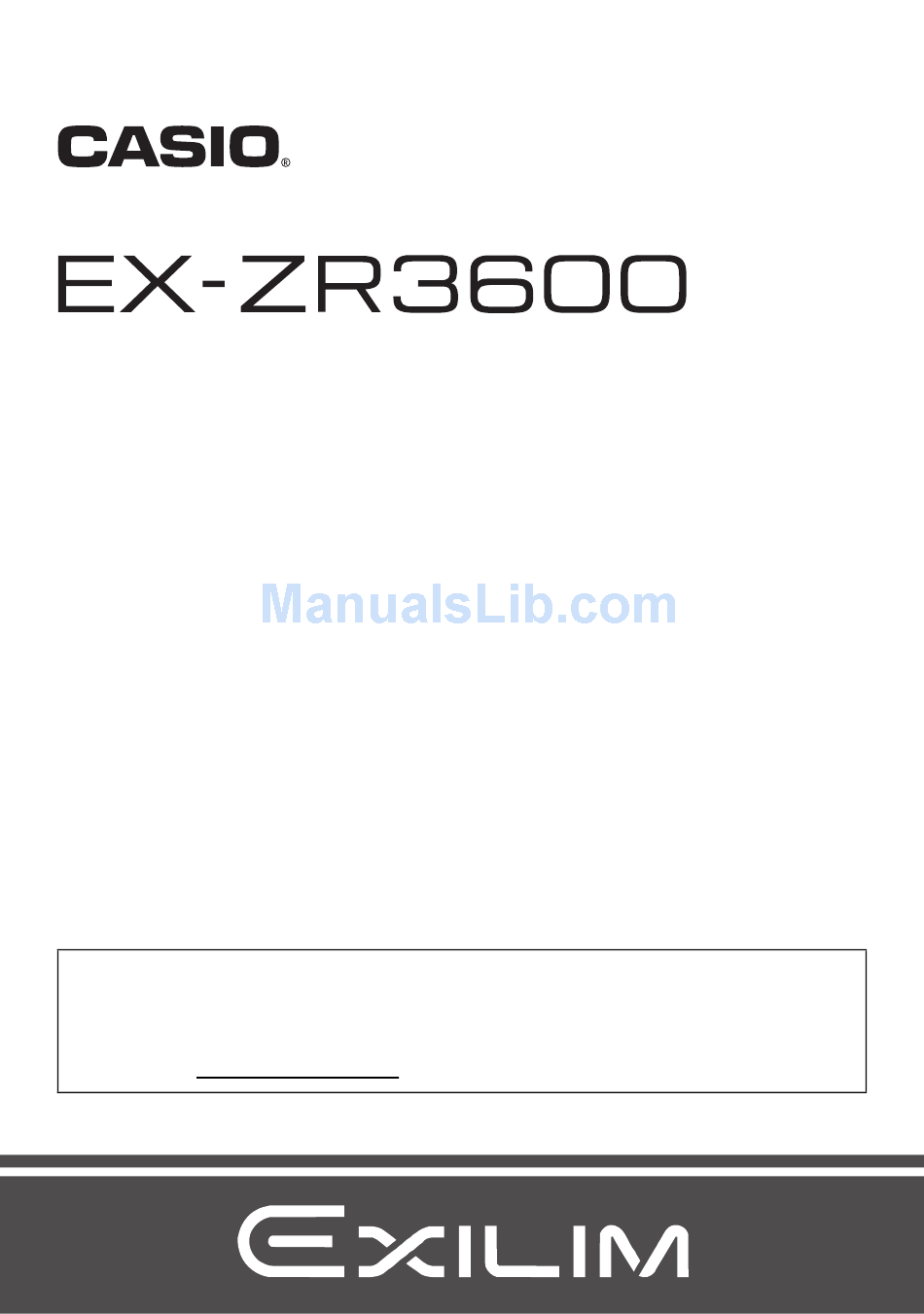

Digital Camera

User's Guide
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions contained in this User's Guide.
• Keep the User's Guide in a safe place for future reference.
• For the most up-to-date information about this product, visit the official EXILIM
Website at http://www.exilim.com/

Advertisement

Table of Contents
loading

Related Manuals for Casio EX-ZR3600

Summary of Contents for Casio EX-ZR3600

  • Page 1: Digital Camera

    Digital Camera User’s Guide Thank you for purchasing this CASIO product. • Before using it, be sure to read the precautions contained in this User’s Guide. • Keep the User’s Guide in a safe place for future reference. • For the most up-to-date information about this product, visit the official EXILIM...

  • Page 2: Accessories

    Accessories As you unpack your camera, check to make sure that all accessories shown below are included. If anything is missing, contact your original retailer. Rechargeable lithium ion USB-AC adaptor Power cord* battery (NP-130A) (AD-C53U) Micro USB cable Neck strap Basic Reference The shape of the power cord plug varies according to the country or geographic area where the camera is sold.

  • Page 3: Attaching The Neck Strap To The Camera

    Attaching the Neck Strap to the Camera Undo the strap from the buckle Pass the end of the strap and remove the strap loop through the strap loop ring   and secure it with the buckle. Buckle Attach the loop on the other end of the strap to the strap hole ...

  • Page 4: Read This First

    CASIO COMPUTER CO., LTD. is forbidden under copyright laws. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits suffered by you or any third party due to the use or malfunction of this product.

  • Page 5: Table Of Contents

     What you can do with your CASIO camera ......17 Tilting the Monitor Screen ........19 First, charge the battery prior to use..
  • Page 6 Shooting a Burst of Images ....... . (CS) . . 60 Shooting with High Speed CS.
  • Page 7 Advanced Settings (REC MENU) 105  Using the Menu Screen to Configure Recording Settings ....105 Shooting a Burst of Images ....... . . (CS) . . 106 ...
  • Page 8 Other Playback Functions (PLAY MENU) 133  Using the Menu Screen to Select a Playback Operation and Configure Settings ......... 133 Assigning a Function to the Front Shutter Button .
  • Page 9 Configuring Wireless Connection Settings ......165 Entering the Camera’s Airplane Mode ....(Airplane Mode) . . 165 ...
  • Page 10 Other Settings (SETTING) 187  Using the Menu Screen to Configure Other Settings....187 Enabling Power Saving ......(ECO Mode) . . 187 ...

  • Page 11: General Guide

    General Guide The numbers in parentheses indicate the pages where each item is explained. Front 1 2 3 4 Back bl bm bp bq br cl ck Mode dial Front shutter button [USB] port    (pages 33, 41, 76) (pages 106, 133) (pages 22, 24) Zoom controller...

  • Page 12: Control Dial

    Bottom Battery/memory card slots (pages 21, 29)  Battery cover  Speaker  Tripod hole  Use this hole when attaching to a tripod. . Control Dial With the control dial, you can perform operations by pressing the edges of the dial ([8], [2], [4], [6]), and by rotating the dial.

  • Page 13: Monitor Screen Contents And How To Change Them

    Monitor Screen Contents and How to Change Them The monitor screen uses various indicators, icons, and values to keep you informed of the camera’s status. • The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the monitor screen in various modes.

  • Page 14: Movie Recording

    . Snapshot Recording (Burst Shooting) Continuous Shutter (CS) speed (page 60)  Recording mode (page 41)  Remaining snapshot memory capacity  (page 233) Allowable CS time*/number of CS images  (page 60) It is not displayed while shooting with Prerecord CS.

  • Page 15: Movie Playback

    . Snapshot Viewing Recording mode (page 41)  Image sent (pages 163, 166)  Histogram (page 121)  Front shutter button function (page 133)  Bluetooth communication status (page 157)/  Airplane mode (page 165) Date/time (page 194)  Location info (page 169) ...

  • Page 16: Configuring Monitor Screen Settings

    . Configuring Monitor Screen Settings Each press of [8] (DISP) will cycle through display settings that display or hide on-screen information. You can configure separate settings for the REC mode and PLAY mode. [8] (DISP) REC mode Information on Displays setting information. Information off Hides setting information.

  • Page 17: Quick Start Basics

    Quick Start Basics What you can do with your CASIO camera Your CASIO camera is packed with a powerful selection of features and functions to make recording of digital images easier, including the following main functions. Self-portrait Shooting The monitor screen can be tilted up to 180 degrees upwards, which allows viewing while shooting self- portraits.

  • Page 18: High Speed Movie

    Premium Auto Pro Select Premium Auto Pro recording and the camera automatically determines whether you are shooting a subject or scenery, and other conditions. Premium Auto Pro delivers higher image quality than standard Auto. *See page for more information. High Speed Movie Movies can be recorded at up to 1000 frames per second.

  • Page 19: Tilting The Monitor Screen

    Tilting the Monitor Screen The monitor screen can be tilted upwards up to 180 degrees. This means you can position 180 degrees the monitor screen so it faces in the same direction as the lens, for easy composition of self-portraits. You can also tilt the monitor screen upwards 90 degrees, which means you can easily shoot from a low angle without straining your neck to view the...
  • Page 20 . Tilting the Monitor Screen As shown in the figure below, pull upwards on the bottom center of the monitor screen at point  Keep lifting and it will tilt upwards up to 180 degrees. • Do not pull downwards from the top of the monitor screen. Be sure to pull upwards from the bottom of the monitor screen as shown in the figure.

  • Page 21: First, Charge The Battery Prior To Use

    Note that the battery of a newly purchased camera is not charged. Perform the steps below to load the battery into the camera and charge it. • Your camera requires a special CASIO rechargeable lithium ion battery (NP-130A) for power. Never try to use any other type of battery.

  • Page 22: Charge The Battery

    To replace the battery Press [ON/OFF] (Power) to Stopper turn off the camera and then open the battery cover. Remove the current battery and load a new one. Close the battery cover. IMPORTANT! • The back lamp (page 11) will flash green for some time after you press [ON/OFF] (Power) to turn off the camera.
  • Page 23 Back Lamp Operation Back lamp Lamp Status Description Lit Red Charging Abnormal ambient temperature, Flashing Red USB-AC adaptor problem, or battery problem (page 218) Charging complete IMPORTANT! • A battery that has not been used for a long time and/or ambient temperature can cause charging to take longer than normal.
  • Page 24 . To charge using a USB connection to a computer USB connection lets you charge the battery while it is loaded in the camera. While the camera is turned off, connect in the sequence shown below (   Computer (power turned on) [USB] port USB port...
  • Page 25 • If you turn on the camera while charging over a USB connection to a computer is in progress, the camera will establish a USB connection with the computer. Though charging normally should continue at this time, certain types of computers or connection environments may stop charging if supply power is low.

  • Page 26: Configuring Basic Settings The First Time You Turn On The Camera

    Checking Remaining Battery Power As battery power is consumed, a battery indicator on the monitor screen indicates remaining power as shown below. Remaining Power High Battery Indicator * White Indicator Color White indicates battery power is low. Charge the battery as soon as possible. Recording is not possible when is indicated.
  • Page 27 Press [ON/OFF] (Power) to turn on the [ON/OFF] (Power) camera. Use [8] and [2] to select the language you want and then press [SET]. Use [8] and [2] to select a date style and then press [SET]. Example: July 10, 2016 YY/MM/DD 16/7/10 DD/MM/YY...

  • Page 28: Preparing A Memory Card

    Preparing a Memory Card Though the camera has built-in memory, its capacity is small. To shoot a large number of images or long movies, you will need to use a commercially available memory card. When no memory card is loaded, images are saved to built-in memory. •...

  • Page 29: To Load A Memory Card

    • Never insert anything besides a supported memory card (page 28) into the memory card slot. • Should water or any foreign object ever get into the card slot, immediately turn off the camera, remove the battery, and contact your retailer or nearest CASIO authorized service center. Quick Start Basics...

  • Page 30: To Format (Initialize) A New Memory Card

    To replace the memory card Press the memory card and then release it. Back lamp This will cause it to pop out of the memory card slot slightly. Pull the card out the rest of the way and then insert another one. IMPORTANT! •...

  • Page 31: Turning The Camera On And Off

    Turning the Camera On and Off . To turn power on [ON/OFF] (Power) To turn on Press [ON/OFF] (Power). power and enter • The back lamp will light green Shutter button the REC mode momentarily and the lens will extend out of the camera (page 33).

  • Page 32: Holding The Camera Correctly

    Holding the Camera Correctly • Your images will not come out Horizontal Vertical clearly if you move the camera when you press the shutter button. Hold the camera and position it correctly as shown in the illustration, with your arms firmly against your sides. •...

  • Page 33: To Shoot A Snapshot

    To shoot a snapshot Selecting Premium Auto Pro Recording REC Screen Description Mode Icon Display Configures optimal settings to match the shooting environment and performs high-speed image processing for better looking images. When shooting against backlighting, at night, with zoom, and under other difficult conditions, the camera will automatically shoot a burst of images and combine Premium...

  • Page 34: To Shoot A Snapshot

    To shoot a snapshot Point the camera at the subject. The camera will automatically decide where the focus area should be and display focus frames accordingly. • If you are shooting with Premium Auto Pro, text will appear at the bottom of the monitor screen describing the type of shot the camera has detected.
  • Page 35 Continuing to keep the camera still, Full-press press the shutter button the rest of the way down. This records the snapshot. • You can also record by pressing the front shutter button (page 11). First you need to assign a recording function to the front shutter button using the “Front Shutter”...
  • Page 36 . Shooting with Premium Auto Pro • Some menu items are not available while Premium Auto Pro is in use (page 105). Only the menu items whose settings can be configured will be displayed on the menus while Premium Auto Pro is in use. •...

  • Page 37: Viewing Snapshots

    Viewing Snapshots Use the following procedure to view snapshots on the camera’s monitor screen. • For information about how to play back movies, see page 124. • For information about images recorded using continuous shutter (CS), see page 126. Turn on the camera and press [p] (PLAY) to enter the PLAY mode.

  • Page 38: Deleting Snapshots And Movies

    Deleting Snapshots and Movies If memory becomes full, you can delete snapshots and movies you no longer need in order to free up storage and record more images. IMPORTANT! • Remember that a file (image) delete operation cannot be undone. •...

  • Page 39: Snapshot Shooting Precautions

    Use [ ] and [2] to select “Yes” and then press [SET]. • This deletes the files you selected. • To cancel the delete operation, select “No” in step 5 and then press [SET]. . To delete all files Press [p] (PLAY) to enter the PLAY mode and then press [2] ( Use [8] and [2] to select “Delete All Files”...

  • Page 40: Auto Focus Restrictions

    . Auto Focus Restrictions • Any of the following can make proper focus impossible. – Solid color wall or other very low contrast subject – Strongly back lit subject – Very shiny subject – Blinds or other subject with a repeating horizontal pattern –...

  • Page 41: Snapshot Tutorial

    Snapshot Tutorial Selecting the Recording Mode Your camera has a variety of different recording Mode dial modes. Before recording an image, rotate the mode dial to select the recording mode that suits the type of image you are trying to record. P Program Auto Standard Auto recording mode.
  • Page 42 M M (Manual Exposure) mode This mode gives you total control over aperture and shutter speed settings. Press [SET] to open the Control Panel (page 43).  Use [8] and [2] to select (Aperture), and then press [SET].   Use [8] and [2] to change the aperture setting, and then press [4].

  • Page 43: Using The Control Panel To Configure Camera Settings

    Using the Control Panel to Configure Camera Settings The Control Panel can be used to configure camera settings. In the REC mode, press [SET]. Use [8] and [2] to select the setting item you want to change, and then press [SET] or [6]. This will select one of the Control Panel icons and display its settings.* Control Panel Self-timer (page 44)

  • Page 44: Using The Self-Timer

    Using the Self-timer (Self-timer) With the Self-timer, pressing the shutter button starts a timer. The shutter is released and the image is shot after a fixed amount of time. Select the (Self-timer) Control Panel option. Select the setting you want and then press [SET]. REC Screen Setting Description...

  • Page 45: Adjusting White Balance

    NOTE • The Self-timer cannot be used together with the following features. High Speed CS with Prerecord CS, Prerecord (Movie), Slide Panorama, Wide Shot, Triple Shot • The Triple Self-timer cannot be used together with the following features. Movie, Time Lapse, High Speed CS, Multi SR Zoom, HS Night Shot, Blurred Background, All-In-Focus Macro, Interval Shot •...
  • Page 46 REC Screen Setting Description Icon Display For configuring the camera manually to suit a particular light source Select “Manual WB”.  Blank white paper Under the lighting  conditions you plan to use when shooting, point Manual the camera at a blank white piece of paper so it fills the entire monitor screen and then press...

  • Page 47: Selecting A Focus Mode

    Selecting a Focus Mode (Focus) • Auto Focus is the only focus mode available while Make-up (page 50) or Face Detection (page 112) is enabled. To select another focus mode, first turn off Make- up and Face Detection. Select the (Focus) Control Panel option.
  • Page 48 NOTE • An Auto Macro feature detects how far the subject is from the lens and automatically selects either Macro Focus or Auto Focus accordingly. • Use of the flash together with Macro Focus can cause the light of the flash to become blocked, which may result in unwanted lens shadows in your image.

  • Page 49: Specifying Iso Sensitivity

    Specifying ISO Sensitivity (ISO) ISO sensitivity is a measure of sensitivity to light. Select the (ISO Sensitivity) Control Panel option. Select the setting you want and then press [SET]. REC Screen Setting Description Icon Display Adjusts sensitivity automatically according to Auto None conditions.

  • Page 50: Recording Beautiful Portraits

    Recording Beautiful Portraits (Make-up) Make-up enables adjustment of human skin tone hues and texture, and softening of facial shadows caused by harsh sunlight for better looking portraits. Make-up can be used with the recording modes listed below. – Program Auto –...

  • Page 51: Correcting Image Brightness

    Correcting Image Brightness (Exposure) You can manually adjust an image’s exposure value (EV value) before shooting it. – Exposure Compensation Range: –2.0 EV to +2.0 EV – Unit: 1/3EV Select the (Exposure) Control Panel option. Adjust the exposure compensation value. •...

  • Page 52: Using Flash

    Using Flash (Flash) In the REC mode, press [2] ( Flash once. [2] ( Select the flash setting you want and then press [SET]. REC Screen Setting Description Icon Display Flash fires automatically in accordance with > Auto Flash None exposure (amount of light and brightness) conditions.
  • Page 53 IMPORTANT! • Foreign matter on the flash window can react with the light of the flash, producing some smoke and abnormal odor. Though this does not indicate malfunction, oil from your fingers and other foreign matter when left on the flash window can become difficult to clean off later.

  • Page 54: Specifying The Metering Mode

    Specifying the Metering Mode (Metering) The metering mode determines what part of the subject is metered for exposure. Select the (Metering) Control Panel option. Select the setting you want and then press [SET]. REC Screen Setting Description Icon Display Multi-pattern metering divides the image into sections and measures the light in each section for Multi None...

  • Page 55: Shooting With Zoom

    Shooting with Zoom Your camera supports the zoom operations described below. Zooming is performed by changing the lens focal distance, so Optical zoom there is no deterioration of image quality. Allows greater zoom capabilities by cutting out a portion of the HD Zoom original image and enlarging it, without deterioration of image quality.

  • Page 56: Monitor Screen Information When Zooming

    . Zooming with the Function Ring (Step Zoom) Assigning the Step Zoom function to the function ring lets you perform zoom operations (within the optical zoom range only) with the function ring (page 107). Step Zoom can be adjusted to the focal distances shown below. 25, 28, 35, 50, 80, 105, 140, 192, 300 (Unit: mm;...

  • Page 57: Interpreting The Zoom Bar

    . Interpreting the Zoom Bar During a zoom operation, a zoom bar appears on the monitor screen to show the current zoom setting. Range where image deterioration is Deteriorated image range suppressed. Wide Angle Telephoto Zoom pointer Optical zoom limit point (Indicates current zoom.) Point from which image deteriorates •...

  • Page 58: Zooming With Super Resolution

    Zooming with Super Resolution (Zoom (SR)) There are two types of Super Resolution Zoom: Single SR Zoom and Multi SR Zoom. Single SR Zoom uses super resolution to expand the zoom range in which image quality deterioration is minimized. This section explains how to configure Single SR Zoom settings. For information about Multi SR Zoom, see page 59.

  • Page 59: Expanding The Zoom Range Without Losing Image Resolution

    Expanding the Zoom Range without Losing Image Resolution and Quality (Multi SR Zoom) Multi SR Zoom shoots a burst of High Speed CS images, which are then combined into a final image. This enables shooting at higher zoom ratios without loss of image quality.

  • Page 60: Shooting A Burst Of Images

    Shooting a Burst of Images (CS) Shooting with High Speed CS With High Speed CS, recording continues as long as you CS speed keep the shutter button depressed. The table below shows the settings that can be specified for the CS speed and the number of images per High Speed CS operation.
  • Page 61 Use [8] and [2] to select the (Maximum CS Shots) Control Panel option and then press [SET]. Use [8] and [2] to select the maximum number of shots and then press [SET]. Press the shutter button the rest of the way and hold it down. Shooting of images will continue as long as you depress the shutter button or until the maximum number of images specified by “High Speed CS fps”...

  • Page 62: Shooting With Prerecord Cs

    Shooting with Prerecord CS Half-pressing and holding the shutter button causes a pre-record buffer to be continually updated with images. When the shutter button is fully pressed, buffer contents are recorded along with a series of real-time images. Use Prerecord CS when you want to make sure you do not miss fast-moving action.
  • Page 63 NOTE • In addition to the P (Program Auto) mode, you can also use the following modes with Prerecord CS: A (Aperture AE), S (Shutter Speed AE), and M (Manual Exposure). • The greater the number of shots, the longer it takes to save them after shooting is complete.

  • Page 64: Using Continuous Shutter With Auto Focus

    Using Continuous Shutter with Auto Focus (AF CS) AF CS shoots up to 30 CS images while keeping the subject in focus. This feature comes in handy when shooting children and other fast-moving subjects. The CS speed is automatically adjusted in accordance with shooting conditions within the range of three to six frames per second.

  • Page 65: Triggering A Self-Timer Operation With Motion

    Triggering a Self-timer Operation with Motion (Motion Shutter) With this feature, the camera automatically triggers a self- timer countdown whenever it detects movement in the vicinity of an icon on the monitor screen. This means you can control operation of the self-timer from a distance by waving your hand, so you can include yourself in the image being shot.
  • Page 66 NOTE • After shooting a snapshot, the camera will return to standby. Any one of the following will cancel a Motion Shutter operation. – Shooting 30 Motion Shutter snapshots – Pressing the shutter button during standby – Tilting the monitor screen –...

  • Page 67: Configuring Motion Shutter Settings

    Configuring Motion Shutter Settings (Motion Shutter) Use the procedure below to configure Motion Shutter settings. In the REC mode, press [MENU]. Press [4], use [8] and [2] to select the “ r REC MENU” tab, and then press [6]. Use [8] and [2] to select “Motion Shutter” and then press [6]. Configure Motion Shutter settings.

  • Page 68: Shooting With Artistic Effects

    Shooting with Artistic Effects (Art Shot) A variety of artistic effects help to make even common, ordinary subjects become more novel and exciting. Scene Description Uses HDR (High Dynamic Range, page 96) to turn normal HDR Art images into works of art. Dark edges and altered hues make images look like they Toy Camera were shot by a toy camera.
  • Page 69 Press [SET], use [8] and [2] to select the fifth Control Panel option from the top, and then press [SET]. The intensity of the selected effect can be adjusted as described below. Scene Adjustment HDR Art Effect level Toy Camera Soft Focus Effect level Light Tone...

  • Page 70: Saving A Second Normal Image When Shooting With Hdr Art

    NOTE • Depending on the “Art Shot” scenes, some of the items on the menu that appears may not be usable. • The flash setting automatically becomes ? (Flash Off). • Movie recording is disabled while “Sparkling Shot” or “Art Shot Bracketing” is selected.

  • Page 71: Shooting Multiple Images Over A Specified Period

    Shooting Multiple Images Over a Specified Period (Interval Shot) You can use the procedure below to record a series of images over a specified period (Interval Shot). This function is useful when recording the movement of a blooming flower, etc. •...
  • Page 72 Press the shutter button to start recording. Remaining shooting time • Shooting is repeated at the interval specified in step 6. • Recording stops when the recording time specified in step 6 elapses or when the shutter button is pressed again. NOTE •...

  • Page 73: Shooting With Selfie Art

    Shooting with Selfie Art (Selfie Art) With make-up functions (page 50), you can make adjustments to skin color and skin smoothness for stunning portrait images. The following image types are also available: Elegant, Foggy, Fairy, Nostalgic, Vivid. Align the mode dial with [ ] (Selfie Art).

  • Page 74: Using The Timer To Shoot A Selfie

    Using the Timer to Shoot a Selfie (Selfie Timer) You can use the Selfie Timer to shoot self-portraits. You can set a Selfie Timer countdown duration within the range of two to five seconds. • To use the Selfie Timer, you need to assign the Selfie Timer function to the front shutter button.

  • Page 75: To Use The Selfie Timer To Shoot A Selfie

    To use the Selfie Timer to shoot a selfie Tilt the camera’s monitor screen 180 degrees (page 19). Hold down the front shutter button to specify the Selfie Timer countdown duration. • You can set a Selfie Timer countdown within the range of two to five seconds.

  • Page 76: Recording Movies

    Recording Movies To record a movie The procedure below shows the steps for normal standard (STD or FHD) movie recording. For information about other types of movie recording (High Speed Movie), see page 80. Align the mode dial with [P] (Program Auto) or [P] or [ ] (Premium Auto Pro).
  • Page 77 Press [0] (Movie) again to stop recording. • Each movie can be up to 29 minutes long. Movie recording stops automatically after 29 minutes of recording. Movie recording also will stop automatically if memory becomes full before you stop movie recording by pressing [0] (Movie) again.

  • Page 78: Audio

    Audio Your camera has built-in microphones that can be used to record audio (stereo) during movie recording. • Your camera has a function to reduce wind noise (Wind Noise Cut) when recording movies (page 120). . Recording Precautions Microphones • The camera also records audio. Note the following points when shooting a movie.
  • Page 79 NOTE • Zoom operations are supported during movie recording (page 55). Zoom is disabled during high speed movie recording. To use zoom for high speed movie recording, perform the zoom operation before you press [0] (Movie) to start recording. • Both Single SR Zoom (page 58) and Multi SR Zoom (page 59) are disabled during movie recording.

  • Page 80: Recording A High Speed Movie

    Recording a High Speed Movie This camera supports recording of high speed movies at a maximum speed of 1000 fps. The aspect ratio of movies recorded with this mode depends on the frame rate (recording speed). • When recording with the frame rate setting of “30-120 fps” or “30-240 fps” frame rate setting, audio recording is supported during 30 fps recording only.
  • Page 81 Record the movie the same way as you would a normal movie (page 76). Press [0] (Movie) to start and stop recording. • During High Speed Movie recording (HS120, HS240, HS480, HS1000), focus is fixed at the position where it was when recording started. To focus an image, half-press the shutter button for Auto Focus or focus manually before you press [0] (Movie) to start recording.

  • Page 82: Using Prerecord Movie

    Using Prerecord Movie (Prerecord (Movie)) Prerecord (Movie) maintains a pre-recording of approximately five seconds of action (approximately two seconds for High Speed Movie). When you start real-time recording, the pre-recorded content is stored followed by the real-time recording, to help make sure you do not miss anything by being late pressing the record button. [0] (Movie) [0] (Movie) Movie...
  • Page 83 . To shoot a Prerecord Movie After using the above procedure to set up the camera for Prerecord Movie, point the camera at the subject. When you are ready to record, press [0] (Movie). This will save the approximately five seconds of action that was prerecorded in the buffer before you pressed [0] (Movie) (two seconds if you are using high speed movie) and start real-time recording.

  • Page 84: Recording A Time Lapse Movie

    Recording a Time Lapse Movie (Time Lapse) You can use this function to record movies of natural events that occur over time, to speed up the flow of traffic in a city scene, or to record other similar types of movies. Time Lapse provides a collection of sample scenes that show various types of images.
  • Page 85 Align the mode dial with [ ] (Time Lapse). Press [SET]. Use [8] and [2] to select the (Time Lapse) Control Panel option, and then press [SET]. This displays a menu of Time Lapse scenes. Select the scene you want to use and then press [SET]. •...
  • Page 86 NOTE • During Time Lapse recording, the monitor screen will turn off in accordance with the “Sleep” setting (page 191). Change the “Sleep” setting to “Off” if you want the monitor screen to stay on. Note, however, that this setting will use up battery power more quickly.

  • Page 87: Shooting A Snapshot While Shooting A Movie

    . Using the Scene Information Screen To find out more about a scene, select it with the boundary on the scene menu and then rotate the zoom controller in either direction. • To return to the scene menu, rotate the zoom controller again.
  • Page 88 NOTE • Note that the flash cannot be used. • Note that shooting a snapshot while shooting a movie is supported during FHD movie and STD movie recording only. It is not supported during other types of movie recording. • Auto-focus is not performed if you half press the shutter button to shoot a snapshot during movie recording.

  • Page 89: Using Best Shot

    Using BEST SHOT BEST SHOT provides you with a collection of sample “scenes” that show a variety of different types of shooting conditions. When you need to change the setup of the camera, simply find the scene that matches what you are trying to achieve, and the camera sets up for it automatically.
  • Page 90 No. Scene Description 19 Party Fast shutter speed 20 Pet Fast shutter speed Shoot from the eye level of your pet. 21 Flower Macro Mode High saturation Hard sharpness and high saturation enhance green 22 Natural Green hues. 23 Autumn Leaves Hard sharpness and high saturation enhance red hues.

  • Page 91: To Shoot With Best Shot

    To shoot with BEST SHOT Align the mode dial with [ ] (BEST SHOT). Press [SET]. Use [8] and [2] to select the Control Panel option, and then press [SET]. This will display a menu of BEST SHOT scenes. Currently selected Use [8], [2], [4], and [6] to move the scene (with boundary) boundary to the scene you want to select.
  • Page 92 . BEST SHOT Precautions • Sample images shown on BEST SHOT scene screens were not shot with this camera. There are provided to illustrate the effects and merits of each scene. • Images shot using a BEST SHOT scene may not produce the results you expected due to shooting conditions and other factors.

  • Page 93: Creating And Using Your Own Setups

    Creating and Using Your Own Setups (Custom Shot) You can register up to 999 setups, based on snapshots shot with the camera, as “Custom Shot” scenes. Selecting a registered “Custom Shot” scene configures the camera with its settings. The setups of snapshots recorded with the following modes and features can be registered as “Custom Shot”...

  • Page 94: Recording Beautiful Portraits

    . To record with a registered Custom Shot scene In the BEST SHOT Mode, select the registered “Custom Scene” (page 91). Press the shutter button to shoot. Recording Beautiful Portraits (Make-up) Make-up enables adjustment of human skin tone hues and texture, and softening of facial shadows caused by harsh sunlight for better looking portraits.

  • Page 95: Shooting With Triple Shot

    Press the shutter button to shoot. This will shoot and store three versions of the same image with various “Skin Tone” settings, based on the setting you selected in step 3, above. NOTE • After shooting an image with Make-up BKT, you will not be able to shoot another image until save of the previous image is complete.

  • Page 96: Digitally Correcting For Overexposure And Underexposure

    Digitally Correcting for Overexposure and Underexposure (HDR) With HDR (High Dynamic Range), the camera shoots a series of CS images using different exposure settings and combines them into a final image to correct for overexposure or underexposure of subjects of different brightness levels. In the BEST SHOT Mode, select “HDR”...

  • Page 97: Shooting With A Blurred Background

    Shooting with a Blurred Background (Blurred Background) This function analyzes a burst of consecutive images and then blurs the background behind the main subject. This creates an effect that really makes the subject stand out, just like photographs taken with a single-lens reflex camera. The blur effect can be set to one of three levels.

  • Page 98: Shooting A Panorama Image

    Shooting a Panorama Image (Slide Panorama) With Slide Panorama, you move the camera to compose and record multiple images, which are then combined to a panorama. This feature lets you shoot a panorama of up to 360 degrees, which is dramatically greater than the physical capabilities of the lens.
  • Page 99 Press the shutter button the rest of the way down and a slide cursor will appear on the monitor screen. Slowly move the camera in the direction indicated by the arrow on the screen until the slide cursor reaches the other end of its movement range (i.e.

  • Page 100: Shooting With A Super Wide Angle Of View

    Shooting with a Super Wide Angle of View (Wide Shot) With this feature, a number of images are shot and then combined to produce an image with a super-wide angle of view that exceeds the widest angle of view possible with the lens.
  • Page 101 Press the shutter button the rest of the way down and slowly move the camera in accordance with the instructions and arrow that appear on the monitor screen. • Holding the camera firmly with both hands, follow the instructions that appear on the monitor screen to slowly slide the camera horizontally or vertically at a constant speed in an arc centered on your body.

  • Page 102: Shooting Raw Images

    • Shooting a Wide Shot image after half-pressing the shutter button to perform Auto Focus may not produce the desired results if there are considerable differences in the brightness, color, and/or focus of the individual images. If this happens, try changing the focus position by focusing on a different subject, etc.

  • Page 103: Using A Tv Screen To Shoot Snapshots

    Using a TV Screen to Shoot Snapshots (HDMI TV Output) Use the procedure below to configure the camera for shooting snapshots with an aspect ratio of 16:9, as you compose them on a TV screen. Turn off the camera and use a commercially available HDMI cable to connect the camera to a TV.
  • Page 104 NOTE • For details about connecting to the camera and precautions when connecting, see page 103. • If you want to change the digital video signal format, first unplug the HDMI cable from the camera (page 132). • Shooting with this function is not supported with Premium Auto Pro or other recording modes.

  • Page 105: Advanced Settings (Rec Menu)

    Advanced Settings (REC MENU) The following are menu operations you can use to configure various camera settings. • You also can use the Control Panel (page 43) to configure some of the settings that appear on the menu screen. Refer to the page references provided in this section for information about configuring settings using the Control Panel.

  • Page 106: Shooting A Burst Of Images

    Shooting a Burst of Images (CS) Menu item : See page 60 for details. Triggering a Self-timer Operation with Motion (Motion Shutter) Menu item : Motion Shutter See page 65 for details. Assigning a Recording Function to the Front Shutter Button (Front Shutter) Menu item : Front Shutter...

  • Page 107: Assigning Functions To The Function Ring And Control Dial (Key Customize)

    NOTE • Front shutter button operation will become disabled while shooting with some BEST SHOT scenes. • For front shutter button operations in the PLAY mode, see page 133. • When the “Front Shutter” setting is something other than “Off”, the front shutter button can be used to shoot a snapshot while movie recording is in progress (Snapshot In Movie), In this case, however, only a single snapshot can be recorded.
  • Page 108 Operation Setting Description See page: Exposure Corrects brightness. Page 51 White Balance Adjusts hue. Page 45 Changes the ISO sensitivity Page 49 setting. Control Dial Specifies the ISO sensitivity high ISO High Limit Page 110 limit. Self-timer Selects the self-timer time. Page 44 Focus Changes the focus mode.

  • Page 109: Using The Self-Timer

    NOTE • The same function cannot be assigned to multiple controllers (keys, control dial). • Depending on the recording mode, some functions may not be assignable to the Control Dial. Using the Self-timer (Self-timer) Menu item : Self-timer For details, see the Control Panel procedure on page 44. Correcting Image Brightness (Exposure) Menu item : Exposure...

  • Page 110: Specifying The Iso Sensitivity Upper Limit

    Specifying the ISO Sensitivity Upper Limit (ISO High Limit) Menu item : ISO High Limit REC Screen Settings Description Icon Display Shoots using the ISO sensitivity setting specified by the Auto None “ISO Sensitivity” setting (page 49). ISO 200 ISO 400 The setting selected here becomes the ISO sensitivity ISO 800 upper limit when “Auto”...

  • Page 111: Specifying The Auto Focus Area

    Specifying the Auto Focus Area (AF Area) Menu item : AF Area You can use the following procedure to change the Auto Focus metering area for shooting snapshots. • When recording movies, the AF metering area is always “U Spot”. Settings Description The camera automatically determines the focus area on the...

  • Page 112: Shooting With Face Detection

    • With some BEST SHOT scenes, there are restrictions on the use of AF area settings. Because of this, you may not be able to use certain settings or you may not be able to specify any AF Area setting. •...

  • Page 113: Recording Beautiful Portraits

    IMPORTANT! • Face detection cannot be used in combination with any of the following features. – Some BEST SHOT scenes – Some Art Shot scenes – Movie recording (Including some BEST SHOT scenes that support High Speed Movie recording) – High Speed CS with Prerecord CS (Including some BEST SHOT scenes that support High Speed CS recording) •...
  • Page 114 REC Screen Settings Description Icon Display While applying hand shake correction, shutter speed faster than “Standard” also further reduces subject blur. Also, ISO sensitivity may be raised from Strong “Standard”. This setting can be used while the recording mode is Program Auto (except for High Speed CS), Premium Auto Pro or HS Anti Shake.

  • Page 115: To Select The Snapshot Image Size

    To select the snapshot image size (Image Size) Menu item : Image Size Suggested Image Size REC Screen Print Size and Description (Pixels) Icon Display Application Poster (4000 3000) Good detail for better clarity even for Poster images cropped (page 148) from the (4000 2656) original...

  • Page 116: Specifying Snapshot Image Quality

    . Pixels and image size A digital camera image is a collection of small Pixel dots called “pixels”. The more pixels there are in an image, the more detail there will be. However, you generally can do with fewer pixels when printing an image (L size) through a print service, attaching an image to e-mail, when viewing the image on a computer, etc.

  • Page 117: Movie Image Quality Settings

    Movie Image Quality Settings (Movie Quality) Menu item : Movie Quality This setting can be used to configure movie image quality settings and to select the movie recording mode (either normal movie recording or High Speed Movie recording). Settings REC Screen Approximate Data Rate (Quality Description...

  • Page 118: Optimizing Image Brightness

    Optimizing Image Brightness (Lighting) Menu item : Lighting You can use this setting to optimize the balance between bright areas and dark areas when shooting images. Settings Description Performs brightness correction. When this option is selected, it takes longer for the image to be stored after the shutter button is pressed.

  • Page 119: Adjusting Image Contrast

    Adjusting Image Contrast (Contrast) Menu item : Contrast You can specify one of five contrast settings from +2 (most contrast between light and dark) to –2 (least contrast between light and dark). Specifying Flash Intensity (Flash Intensity) Menu item : Flash Intensity You can specify flash intensity to one of five levels from +2 (brightest flash) to –2 (least bright flash).

  • Page 120: Saving A Second Normal Image When Shooting With Hdr Art

    Saving a Second Normal Image When Shooting With HDR Art (Double (HDR ART)) Menu item : Double (HDR Art) See page 70 for details. Reducing Wind Noise during Movie Recording (Wind Noise Cut) Menu item : Wind Noise Cut Select “On” to reduce wind noise during movie recording. Note, however, that this will also cause the sound quality to change.

  • Page 121: Using Icon Help

    Using Icon Help (Icon Help) Menu item : Icon Help While Icon Help is turned on, a textual description will appear on the display for certain icons when you switch between REC functions. Functions Supported by Icon Help – Recording mode –...

  • Page 122: How To Use The Histogram

    . How to Use the Histogram A histogram is a graph that represents the lightness of an image in terms of the number of pixels. The vertical axis indicates the number of pixels, while the horizontal axis indicates lightness. If the histogram appears too lopsided for some reason, you can use Exposure Compensation to move it left or right in order to achieve better balance.

  • Page 123: Configuring Power On Default Settings

    Configuring Power On Default Settings (Memory) Menu item : Memory This setting lets you specify which camera settings should be remembered by the camera when it is turned off, and restored the next time the camera is turned on. To have the camera remember a setting, you should enable the setting’s memory.

  • Page 124: Viewing Snapshots And Movies

    Viewing Snapshots and Movies Viewing Snapshots See page 37 for the procedure for viewing snapshots. Viewing a Movie In the PLAY mode, use [4] and [6] to display the movie you want to view. Press [0] (Movie) to start Movie icon: »/ (Time Lapse) playback.

  • Page 125: Viewing A Panorama Image

    Rotate the zoom controller in the direction of z ([). • You can use [8], [2], [4], and [6] to scroll the zoomed image on the monitor screen. You can zoom a movie Zoom image up to 4.5 times normal size. •...

  • Page 126: Viewing Continuous Shutter Images

    Viewing Continuous Shutter Images Each time you shoot with continuous shutter (CS) or Interval Shot, the camera creates a group that includes all of the images for that particular session. You can use the following procedure to play back the images in a particular group. In the PLAY mode, use [4] and [6] to display the group whose images you want to view.

  • Page 127: Deleting Cs Images

    [MENU] Exits group playback. [8] (DISP) Cycles through information display formats. Displays the “Edit Group” menu. Deleting CS Images You can use the following procedures to delete CS images while playback is in progress or paused. While playback of a CS or interval group is in progress or paused, press [2].

  • Page 128: Dividing Up An Image Group

    Dividing Up an Image Group Use the procedure below to divide up a CS Group into individual images. IMPORTANT! • Once a CS group is divided, it cannot be regrouped. In the PLAY mode, press [MENU]. Press [4], use [8] and [2] to select the “p PLAY MENU” tab, and then press [6].

  • Page 129: Copying An Image In A Group

    Copying an Image in a Group (Copy) Use the following procedure to copy an image in a group to a location outside of the group. While CS or interval shot group playback is in progress or paused, press [2]. This will display the “Edit Group” menu. Use [8] and [2] to select “Copy”, and then press [SET].

  • Page 130: Zooming An On-Screen Image

    Zooming an On-screen Image In the PLAY mode, use [4] and [6] to scroll through the images until the one you want is displayed. Rotate the zoom controller towards z ([) to Zoom factor zoom. Image area You can use [8], [2], [4], and [6] to scroll the zoomed image on the monitor screen.

  • Page 131: Viewing Snapshots And Movies On A Tv Screen

    Viewing Snapshots and Movies on a TV Screen Use a commercially available HDMI cable to connect the camera to the TV (page 103). IMPORTANT! • Output to a TV is not supported while the camera is in the REC mode except for “HDMI TV Output”...
  • Page 132 . Selecting the HDMI Terminal Output Method (HDMI Output) Use this setting to select the digital signal format when connecting to a TV with an HDMI cable. In the PLAY mode, press [MENU]. Press [4], use [8] and [2] to select the “ SETTING”...

  • Page 133: Other Playback Functions (Play Menu)

    Other Playback Functions (PLAY MENU) Using the Menu Screen to Select a Playback Operation and Configure Settings This section explains menu items that you can use to configure settings and perform other playback operations. In the PLAY mode, press [MENU]. This will display the menu screen (p PLAY MENU).

  • Page 134: Scrolling Images At High Speed Or By Recording Date

    Scrolling Images at High Speed or by Recording Date (Function Ring) Menu item : Function Ring You can rotate the function ring to scroll images at high speed or by recording date. Setting Description 10 images 25 images Scrolls forward or back by the specified number of images. 50 images 100 images Date...
  • Page 135 NOTE • An image whose highlight score is “0” is never included in a Highlight Movie. • A Highlight Movie is FHD movie quality, with an aspect ratio of 16:9. If an image with an aspect ratio that is not 16:9 is incorporated into a Highlight Move, the top and bottom of the image will be cropped as required.
  • Page 136 . Creating a Collage of a Day’s Snapshots (Highlight Photo) Highlight Functions * Highlight Photo Menu item : You can configure camera settings to automatically select snapshot highlights and generate a collage of them. The snapshots included in a Highlight Photo are selected automatically based on their high light scores and shooting condition information recorded along with the snapshots.
  • Page 137 . Changing the Highlight Score of an Image (Highlight Score) Highlight Functions * Highlight Score Menu item : You can use the procedure below to change the highlight score of a snapshot or movie. Highlight Score Description No score assigned (default) (+1) An image with this score may be selected for a Highlight Snapshot or Highlight Movie.

  • Page 138: Playing A Slideshow On The Camera

    Playing a Slideshow on the Camera (Slideshow) Menu item : Slideshow Start Starts the slideshow Images Specifies the type of images to be included in the slideshow All images: Snapshots, movies, continuous shutter images All except Z : All non-continuous shutter (CS) images T Only: Snapshots only »...

  • Page 139: Transferring Music From Your Computer To Camera Memory

    • To stop the slideshow, press [SET] or [MENU]. Pressing [MENU] stops the slideshow and returns to the menu screen. • Adjust audio volume by pressing [2] and then press [8] or [2] during playback. • All button operations are disabled while the slideshow is transitioning from one image to another.

  • Page 140: Using Snapshots To Create A Movie

    Disconnect the camera from the computer (pages 179, 182). Using Snapshots to Create a Movie (Make Movie) Menu item : Make Movie You can use the procedure below to convert snapshots shot with this camera to a movie. Selecting a group will include all of the images in the group in one movie. You can use up to 1,000 snapshots in a movie.

  • Page 141: Editing A Movie On The Camera

    Editing a Movie on the Camera (Movie Editing) Menu item : Movie Editing The Movie Editing feature lets you use one of the following procedures to edit out a specific part of a movie. Cuts everything from the beginning of the movie up to the Previous Cut current location.
  • Page 142 IMPORTANT! • When you edit a movie, only the result is saved. The original movie is not retained. An editing operation cannot be undone. NOTE • A movie that is shorter than five seconds cannot be edited. • Editing of movies recorded with a different type of camera is not supported. •...

  • Page 143: To Merge Two Movies

    To merge two movies (Movie Merge) Menu item : Movie Merge This procedure combines two movies. The play times of the each movies must be less than 10 minutes, and the two movies must be of the same quality and frame rate. Note that merging of two High Speed Movies is not supported.

  • Page 144: Optimizing Image Brightness

    Optimizing Image Brightness (Lighting) Menu item : Lighting You can use this setting to adjust the balance between bright areas and dark areas in existing images in the range of 0 (no optimization) to +2 (bright). • Display a snapshot before performing this operation. NOTE •...

  • Page 145: Adjusting The Brightness Of An Existing Snapshot

    Adjusting the Brightness of an Existing Snapshot (Brightness) Menu item : Brightness You can select one of five brightness levels, from +2 (brightest) to –2 (least bright). • Display a snapshot before performing this operation. NOTE • The original snapshot is retained in memory and not deleted. •...

  • Page 146: Protecting An Image In A Group Against Deletion

    Protecting an Image in a Group Against Deletion (Protect) While playback of a CS or interval group is in progress or paused, press [2]. • This will display the “Edit Group” menu. Use [8] and [2] to select “Protect” and then press [SET]. Use [8] and [2] to select the protect method you want to use and then press [SET].

  • Page 147: Editing The Date And Time Of An Image

    Editing the Date and Time of an Image (Date/Time) Menu item : Date/Time • Display a snapshot before performing this operation. [8] [2] Changes the setting at the cursor location. [4] [6] Moves the cursor between settings. When the date and time settings are what you want, align the cursor with “Apply” and then press [SET] to apply them.

  • Page 148: Resizing A Snapshot

    Resizing a Snapshot (Resize) Menu item : Resize You can reduce the size of a snapshot and save the result as a separate snapshot. The original snapshot is also retained. You can resize an image to one of three sizes: 8M, 3M, VGA.

  • Page 149: Copying Files

    Copying Files (Copy) Menu item : Copy Files can be copied from the camera’s built-in memory to a memory card or from a memory card to built-in memory. • Display a snapshot before performing this operation. Copies all files from built-in camera memory to a memory card. Built-in * This option copies all the files in built-in camera memory.

  • Page 150: Dividing Up A Group

    Dividing Up a Group (Divide Group) Menu item : Divide Group See page 128 for details. Editing the Images in a Group (Edit Group) Menu item : Edit Group See the following pages for details. DPOF Printing: page 172 Protect: page 146 Copy: page 129 Delete: page 127 Other Playback Functions (PLAY MENU)

  • Page 151: Connecting The Camera With A Smartphone (Wireless Connection)

    Connecting the Camera with a Smartphone (Wireless Connection) Controlling Your Camera with a Smartphone Your camera has both Bluetooth wireless technology and wireless LAN capabilities built in. After establishing a wireless connection with a smartphone, you can perform the operations described in the table below. Requires installation of the EXILIM Connect app on your smartphone.
  • Page 152 With this function: You can do this: Shoot with phone Remotely control and shoot with the camera using a smartphone (page 160). Send to phone Send snapshots and movies recorded with your camera to your smartphone. After sending an image to a smartphone, you can then upload it from the smartphone to a social networking service (page 163).
  • Page 153 • Note that to view the EXILIM Connect User’s Guide, you will have to install Adobe Reader. Consult CASIO authorized service center if you are unable to open to display the PDF format User’s Guide. • Note that EXILIM Connect User’s Guides may not be available in all languages. If you cannot find a EXILIM Connect User’s Guide in your native language, please...

  • Page 154: Using A Wireless Mode

    Using a Wireless Mode Your camera has a variety of different wireless modes. Select the wireless mode that suits your specific requirements. Press [ ] (Wireless). ] (Wireless) This displays a wireless mode screen. Use [8], [2], [4], and [6] to select the wireless mode you want, and then press [SET].
  • Page 155 . Wireless Connection Icons After you configure camera and smartphone connection settings, the icons below will appear on the camera screen to indicate the current communication status. Semi- Pairing is complete, but there is no Bluetooth wireless transparent technology connection. Pairing is complete, and there is a Bluetooth wireless Opaque technology connection.

  • Page 156: Getting Ready To Establish A Connection Between A Smartphone And Your

    For information about OS versions (Android and iOS) supported by the EXILIM Connect app, visit the Google Play or the App Store download site, or the Official CASIO Digital Camera Website (http://www.exilim.com/). . App operation guarantees No guarantees are made concerning the ability to operate the EXILIM Connect app on any particular smartphone or tablet.

  • Page 157: Establishing A Wireless Connection For The First Time

    Establishing a Wireless Connection for the First Time The first time you establish a wireless connection between the camera and a smartphone, you need to use the procedure below to configure wireless connection settings. This operation is required for the first connection only. .
  • Page 158 Use [8] and [2] to select the “Auto Send” setting, and then press [SET]. Automatically sends images to the smartphone after they are shot. Confirm first Sends image files selected by you to the smartphone. Auto Send disabled. NOTE • After the camera is paired, Bluetooth wireless technology operation will consume battery power even when the camera it turned off.
  • Page 159 . Smartphone that does not support Bluetooth Smart Configure smartphone wireless LAN connection settings (input the camera SSID and password). Press [ ] (Wireless). Use [8], [2], [4], or [6] to select “Shoot with phone”, and then press [SET]. Use [8] and [2] to select “Remote Start”, and then press [SET].

  • Page 160: Using A Smartphone As A Camera Remote Controller (Shoot With Phone)

    Using a Smartphone as a Camera Remote Controller (Shoot with phone) This function lets you remotely shoot a snapshot or movie with the camera using a smartphone. You also can perform remote zoom, self-timer, and other operations as well. NOTE •...

  • Page 161: Sharing Snapshots With An Unpaired Smartphone

    Sharing Snapshots with an Unpaired Smartphone (One Time Share) Share selected snapshots for viewing on smartphones that are not paired with the camera. With One Time Share, you can send selected snapshots to a smartphone that is Bluetooth paired, which then uploads them to a “Scene Server.” To upload snapshots to the Scene sever, you need to have the Scene app installed on the smartphone that is paired with the camera.
  • Page 162 • If a send operation is taking a long time, the QR code screen will change to a send in progress message. To stop the send operation while this message is displayed, press [MENU]. • Turning off the camera during an ongoing send operation will cause the operation to stop.

  • Page 163: Sending A Snapshot Or Movie File From Camera Memory

    Sending a Snapshot or Movie File from Camera Memory to a Smartphone (Send Selected Image) You can select one more snapshot and/or movie file in camera memory and send it to a smartphone. You can select up to 100 snapshot and movies, totaling no more than 500MB, for a single send operation.

  • Page 164: Viewing Snapshots And Movies In Camera Memory

    Viewing Snapshots and Movies in Camera Memory on a Smartphone (View on phone) You can connect the camera to a smartphone over wireless LAN to view and download snapshots and movies in camera memory on up to eight connected smartphones. You can also view snapshots and movies in camera memory on a computer, and copy them to a computer.

  • Page 165: Configuring Wireless Connection Settings

    Configuring Wireless Connection Settings This section explains wireless mode operations and setting items. Press [ ] (Wireless). This will display the wireless mode screen. • Pressing [ ] (Wireless) again will return to the screen that was displayed before the wireless mode screen. Use [8], [2], [4], and [6] “Wireless settings”...

  • Page 166: Sending Images From The Camera To A Smartphone As They Are Recorded

    Sending Images from the Camera to a Smartphone as They are Recorded (Auto Send) Item name : Auto Send Camera settings can be configured to send images automatically over a wireless connection to a smartphone after they are recorded. Setting Description Automatically sends images to the smartphone after they are shot.
  • Page 167 NOTE • Auto Send can be used only with a smartphone that supports Bluetooth Smart. Both a Bluetooth and wireless LAN connection are required between the camera and smartphone to auto send camera images. • The icons below are displayed on the camera screen while the camera and smartphone are connected.

  • Page 168: Specifying Images To Be Sent By Auto Send

    Specifying Images to be Sent by Auto Send (Auto Send File Settings) Item name : Auto Send File Settings Specifies the files to be sent to a smartphone by Auto Send. You can use the setting below to specify one of five file types to be sent while “All” is selected for Auto Send.

  • Page 169: Add Location Info To Snapshots

    Add Location Info to Snapshots (Location info) Item name : Location info You can enable the setting below to have the smartphone acquire and record location information (latitude and longitude) when you shoot a snapshot with the camera. Then when you send the snapshot to the smartphone, the location information will be added to it.

  • Page 170: Changing The Camera Password For Wireless Lan Connection

    Changing the Camera Password for Wireless LAN Connection (WLAN password) Item name : WLAN password Use procedure to change the password you used when establishing a wireless LAN connection between the camera and a smartphone. IMPORTANT! • Before changing the wireless LAN password, unpair the camera from its paired smartphone (page 171).

  • Page 171: Unpairing The Camera From A Smartphone

    Unpairing the Camera from a Smartphone (Unpairing) Item name : Unpairing Unpairs the camera from a smartphone. To use the camera with a different smartphone, first unpair it from the current smartphone. NOTE • When unpairing, be sure also to perform the unpairing operation on the smartphone as well.

  • Page 172: Printing

    Printing Printing Snapshots Professional Print Service* You can take a memory card that contains the images you want to print to a professional print service and have them printed. Printing on a Home Printer* You can use a printer equipped with a memory card slot to print images directly from a memory card.
  • Page 173 . Configuring DPOF Settings Individually for Each Image In the PLAY mode, press [MENU]. Press [4], use [8] and [2] to select the “p PLAY MENU” tab, and then press [6]. Use [8] and [2] to select “DPOF Printing”, and then press [6]. Use [8] and [2] to select “Select images”, and then press [SET].
  • Page 174 . Specifying the Number of Images for Grouped Images You can specify the number of copies when printing images that are part of a CS or interval group. While playback of a CS or interval group is in progress or paused, press [2].

  • Page 175: Date Stamping

    DPOF settings are not cleared automatically after printing is complete. The next DPOF print operation you execute will be performed using the last DPOF settings you configured for the images. To clear DPOF settings, specify “00” for the number of copies of all images. Tell your print service about your DPOF settings! If you take a memory card to a professional print service, be sure to tell them that it includes DPOF settings for the images to be printed and the number of copies.

  • Page 176: Using The Camera With A Computer

    Using the Camera with a Computer Things you can do using a computer... You can perform the operations described below while the camera is connected to a computer. Save images to • Save images and view them manually (USB a computer and connection) (pages 177, 181).

  • Page 177: Using The Camera With A Windows Computer

    Using the Camera with a Windows Computer When you want Operating System Required Software to do this: Version page: Windows 10, Save images to Windows 8.1, a computer and Windows 8, Installation not required. view them there Windows 7, manually Windows Vista Windows 10, Windows 8.1,...
  • Page 178 . To connect the camera to your computer and save files Turn off the camera and then USB port use the micro USB cable that comes with the camera to connect it to your computer. • For details about connecting to the camera and precautions when connecting, see page 24.
  • Page 179 Windows 10, Windows 8.1, Windows 8 users: On the “Documents” menus, click “Home” and then “Paste”. Windows 7, Windows Vista users: On the “Documents” menu, click “Organize” or “Edit”, and then “Paste”. This will paste the “DCIM” folder (and all the image files it contains) into your “Documents”...

  • Page 180: Playing Movies

    Playing Movies To play back a movie, first copy it to your computer and then double-click the movie file. Some operating systems may not be able to play back movies. If this happens, you need to install separately available software. •...

  • Page 181: Using The Camera With A Macintosh

    Using the Camera with a Macintosh When you want to Operating Required Software do this: System Version page: Save images to your Macintosh and view OS X Installation not required. them there manually Save images to your Photos or iPhoto, which comes Macintosh OS X bundled with some Macintosh...
  • Page 182 . To connect the camera to your computer and save files Turn off the camera and then use the micro USB cable that comes with the camera to connect it to your Macintosh (page 178). Press [ON/OFF] (Power) to turn on the camera. When you turn on the camera, check to make sure that the color of its back lamp changes from red to green or amber (page 24).

  • Page 183: Playing A Movie

    Playing a Movie To play back a movie, first copy it to your Macintosh and then double-click the movie file. . Minimum Computer System Requirements for Movie Playback The minimum system requirements described below are necessary to play back movies recorded with this camera on a computer. Operating System : Mac OS X 10.5 or higher Required Software: QuickTime Player (installed on computer) •...

  • Page 184: Files And Folders

    Files and Folders The camera creates a file each time you shoot a snapshot, record a movie, or perform any other operation that stores data. Files are grouped by storing them in folders. Each file and folder has its own unique name. •...

  • Page 185: Memory Card Data

    File System (DCF). . About DCF The following operations are supported for DCF-compliant images. Note, however, that CASIO makes no performance guarantees concerning these operations. • Transferring this camera’s DCF-compliant images to another manufacturer’s camera and view them. • Printing this camera’s DCF-compliant images on another manufacturer’s printer.

  • Page 186: Supported Image Files

    . Supported Image Files • Image files shot with this camera • DCF-compliant image files This camera may not be able to display an image, even if it is DCF-compliant. When displaying an image recorded on another camera, it may take a long time for the image to appear on this camera’s monitor screen.

  • Page 187: Other Settings (Setting)

    Other Settings (SETTING) Using the Menu Screen to Configure Other Settings This section explains menu items that apply to both the REC mode and PLAY mode. Press [MENU]. Press [ ], use [ ] and [ ] to select the “ SETTING”...

  • Page 188: Adjusting Monitor Screen Brightness

    Adjusting Monitor Screen Brightness (Screen) Menu item : Screen With this setting, the camera detects available light levels and Auto automatically adjusts the brightness of the monitor screen accordingly. Brightness that is greater than +1, which makes the screen easier to view. This setting consumes more power.

  • Page 189: Creating An Image Storage Folder

    Creating an Image Storage Folder (Create Folder) Menu item : Create Folder Creates a folder with a unique number (page 184). Files will be Create Folder stored in the new folder starting from when you record your next image. Cancel Cancels folder creation.

  • Page 190: Auto Image Orientation Detection And Rotation

    Auto Image Orientation Detection and Rotation (Auto Rotate) Menu item : Auto Rotate Rotates the displayed image in accordance with the camera orientation when the image was recorded. Images not rotated automatically. This setting can be used to configure the camera to display playback images in the same orientation as the camera when the image was shot.

  • Page 191: Configuring Sleep State Settings

    Configuring Sleep State Settings (Sleep) Menu item : Sleep This feature turns off the monitor screen and lights the back lamp (green) whenever no camera operation is performed for a preset period of time. Press any button to turn the monitor screen back on. Trigger Time Settings: 30 sec, 1 min, 2 min, Off (Sleep is disabled while “Off”...

  • Page 192: Specifying The Operation When The Monitor Screen Is Tilted

    Specifying the Operation when the Monitor Screen is Tilted (Screen Tilt) Menu item : Screen Tilt Power On Turns on the camera whenever the monitor screen is tilted. No power on/off operation performed when the monitor screen is tilted or returned to its normal position. Configuring [p] Setting (PLAY) Menu item : PLAY...

  • Page 193: Configuring World Time Settings

    Configuring World Time Settings (World Time) Menu item : World Time You can use the World Time screen to view the current time in a zone that is different from your Home City when you go on a trip, etc. World Time displays the current time in 162 cities in 32 time zones around the globe.

  • Page 194: Setting The Camera's Clock

    Setting the Camera’s Clock (Adjust) Menu item : Adjust When the date and time settings are what you want, select “Apply” and then press [SET] to apply them. [8] [2] Change the setting at the cursor location [4] [6] Move the cursor between settings •...

  • Page 195: Specifying The Display Language

    Specifying the Display Language (Language) Menu item : Language . Specify the display language you want. Select the bottom tab “ ”.    Select “Language”.  Select the language you want.  • Camera models sold in certain geographic areas may not support display language selection.

  • Page 196: Resetting The Camera To Factory Defaults

    Resetting the Camera to Factory Defaults (Reset) Menu item : Reset See page 222 for details about the camera’s factory default settings. The settings below are not reset. World Time settings, clock settings, date style, screen language, WLAN password NOTE •...

  • Page 197: Appendix

    • The battery is intended for use with a CASIO Digital Camera only. Use with any other device creates the risk of the battery damage, or deterioration of battery performance and service life.
  • Page 198 DANGER • Failure to observe any of the following precautions creates the risk of battery overheating, fire, and explosion. – Never use or leave the battery near open flame. – Do not expose the battery to heat or fire. – Make sure the battery is oriented correctly when charging it. –...
  • Page 199 Also, remove the battery from the camera, taking care to protect yourself against burn injury. 3. Contact your retailer or nearest CASIO authorized service center. . Keep Away From Fire • Never expose the camera to fire, which can cause it to explode and creates the risk of fire and personal injury.
  • Page 200 Also, remove the battery from the camera, taking care to protect yourself against burn injury. 3. Contact your retailer or nearest CASIO authorized service center. . Disassembly and Modification • Never try to take the camera apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury.

  • Page 201: Memory Cards

    Also, remove the battery from the camera, taking care to protect yourself against burn injury. 3. Contact your retailer or nearest CASIO authorized service center. . Memory Cards • Memory cards are small and present a risk of accidentally being swallowed by infants and young children.
  • Page 202 Grasp the power plug and pull. . Rechargeable Battery • If battery charging does not end normally within the specified charging time, stop charging anyway and contact your local CASIO authorized service center. Continued charging creates the risk of battery overheating, fire, and explosion.

  • Page 203: Monitor Screen

    CAUTION . Locations To Be Avoided • Never leave the camera in any of the following types of locations. Doing so creates the risk of fire and electric shock. – Areas subject to large amounts of humidity or dust – Food preparation areas or other locations where oil smoke is present –...
  • Page 204 CAUTION . Flash and Other Light Emitting Functions • Never fire the flash or use light emitting functions pointed in the direction of and too close to a person’s face. Doing so creates the risk of loss of eyesight. In the case of infants and young children in particular, keep the light source at least one meter away the eyes.

  • Page 205: Precautions During Use

    Precautions During Use . Data Error Precautions Your digital camera is manufactured using precision digital components. Any of the following creates the risk of corruption of data in camera memory. – Removing the battery or memory card while the camera is performing some operation –...

  • Page 206: Caring For Your Camera

    The radio waves that are used to send and receive data can be intercepted by third parties. Unauthorized access CASIO COMPUTER CO., LTD. shall be held in no way liable for any unauthorized access and/or use of the access point equipped on this product if the product is ever lost or stolen.
  • Page 207 Use of this camera in a country or area other than where it was originally purchased runs the risk of being in violation of local radio laws and other laws. Note that CASIO COMPUTER CO., LTD. shall not be held in any way liable for any such violations.
  • Page 208 • The Bluetooth word mark and logos are registered trademarks owned by ® Bluetooth SIG, Inc. and any use of such marks by CASIO COMPUTER CO., LTD. is under license. Other trademarks and trade names are those of their respective owners.
  • Page 209 . Open Source Software This product includes software that is licensed under the license conditions below. OpenVG 1.1 Reference Implementation Copyright (c) 2007 The Khronos Group Inc. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and /or associated documentation files (the "Materials "), to deal in the Materials without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Materials,...
  • Page 210 "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.
  • Page 211 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
  • Page 212 wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.
  • Page 213 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability...
  • Page 214 See the License for the specific language governing permissions and limitations under the License. Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. "License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.
  • Page 215 submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the...
  • Page 216 excluding those notices that do not pertain to any part of the Derivative Works; and (d) If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed...
  • Page 217 8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the...

  • Page 218: Power Supply

    If problems persist after you perform the above steps or if the battery fails to charge after 5 hours, it could mean that the battery is faulty. Contact your nearest CASIO authorized service center. Appendix...

  • Page 219: Battery Precautions

    Battery Precautions . Precautions during Use • Operation provided by a battery under cold conditions is always less than operation under normal temperatures. This is due to the characteristics of the battery, not the camera. • Charge the battery in an area where the temperature is within the range of 15°C to 35°C (59°F to 95°F).

  • Page 220: Using A Memory Card

    Using a Memory Card See page 28 for information about supported memory cards and how to load a memory card. . Using a Memory Card • SD memory cards, SDHC memory cards, and SDXC memory cards have a write protect switch. Use the Write enabled switch when you need to guard against accidentally deleting data.
  • Page 221 . Discarding or Transferring Ownership of a Memory Card or the Camera The format and delete functions of the camera do not actually delete files from the memory card. The original data remains on the card. Note that responsibility for the data on a memory card lies with you.

  • Page 222: Reset Initial Default Settings

    Reset Initial Default Settings The tables in this section show the initial default settings that are configured for menu items (displayed when you press [MENU]) after you reset the camera (page 196). Menu items depend on whether the camera is in the REC mode or PLAY mode. •...
  • Page 223 Function Ring: On / CS: Off / Flash: On / Focus: Off / ISO: Off / White Balance: Off / Exposure: Off / Memory AF Area: On / Metering: Off / Self-timer: Off / Flash Intensity: Off / Zoom (SR): On / Digital Zoom: On / MF Position: Off / Zoom Position: Off...

  • Page 224: Wireless Settings

    SETTING ECO Mode Screen Tilt Power On Screen Auto PLAY Power On Startup: Sound 1 / Delete Key Enabled Half Shutter: World Time – Sound 1 / Adjust – Shutter: Sound 1 / Sounds Operation: Date Style – Sound 1 / Operation Language –...

  • Page 225: When Things Don't Go Right

    2)The battery may be dead. Charge the battery (page 22). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available CASIO NP-130A rechargeable lithium ion battery. The camera 1)Auto Power Off may have activated (page 191).
  • Page 226 (page 52) or select a different BEST SHOT scene (page 89). The red ? (Flash The flash unit may be malfunctioning. Contact a CASIO Off) icon is authorized service center or your original retailer. Note that...
  • Page 227 Problem Possible Cause and Recommended Action A recorded image 1)Camera power may have been turned off before the save was not saved. operation was complete, which will result in the image not being saved. If the battery indicator shows , charge the battery as soon as possible (page 26).
  • Page 228 Problem Possible Cause and Recommended Action I can’t change the Some menu items may not be available, depending on the settings of menu recording mode in use. While Premium Auto Pro is in use, only items. Menu items the menu items whose settings can be configured will be for some settings displayed on the menus.
  • Page 229 If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. There are various The monitor screen shows indicators and other information indicators and about shooting conditions and the image you are recording.
  • Page 230 24 hours, it could mean that the camera’s setting camera’s battery. memory is defective. Contact your retailer or a CASIO authorized service center. Buttons are not With large capacity memory cards there is a delay after the...

  • Page 231: Display Messages

    LENS ERROR 2 If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. Memory is full with images you recorded and/or files saved by editing operations. When shooting with Prerecord CS,...
  • Page 232 Image compression could not be performed for some reason during image data recording. Perform a zoom Record Error operation to change the composition of the image and shoot it again. The lens came into contact with an obstruction while moving. The camera will turn off automatically when this RETRY POWER ON message appears.

  • Page 233: Number Of Snapshots/Movie Recording Time

    Number of Snapshots/Movie Recording Time Snapshot Built-in Memory SD Memory Card Image Size Quality File Size Recording Recording (Pixels) Capacity Capacity Fine 7.87 MB 1453 (4000 3000) Normal 4.13 MB 2221 Fine 6.87 MB 1672 (4000 2656) Normal 3.62 MB 2549 16:9 Fine...
  • Page 234 Movies Maximum Built-in Continuous Image Size/ Recording File Size of Approximate Data Maximum Memory Recording Pixels Time with 1-minute Rate (Frame Rate) File Size Recording Time per (Audio) SD Memory Movie Capacity Movie Card 14.2 Megabits/ 13 seconds 2 hours (1920 1080) second...
  • Page 235 Values when shooting with Art Shot. Recordable time when the entire movie is recorded at 30 fps. Recording time is shorter if the 30 fps frame rate is switched to 120 fps or 240 fps during recording. • Snapshot and movie recording capacity values are approximate and intended for reference only.

  • Page 236: Specifications

    Specifications File Format Snapshots: RAW (DNG)*, JPEG (Exif Version 2.3; DCF 2.0 standard; DPOF compliant) Movies: MOV format, H.264/AVC standard, IMA-ADPCM (stereo) * DNG file format is one type of RAW image file, and it is recommended by Adobe Systems Incorporated for use as a standard image file format.
  • Page 237 Exposure –2.0 EV to +2.0 EV (in 1/3EV steps) Compensation Shutter CMOS electronic shutter, mechanical shutter Shutter Speed Snapshot (Program Auto): 1/4 to 1/1600 second Snapshot (Premium Auto Pro): 4 to 1/4000 second Snapshot (Aperture Priority AE): 1 to 1/1600 second Snapshot (Shutter Speed Priority AE): 15 to 1/1600 second Snapshot (Manual Exposure): 30 to 1/1600 second •...
  • Page 238 • Battery: NP-130A (Rated Capacity: 1800 mAh) • Recording Medium: 16GB SDHC memory card (SanDisk Corporation) In accordance with CIPA (Camera and Imaging Products Association) standards In accordance with CASIO standards Other settings Time Lapse scene: Standard, Recording interval: 1/2 seconds, Total time: Off,...
  • Page 239 . Rechargeable lithium ion battery (NP-130A) Rated Voltage 3.7 V Rated Capacitance 1800 mAh Operating Temperature 0 to 40°C (32 to 104°F) Requirements Dimensions 37.8 (W) 44.8 (H) 11.2 (D) mm (1.49" (W) 1.76" (H) 0.44" (D)) (excluding projections) Weight Approximately 38 g (1.3 oz) .
  • Page 240 CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan MA1601-A 2016...

This manual is also suitable for:

Ex-zr1750

Table of Contents
