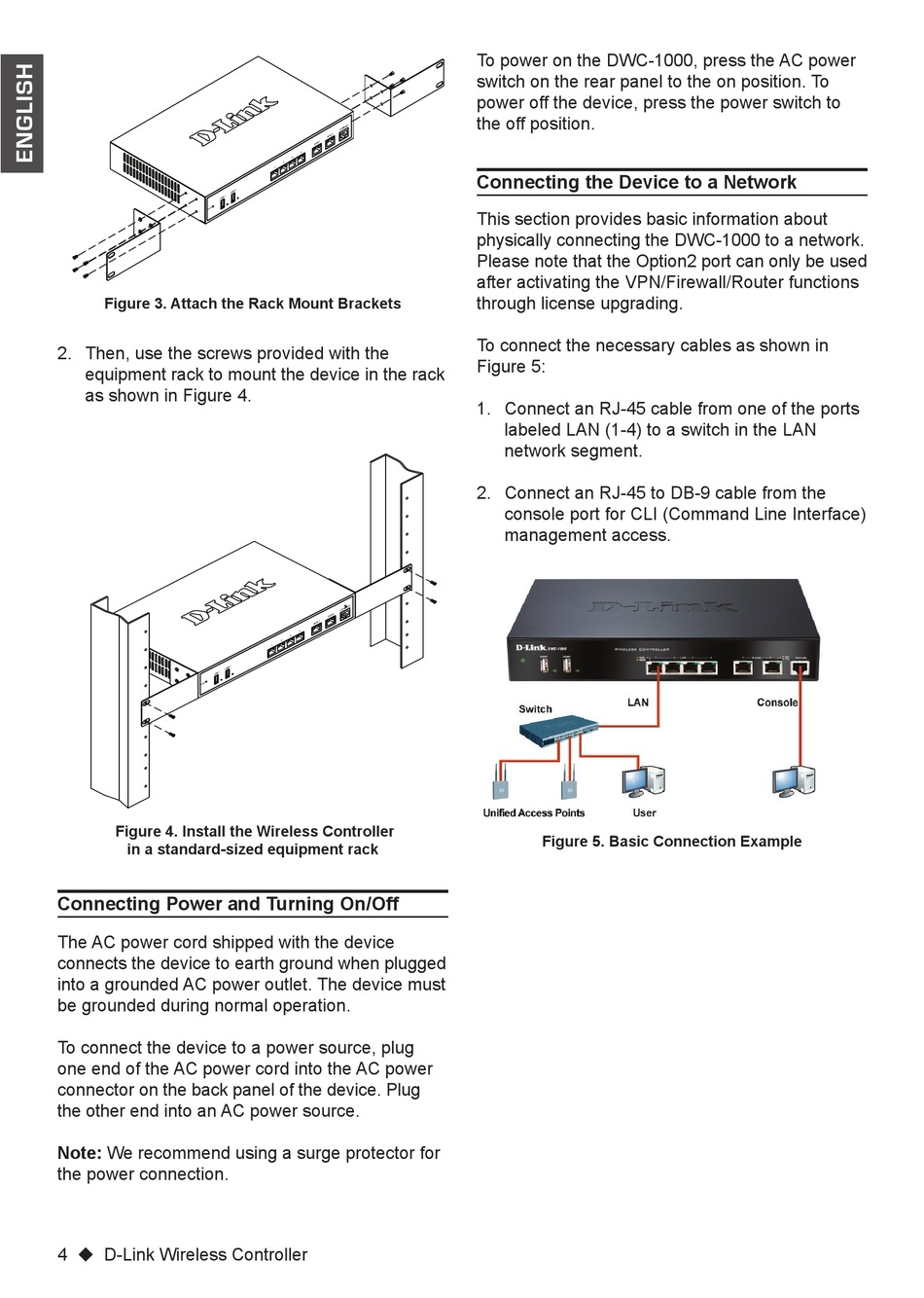

Figure 3. Attach the Rack Mount Brackets
2. Then, use the screws provided with the
equipment rack to mount the device in the rack
as shown in Figure 4.
Figure 4. Install the Wireless Controller
in a standard-sized equipment rack
Connecting Power and Turning On/Off
The AC power cord shipped with the device
connects the device to earth ground when plugged
into a grounded AC power outlet. The device must
be grounded during normal operation.
To connect the device to a power source, plug
one end of the AC power cord into the AC power
connector on the back panel of the device. Plug
the other end into an AC power source.
Note: We recommend using a surge protector for
the power connection.
4  D-Link Wireless Controller
To power on the DWC-1000, press the AC power
switch on the rear panel to the on position. To
power off the device, press the power switch to
the off position.
Connecting the Device to a Network
This section provides basic information about
physically connecting the DWC-1000 to a network.
Please note that the Option2 port can only be used
after activating the VPN/Firewall/Router functions
through license upgrading.
To connect the necessary cables as shown in
Figure 5:
1. Connect an RJ-45 cable from one of the ports
labeled LAN (1-4) to a switch in the LAN
network segment.
2. Connect an RJ-45 to DB-9 cable from the
console port for CLI (Command Line Interface)
management access.
Figure 5. Basic Connection Example
