3B SCIENTIFIC PHYSICS 500 1003278 Instruction Manual

3B SCIENTIFIC
Monocular Microscope Model 500 with Polarisation Equip-
Instruction Manual
03/13 ALF
1. Safety notes
•
For power supply use only electrical sockets
with ground contact.
Caution! The Stirling engine becomes hot during
use. Risk of burns!
•
Do not touch the lamp during or immediately
after use.
2. Description, technical data
The monocular microscope
dimensional viewing of objects (thin sections of
plant or animal specimen) in 40x to 1500x mag-
nification. It is fitted with polarisation equipment.
Stand: Robust, all metal stand with arm perma-
nently connected to the base. Focussing by
means of separate knobs for coarse and fine
®
PHYSICS
ment 1003278
adjustment located on either side of the stand
and operated by rack and pinion drive with ball
bearings and retaining lever, adjustable stopper
for protecting the object slides and objective.
Focus range: 15mm, resolution of fine focussing
adjustment: 0.002 mm
Tube: Monocular inclined 30°, head rotation
360°
Polarisation equipment: Polariser and ana-
lyser
Eyepiece: Wide field eyepieces WF 10x 18 mm
and 15x 13 mm
allows two-
Objectives: Inverted objective revolver with 4
plan achromatic objectives 4x / 0.10, 10x / 0.25,
40x / 0.65, 100x / 1.25 (oil)
Magnification: 40x – 1500x
Object stage: x-y cross table, 155 x 145 mm
with object guide and coaxial adjustment knobs
1

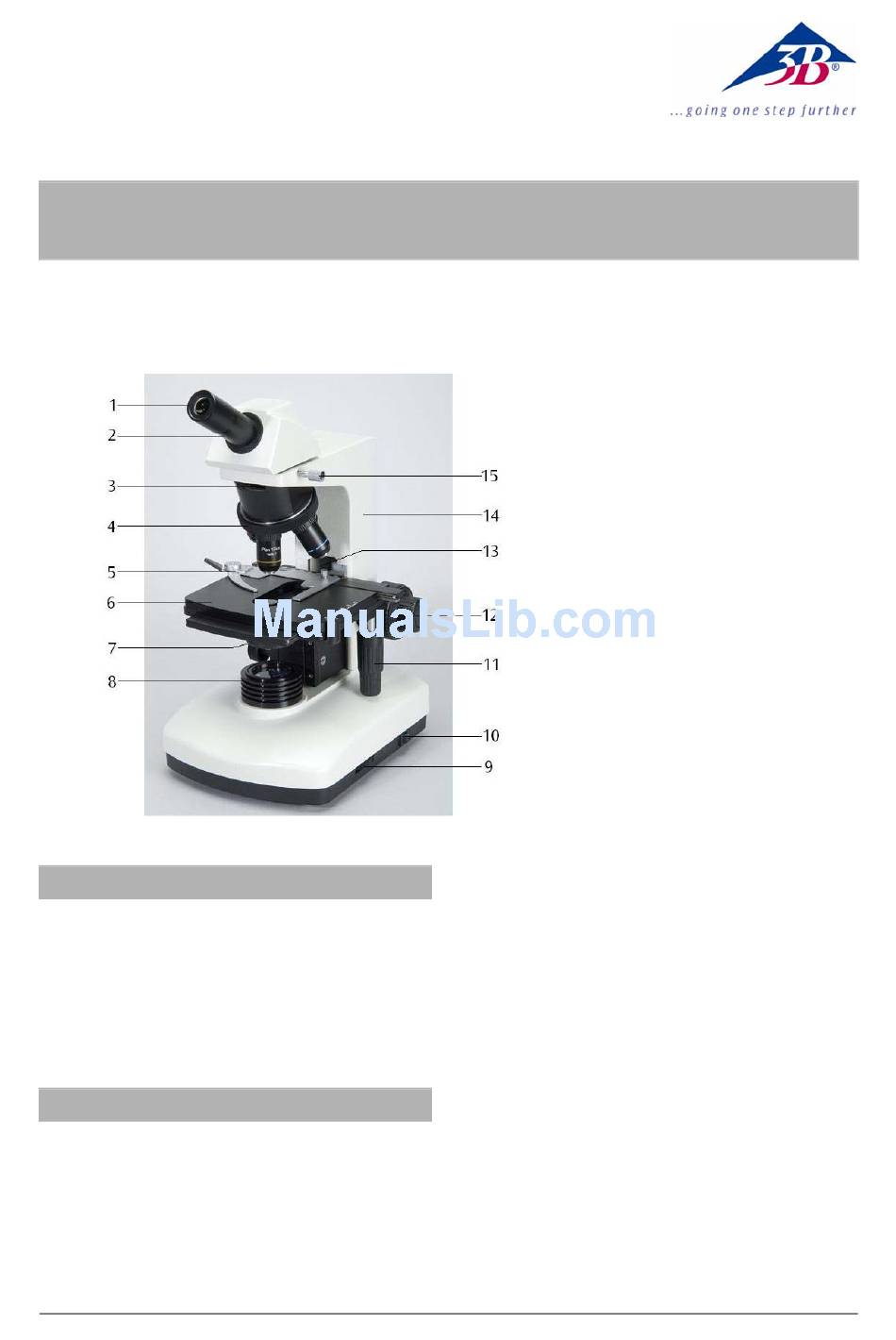

1 Eyepiece
2 Tube
3 Slot for inserting the analy-
ser
4 Revolver with objectives
5 Object guide
6 Object stage
7 Condensor with iris diaph-
ragm and filter holder
8 Lamp housing
9 Illumination control
10 Mains switch
11 1Coaxial movement control
for the specimen stage
12 Coarse and fine movement
controls with holding brake
13 Lock screw for object stage
14 Stand
15 Head lock screw
2
,
