CA006
Basic Manual
Read this manual To master
the cellular phone
Illustrations and
Screenshots
in This Manual
Notes on
Cell Phone Use
Contents
Getting Ready
Making and
Answering Calls
Global Function
Character Input
Address Book
Mail
Camera
EZweb
EZ News EX
EZ Navi
TV (1Seg)
Teens Mode
In Case of Loss
of Your CA006
Troubleshooting
Index
Advertisement
Table of Contents
Related Manuals for KDDI EXILM CA006
Summary of Contents for KDDI EXILM CA006
- Page 1 Illustrations and Screenshots in This Manual Notes on Cell Phone Use Contents Getting Ready CA006 Making and Answering Calls Global Function Basic Manual Character Input Address Book Read this manual To master the cellular phone Mail Camera EZweb EZ News EX EZ Navi TV (1Seg) Teens Mode...
- Page 2 The full Instruction Manual (Japanese) gives detailed instructions on using each function and can be downloaded from the au homepage: http://www.au.kddi.com/torisetsu/index.html To ensure proper usage of the CA006, be sure to read the Safety Precautions “安全上のご注意” in the Instruction Manual.
-
Page 3: Illustrations And Screenshots In This Manual
Illustrations and Screenshots in This Manual Note on Illustrations ■ The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration &... -
Page 4: Notes On Cell Phone Use
Notes on Cell Phone Use • Move to areas where you will not inconvenience others on trains or in hotel lobbies. • Refrain from talking in a loud voice. Cell Phone Etiquette • Obtain the permission of other people before you take The cell phone always emits weak radio waves when power their photos with the cell phone's camera. -
Page 5: Disaster Message Board Service
Disaster Message Board Service • Registered information is stored until the service set up for the disaster ends. When a large scale disaster occurs, you can register • The maximum available number of registrations is 10 your safety information from EZweb. The registered per phone number. -
Page 6: Feature Overview
Dust Resistance Feature Overview ■ Water Resistance ■ The CA006 complies with IP5X* dust protection standards (JIS C 0920). The CA006 complies with IPX5* and IPX8* water * IP5X compliant means that this cell phone continues protection standards (JIS C 0920). to function as a phone and continues to be safe to IPX5 compliant means that this cell phone continues use after being placed in a chamber containing dust... -
Page 7: Table Of Contents
Making and Answering Calls Contents Making a Call …………………………………………… 20 Making an International Call …………………………… 20 Introduction Answering a Call ……………………………………… 21 Illustrations and Screenshots in This Manual Returning a Call (Outgoing History/Incoming History) … 21 One-ring Calls …………………………………………… 21 Notes on Cell Phone Use Adjusting the Earpiece Volume during a Call ………... - Page 8 Mail EZ News EX Using E-mail …………………………………………… 32 Basic Operations ……………………………………… 44 Setting EZ News EX …………………………………… 44 Creating and Sending E-mail Messages …………… 32 Reading Received E-mail Messages ………………… 33 EZ Navi Reading an E-mail Message Passenger Seat Navi for People with an Attached Photo or Movie ………………………...
-
Page 9: Getting Ready
Getting Ready Checking the Contents of the Box The box contains the cell phone and accessories. • Cell phone • Battery pack • Instruction Manual (Japanese) • Warranty (Japanese) • Safety Precautions (Japanese) • Global Passport CDMA Owner's Guide (Japanese) •... -

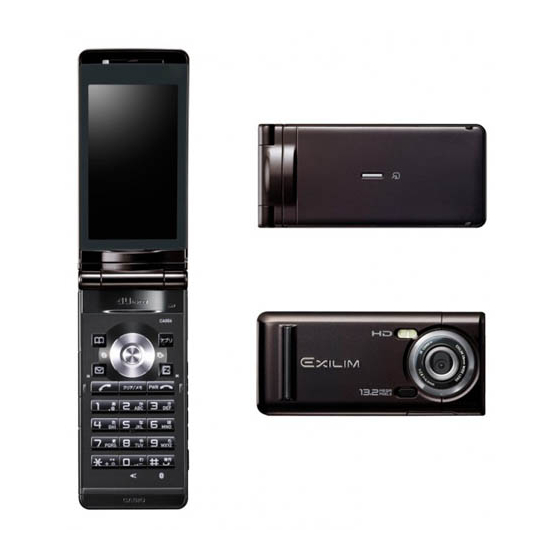

Page 10: Names Of Parts
Names of Parts From the Front From the Back From the Sides ■ ■ ■ External connection jack cover External connection jack cover Optical sensor Optical sensor ® ® HDMI HDMI Micro Connector jack cover Micro Connector jack cover FeliCa mark FeliCa mark Earpiece Earpiece... -
Page 11: Position Of Ca006
Position of CA006 • When the cell phone is in the position that Illustration 1-2 shows, do not operate the CA006 or open/close CA006 can not only be opened with the display facing the display with force. inside, but also it can be used in Viewfinder position or Self- •... -
Page 12: Replacing The Battery Pack
➡ Remove the battery pack Replacing the Battery Pack by pulling up on the tab. Use only the battery pack for the CA006, and be sure to install it correctly. Note on Removing the Battery Pack ■ Cover Do not pull up on the battery •... -
Page 13: Charging The Battery Pack
➡ Insert the two tabs • An AC adapter is not included. Purchase a specified AC adapter (sold separately). Tabs Tabs on the battery pack cover into the cell Charge indicator (LED) Charge indicator (LED) phone as shown at ① and close the battery pack cover as shown at ②. -
Page 14: Learning The Basics
Learning the Basics Key Assignments ■ : Display the ticker field and info pane. : Display the ticker field and info pane. : Display Incoming History. : Display Incoming History. : Display Outgoing History. : Display Outgoing History. : Display Notification window/ : Display Notification window/ : Display Main menu. -
Page 15: Turning On Power
Use j to select 画面表示 (Screen Display) and Hiding/Redisplaying the ➡ ■ Notification Notification window window then press c (選択 [Select]). Notification Window Use j to select Set Language and then press ➡ When the Notification window is c (選択 [Select]). displayed on the standby screen, you can temporarily hide it by pressing &... -
Page 16: Display Indicators
Display Indicators Display indicators inform you of mail arrival, current settings, etc. Display ■ ② ② ③ ③ ④⑤ ④⑤ ⑥ ⑥ ⑦ ⑦ ⑧ ⑧ ⑨ ⑨ ⑩ ⑩ Indicator Description Indicator Description ① ① ⑪ ⑪ Receiving EZ News EX ①... -
Page 17: Using Main Menu
Using Main Menu You can access various functions from the Main menu. The Main menu patterns vary by model color. The screenshots and procedures for the Bitter Black models are used in this manual. Model Color Main Menu Pattern Bitter Black Standard Vivid Pink Photo... - Page 18 Each Main menu pattern has a different set of items. Standard Photo ahiru Simple microSD LISMO Camera Camera Data Folder Data Folder Data Folder ImageAlbum Wi-Fi WIN microSD microSD Watch/Calendar Dynamic Photo Wi-Fi WIN Settings HD Movie Bluetooth/IrComm Camera Photo Function LISMO LISMO...
-
Page 19: Changing Your E-Mail Address
Use j to select 承諾する (Accept) and then ➡ Changing Your E-mail Address press c (Select). You can change the account E-mail address E-mail address Use j to select the entry box, press c (Input), ➡ name of your e-mail address. enter an e-mail address using single-byte △△△@ezweb.ne.jp △△△@ezweb.ne.jp... -
Page 20: Security Code And Passwords
EZ Password Security Code and Passwords ■ Usage Subscribing or canceling subscriptions to You can use a security code and other passwords Example EZweb fee-based contents described below. Take care not to forget your security code and passwords, The four-digit number you wrote on your Initial Setting because they are required for performing various subscription form... -
Page 21: Using Ca006 In Viewfinder Position
Using CA006 in Viewfinder Position • When the standby screen is displayed, press this key to display the main menu. You can operate CA006 by side keys when CA006 is in • When the standby screen is displayed, hold Viewfinder position. Press gf instead of pressing j. down this key for at least one second to Press b instead of pressing c. -
Page 22: Making And Answering Calls
123 - XXXX Press N. ➡ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ To end the call, press F. • KDDI International KDDI International Country Country Area code Area code Phone number Phone number access code access code code code •... -
Page 23: Answering A Call
Answering a Call Returning a Call (Outgoing History/ Incoming History) To answer a call, press N. To end the call, press F. • Example: Returning a call to a phone number in the incoming history • During a call in Viewfinder position, check the When the standby screen is displayed, press l. -
Page 24: Adjusting The Earpiece Volume During A Call
One-ring Indicator ■ • Even in manner mode, the cell phone still emits a (red) indicator on the Incoming History screen indicates sound when autofocusing, a shutter sound when you you have received a one-ring call (a call rang for three take a photo. -
Page 25: Adjusting The Incoming Ring Tone Volume
Adjusting the Incoming Ring Turning On the Answer Memo Tone Volume When the standby screen is displayed, hold down C for at least one second. When the standby screen is displayed, press c. is displayed on the standby screen. Use a to select Function and then press ➡... - Page 26 Deleting a Message ■ When the standby screen is displayed, press C. Use j to select Answer Memo and then press ➡ c (Select). Use j to select Answer Memo List and then ➡ press c (Select). Use j to select the message you want to ➡...
-
Page 27: Global Function
Obtaining the Latest PRL Global Function (Preferred Roaming List) The CA006 supports Global Passport CDMA services. Manually update and set the PRL (preferred roaming list) You can use your CA006 overseas without any additional before traveling abroad. application. When the standby screen is displayed, press c. Setting the Area Use a to select Tools and then press ➡... -
Page 28: Calling Japan From Overseas
• The PRL (preferred roaming list) is the area information of overseas carriers offering international roaming service in partnership with KDDI (au). • To obtain (download) the PRL, you need to subscribe to EZweb and make initial settings (see page 13) while in Japan. -
Page 29: Character Input
Character Input Number of Times to Press the Key 10 11 12 Character Entry Modes 1 ． ＠ − ＿ ／ ： ∼ When a character entry screen is displayed, you can select 2 ａ ｂ ｃ a character entry mode if you press & (Char.Type). 3 ｄ... -
Page 30: Entering E-Mail Addresses
C will delete all the character. characters. How to Enter E-mail Addresses ■ Starting a New Line ■ Example: Entering "taro.23@kddi.co.jp" Press #. Enter "taro.23". t : Press 8 once. • Certain functions such as C-mail do not support a : Press 2 once. -
Page 31: Entering Pictograms/Decoration-Emojis/Symbols/Face Marks
Press % (SubMenu). ➡ Use j to select Phrase and then press ➡ c (OK). Use % (Category) to select Internet. ➡ Use j to select .co.jp and then press ➡ c (Select). ".co.jp" is entered. Entering Pictograms/Decoration- Emojis/Symbols/Face Marks Example: Entering pictograms When a character entry screen is displayed, press Use a to select the pictogram you want to... -
Page 32: Address Book
Address Book • The address book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999. Saving an Address Book Entry • You can save three phone numbers and three e-mail addresses for each address book entry. -
Page 33: Saving A Phone Number From The Incoming Or Outgoing History
Saving a Phone Number from the Incoming or Outgoing History Example: Saving a phone number from the incoming history to the address book When the standby screen is displayed, press l and use j to select the phone number you want to save. -
Page 34: Mail
Creating and Sending E-mail Messages Mail When the standby screen is displayed, press L. Using E-mail Use j to select Create New and then press ➡ To use e-mail, you need to apply for an EZweb subscription. c (Select). If you did not apply for an EZweb subscription at the time of Use j to select Address and then press ➡... -
Page 35: Reading Received E-Mail Messages
Reading Received E-mail Messages Reading an E-mail Message with an Attached Photo or Movie When you receive an e-mail message, E-mail Example: Viewing an attached photo appears on the standby screen. Use s to select E-mail and then press Display the e-mail message that has an attached ➡... -
Page 36: Rejecting Spam
Use j to select 送信 (Send) and then press ➡ ➡ Refer to "Creating and Sending E-mail c (Select). Messages" (page 32) for subsequent operations. Use j to select サポート設定 (Supportive ➡ Settings) and then press c (Select). Rejecting Spam カンタン設定... -
Page 37: Using C-Mail
Use a to select an address book entry and ➡ Using C-mail then press c (Detail). C-mail is a service that uses phone numbers as addresses Use j to select a phone number and then ➡ to exchange messages between au cell phones that press c (Select). -
Page 38: Camera
Camera • Take care not to cover the lens and optical sensor with a strap or finger. Your cell phone has a CMOS camera with 13.16 effective megapixels for shooting photos, HD movies and movies. About Photo Modes You can use the self-timer and autofocus. The following modes are available for taking photos. -
Page 39: Taking A Photo
Taking a Photo • You can also display the EXILIM menu by pressing in Viewfinder position while the standby screen is When the standby screen is displayed, hold down displayed. 9 for at least one second. The monitor screen appears. ■... -
Page 40: About Hd Movie Mode
The HD movie monitor screen appears. About HD Movie Mode Turn the CA006 sideways as indicated by the icon HD movie recording allows you to record movies in high showing orientation the movie will be saved in. definition. You can use a recording mode of your chose. Recording Recording Size: Recording Time... -
Page 41: About Movie Mode
Press c(Record) / 9. ➡ About Movie Mode The movie recording screen is displayed. You can select the size of a movie by changing recording Recording stops when you press c(Stop) / ➡ modes. 9 or when the maximum recording time ○... -
Page 42: Ezweb
EZweb EZweb Subscription Required EZweb Subscription Required EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta-Full-Plus ® , Chaku-Uta-Full ® , Chaku- ® , news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription. -
Page 43: Accessing Sites
Accessing Sites Viewing the au one Top ■ You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press R, use j to select Top Menu/Search and then press c (Select). au one Top au one Top auお客さまサポート... -
Page 44: Bookmarking Frequently Accessed
Basic Operations ■ Bookmarking Frequently Use j to select the site you want to access and then Accessed Pages press c (OK). Press L or C to return to the previous screen. Hold When the page you want to bookmark is down either key for at least one second to return to the au displayed, press % (BrowserMenu). -
Page 45: Checking Charges
Use j to select 着うたフルプラス (Chaku-Uta- ➡ Checking Charges ), 着うたフル・ビデオクリップ Full-Plus ® When the standby screen is displayed, press c. ･Video Clip) or 着うた (Chaku-Uta-Full ® ) and then press c (Select). Use a to select Function and then press (Chaku-Uta ®... -
Page 46: Ez News Ex
Setting EZ News EX EZ News EX EZweb Subscription Required EZweb Subscription Required The EZ News EX is available free of charge. You have only Use the EZ News EX to display on the standby screen the to make a few simple settings. After following the procedure latest news, weather forecast, horoscope and others that are in "Initial Setup of E-mail and EZweb"... - Page 47 Changing the Reception Settings for ■ EZ News EX Information You can change the ring tone, vibrator and LED settings under M216 NewsFlash Receive for reception of EZ News EX information. If you do not want the ring tone to sound when receiving EZ News EX information, set the volume to OFF.
-
Page 48: Ez Navi
Security Navi to Check Where EZ Navi EZweb Subscription Required EZweb Subscription Required Your Kids Are Using GPS (Global Positioning System), EZ Navi provides The Security Navi application is made up of the following useful positional information services. three functions: When the standby screen is displayed, press R いつでも位置確認... -
Page 49: Ez Navi Walk For When You Go Out
EZ Navi Walk for When You Go Out 設定／会員登録／インフォ Configure various settings, sign (Setting/Membership up as a member or check out Displays various useful menu items for when you are out. Registration/Information) various useful information. There are two menu modes: the Full Mode menu for those who want to use all the convenient functions including the •... -
Page 50: Evacuate Navi To Guide You Home Or To Nearby Evacuation Areas During Disasters
Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the CA006 ( 避難所マップ [Evacuate Area Map] ). Other useful contents can be downloaded from the 災害時... -
Page 51: Tv (1Seg)
TV (1Seg) • The continuous viewing times of TV (1Seg) are as EZweb Subscription Required EZweb Subscription Required follows. The figures vary according to the usage of "1Seg", a mobile terrestrial digital television service in data broadcasts. Japan, is available on the CA006. DBEX ON: Using Approx. -
Page 52: Initial Setup Of Au Media Tuner
Initial Setup of au Media Tuner Watching TV (1Seg) To watch TV (1Seg) using the au Media Tuner, you need to When the standby screen is displayed, hold down configure initial settings. f for at least one second. When the standby screen is displayed, hold down f for at least one second. -
Page 53: Basic Operations
Basic Operations Watching TV (1Seg) in Viewfinder Position Launch TV (1Seg) to start receiving data broadcasts. When the standby screen is displayed, hold down The data operation screen appears when a data broadcast f for at least one second. is received. Press & (Vol/Ch) on the data operation screen ➡... -
Page 54: Teens Mode
Teens Mode In Teens Mode, only certain functions, such as Teens Mode Menu described below and Safety Buzzer and This "Teens Mode" limits the available functions. It is Security Navi, are enabled. convenient for parents to control the use of cell phone by •... -
Page 55: In Case Of Loss Of Your Ca006
Use j to select Direct Input, press c (OK), ➡ In Case of Loss of Your CA006 enter a phone number, and then press c (OK). The Remote Ctrl Lock allows you to remotely activate Press % (Comp). ➡ the Auto Lock, FeliCa Lock, and Address Book Lock, Use j to select Duration (min) and then press ➡... -
Page 56: Activating The Remote Ctrl Lock By The Security Lock Service
Follow the voice guidance to complete the application process. Activating/Canceling the Remote Ctrl ■ Lock from a PC Login to au Customer Support (https://cs.kddi.com/) and complete the application process by following the on- screen instructions. • The Remote Ctrl Lock cannot be activated when the CA006 is turned off or out of the service area, or Emission OFF is set to ON. -
Page 57: Troubleshooting
Troubleshooting Symptom Possible Cause Remedy Page ● Is the battery pack charged? Charge the battery pack. Cannot turn on ● Did you hold down F for at least a Hold down F for at least a few seconds. power. few seconds? Hold down F for at least a few seconds. - Page 58 • For more detailed information, visit the following au troubleshooting sites: - From an au cell phone: R ⇒ Top Menu/Search ⇒ auお客さまサポート (au Customer Support) ⇒ オンラインマニュアル (Online Manual) ⇒ 故障診断Q&A (Troubleshooting FAQ) - From a PC: http://www.kddi.com/customer/service/au/trouble/kosho/index.html...
-
Page 59: Index
Cell phone etiquette …………………………………………… 2 Index Character input ……………………………………………… 27 Character entry modes …………………………………… 27 Numeric Deleting characters ……………………………………… 28 Entering characters from the same key ………………… 28 1Seg ………………………………………………………… 49 Starting a new line ………………………………………… 28 Charging the battery pack ………………………………… 11 Checking charges ……………………………………………... - Page 60 Viewing attached images ………………………………… 33 E-mail address ……………………………………………… 13 HD Movies …………………………………………………… 38 Available characters ……………………………………… 27 Recording ………………………………………………… 38 Changing ………………………………………………… 17 Recording mode ………………………………………… 38 Entering …………………………………………………… 28 Viewing …………………………………………………… 39 Entering pictograms/Decoration-Emojis/symbols/ face marks …………………………………………………… 29 Evacuate Navi ……………………………………………… 48 EXILIM menu ………………………………………………...
- Page 61 E-mail ……………………………………………………… 32 Taking ……………………………………………………… 37 Mail filters …………………………………………………… 34 Viewing …………………………………………………… 39 Simple settings …………………………………………… 34 Playback Main menu …………………………………………………… 15 Answer memo …………………………………………… 23 Manner mode ……………………………………………… 22 Position of CA006 ……………………………………………… 9 Movies ……………………………………………………… 39 Premium EZ password …………………………………… 18 Recording …………………………………………………...
- Page 62 Antenna …………………………………………………… 49 Basic operations ………………………………………… 51 Changing channels ……………………………………… 50 Exiting ……………………………………………………… 51 Initial settings ……………………………………………… 50 Viewing Photos/HD Movies/Movies ……………………………… 39 Water resistance ……………………………………………… 4...
- Page 63 LISMO on a PC, can be area code not required downloaded from the au home page. In case above numbers are not available, From PC: http://www.au.kddi.com/music/dl3 0120 - 9 - 033 (except Okinawa) 0120 - 9 - 699...
