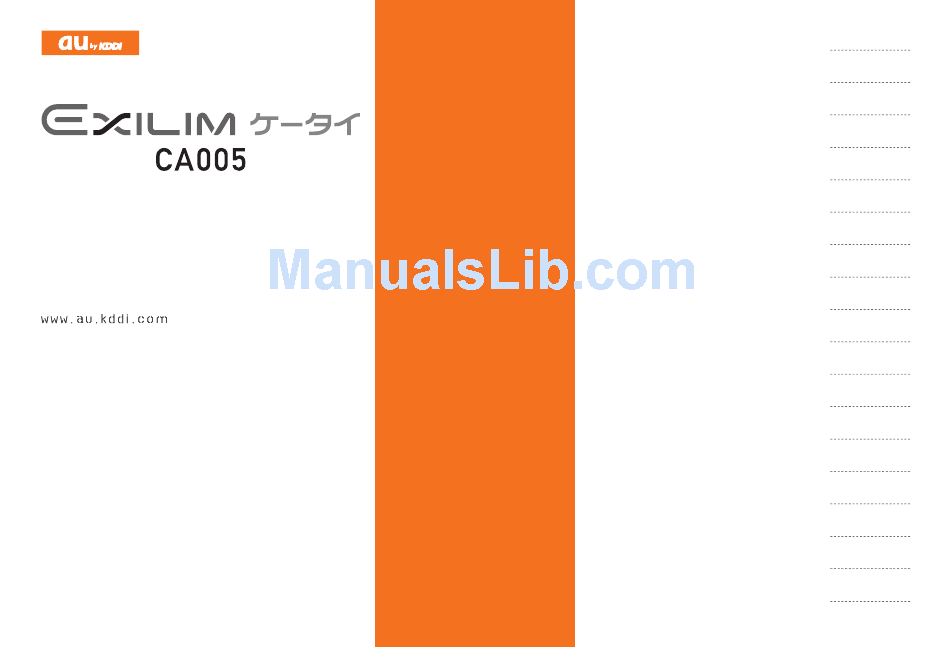

- Page 1 Illustrations and Screenshots in This Manual Notes on Cell Phone Use Contents Getting Ready Making and Answering Calls Global Function Basic Manual Character Input Address Book Read this manual To master the cellular phone Mail Camera EZweb EZ News EX EZ Navi TV (1Seg) Teens Mode...
- Page 2 ● For learning details of each function: The full Instruction Manual (Japanese) gives detailed instructions on using each function and can be downloaded from the au homepage: http://www.au.kddi.com/torisetsu/index.html To ensure proper usage of the CA005, be sure to read the Safety Precautions “安全上のご注意” in the Instruction Manual.
-
Page 3: Illustrations And Screenshots In This Manual
Illustrations and Screenshots in This Manual Note on Illustrations ■ The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration &... -
Page 4: Notes On Cell Phone Use
Notes on Cell Phone Use • Refrain from talking in a loud voice. • Obtain the permission of other people before you take their photos with the cell phone's camera. Cell Phone Etiquette • Do not record information with the cell phone's camera The cell phone always emits weak radio waves when power in bookstores and other locations where taking photos is on. -
Page 5: Disaster Message Board Service
Disaster Message Board Service • Registered information is stored until the service set up for the disaster ends. When a large scale disaster occurs, you can register • The maximum available number of registrations is 10 your safety information from EZweb. The registered per phone number. -
Page 6: Water Resistance
Water Resistance The CA005 complies with IPX5* and IPX7* water protection standards (JIS C 0920). IPX5 compliant means that this cell phone continues to function as a phone after being subjected to a water jet (approximately 12.5 liters/min.) discharged from a nozzle (inner diameter: 6.3 mm), from all directions (approximately three meters from the cell phone) for three minutes or more. -
Page 7: Table Of Contents
Making and Answering Calls Contents Making a Call …………………………………………… 20 Making an International Call …………………………… 20 Introduction Answering a Call ……………………………………… 21 Illustrations and Screenshots in This Manual Returning a Call (Outgoing History/Incoming History) … 21 One-ring Calls …………………………………………… 21 Notes on Cell Phone Use Adjusting the Earpiece Volume during a Call ………... - Page 8 Mail EZ Navi Using E-mail …………………………………………… 32 Passenger Seat Navi for People Creating and Sending E-mail Messages …………… 32 in the Passenger Seat to Check the Route ………… 45 Reading Received E-mail Messages ………………… 33 Security Navi to Check Where Your Kids Are ……… 45 Reading an E-mail Message EZ Navi Walk for When You Go Out …………………...
-
Page 9: Getting Ready
Getting Ready Checking the Contents of the Box The box contains the cell phone and accessories. • Cell phone • Battery pack • Instruction Manual (Japanese) • Warranty (Japanese) • Safety Precautions (Japanese) • Global Passport CDMA Owner's Guide (Japanese) •... -

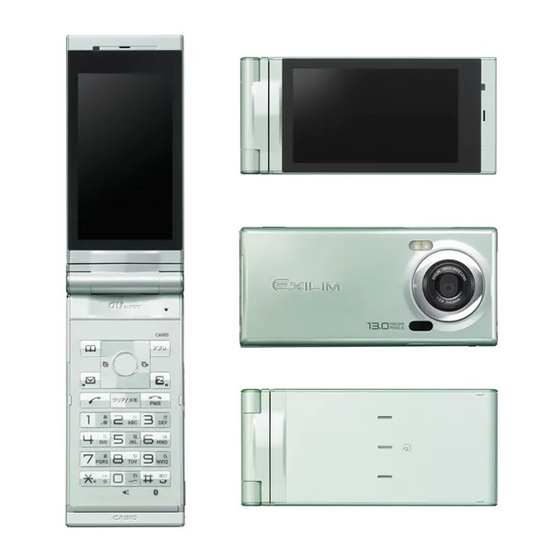

Page 10: Names Of Parts
Names of Parts From the Front From the Back From the Sides ■ ■ ■ Manner key Manner key Optical sensor Optical sensor Up key (side) Up key (side) FeliCa mark FeliCa mark Quick key Quick key Earpiece Earpiece Down key (side) Down key (side) Charge indicator (LED) Charge indicator (LED) -
Page 11: Position Of Ca005
Position of CA005 • When the cell phone is in the position that Illustration 1-2 shows, do not operate the CA005 or open/close CA005 can not only be opened with the display facing the display with force. inside, but also it can be used in Viewfinder position or Self- •... -
Page 12: Replacing The Battery Pack
➡ Remove the battery pack, Replacing the Battery Pack Pull tab Pull tab by pulling up on the Pull tab. Use only the battery pack for the CA005, and be sure to install it correctly. Note on Removing the Battery Pack ■... -
Page 13: Charging The Battery Pack
➡ Place the battery pack • An AC adapter is not included. Purchase a specified AC adapter (sold separately). cover on the cell phone correctly and then push Charge indicator (LED) Charge indicator (LED) at the 11 places marked with circles on the right. -
Page 14: Learning The Basics
Learning the Basics Key Assignments ■ : Display the ticker field and info pane. : Display the ticker field and info pane. : Display Incoming History. : Display Incoming History. : Display Outgoing History. : Display Outgoing History. : Display Notification window/ : Display Notification window/ : Display Main menu. -
Page 15: Turning On Power
Use j to select 画面表示 (Screen Display) and Hiding/Redisplaying the ➡ ■ Notification Notification window window then press c (選択 [Select]). Notification Window Use j to select Set Language and then press ➡ When the Notification window is c (選択 [Select]). displayed on the standby screen, you can temporarily hide it by pressing &... -
Page 16: Display Indicators
Display Indicators Display indicators inform you of mail arrival, current settings, etc. Display ■ ① ① ② ② ③ ③ ④⑤ ④⑤ ⑥ ⑥ ⑦ ⑦ ⑧ ⑧ ⑨ ⑨ ⑩ ⑩ Indicator Description ① Signal strength ② Battery level ⑪... -
Page 17: Using Main Menu
Using Main Menu You can access various functions from the Main menu. The Main menu patterns vary by model color. The screenshots for the Black models are used in this manual. Model Color Main Menu Pattern Black Standard Pink × Purple Photo White ahiru... - Page 18 Each Main menu pattern has a different set of items. Standard Photo ahiru Simple microSD Function Camera Camera Data Folder Bluetooth/IrComm Data Folder PC Site Viewer PC Site Viewer LISMO microSD Function Dynamic Photo PC Site Viewer LISMO Movie Bluetooth/IrComm Camera Photo Function...
-
Page 19: Changing Your E-Mail Address
Use j to select 承諾する (Accept) and then ➡ Changing Your E-mail Address press c (Select). You can change the account E-mail address E-mail address Use j to select the entry box, press c (Input), ➡ name of your e-mail address. enter an e-mail address using single-byte △△△@ezweb.ne.jp △△△@ezweb.ne.jp... -
Page 20: Security Code And Passwords
EZ Password Security Code and Passwords ■ Usage Subscribing or canceling subscriptions to You can use a security code and other passwords Example EZweb fee-based contents described below. Take care not to forget your security code and passwords, The four-digit number you wrote on your Initial Setting because they are required for performing various subscription form... -
Page 21: Using Ca005 In Viewfinder Position
Using CA005 in Viewfinder Position • When the standby screen is displayed, press this key to display the main menu. You can operate CA005 by side keys when CA005 is in • When the standby screen is displayed, hold Viewfinder position. Press gf instead of pressing j. down this key for at least one second to Press b instead of pressing c. -
Page 22: Making And Answering Calls
123 - XXXX Press N. ➡ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ To end the call, press F. • KDDI International KDDI International Country Country Area code Area code Phone number Phone number access code access code code code •... -
Page 23: Answering A Call
Answering a Call Returning a Call (Outgoing History/ Incoming History) To answer a call, press N. To end the call, press F. • Example: Returning a call to a phone number in the incoming history • During a call in Viewfinder position, check the When the standby screen is displayed, press l. -
Page 24: Adjusting The Earpiece Volume During A Call
One-ring Indicator ■ • Even in manner mode, the cell phone still emits a (red) indicator on the Incoming History screen indicates sound when autofocusing, a shutter sound when you you have received a one-ring call (a call rang for three take a photo. -
Page 25: Adjusting The Incoming Ring Tone Volume
Adjusting the Incoming Ring Turning On the Answer Memo Tone Volume When the standby screen is displayed, hold down C for at least one second. When the standby screen is displayed, press c. is displayed on the standby screen. Use a to select Function and then press ➡... - Page 26 Deleting a Message ■ When the standby screen is displayed, press C. Use j to select Answer Memo and then press ➡ c (Select). Use j to select Answer Memo List and then ➡ press c (Select). Use j to select the message you want to ➡...
-
Page 27: Global Function
Obtaining the Latest PRL Global Function (Preferred Roaming List) The CA005 supports Global Passport CDMA services. Manually update and set the PRL (preferred roaming list) You can use your CA005 overseas without any additional before traveling abroad. application. When the standby screen is displayed, press c. Setting the Area Use a to select Accessories and then press ➡... -
Page 28: Calling Japan From Overseas
• The PRL (preferred roaming list) is the area information of overseas carriers offering international roaming service in partnership with KDDI (au). • To obtain (download) the PRL, you need to subscribe to EZweb and make initial settings (see page 13) while in Japan. -
Page 29: Character Input
Character Input Number of Times to Press the Key 10 11 12 Character Entry Modes 1 ． ＠ − ＿ ／ ： ∼ When a character entry screen is displayed, you can select 2 ａ ｂ ｃ a character entry mode if you press & (Char.Type). 3 ｄ... -
Page 30: Entering E-Mail Addresses
C will delete all the character. characters. How to Enter E-mail Addresses ■ Starting a New Line ■ Example: Entering "taro.23@kddi.co.jp" Press #. Enter "taro.23". t : Press 8 once. • Certain functions such as C-mail do not support a : Press 2 once. -
Page 31: Entering Pictograms/Decoration-Emojis/Symbols/Face Marks
Press % (SubMenu). ➡ Use j to select Phrase and then press ➡ c (OK). Use % (Category) to select Internet. ➡ Use j to select .co.jp and then press ➡ c (Select). ".co.jp" is entered. Entering Pictograms/Decoration- Emojis/Symbols/Face Marks Example: Entering pictograms When a character entry screen is displayed, press Use a to select the pictogram you want to... -
Page 32: Address Book
Address Book • The address book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999. Saving an Address Book Entry • You can save three phone numbers and three e-mail addresses for each address book entry. -
Page 33: Saving A Phone Number From The Incoming Or Outgoing History
Saving a Phone Number from the Incoming or Outgoing History Example: Saving a phone number from the incoming history to the address book When the standby screen is displayed, press l and use j to select the phone number you want to save. -
Page 34: Mail
Creating and Sending E-mail Messages Mail When the standby screen is displayed, press L. Using E-mail Use j to select Create New and then press ➡ To use e-mail, you need to apply for an EZweb subscription. c (Select). If you did not apply for an EZweb subscription at the time of Use j to select Address and then press ➡... -
Page 35: Reading Received E-Mail Messages
Reading Received E-mail Messages Reading an E-mail Message with an Attached Photo or Movie When you receive an e-mail message, E-mail Example: Viewing an attached photo appears on the standby screen. Use s to select E-mail and then press Display the e-mail message that has an attached ➡... -
Page 36: Rejecting Spam
➡ Refer to "Creating and Sending E-mail カンタン設定 (Simple Settings) ■ Messages" (page 32) for subsequent Set the filter by answering operations. questions サポート設定 This is recommended for users Rejecting Spam (Supportive Settings) who want to configure settings Setting mail filters to reject spam is recommended. while confirming conditions. -
Page 37: Using C-Mail
Use a to select an address book entry and ➡ Using C-mail then press c (Detail). C-mail is a service that uses phone numbers as addresses Use j to select a phone number and then ➡ to exchange messages between au cell phones that press c (Select). -
Page 38: Camera
About Photo Modes Camera The following modes are available for taking photos. Your cell phone has a CMOS camera with 12.95 effective W.paper (F.Wide) is set for W.paper mode and 13M is set megapixels for shooting photos and movies. You can use for DSC mode at the time of purchase. -
Page 39: Taking A Photo
Taking a Photo Taking a Photo in Viewfinder Position When the standby screen is displayed, hold down ) for at least one second. When the standby screen is displayed, set CA005 The monitor screen appears. to Viewfinder position. Press c (Shoot). ➡... -
Page 40: Viewing Photos
Saving a Photo ■ Press ) on the preview screen. • If you do not want to save the photo, press on the preview screen. Viewing Photos When the standby screen is displayed, press c. Use a to select Data Folder and then press ➡... -
Page 41: Ezweb
EZweb EZweb Subscription Required EZweb Subscription Required EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta-Full-Plus™, Chaku-Uta-Full ® , Chaku- ® , news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription. -
Page 42: Accessing Sites
Accessing Sites Viewing the au one Top ■ You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press R, use j to select Top Menu/Search and then press c (Select). au one Top au one Top キーワード検索機能... -
Page 43: Bookmarking Frequently Accessed
Basic Operations ■ Bookmarking Frequently Use j to select the site you want to access and then Accessed Pages press c (OK). Press L or C to return to the previous screen. Hold When the page you want to bookmark is down either key for at least one second to return to the au displayed, press % (BrowserMenu). -
Page 44: Checking Charges
Use j to select 着うたフルプラス (Chaku-Uta- ➡ Checking Charges Full-Plus™), 着うたフル・ビデオクリップ When the standby screen is displayed, press c. ･Video Clip) or 着うた (Chaku-Uta-Full ® ) and then press c (Select). Use a to select Function and then press (Chaku-Uta ®... -
Page 45: Ez News Ex
Setting EZ News EX EZ News EX EZweb Subscription Required EZweb Subscription Required The EZ News EX is available free of charge. You have only Use the EZ News EX to display on the standby screen the to make a few simple settings. After following the procedure latest news, weather forecast, horoscope and others that are in "Initial Setup of E-mail and EZweb"... - Page 46 Changing the Reception Settings for ■ EZ News EX Information You can change the ring tone, vibrator and LED settings under M216 NewsFlash Receive for reception of EZ News EX information. If you do not want the ring tone to sound when receiving EZ News EX information, set the volume to OFF.
-
Page 47: Ez Navi
Security Navi to Check Where EZ Navi EZweb Subscription Required EZweb Subscription Required Your Kids Are Using GPS (Global Positioning System), EZ Navi provides The Security Navi application is made up of the following useful positional information services. three functions: When the standby screen is displayed, press R いつでも位置確認... -
Page 48: Ez Navi Walk For When You Go Out
EZ Navi Walk for When You Go Out 設定／会員登録／インフォ Configure various settings, sign (Setting/Membership up as a member or check out Displays various useful menu items for when you are out. Registration/Information) various useful information. There are two menu modes: the Full Mode menu for those who want to use all the convenient functions including the •... -
Page 49: Evacuate Navi To Guide You Home Or To Nearby Evacuation Areas During Disasters
Evacuate Navi to Guide You Home or to Nearby Evacuation Areas during Disasters Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the CA005 ( 避難所マップ [Evacuate Area Map] ). Other useful contents can be downloaded from the 災害時... -
Page 50: Tv (1Seg)
TV (1Seg) • The continuous viewing times of TV (1Seg) are as EZweb Subscription Required EZweb Subscription Required follows. The figures vary according to the usage of "1Seg", a mobile terrestrial digital television service in data broadcasts. Japan, is available on the CA005. DBEX ON: Using Approx. -
Page 51: Initial Setup Of Au Media Tuner
Initial Setup of au Media Tuner Watching TV (1Seg) To watch TV (1Seg) using the au Media Tuner, you need to When the standby screen is displayed, hold down configure initial settings. f for at least one second. When the standby screen is displayed, hold down f for at least one second. -
Page 52: Basic Operations
Basic Operations Watching TV (1Seg) in Viewfinder Position Launch TV (1Seg) to start receiving data broadcasts. When the standby screen is displayed, hold down The data operation screen appears when a data broadcast f for at least one second. is received. Press & (Vol/Ch) on the data operation screen ➡... -
Page 53: Teens Mode
Teens Mode In Teens Mode, only certain functions, such as Teens Mode Menu described below and Safety Buzzer and This "Teens Mode" limits the available functions. It is Security Navi, are enabled. convenient for parents to control the use of cell phone by •... -
Page 54: In Case Of Loss Of Your Ca005
Use j to select Direct Input, press c (OK), ➡ In Case of Loss of Your CA005 enter a phone number, and then press c (OK). The Remote Ctrl Lock allows you to remotely activate Press % (Comp). ➡ the Auto Lock, FeliCa Lock, and Address Book Lock, Use j to select Duration (min) and then press ➡... -
Page 55: Activating The Remote Ctrl Lock By The Security Lock Service
Follow the voice guidance to complete the application process. Activating/Canceling the Remote Ctrl ■ Lock from a PC Login to au Customer Support (https://cs.kddi.com/) and complete the application process by following the on- screen instructions. • The Remote Ctrl Lock cannot be activated when the CA005 is turned off or out of the service area, or Emission OFF is set to ON. -
Page 56: Troubleshooting
Troubleshooting Symptom Possible Cause Remedy Page ● Is the battery pack charged? Charge the battery pack. Cannot turn on ● Did you hold down F for at least a Hold down F for at least a few seconds. power. few seconds? Hold down F for at least a few seconds. - Page 57 • For more detailed information, visit the following au troubleshooting sites: - From an au cell phone: R ⇒ Top Menu/Search ⇒ auお客さまサポート (au Customer Support) ⇒ オンラインマニュアル (Online Manual) ⇒ 故障診断Q&A (Troubleshooting FAQ) - From a PC: http://www.kddi.com/customer/service/au/trouble/kosho/index.html...
-
Page 58: Index
Deleting characters ……………………………………… 28 Index Entering characters from the same key ………………… 28 Starting a new line ………………………………………… 28 Numeric Charging the battery pack ………………………………… 11 Checking charges …………………………………………… 42 1Seg ………………………………………………………… 48 C-mail ………………………………………………………… 35 C-mail safety block ……………………………………… 35 Creating and sending ……………………………………... - Page 59 Entering pictograms/Decoration-Emojis/symbols/ TV (1Seg) ………………………………………………… 49 face marks …………………………………………………… 29 International Call …………………………………………… 20 Evacuate Navi ……………………………………………… 47 Internet ……………………………………………………… 39 EXILIM menu ……………………………………………… 37 Sites ……………………………………………………… 40,41 EZ Navi ……………………………………………………… 45 EZ Navi Walk ………………………………………………… 46 EZ News EX ………………………………………………… 43 Key assignments ……………………………………………...
- Page 60 Signal strength ……………………………………………… 14 Simple menu ………………………………………………… 16 Passenger Seat Navi ……………………………………… 45 Sites ………………………………………………………… 40 Passwords …………………………………………………… 18 Bookmarking ……………………………………………… 41 Phone (call) ………………………………………………… 20 Viewing from bookmarks ………………………………… 41 184/186 …………………………………………………… 20 Spam ………………………………………………………… 34 Answering ………………………………………………… 21 International Call …………………………………………...
- Page 61 LISMO on a PC, can be area code not required downloaded from the au home page. In case above numbers are not available, From PC: http://www.au.kddi.com/music/dl3 0120 - 9 - 033 (except Okinawa) 0120 - 9 - 699...
