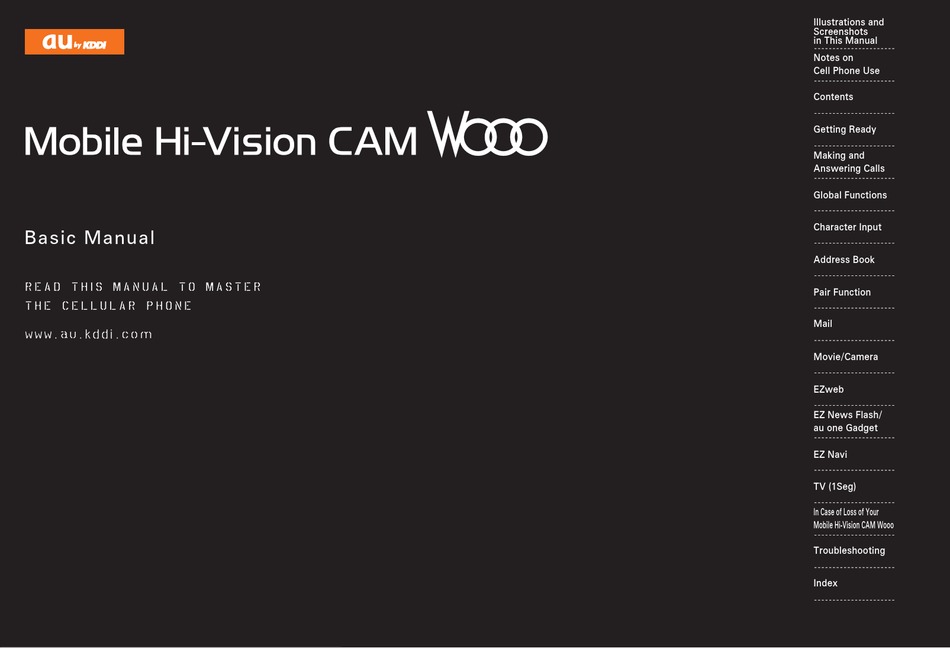

- Page 1 Character Input Basic Manual Address Book read this manual to master Pair Function the cellular phone Mail Movie/Camera EZweb EZ News Flash/ au one Gadget EZ Navi TV (1Seg) In Case of Loss of Your Mobile Hi-Vision CAM Wooo Troubleshooting Index...
- Page 2 Introduction Thank you for purchasing the Mobile Hi-Vision CAM Wooo. Before using your cell phone, be sure to read the cell phone Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.
-
Page 3: Illustrations And Screenshots In This Manual
Illustrations and Screenshots in This Manual Note on Illustrations ■ The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration &... -
Page 4: Notes On Cell Phone Use
Notes on Cell Phone Use • Obtain the permission of other people before you take their photos with the cell phone's camera. • Do not record information with the cell phone's camera Cell Phone Etiquette in bookstores and other locations where taking photos The cell phone always emits weak radio waves when power is not permitted. -
Page 5: Disaster Message Board Service
Disaster Message Board Service • The maximum storage period of the registered information is 72 hours. When a large scale disaster occurs, you can register • The maximum available number of registrations is 10 your safety information from EZweb. The registered per phone number. -
Page 6: Table Of Contents
Obtaining the Latest PRL (Preferred Roaming List) … 23 Names of Parts ………………………………………… 7 Calling Japan from Overseas ………………………… 24 Position of Mobile Hi-Vision CAM Wooo ……………… 8 Charging the Battery Pack …………………………… 9 Character Input Learning the Basics …………………………………… 10 Character Entry Modes …………………………………... - Page 7 Movie/Camera Exiting the au Media Tuner …………………………… 53 Using HD Movie ………………………………………… 35 In Case of Loss of Your Mobile Hi-Vision CAM Wooo 54 Recording an HD Movie ……………………………… 36 Setting Conditions for Activating the Remote Ctrl Lock …… 54 Using Movie/Photo ………………………………………...
-
Page 8: Getting Ready
Getting Ready Checking the Contents of the Box The box contains the cell phone and accessories. • Cell phone • Battery pack • USB Cable (sample) • microSD™ memory card (sample) • CD-ROM • CD-ROM Booklet (Japanese) • Instruction Manual (Japanese) •... -
Page 9: Names Of Parts
Names of Parts From the Front From the Back From the Sides ■ ■ ■ Earpiece Earpiece External connection jack cover External connection jack cover Built-in Built-in TV antenna TV antenna antenna antenna Charging terminals Charging terminals Lock Knob Lock Knob Manner key Manner key Display... -
Page 10: Position Of Mobile Hi-Vision Cam Wooo
Position of Mobile Hi-Vision CAM Wooo • When re-opening from Regular open position to Wide open position, or from Wide open position to Regular Cell phone can be used in the Regular Open Position (with open position, always close your cell phone before the display vertically open), in the Wide Open Position re-opening. -
Page 11: Charging The Battery Pack
➡ Confirm that the charge indicator lights. Charging the Battery Pack • Charging: A charge beginning sounds and the charge The battery pack is not fully charged at the time of purchase. indicator lights. Be sure to charge the battery pack before using the cell •... -
Page 12: Learning The Basics
Learning the Basics Key Assignments ■ : Display the ticker field, info pane and : Display the ticker field, info pane and gadget (setting icon). gadget (setting icon). : Display Incoming History. : Display Incoming History. : Display Outgoing History. : Display Outgoing History. -
Page 13: Turning On Power
Use j to select 画面表示 (Screen Display) and Notification window Notification window Hiding/Redisplaying the ➡ ■ then press c (選択 [Select]). Notification Window Use j to select Set Language and then press ➡ When the Notification window is c (選択 [Select]). displayed on the standby screen, you can temporarily hide it by pressing &... -
Page 14: Display Indicators
Display Indicators Display indicators inform you of mail arrival, current settings, etc. Display ■ ① ① ② ③ ④⑤⑥ ② ③ ④⑤⑥ ⑦ ⑦ ⑧ ⑧ ⑨⑩ ⑨⑩ Indicator Description ① Signal strength ② Battery level ⑪ ⑪ ③ A microSD memory card (sample) inserted During a call ④... -
Page 15: Using Main Menu
Using Main Menu You can access various functions from the Main menu. The Main menu patterns vary by model color. The screenshots for the Rays Blue models are used in this manual. Model Color Main Menu Pattern Rays Blue Hologram Mica Black Neo-Black Cassis Red... - Page 16 Each Main menu pattern has a different set of items. Hologram Neo-Black Mosaic Simple HD Movie LISMO Player LISMO Player Movie/Photo Wooo Link Data Folder Data Folder Camera microSD microSD LISMO Player Function Function Data Folder LISMO Player microSD Function HD Movie HD movie JIBUN BANK...
-
Page 17: Using Wide Open Menu
Using Wide Open Menu The menu only for Wide open position is prepared in cell phone. Wide Open Menu View PC Documents Watch Video View Photos Play List Watch Movie Wooo Link Open User Folder TV(1Seg) PC Site Viewer... -
Page 18: Changing Your E-Mail Address
Use j to select 承諾する (Accept) and then ➡ Changing Your E-mail Address press c (Select). You can change the account E-mail address E-mail address Use j to select the entry box, press c (Input), ➡ name of your e-mail address. enter an e-mail address using single-byte △△△@ezweb.ne.jp △△△@ezweb.ne.jp... -
Page 19: Security Code And Passwords
EZ Password Security Code and Passwords ■ Usage Subscribing or canceling subscriptions to You can use a security code and other passwords Example EZweb fee-based contents described below. Take care not to forget your security code and passwords, The four-digit number you wrote on your Initial Setting because they are required for performing various subscription form... -
Page 20: Making And Answering Calls
123 - XXXX Press N. ➡ ↑ ↑ ↑ ↑ ↑ ↑ ↑ ↑ To end the call, press F. • KDDI international KDDI international Country Country Area code Area code Phone number Phone number access code access code code code •... -
Page 21: Answering A Call
Answering a Call Returning a Call (Outgoing History/ Incoming History) To answer a call, press N. To end the call, press F. • Example: Returning a call to a phone number in the incoming history • You can not make call in Wide open position. When the standby screen is displayed, press l. -
Page 22: Adjusting The Earpiece Volume During A Call
One-ring Indicator ■ • Even in manner mode, the cell phone still emits a indicator on the Incoming History screen indicates you sound when autofocusing, a shutter sound when you have received a one-ring call (a call rang for three seconds take a photo. -
Page 23: Adjusting The Incoming Ring Tone Volume
Adjusting the Incoming Ring Turning On the Answer Memo Tone Volume When the standby screen is displayed, hold down C for at least one second. When the standby screen is displayed, press c. is displayed on the standby screen. Use a to select Function and then press ➡... - Page 24 Deleting a Message ■ When the standby screen is displayed, press C. Use j to select Answer Memo and then press ➡ c (Select). Use j to select Answer Memo List and then ➡ press c (Select). Use j to select the message you want to ➡...
-
Page 25: Global Function
Obtaining the Latest PRL Global Function (Preferred Roaming List) The cell phone supports Global Passport CDMA services. Manually update and set the PRL (preferred roaming list) You can use your cell phone overseas without any before traveling abroad. additional application. When the standby screen is displayed, press c. -
Page 26: Calling Japan From Overseas
• The PRL (preferred roaming list) is the area information of overseas carriers offering international roaming service in partnership with KDDI (au). • To obtain (download) the PRL, you need to subscribe to EZweb and make initial settings (see page 11) while in Japan. -
Page 27: Character Input
Character Input Number of Times to Press the Key 10 11 12 Character Entry Modes 1 ． ＠ − ＿ ／ ： ∼ When a character entry screen is displayed, you can select 2 ａ ｂ ｃ a character entry mode if you press & (Char.Type). 3 ｄ... -
Page 28: Entering E-Mail Addresses
C will delete all the character. characters. How to Enter E-mail Addresses ■ Starting a New Line ■ Example: Entering "taro.23@kddi.co.jp" Press #. Enter "taro.23". t : Press 8 once. • Certain functions such as C-mail do not support a : Press 2 once. -
Page 29: Entering Pictograms
Press % (SubMenu). ➡ Use j to select Phrase and then press ➡ c (OK). Use % (Category) to select Internet. ➡ Use j to select .co.jp and then press ➡ c (Select). ".co.jp" is entered. Entering Pictograms When a character entry screen is displayed, press Use a to select the pictogram you want to ➡... -
Page 30: Address Book
Address Book • The Address book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999. Saving a Address Book Entry • You can save three phone numbers and three e-mail addresses for each Address book entry. -
Page 31: Saving A Phone Number From The Incoming Or Outgoing History
Saving a Phone Number from the Incoming or Outgoing History Example: Saving a phone number from the incoming history to the Address book When the standby screen is displayed, press l and use j to select the phone number you want to save. -
Page 32: Pair Function
Making a Call to a Pair Partner Pair Function When the standby screen is displayed, press N. You can register a maximum of five pair partners you contact often to easily call or send mail. Use s to select the person you want to call. ➡... -
Page 33: Mail
Creating and Sending E-mail Messages Mail When the standby screen is displayed, press L. Using E-mail Use j to select Create New and then press ➡ To use e-mail, you need to apply for an EZweb subscription. c (Select). If you did not apply for an EZweb subscription at the time of Use j to select Address and then press ➡... -
Page 34: Reading Received E-Mail Messages
Use j to select the file name and then press ➡ Reading Received E-mail Messages c (Receive). When you receive an e-mail message, E-mail Press c (Play). ➡ appears on the standby screen. • Selecting the file name or pressing (Receive) Use s to select E-mail and then press ➡... -
Page 35: Rejecting Spam
カンタン設定 (Simple Settings) Rejecting Spam ■ Setting mail filters to reject spam is recommended. Set the filter by answering The サポート設定 (Supportive Settings) helps you to set questions サポート設定 mail filters easily by answering questions that appear on the This is recommended for users (Supportive Settings) screen. -
Page 36: Using C-Mail
Use a to select a Address book entry and ➡ Using C-mail then press c (Detail). C-mail is a service that uses phone numbers as addresses Use j to select a phone number and then ➡ to exchange messages between au cell phones that press c (Select). -
Page 37: Movie/Camera
What You Can Do With HD Movie ■ Movie/Camera You can select a recording mode as you like. You can Cell phone is equipped with a CMOS camera that enables resize an HD movie and send it by e-mail. approximately 5.00 million effective pixel shooting. HD Recording Size: movie shooting for Hi-Vision and movie/photo shooting can Recording... -
Page 38: Recording An Hd Movie
The Recording Time ■ Recording an HD Movie The continuous recording time of HD movie is approximately When the standby screen is displayed, press 100 minutes when the battery is fully charged. * The value is one that the manufacturer obtained in the following conditions. - Page 39 The Folder that HD Movie Files are saved to • The cell phone does not operate in any of the following Storage Folder occasions, even if you press . Note that there are Recording some other occasions where the cell phone does not Data Folder of the microSD Memory Mode...
-
Page 40: Using Movie/Photo
What You Can Do With Photo ■ • When the cell phone is in the 1Sec Quick Start mode, the camera start indicator turns off and the 1-Second You can select a size and quality as you like. Quick Start indicator (LED) light turns on blue. The Maximum Photo Size: 1-Second Quick Start indicator (LED) blinks if you are... -
Page 41: Recording A Movie
About Photo Modes ■ Recording a Movie The following modes are available for taking photos. When the standby screen is displayed, press c. W.paper (Wide) is set for W.paper mode and 5M is set for Use a to select Camera and then press DSC mode at the time of purchase. -
Page 42: Photo Taking Tips
The Folder that Movies are Saved to Photo Taking Tips • Storage folders for movies are different according to When taking photos, frame the subject within the display recording mode. and hold the cell phone steady with both hands to avoid Storage Folder shaking. -
Page 43: Taking A Photo
Taking a Photo When the standby screen is displayed, press c. Use a to select Camera and then press ➡ c (Select). Use j to select Photo (W.paper Mode) and then ➡ press c (Select). Press c (Shoot). ➡ The preview screen is displayed. Saving a Photo ■... -
Page 44: Ezweb
EZweb EZweb Subscription Required EZweb Subscription Required EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta-Full ® , Chaku-Uta ® , news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription. -
Page 45: Accessing Sites
Accessing Sites Viewing the au one Top ■ You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press R, use j to select au one Top and then press c (Select). キーワード検索機能... -
Page 46: Bookmarking Frequently Accessed
Basic Operations ■ Bookmarking Frequently Use j to select the site you want to access and then Accessed Pages press c (OK). Press L or C to return to the previous screen. Hold When the page you want to bookmark is down either key for at least one second to return to the au displayed, press % (BrowserMenu). -
Page 47: Checking Charges
Use j to select the site you want to access ➡ Checking Charges and then press c (Select). When the standby screen is displayed, press c. The download instructions appear. • Fee-based information sites require entry of EZ Use a to select Function and then press ➡... -
Page 48: Ez News Flash/Au One Gadget
EZ News Flash/au one Gadget • Packet communication charges are incurred for using EZweb Subscription Required EZweb Subscription Required au one Gadget applications that require network Use the EZ News Flash/au one Gadget to display flash connection for information updates. news, or activate the set gadget on the standby screen. - Page 49 Canceling EZ News Flash ■ When the standby screen is displayed, select the ticker field and then press c (News). Press % (メニュー[Menu]), use j to select ➡ サービス設定解除 (Service Cancellation) and then press c (選択[Select]). ➡ Follow the on-screen instructions. Changing the Reception Settings for ■...
-
Page 50: Ez Navi
Security Navi to Check Where EZ Navi EZweb Subscription Required EZweb Subscription Required Your Kids Are Using GPS (Global Positioning System), EZ Navi provides The Security Navi application is made up of the following useful positional information services. three functions: When the standby screen is displayed, press R いつでも位置確認... -
Page 51: Ez Navi Walk For When You Go Out
EZ Navi Walk for When You Go Out フルモード (Full mode) ■ Function Explanation Navigate optimum route from various transportation means トータルナビ／地図 such as train/aircraft/bus/taxi. See current position and map of (Total Navigation/Map) wherever you like. 乗換／時刻表(Connection/Timetable) Search for train connections, timetables and railway information. お店／施設／イベント... -
Page 52: Evacuate Navi To Guide You Home Or To Nearby Evacuation Areas During Disasters
3D Navi ■ Evacuate Navi to Guide You Home or to Shows a 3D view at guidance points and around the Nearby Evacuation Areas during Disasters destination area. Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the cell phone ( 避難所マップ... -
Page 53: Tv (1Seg)
TV (1Seg) • The continuous viewing times of TV (1Seg) are as EZweb Subscription Required EZweb Subscription Required follows. The figures vary according to the usage of "1Seg", a mobile terrestrial digital television service in data broadcasts. Japan, is available on the cell phone. DBEX ON: Using Approx. -
Page 54: Initial Setup Of Au Media Tuner
Initial Setup of au Media Tuner Watching TV (1Seg) To watch TV (1Seg) using the au Media Tuner, you need to When the standby screen is displayed, hold down configure initial settings. f for at least one second. When the standby screen is displayed, hold down f for at least one second. -
Page 55: Basic Operations
When the Wide open menu is displayed, use j Basic Operations to select TV (1Seg) and then press c. Launch TV (1Seg) to start receiving data broadcasts. Use p to adjust the volume. ➡ The data operation screen appears when a data broadcast is received. -
Page 56: In Case Of Loss Of Your Mobile Hi-Vision Cam Wooo
Use j to select Direct Input, press c (OK), ➡ In Case of Loss of Your Mobile Hi-Vision CAM Wooo enter a phone number, and then press c (OK). The Remote Ctrl Lock allows you to remotely activate Press % (Comp). -
Page 57: Activating The Remote Ctrl Lock By The Security Lock Service
Follow the voice guidance to complete the application process. Activating/Canceling the Remote Ctrl ■ Lock from a PC Login to au Customer Support (https://cs.kddi.com/) and complete the application process by following the on- screen instructions. • The Remote Ctrl Lock cannot be activated when the cell phone is turned off or out of the service area, or Emission OFF is set to ON. -
Page 58: Troubleshooting
Troubleshooting Symptom Possible Cause Remedy Page ● Is the battery pack charged? Charge the battery pack. Cannot turn on ● Did you hold down F for at least a power. Hold down F for at least a few seconds. few seconds? Hold down F for at least a few seconds. - Page 59 • For more detailed information, visit the following au troubleshooting sites: - From an au cell phone: R ⇒ au one Top ⇒ auお客さまサポート (au Customer Support) ⇒ オンラインマニュアル (Online Manual) ⇒ 故障診断Q&A (Troubleshooting FAQ) - From a PC: http://www.kddi.com/customer/service/au/trouble/kosho/index.html...
-
Page 60: Index
Cell phone etiquette …………………………………………… 2 Index Character input ……………………………………………… 25 Character entry modes …………………………………… 25 Numeric Deleting characters ……………………………………… 26 Entering characters from the same key ………………… 26 1Sec Quick Start mode …………………………………… 37 Starting a new line ………………………………………… 26 1Seg …………………………………………………………... - Page 61 E-mail address ……………………………………………… 11 Available characters ……………………………………… 25 Incoming history …………………………………………… 19 Changing ………………………………………………… 16 Indicators …………………………………………………… 12 Entering …………………………………………………… 26 Initial settings …………………………………………… 11,52 Entering pictograms ………………………………………… 27 au Media Tuner …………………………………………… 52 Evacuate Navi ……………………………………………… 50 E-mail・EZweb …………………………………………… 11 EZ Navi ………………………………………………………...
- Page 62 Photo modes ……………………………………………… 39 Changing channels ……………………………………… 52 Taking ……………………………………………………… 41 Exiting ……………………………………………………… 53 Playback Initial settings ……………………………………………… 52 Answer memo …………………………………………… 21 Position of Mobile Hi-Vision CAM Wooo …………………… 8 Premium EZ password …………………………………… 17 Wide open menu …………………………………………… 15...
- Page 63 BMN6490YAA-1 Read this code for an easy July 2009, 1st Edition access to みんなでQ&A｢なる ほど! au｣(au User’ s Forum). ▶ Sales: KDDI CORPORATION • ・The packet communication OKINAWA CELLULAR TELEPHONE COMPANY Manufactured by: Hitachi Consumer Electronics Co., Ltd. charge applies.
