3B SCIENTIFIC PHYSICS N110 1013151 Instruction Manual

3B SCIENTIFIC

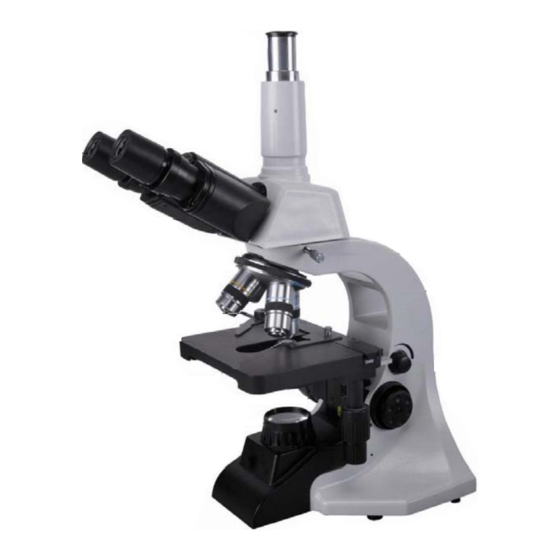

Trinocular Microscope Model N110 1013151
Instruction Manual
07/13 ALF

1. Safety notes

•
For power supply use only electrical sockets
with ground contact.

2. Description, technical data

The microscope model N110 allows two-
dimensional viewing of objects (thin sections of
plant or animal specimen) in 40x to 1000x mag-
nification and a eyepiece camera (e.g. 1003259,
1013379 and 1013380) to be attached for
documenting work in the form of photographs
and videos.
Stand: Robust, all metal stand with arm perma-
nently connected to the base. Focussing by
means of separate knobs for coarse and fine
adjustment located on either side of the stand
®
PHYSICS
Tube: Trinocular Siedentopf head, 360° ro-
tatable, binocular tubus with 30° viewing angle,
viewing distance adjustable between 55 and 75
mm, ±5 dioptric compensation, one tube with
vertical viewing angle to attach a camera
Eyepiece: Pair of wide field eyepieces WF 10x
18 mm
Objectives: Revolving nosepiece with 4 achro-
matic objectives 4x / 0.10, 10x / 0.25, 40x / 0.65,
100x / 1.25 (oil)
Magnification: 40x, 100x, 400x, 1000x
Object stage: x-y cross table, 132 x 145 mm
with object guide and coaxial adjustment knobs
perpendicular to the object stage, adjustment
range 78 x 54 mm
Illumination: Adjustable LED lighting integrated
in base, universal 100 to 240 V, 50/60 Hz power
supply
1

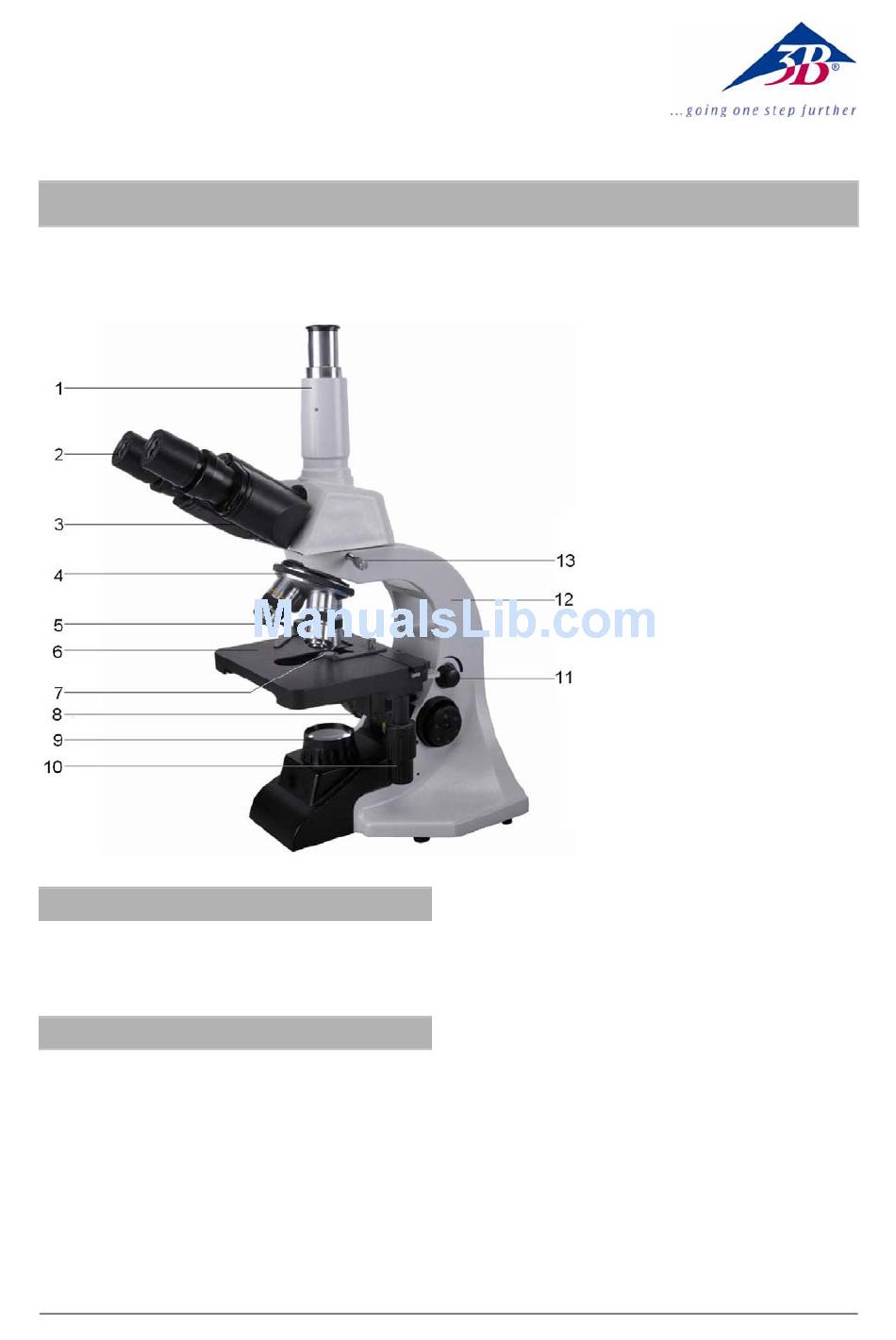

1 Vertical tube
2 Eyepiece
3 Binocular ube
4 Revolver with objectives
5 Object guide
6 Object stage
7 Condensor with iris diaphragm
and filter holder
8 Coarse and fine movement con-
trols with holding brake
9 Lamp housing
10 Coaxial movement control for the
object stage
11 Illumination control
12 Stand
13 Head lock screw
