FOREWORD
Thanks for your purchasing this motorcycle.
With the help of this manual, you will learn the
correct procedures of operation and basic knowledge of
maintenance and trouble shooting of the motorcycle. It
presents all the basic knowledge of maintenance and
trouble shooting of the motorcycle. It presents all
the details of the performance of this motorcycle to
you and the vehicle will make your life more relaxed
and happier.
In case any picture does not agree with the vehicle
physically, the latter shall prevail.
CAUTION． NOTE and MAIN POINTS
ings and should be carefully reviewed．
!CAUTION
：The personal safety of the rider may be
involved，disregarding this information could result in
injury to the rider．
NOTE
： These instructions point out special service
procedures or precautions that must be followed to
avoid damaging the machine．
MAIN POINTS
： This provides special information to make
maintenance easier or important instructions clearer．
carry special mean-

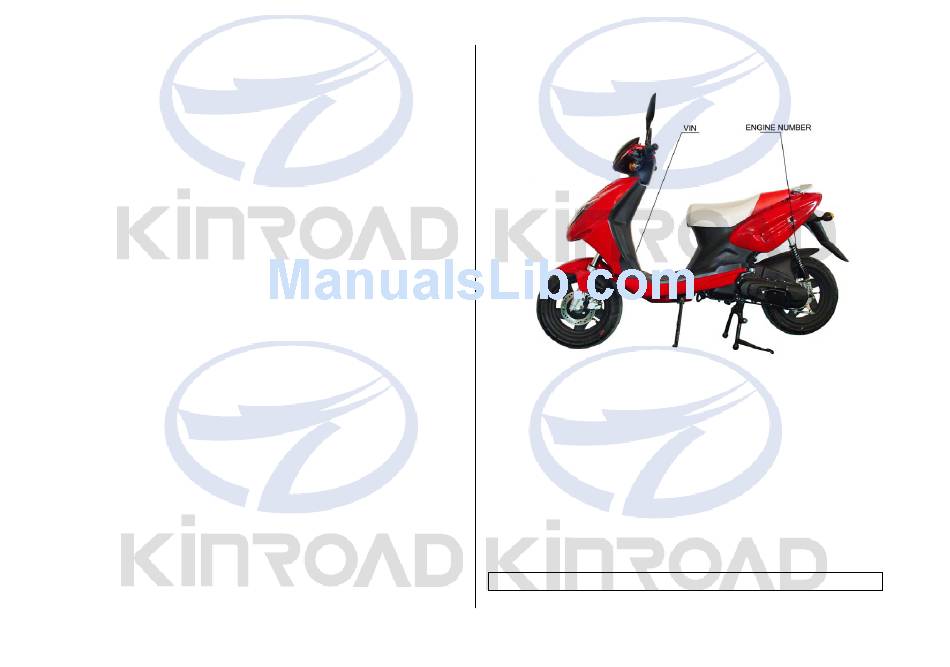

VIN
ENGINE SERIAL NUMBER LOCATION
register the motorcycle ． They are also use to assist
your dealer when ordering parts or special service
information.
The VIN is stamped on the front main beam of the
frame．
of the crankcase assembly
VIN. :
- 1 -
The VIN and/or engine serial number are used to
The engine serial number is stamped on the rear end
AND
