OPERATION

• This device has several DMX- and Stand-Alone-Modes. In DMX-mode,
multiple devices can be connected and controlled by a controller. The
device accepts the settings of the DMX-controller, as soon as the
corresponding start address is set.
• Slave mode:
Connect the DMX-output of the master device (XLR female) to the
DMX-input of the slave device (XLR male). Set the slave device to
DMX-mode 3 with the DMX-start address 001 (display shows: 3001).
The slave device accepts all settings of the master device (such as color
macro, programm, programm speed, color set).

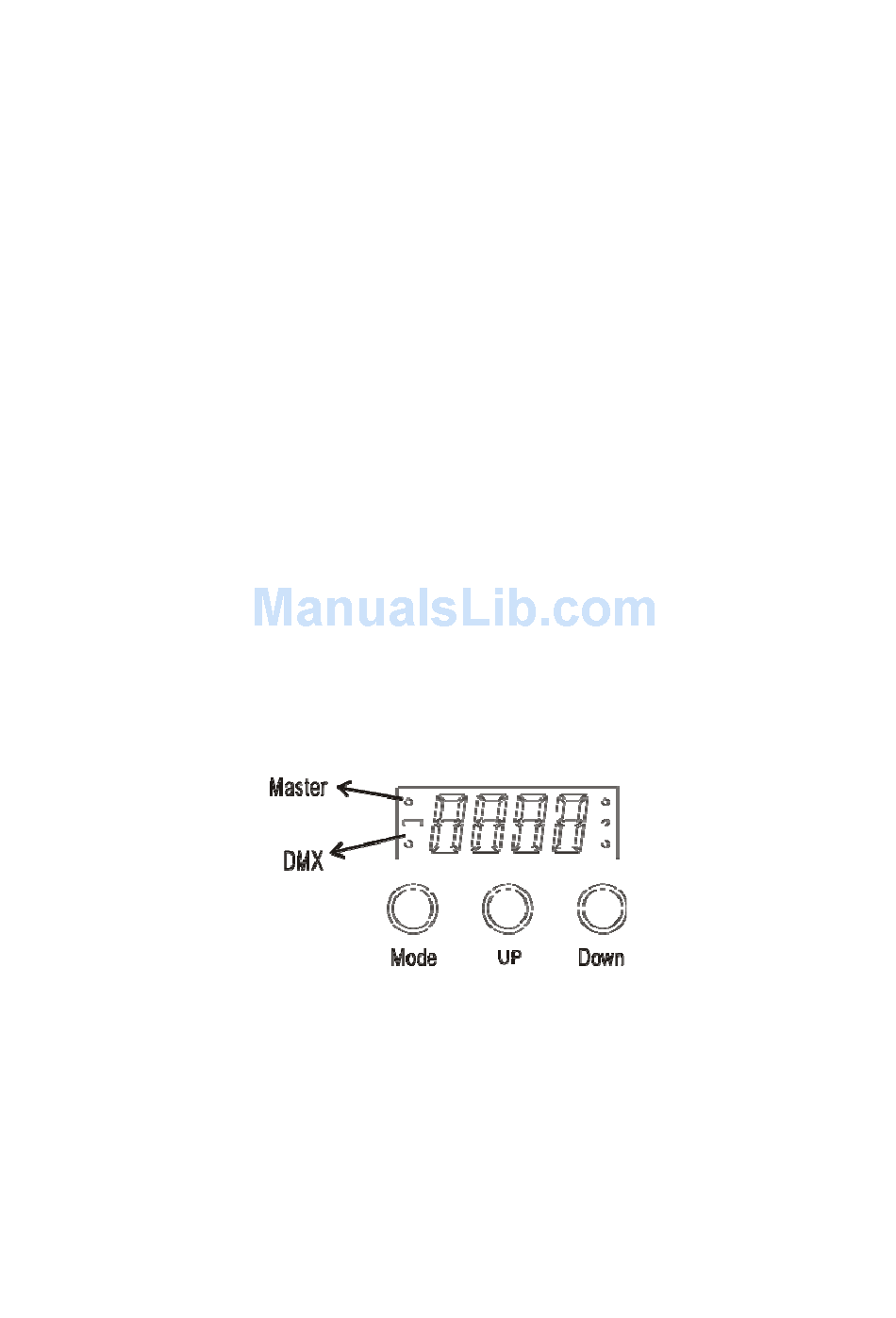

• Display description:
The display shows the different DMX-modes & the DMX-start address or
color macro, programm, programm speed, color set; the first digit shows
the mode, the last three digits the corresponding value. If a DMX-mode is
choosen, the DMX-LED flashes fast to show the DMX signal is present. If
master/slave is choosen the DMX-LED lights up permanent on master
unit and flashes fast on slave unit.
• Button description:
Press the MODE button repeatedly to select the mode. Press the UP or
DOWN button to set the DMX-start address or any of the
pre-programmed modes or the speed values. Use the UP button to
increase the value. Use the DOWN button to decrease it.
NOTE!
If you hold the UP or DOWN button for longer than 3 seconds, the value
changes faster. The device has an automatic storage for all settings.
When you turn the device off and on again, it works with the previously
set values.
