Summary of Contents for Litecraft CYCStrobe 50

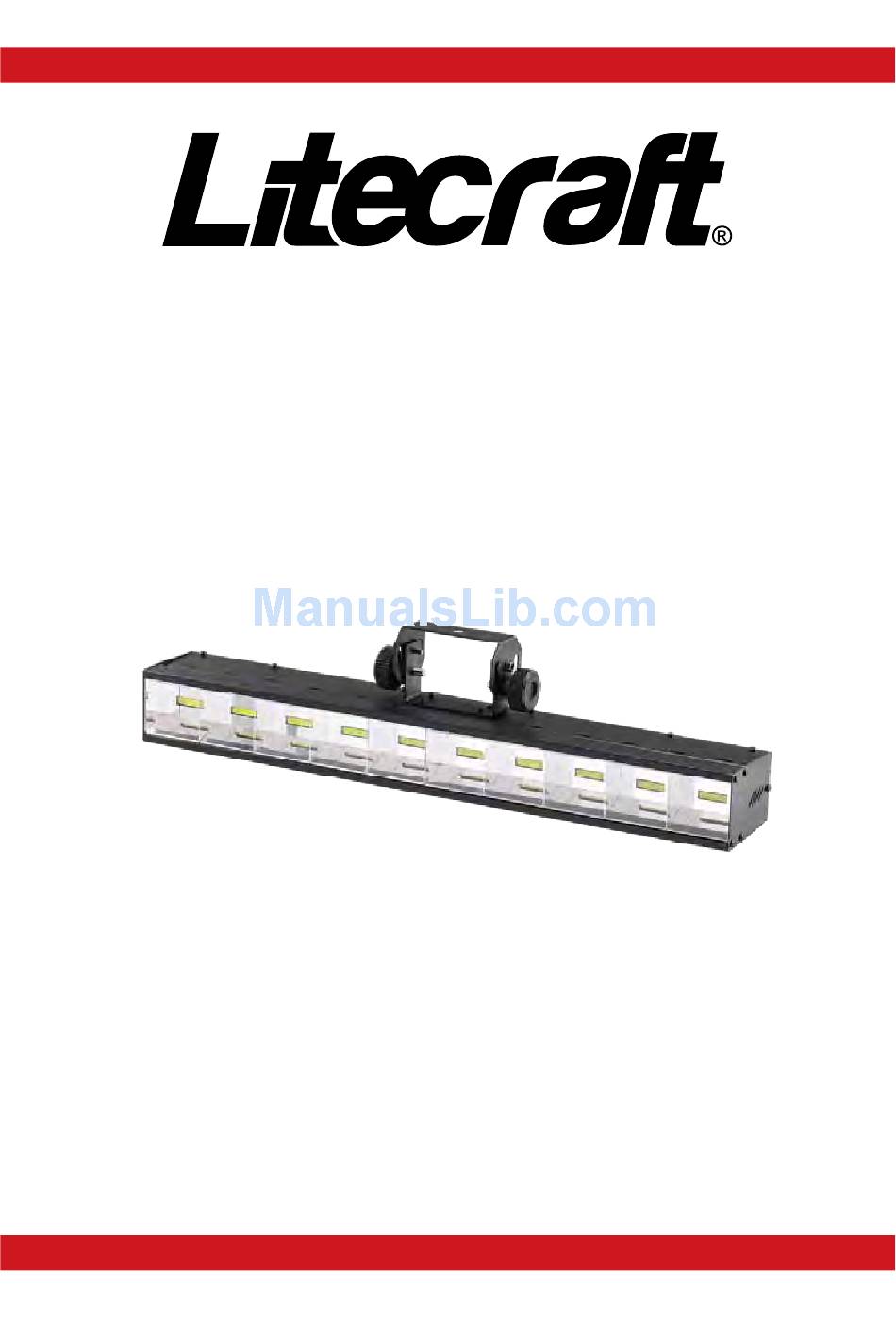

- Page 1 CYCStrobe 50 ILED-ST50 USER GUIDE PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions ....................2 2. Technical Specifications ................... 4 Declaration of Conformity 3. How To Set The Unit ....................5 3.1 Control panel ..................... 5 We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility 3.2 Main Function ....................7 (EMC) Directive 89/336/EEC. EN55103‐1: 2009 ; EN55103‐2: 2009; EN62471: 2008; 4. How To Control The Unit ..................11 EN61000‐3‐2: 2006 + A1:2009 + A2:2009; EN61000‐3‐3: 2008. 4.1 Master/Slave Built In Preprogrammed Function ..........11 & Harmonized Standard 4.2 Easy Controller....................12 4.3 DMX Controller....................12 EN 60598‐1:2008 + All:2009; EN 60598‐2‐17:1989 + A2:1991; EN 62471:2008; ... -
Page 3: Safety Instructions
8．Fixture Cleaning 1. Safety Instructions The cleaning of optical lenses or mirrors must be carried out periodically to optimize light output. Please read carefully the instruction, which includes important information Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or about the installation, usage and maintenance. WARNING particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Please keep this User Guide for future reference. If you sell the unit, be sure that this instruction Clean with soft cloth using normal glass cleaning fluid. booklet is included. Always dry the parts carefully. Unpack and check carefully there is no transportation damage before using the unit. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 Before operating, ensure that the voltage and frequency of power supply match the power days. requirements of the unit. It’s important to ground the yellow/green conductor to earth in order to avoid electric shock. The unit is for indoor use only. Use only in a dry location. The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked. Disconnect main power before replacement or servicing. Make sure there are no flammable materials close to the unit while operating as it is fire hazard. ... - Page 4 Warning: 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or suggestions for easy troubleshooting: moisture. DO NOT open the unit within five minutes after switching off. A. The unit does not work, no light and the fan does not work The housing, the lenses, or filters must be replaced if they are visibly damaged. 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. Caution: 3. Check the power on LED. There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any B. Not responding to DMX controller ...
-
Page 5: Technical Specifications
6. DMX512 Connection 2. Technical Specifications 4 DMX Channel Modes: 1/2/10/12 Channels 3 Operation Modes: DMX512, Master/Slave and Sound Active. Strobe Speed & Intensity Variable via adjustable by knobs and DMX. Sound‐to‐Light built‐in lighting shows under Master/Slave mode triggered by music. Remote Control Optional CA‐8 (for instant lighting shows) Dimming Smooth 0~100% dimming Ideal for pubs, clubs, bars, Mobile DJs and more. ◇ Power Voltage: AC 100V~240V, 50/60Hz ◇ Power Consumption: 60W 1. -
Page 6: How To Set The Unit
3. How To Set The Unit 10 Channel Mode: 3.1 Control panel 1. FUSE（T 2A）: Overcurrent protection (replaceable fuse) 2. POWER IN: PowerCon from main supply or other unit 3. POWER OUT: PowerCon Loop main supply to the next unit. 4. DISPLAY: Shows menus, functions, settings. 12 Channel Mode: BUTTON: 5. MENU To select the programming functions 6. DOWN To go backward in the selected functions ... - Page 7 5. DMX 512 Configuration 15. MICROPHONE: Sensor for music/sound activation. 16. REMOTE: Only for connection of optional CA‐8 remote controller 1 & 2 Channel Modes: 17. DMX IN: 5pin XLR for DMX512 from controller or other unit. 18. DMX OUT: 5pin XLR for DMX512 to next unit. ...
-
Page 8: Main Function
3.2 Main Function 4.2 Easy Controller To select a function, press the MENU button until the required function is showing on the display. The optional CA‐8 easy remote control is used only in master/slave mode. By Select the function by pressing the ENTER button, the display will blink. Use DOWN and UP button connecting to the 1/4” microphone jack of the first unit, remote control of the to change the mode. Once the required mode has been selected, press the ENTER button to first unit is possible, and in turn will control all the other units for Stand by, confirm, or to go back to the main function without any change press the MENU button. Function and Mode selection. Blackout Blackout the unit Menu Structure is shown below Synchronous Strobe by auto Select Show 1 – 12 Function Synchronous Strobe by sound Manual mode (press and hold the button) Sound ... -
Page 9: How To Control The Unit
4. How To Control The Unit DMX 512 ADDRESS Operate the unit in one of three ways: To select the , press the ENTER button to show the DMX ADDRESS on the display. Use the 1. Master/slave built‐in preprogram function DOWN/UP button to adjust the address from 1 to 512. Once the address has been selected, press 2. Easy controller the ENTER button to setup, to go back to the functions without any changes press the MENU 3. Universal DMX controller button again. Hold and press the MENU button for one second or wait for one minute to exit the There is no need to turn the unit off when changing the DMX address, the new DMX address menu mode. setting will take effect immediately. Every time the unit is turned on, will show on the ... - Page 10 MANUAL MODE DISPLAY INVERSE To select the , press the ENTER button to show the MANUAL MODE on the display. Use the To select the , press the ENTER button to show the DISPLAY on the display. Use the DOWN/UP button to select the (Dimmer) or (Strobe). Once the mode has been DOWN/UP button to select the (normal) or (inversion), press ENTER button to selected, press the ENTER button, and use the DOWN and UP button to adjust the value (0‐255). setup. Back to the functions without any change press MENU button. Once selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again. Hold and press the MENU button for one second or wait for one AUTO TEST minute to exit the menu mode. To select the , press the ENTER button to show the TEST on the display and the unit will run a self‐test . To go back to the functions without any changes press the MENU button again. Hold SOUND MODE and press the MENU button for one second or wait for one minute to exit the menu mode. To select the , press the ENTER button to show the SOUND MODE on the display. Use the DOWN/UP button to select the (sound on) or ...
- Page 11 Litecraft is continuously developing and improving all its products. We reserve the right to change specifications without prior notification. Images are representing but not necessarily a precise product reference. Litecraft shall be under no liability for any loss, damage or injury for direct or indirect dependence on the information contained in this guide.
