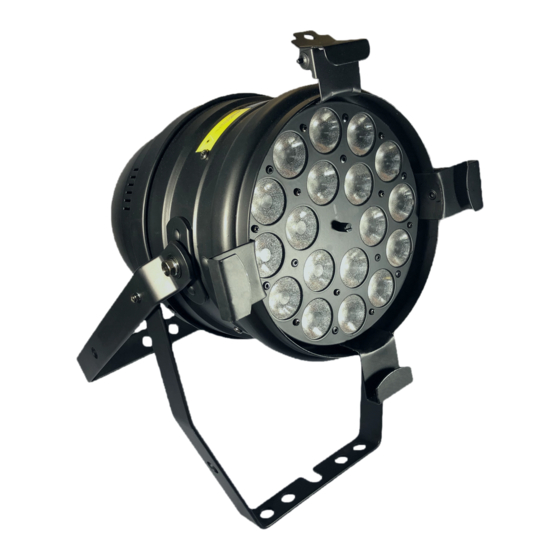

Litecraft PAR 64 AT10 Manual
Hide thumbs Also See for PAR 64 AT10:

Advertisement

Thank you for purchasing this LITECRAFT product. For your own safety, please
read the instruction manual carefully before turn on the product for the first time.

SAFETY NOTES

• Each person which is responsible for the installation, the use or service
of this unit must be:
- qualified
- has to follow the instructions in this manual.
• WARNING! Be careful when using the device. You risk an electrical
shock from high voltage, if you touch the wires!
• The device has left our company in manufacturer proofed state. To
maintain this status and to ensure a permanent safe operation, it is
absolutely necessary to follow the safety instructions and warnings in
this manual.
• IMPORTANT: Errors, caused by not following these instructions are not
covered by the warranty. The manufacturer will not accept liability for any
resulting defects or problems.
• Keep the unit away from radiators or other heat sources!
• If the unit has been exposed to tremendous temperature changes (e.g.
after transportation), do not turn it on immediately. The resulting
condensation could damage the unit. Don`t switch unit on until the
device reaches room temperature.
• This device belongs to protection class I. Therefore, it is imperative that
the green/yellow wire is connected to the earth contact of the plug. The
electrical connection must be made by a qualified person.
PAR 64 AT10
MANUAL
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR 64 AT10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Litecraft PAR 64 AT10

  • Page 1: Safety Notes

    PAR 64 AT10 MANUAL Thank you for purchasing this LITECRAFT product. For your own safety, please read the instruction manual carefully before turn on the product for the first time. SAFETY NOTES • Each person which is responsible for the installation, the use or service...
  • Page 2 • Make sure that the cable has never been squeezed or damaged by sharp objects. Check the device and the cables regularly. • If the cable is damaged, it must be replaced immediately by the manufacturer, its service agent or a qualified person in order to avoid danger.
  • Page 3: Operation

    OPERATION • This device has several DMX- and Stand-Alone-Modes. In DMX-mode, multiple devices can be connected and controlled by a controller. The device accepts the settings of the DMX-controller, as soon as the corresponding start address is set. • Slave mode: Connect the DMX-output of the master device (XLR female) to the DMX-input of the slave device (XLR male).
  • Page 4: Control Modes/Dmx Describtion

    CONTROL MODES / DMX DESCRIBTION mode display function display LITECRAFT shows the software version direct after mode SW.V 1.0 switching on the unit DEF. SET alle settings will be set to factory defaults (DMX-4CH, address 001) DEF. SET all settings (DMX mode/macro etc. ) will not be changed –...
  • Page 5 color set green ColSet 256 DMX-steps to set color green Green *** *** = color value green color set blue ColSet 256 DMX-steps to set color blue Blue *** *** = color value blue color set amber ColSet 256 DMX-steps to set color amber Amb *** *** = value white special...
  • Page 6: Macro Value Overview

    MACRO VALUE OVERVIEW value value value value green blue amber black macro 1 macro 2 macro 3 macro 4 macro 5 macro 6 macro 7 macro 8 macro 9 macro 10 macro 11 macro 12 macro 13 macro 14 macro 15 macro 16 macro 17 macro 18...
  • Page 7: Specifications

    TECHNICAL SPECIFICATION voltage 90-264 V, 47-63 Hz power consumption 0.6 A @ 230 V measurements 267 x 249 x 321 mm weight 5.2 kg fuse T3.15 A @ 250 V...
