THUNDER TIGER ECUREUIL AS355 Assembly Manual

Hide thumbs

Advertisement

Table of Contents

MEMO

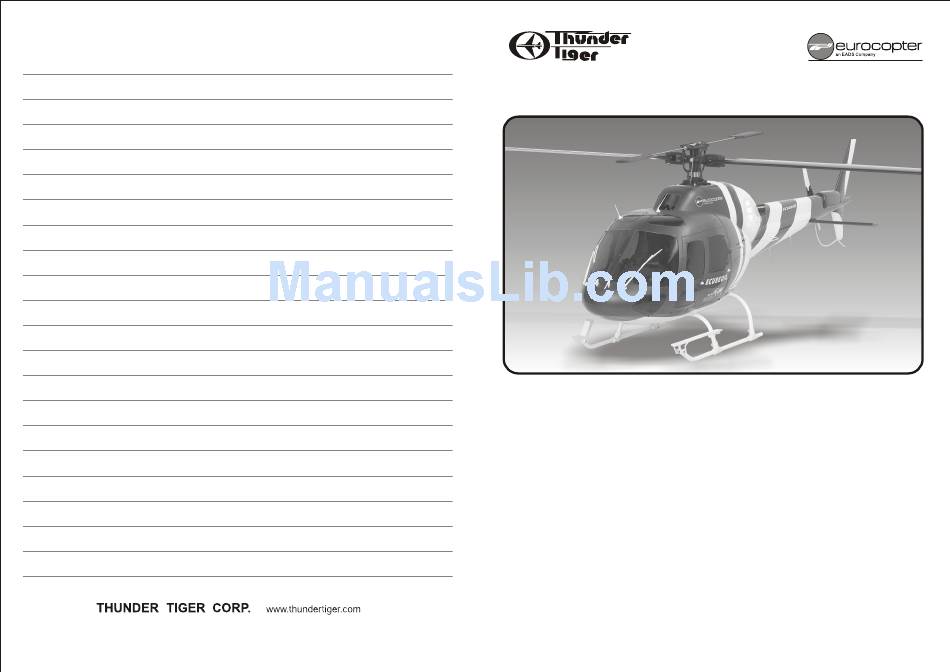

16
ECUREUIL AS355
ECUREUIL AS355
Assembly Manual
No.3841
Warranty
This kit is guaranteed to be free from defects in material and workmanship at the date of purchase.
It does not cover any damage caused by use or modification. The warranty does not extend
beyond the product itself and is limited only to the original cost of the kit. By the act of building this
user-assembled kit, the user accepts all resulting in liability for damage caused by the final
product. If the buyer is not prepared to accept this liability, it can be returned new and unused to
the place of purchase for a refund.
Notice: Adult Supervision Required
This is not a toy. Assembly and flying of this product requires adult supervision.
Read through this book completely and become familiar with the assembly and flight of this
Ecureuil.
Inspect all parts for completeness and damage. Browse www.thundertiger.com for
customer service if you encounter any problems.
ECUREUIL AS355
ECUREUIL AS355
Specifications:
Fuselage Length 54.6"(1387mm)
Fuselage Width 15.7"(400mm)
Fuselage Height 17.8"(452mm)
Full Equipped Weight 8.5lbs (3860g)
1
JK6028
