Travis Industries GreenSmart SKU 99300699 (NG) Instalation Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Compatibility
This GreenSmart™ remote is compatible with the following Travis GreenSmart products:
•
564 SS GS

Packing List

•
Transmitter with 3 AAA Batteries
•
Receiver (with Cover Plate & Switch)
•
LP or NG Stepper Motor (with screws and label - attaches to Valve)
•
Wire Harness
•
(2) #8 x ½" Machine Screws
•
(2) Wire Ties
•
Torx T-20 Wrench
•
Wall Mount (for placing the transmitter on a wall)
•
(2) Drywall anchors (for wall mount)
•
(2) #8 x 3/8" Type B Screws

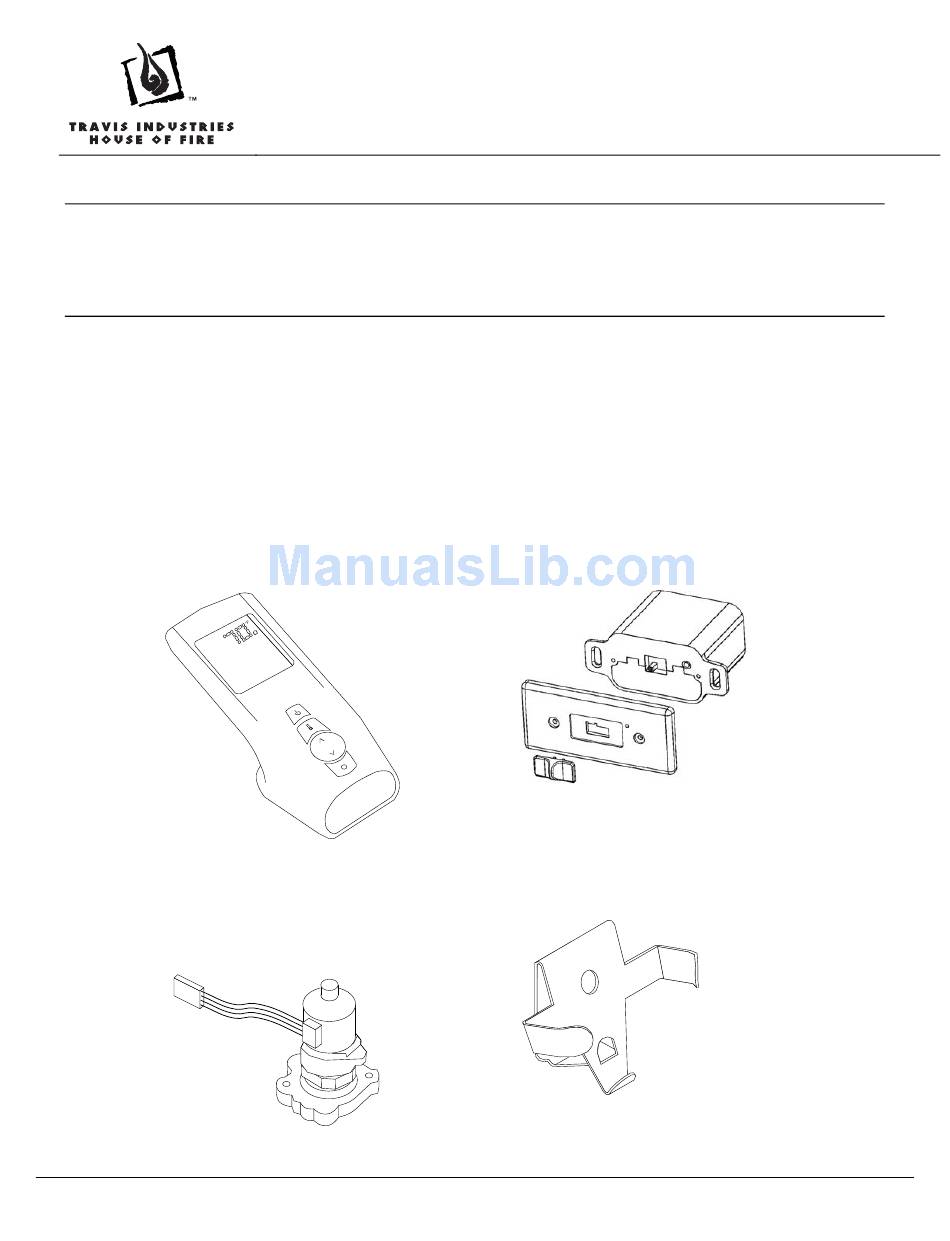

Transmitter
Stepper Motor
Page 1 of 15
GreenSmart™ Remote – Export Version
SKU 99300699 (NG)
•
864 TRV GS
Transmitter Wall Mount
9/25/09 - 17601590
SKU 99300698 (LP)
•
864 ST GS
Receiver
© Travis Industries, Inc.
