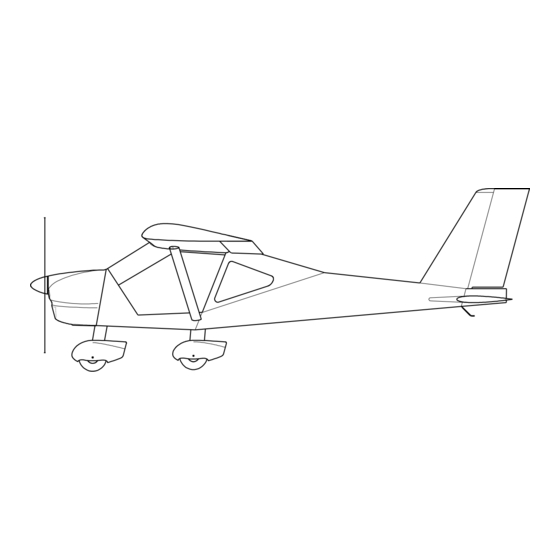

AEROPRAKT -32 Pilot Operating Handbook
  1. Manuals
  2. Brands
  3. AEROPRAKT Manuals
  4. Aircrafts
  5. AEROPRAKT-32
  6. Pilot operating handbook

AEROPRAKT -32 Pilot Operating Handbook

Hide thumbs Also See for AEROPRAKT-32:
Table of Contents

Advertisement

Quick Links

See also: Maintenance Manual
Pilot Operating Handbook
Airplane Model:
Airplane Registration Number:
Airplane Serial Number:
Date of issue:
Approved by:
Position:
Date of approval:
This manual must be carried in the airplane at all times.
This airplane is to be operated in compliance with information and limitations contained herein.
AEROPRAKT-32
A32-002-POH
AEROPRAKT-32 (A-32)
002
07.04.2015
Yuriy Yakovlyev
Chief designer
07.04.2015
Aeroprakt Ltd.
24, Polevaya str., Kiev, Ukraine
Tel: 0038 044 496-77-21
Fax: 0038 044 496-77-31
e-mail:
air@prakt.kiev.ua
www.aeroprakt.kiev.ua

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEROPRAKT-32 and is the answer not in the manual?

Questions and answers

Related Manuals for AEROPRAKT AEROPRAKT-32

Summary of Contents for AEROPRAKT AEROPRAKT-32

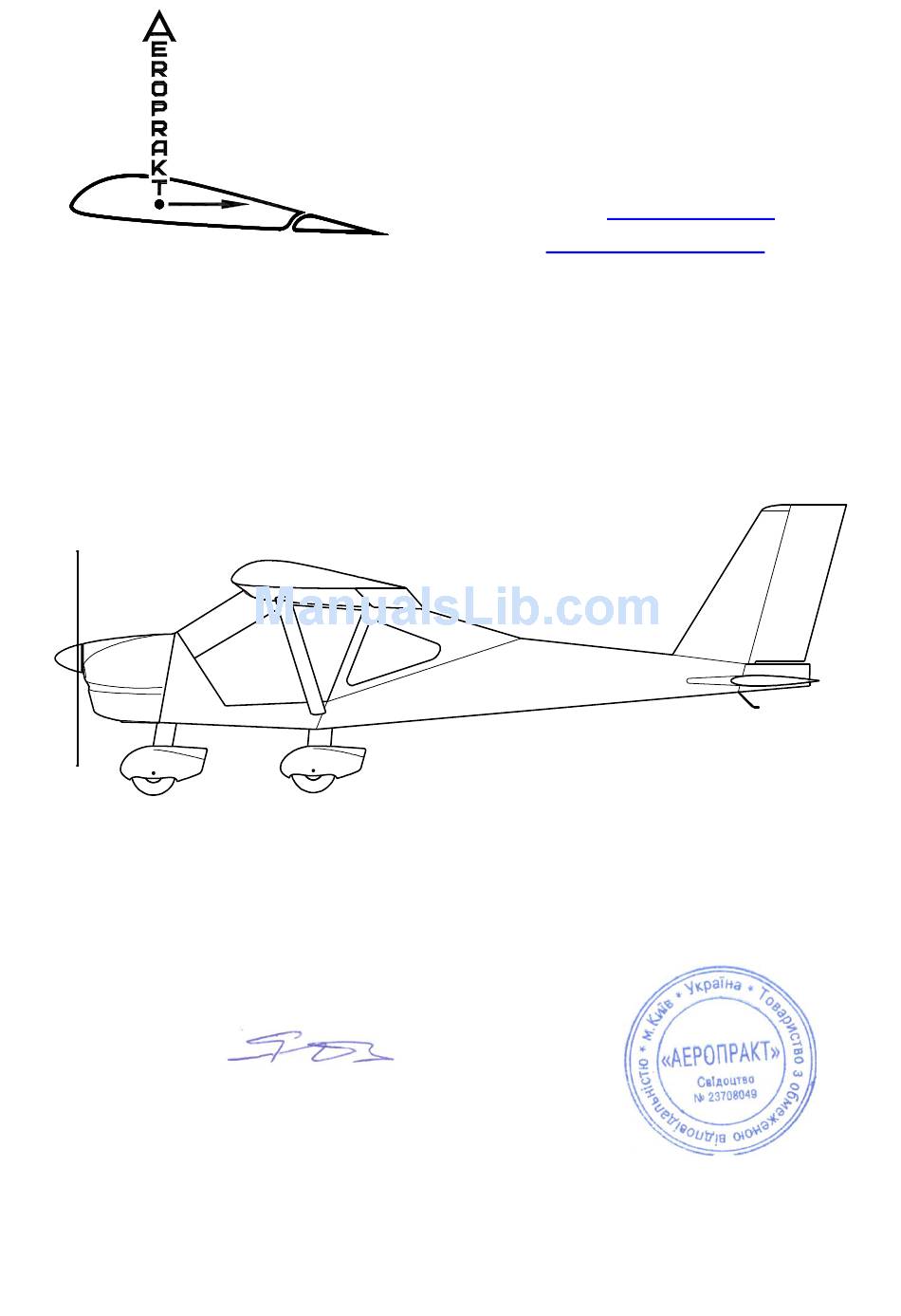

  • Page 1 Tel: 0038 044 496-77-21 Fax: 0038 044 496-77-31 e-mail: air@prakt.kiev.ua www.aeroprakt.kiev.ua AEROPRAKT-32 Pilot Operating Handbook A32-002-POH Airplane Model: AEROPRAKT-32 (A-32) Airplane Registration Number: Airplane Serial Number: Date of issue: 07.04.2015 Approved by: Yuriy Yakovlyev Position: Chief designer Date of approval: 07.04.2015...
