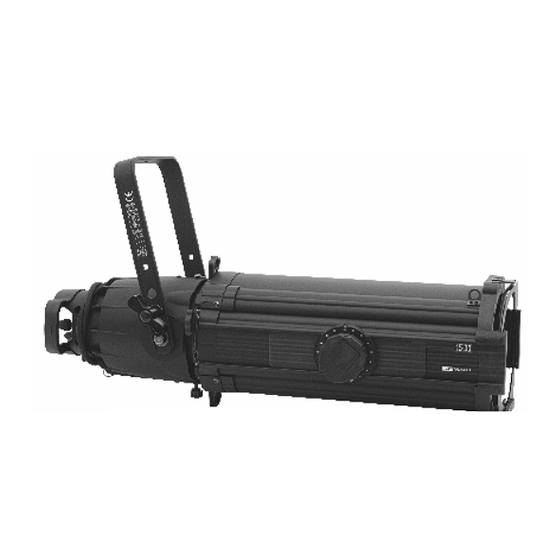

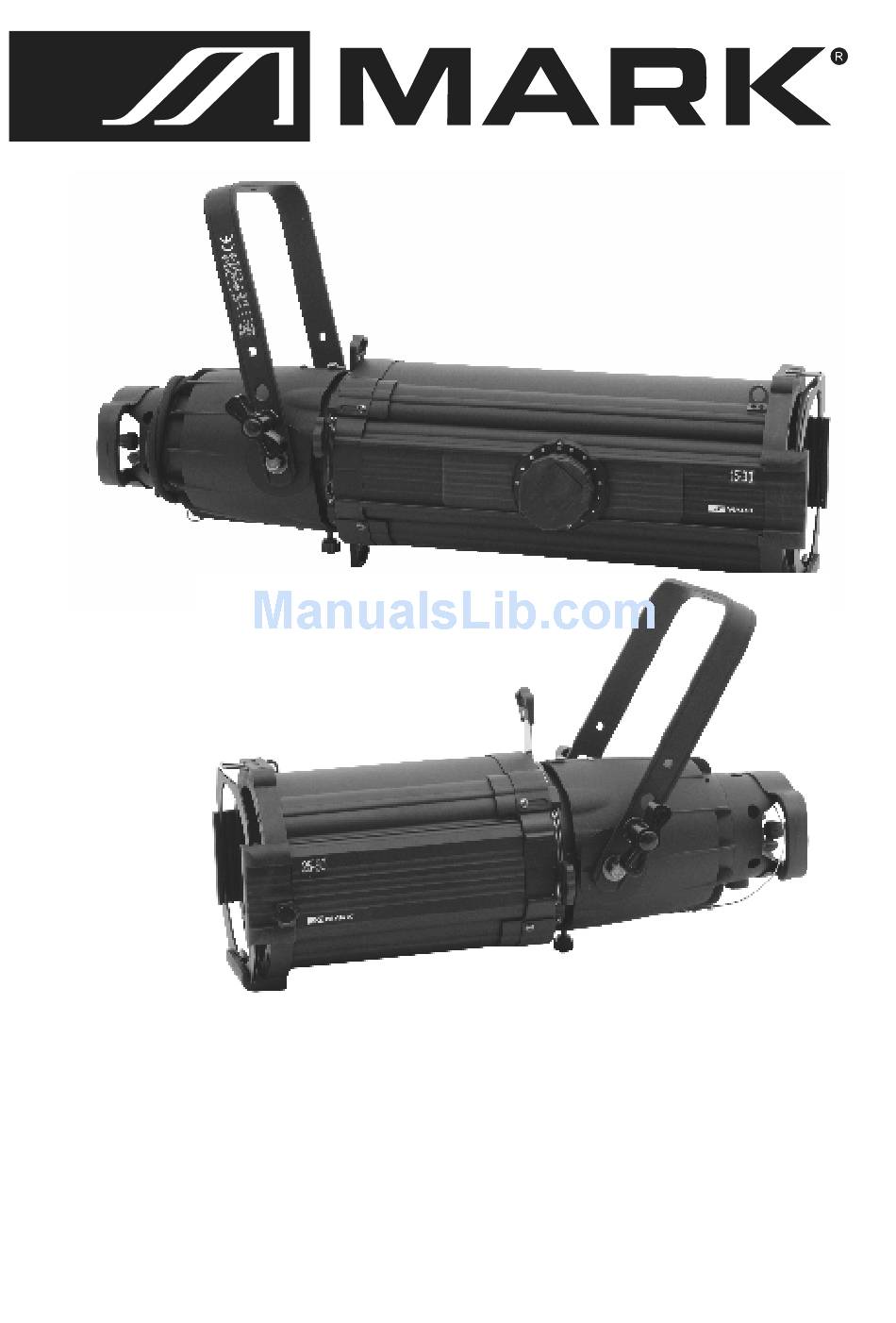

- Page 1 MULTIPROFILE ZOOM 15-30 25-50 User Manual/Manual de Uso Rev. 13.09.01...
- Page 2 9. Screw for lamp holder 10. Lamp holder handle 11. Lock 12. Color frame clip 13. Color frame fixer 14. Lamp holder 15. Screw for design adjustment tube MULTIPROFILE ZOOM 15-30 MULTIPROFILE ZOOM 25-50 MULTIP. ZOOM 15-30, 25-50 User Manual/Manual de uso Page 1...
- Page 3 2. Specificactions and Technical Features Power Supply AC 230 V 50/60 Hz Power 750 W Weight Approx. 6 Kg Lamp Model G 9.5 3. Use and Operation 1. Installing the Bulb Loosen the screw for the lamp holder (9), turn out the lamp holder, insert the bulb into the lamp holder, note that the lamp should be aproximately perpendicular to the lamp holder and the screw down the screw for lamp holder (8).
- Page 4 6. Notes. 1) Before use, please check the light spot if there are any damages or loosing screws resulting from the transportation. 2) Insert the bulb after confirming the power supply is disconnected, never touch the glass part of the bulb directly. 3) Please install the light in the surroundings below 45º...
- Page 5 10. Asa del portalámparas 11. Bloqueo 12. Clip fijación del portafiltros 13. Ranura de fijación del portafiltros 14. Portalámparas 15. Tornillo para el giro del tubo MULTIPROFILE ZOOM 15-30 MULTIPROFILE ZOOM 25-50 MULTIP. ZOOM 15-30, 25-50 User Manual/Manual de uso Página 4...
- Page 6 2. Especificaciones y características técnicas Alimentación AC 230 V 50/60 Hz Potencia 750 W Peso Aprox. 6 Kg Modelo de la lámpara G 9.5 3. Use y Funcionamiento 1. Instalando la bombilla Afloje los tornillos del portalámpara (9), extraigalo e inserte la nueva lámpara, asegúrese que está...
- Page 7 6. Notas. 1) Antes de poner en marcha la unidad, compruebe que no a sufrido daños o pérdida de elementos durante el transporte. 2) Inserte la bombilla después de confirmar que la red está desconectada, nunca toca el cristal de la lámpara directamente. 3) Instale el dispositivo en ambientes inferiores a 45ºC y buena ventilación, manteniendo las tomas de aire expeditas.
- Page 8 This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical an electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
