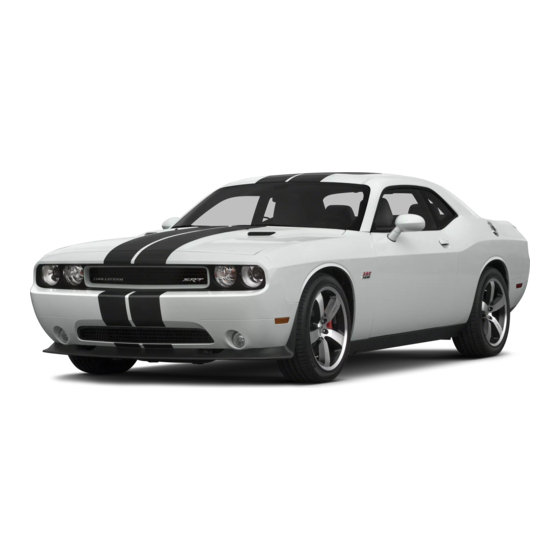

Page 1 Challenger 2 0 1 4 O W N E R ’ S M A N U A L...
Page 2 VEHICLES SOLD IN CANADA This manual illustrates and describes the operation of fea- With respect to any Vehicles Sold in Canada, the name Chrysler tures and equipment that are either standard or optional on Group LLC shall be deemed to be deleted and the name Chrysler this vehicle.
Page 3: Introduction 3
TABLE OF CONTENTS SECTION PAGE INTRODUCTION ............. . . 3 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE .
Page 5: Table Of Contents
INTRODUCTION CONTENTS INTRODUCTION ......4 VEHICLE IDENTIFICATION NUMBER ..6 HOW TO USE THIS MANUAL ....4 VEHICLE MODIFICATIONS/ALTERATIONS .
Page 6: Introduction
4 INTRODUCTION When it comes to service, remember that your authorized INTRODUCTION dealer knows your vehicle best, has factory-trained tech- Congratulations on selecting your new Chrysler Group nicians and genuine parts, and cares about your satisfac- LLC vehicle. Be assured that it represents precision tion.
Page 7 INTRODUCTION 5...
Page 8: Vehicle Identification Number
6 INTRODUCTION WARNINGS AND CAUTIONS This Owners Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire Owners Manual, you may miss important information.
Page 9: Vehicle Modifications/Alterations
INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a collision resulting in serious injury or death. VIN Location NOTE: It is illegal to remove or alter the VIN.
Page 11 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A WORD ABOUT YOUR KEYS ... . .12 ▫ Rearming Of The System ....19 ▫...
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ Programming Additional Transmitters ..28 TRUNK SAFETY WARNING....44 ▫ Transmitter Battery Replacement ...28 ▫...
Page 13 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 ▫ Supplemental Restraint System (SRS) — SAFETY TIPS ......97 Air Bags .
Page 14: A Word About Your Keys
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS Wireless Ignition Node (WIN) Your vehicle uses a keyless ignition system. This system The Wireless Ignition Node (WIN) operates similar to an consists of a Key Fob with Remote Keyless Entry (RKE) ignition switch.
Page 15: Key Fob
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 Key Fob The Key Fob operates the ignition switch. Insert the square end of the key fob into the ignition switch located on the instrument panel and rotate to the desired posi- tion.
Page 16: Removing Key Fob From Ignition
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To remove the emergency key, slide the mechanical latch Removing Key Fob From Ignition on the Key Fob sideways with your thumb and then pull Remove the Start/Stop button (if equipped), place the the key out with your other hand.
Page 17 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 NOTE: The power window switches, radio, power sun- CAUTION! (Continued) roof — if equipped, and ignition-powered power outlets • Leave the Key Fob in the ignition and either: will remain active for up to 60 minutes after the ignition •...
Page 18: Key-In-Ignition Reminder
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) CAUTION! • Allowing children to be in a vehicle unattended is An unlocked car is an invitation to thieves. Always dangerous for a number of reasons. A child or remove the Key Fob from vehicle, cycle the ignition others could be seriously or fatally injured.
Page 19: Sentry Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 will cause the reminder chime to sound. Refer to “Start- After placing the ignition switch in the ON/RUN posi- ing Procedures” in “Starting And Operating” for further tion, the Vehicle Security Light will turn on for three information.
Page 20: Replacement Keys
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CAUTION! (Continued) CAUTION! (Continued) • For vehicles equipped with Keyless Enter-N-Go™, Use of these systems may result in vehicle starting always remember to place the ignition in the OFF problems and loss of security protection. position.
Page 21: Customer Key Programming
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 Customer Key Programming VEHICLE SECURITY ALARM Programming Key Fobs or RKE transmitters may be The Vehicle Security Alarm monitors the vehicle doors performed at an authorized dealer. and trunk for unauthorized entry and the ignition switch for unauthorized operation.
Page 22: To Arm The System
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE same exterior zone (refer to Keyless Enter-N-Go™ To Arm The System in Things To Know Before Starting Your Vehicle for Follow these steps to arm the Vehicle Security Alarm: further information). 1. Make sure the vehicles ignition is cycled to the “OFF” •...
Page 23 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 • For vehicles equipped with Keyless Enter-N-Go™, • The Vehicle Security Alarm is designed to protect your press the Keyless Enter-N-Go™ START/STOP button vehicle; however, you can create conditions where the (requires at least one valid Key Fob in the vehicle). system will give you a false alarm.
Page 24: Security System Manual Override
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Security System Manual Override The Vehicle Security Alarm will not arm if you lock the • The front courtesy overhead console and door cour- doors using the manual door lock plunger. tesy lights do not turn on if the dimmer control is in the Dome ON position (extreme top position).
Page 25 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 NOTE: Inserting the Key Fob with RKE transmitter into the ignition switch disables the system from responding to any button presses from that RKE transmitter. Driving at speeds 5 mph (8 km/h) and above disables the system from responding to all RKE transmitter buttons for all RKE transmitters.
Page 26: To Unlock The Doors
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Remote Key Unlock, Driver Door/All Doors First To Unlock The Doors Press and release the UNLOCK button on the RKE This feature lets you program the system to unlock either transmitter once to unlock the driver’s door. The turn the driver’s door or both doors on the first press of the signal lights will flash to acknowledge the unlock signal.
Page 27 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 4. Repeat these steps if you want to return this feature • When not using the EVIC, perform the following steps: to its previous setting. 1. Press and hold the UNLOCK button on a programmed RKE transmitter for at least 4 seconds, but no longer NOTE: Pressing the LOCK button on the RKE transmit- than 10 seconds.
Page 28: To Lock The Doors
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Turn Headlights On With Remote Key Unlock Sound Horn With Remote Key Lock This feature activates the headlights for up to 90 seconds This feature will cause the horn to chirp when the doors when the doors are unlocked with the RKE transmitter.
Page 29: To Open The Trunk
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 3. Test the feature while outside of the vehicle by Using The Panic Alarm pressing the LOCK button on the RKE transmitter To turn the Panic Alarm feature ON or OFF, press and with the ignition switch in the OFF position and the hold the PANIC button on the RKE transmitter for at Key Fob removed.
Page 30: Programming Additional Transmitters
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • You may need to be less than 35 ft (11 m) from the 2. Remove and replace the battery. When replacing the vehicle when using the RKE transmitter to turn off the battery, match the + sign on the battery to the + sign on Panic Alarm due to the radio frequency noises emitted the inside of the battery clip, located on the back cover.
Page 31: Remote Starting System - If Equipped
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 • This device must accept any interference received, REMOTE STARTING SYSTEM — IF EQUIPPED including interference that may cause undesired op- eration. This system uses the Remote Keyless Entry (RKE) transmitter to start the engine conve- NOTE: Changes or modifications not expressly approved niently from outside the vehicle while still by the party responsible for compliance could void the...
Page 32: How To Use Remote Start
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE How To Use Remote Start WARNING! All of the following conditions must be met before the • Do not start or run an engine in a closed garage or engine will remote start: confined area.
Page 33 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 will flash and horn will chirp twice (if programmed). Then, To Exit Remote Start Mode Without Driving The the engine will start and the vehicle will remain in the Vehicle Remote Start mode for a 15-minute cycle. Press and release the REMOTE START button one time or allow the engine to run for the entire 15-minute cycle.
Page 34 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Cancel Remote Start Remote Starting will also cancel if any of the following • For vehicles not equipped with the Keyless Enter-N- occur: Go™ feature, the ignition switch must be in the ON/RUN position in order to drive the vehicle.
Page 35: Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 If the door lock knob is down when you shut the door, DOOR LOCKS the door will lock. Therefore, make sure the Key Fob is Manual Door Locks not inside the vehicle before closing the door. To lock each door, push the door lock knob on each door trim panel downward.
Page 36: Power Door Locks
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Do not leave the Key Fob in or near the vehicle, or in a location accessible to children, and do not leave the ignition of a vehicle equipped with Keyless Enter-N-Go™...
Page 37 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 locks will not operate. This prevents you from acciden- auto door lock feature can be enabled or disabled by your tally locking the Key Fob in the vehicle. Removing the authorized dealer per written request of the customer. Key Fob or closing the door will allow the locks to Please see your authorized dealer for service.
Page 38: Keyless Enter-N-Go
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Automatic Unlock Doors On Exit Programming NOTE: The Automatic Unlock Doors On Exit feature can be • Passive Entry may be programmed ON/OFF; refer to enabled or disabled. Refer to “Electronic Vehicle Infor- “Electronic Vehicle Information Center (EVIC)/ mation Center (EVIC)/Personal Settings (Customer- Personal...
Page 39 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 To Unlock From The Driver’s Side: NOTE: If “Unlock All Doors 1st Press” is programmed all doors will unlock when you grab hold of the front With a Passive Entry RKE transmitter within 5 ft (1.5 m) driver’s door handle.
Page 40 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Preventing Inadvertent Locking Of Passive Entry RKE To Enter The Trunk: Transmitter In Vehicle With a Passive Entry RKE transmitter within 5 ft (1.5 m) To minimize the possibility of unintentionally locking a of the deck lid, press the button on the located on the Passive Entry RKE transmitter inside your vehicle, the center of the light bar which is located on the deck lid...
Page 41 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 NOTE: If you inadvertently leave your vehicle’s Passive Entry RKE transmitter in the trunk and try to close the deck lid, the deck lid will automatically unlatch, unless another one of the vehicle’s Passive Entry RKE transmit- ters is outside the vehicle and within 5 ft (1.5 m) of the deck lid.
Page 42 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: • After pressing the door handle LOCK button, you must wait two seconds before you can lock or unlock the doors, using either Passive Entry door handle. This is done to allow you to check if the vehicle is locked by pulling the door handle, without the vehicle reacting and unlocking.
Page 43: Windows
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 There is a single window control on the passenger’s door WINDOWS trim panel that operates the window on the passenger’s Power Windows door. The window controls will operate only when the The window controls on the driver’s door control both of ignition switch is in the ON/RUN or ACC position.
Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE AUTO-Down Feature — If Equipped WARNING! The driver’s door power window switch and passenger Never leave children unattended in a vehicle, and do door power window switch have an AUTO-down fea- not let children play with power windows. Do not ture.
Page 45: Wind Buffeting
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 NOTE: The transmission must be in PARK before the Wind Buffeting button will operate. If equipped with a manual transmis- Wind buffeting can be described as the perception of sion, the vehicle speed must be under 5 mph (8 km/h) pressure on the ears or a helicopter-type sound in the before the button will operate.
Page 46: Trunk Safety Warning
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE With the ignition switch in the ON/RUN position, the TRUNK SAFETY WARNING Trunk Open symbol will display in the instrument cluster indicating that the trunk is open. The odometer display WARNING! will reappear once the trunk is closed. Do not allow children to have access to the trunk, With the ignition switch in the OFF position or the key either by climbing into the trunk from outside, or...
Page 47: Trunk Emergency Release
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 Trunk Emergency Release As a security measure, a Trunk Internal Emergency Release lever is built into the trunk latching mechanism. In the event of an individual being locked inside the trunk, the trunk can be simply opened by pulling on the glow-in-the-dark handle attached to the trunk latching mechanism.
Page 48: Occupant Restraints
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Front seat belts incorporate pretensioners that may OCCUPANT RESTRAINTS enhance occupant protection by managing occupant Some of the most important safety features in your energy during an impact event vehicle are the restraint systems: •...
Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 infant and child restraint systems. For more information WARNING! on LATCH, refer to Lower Anchors and Tether for CHildren (LATCH). • Never place a rear facing infant seat in front of an air bag.
Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If a child from 2 to 12 years old (not in a rear facing child 5. If the air bag system in this vehicle needs to be seat) must ride in the front passenger seat, move the seat modified to accommodate a disabled person, contact as far back as possible and use the proper child restraint.
Page 51 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 WARNING! (Continued) WARNING! (Continued) • Being too close to the steering wheel or instrument • In a collision, you and your passengers can suffer panel during Advanced Front Air Bag deployment much greater injuries if you are not properly buck- could cause serious injury, including death.
Page 52: Lap/Shoulder Belts
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Research has shown that seat belts save lives, and they WARNING! can reduce the seriousness of injuries in a collision. Some of the worst injuries happen when people are thrown • Do not allow people to ride in any area of your from the vehicle.
Page 53 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 WARNING! (Continued) • Two people should never be belted into a single seat belt. People belted together can crash into one another in a collision, hurting one another badly. Never use a lap/shoulder belt or a lap belt for more than one person, no matter what their size.
Page 54 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest you. •...
Page 55 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 WARNING! (Continued) WARNING! • A shoulder belt placed behind you will not protect • A lap belt worn too high can increase the risk of you from injury during a collision. You are more internal injury in a collision.
Page 56: Lap/Shoulder Belt Untwisting Procedure
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! A frayed or torn belt could rip apart in a collision and leave you with no protection. Inspect the belt system periodically, checking for cuts, frays, or loose parts. Damaged parts must be replaced immediately. Do not disassemble or modify the system.
Page 57: Seat Belts In Passenger Seating Positions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 2. At about 6 to 12 in (15 to 30 cm) above the latch plate, Driver Center Passenger grasp and twist the belt webbing 180 degrees to create First Row a fold that begins immediately above the latch plate. Second Row 3.
Page 58: Automatic Locking Retractor Mode (Alr) - If Equipped
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Allow the belt to retract. As the belt retracts, you will Automatic Locking Retractor Mode (ALR) — If hear a clicking sound. This indicates the safety belt is Equipped now in the Automatic Locking Mode. In this mode, the shoulder belt is automatically pre- locked.
Page 59: Energy Management Feature
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 NOTE: These devices are not a substitute for proper seat Energy Management Feature belt placement by the occupant. The seat belt still must be This vehicle has a safety belt system with an Energy worn snugly and positioned properly.
Page 60: Seat Belts And Pregnant Women
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The BeltAlert® warning sequence begins after the vehicle BeltAlert® can be enabled or disabled by your autho- speed is over 5 mph (8 km/h), by blinking the Seat Belt rized dealer. Chrysler Group LLC does not recommend Reminder Light and sounding an intermittent chime.
Page 61: Seat Belt Extender
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 Seat Belt Extender Supplemental Restraint System (SRS) — Air Bags If a seat belt is too short even when fully extended and This vehicle has Advanced Front Air Bags for both the when the adjustable upper shoulder belt anchorage (if driver and front passenger as a supplement to the seat equipped) is in its lowest position, your authorized...
Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Advanced Front Air Bags have a multistage inflator design. This allows the air bag to have different rates of inflation based on several factors, including the severity and type of collision. This vehicle is equipped with driver and/or front pas- senger seat track position sensors that may adjust the inflation rate of the Advanced Front Air Bags based upon...
Page 63 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 This vehicle may be equipped with Supplemental Side • Steering Wheel and Column Air Bag Inflatable Curtains (SABIC) to protect the driver, • Instrument Panel front, and rear passengers sitting next to a window. The SABIC air bags are located above the side windows and •...
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Advanced Front Air Bag Features WARNING! The Advanced Front Air Bag system has multistage • No objects should be placed over or near the air driver and front passenger air bags. This system provides bag on the instrument panel, because any such output appropriate to the severity and type of collision as objects could cause harm if the vehicle is in a...
Page 65 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 Supplemental Seat-Mounted Side Air Bags (SAB) When the air bag deploys, it opens the seam between the front and side of the seat’s trim cover. Each air bag Supplemental Seat-Mounted Side Air Bags (SAB) may deploys independently;...
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The system includes side impact sensors that are cali- brated to deploy the side air bags during impacts that require air bag occupant protection. WARNING! • Your vehicle is equipped with left and right Supplemental Side Air Bag Inflatable Curtain (SABIC), do not stack luggage or other cargo up high enough to block the location of the SABIC.
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 Always sit upright as possible with your back against the WARNING! (Continued) seat back, use the seat belts properly, and use the • Your vehicle is equipped with SABIC air bags, do appropriate sized child restraint, infant restraint or not have any accessory items installed which will booster seat recommended for the size and weight of the...
Page 68: Air Bag Deployment Sensors And Controls
66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Advanced Front Air Bags will not deploy in all Air Bag Deployment Sensors And Controls frontal collisions, including some that may produce sub- Occupant Restraint Controller (ORC) stantial vehicle damage — for example, some pole colli- The ORC is part of a Federally regulated safety system sions, truck underrides, and angle offset collisions.
Page 69 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 The ORC monitors the readiness of the electronic parts of It also includes diagnostics that will illuminate the instru- the air bag system whenever the ignition switch is in the ment cluster Air Bag Warning Light if a malfunction is START or ON/RUN position.
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Driver And Passenger Advanced Front Air Bag The Advanced Front Air Bag gas is vented through the Inflator Units vent holes in the sides of the air bag. In this way, the air bags do not interfere with your control of the vehicle.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 you if you are not seated properly, or if items are to blink your eyes) with enough force to injure you if you positioned in the area where the side air bag inflates. This are not belted and seated properly, or if items are especially applies to children.
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Enhanced Accident Response System In order to reset the Enhanced Accident Response System functions after an event, the ignition switch must be In the event of an impact causing air bag deployment, if changed from IGN ON/RUN to IGN OFF.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 They are not permanent and normally heal quickly. Do not drive your vehicle after the air bags have de- However, if you haven’t healed significantly within a ployed. If you are involved in another collision, the air few days, or if you have any blistering, see your doctor bags will not be in place to protect you.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Maintaining Your Air Bag System WARNING! (Continued) • Do not attempt to modify any part of your air bag WARNING! system. The air bag may inflate accidentally or may • Modifications to any part of the air bag system not function properly if modifications are made.
Page 75: Event Data Recorder (Edr)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Air Bag Warning Light NOTE: If the speedometer, tachometer, or any engine related gauges are not working, the Occupant Restraint Controller (ORC) may also be disabled. The air bags may You will want to have the air bags ready to not be ready to inflate for your protection.
Page 76: Child Restraints
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Whether or not the driver and passenger safety belts In addition to the vehicle manufacturer, other parties, were buckled/fastened; such as law enforcement, that have the special equip- ment, can read the information if they have access to the •...
Page 77 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 seat for your child. Carefully read and follow all the WARNING! instructions and warnings in the child restraint Owner’s Manual and on all the labels attached to the car seat. In a collision, an unrestrained child can become a projectile inside the vehicle.
Page 78 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight Or Age Recommended Type Of Child Restraint Infants and Toddlers Children who are two years old or Either an Infant Carrier or a Convertible younger and who have not reached the Child Restraint, facing rearward in the height or weight limits of their child...
Page 79 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 Infants And Child Restraints WARNING! Safety experts recommend that children ride rearward- • Never place a rear facing infant seat in front of an facing in the vehicle until they are two years old or until air bag.
Page 80 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE remain in a forward-facing child seat with a harness for WARNING! as long as possible, up to the highest weight or height allowed by the child seat. • Improper installation can lead to failure of an infant or child restraint.
Page 81 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 Children Too Large For Booster Seats If the answer to any of these questions was “no,” then the child still needs to use a booster seat in this vehicle. If the Children who are large enough to wear the shoulder belt child is using the lap/shoulder belt, check belt fit periodi- comfortably, and whose legs are long enough to bend cally and make sure the seat belt buckle is latched.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Recommendations For Attaching Child Restraints Use any attachment method shown with an “X” Below Combined LATCH – Weight of the LATCH – Restraint Type Lower Anchors Seat Belt + Top Child + Child Lower Anchors Seat Belt Only + Top Tether...
Page 83 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 Lower Anchors And Tethers For Children (LATCH) seating position. These anchorages are used to install Restraint System LATCH-equipped child seats without using the vehicle’s seat belts. Some seating positions may have a top tether anchorage but no lower anchorages.
Page 84 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE LATCH Positions For Installing Child Restraints In This Vehicle Lower Anchorage Symbol 2 anchorages per • seating position Top Tether Anchorage Symbol •...
Page 85 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 What is the weight limit (child’s 65 lbs (29.5 kg) Use the LATCH anchorage system weight + weight of the child re- until the combined weight of the straint) for using the LATCH an- child and the child restraint is chorage system to attach the child 65 lbs (29.5 kg).
Page 86 84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Can two child restraints be at- Never “share” a LATCH anchorage tached using a common lower with two or more child restraints. LATCH anchorage? If the center position does not have dedicated LATCH lower anchor- ages, use the seat belt to install a child seat in the center position next to a child seat using the...
Page 87 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 Locating The LATCH Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback, below the anchorage sym- bols on the seatback. They are just visible when you lean into the rear seat to install the child restraint.
Page 88 86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Locating The LATCH Anchorages There are tether strap anchorages behind each rear seating position located in the panel be- tween the rear seatback and the rear window. They are found under a plastic cover with the tether anchorage symbol on it.
Page 89 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87 tether strap. The tether strap will have a hook at the end Always follow the directions of the child restraint to attach to the top tether anchorage and a way to tighten manufacturer when installing your child restraint.
Page 90 88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE may need to recline the seat and/or raise the head 7. Test that the child restraint is installed tightly by restraint to get a better fit. If the rear seat can be moved pulling back and forth on the child seat at the belt forward and rearward in the vehicle, you may wish to path.
Page 91 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89 Installing Child Restraints Using The Vehicle Seat WARNING! Belt • Improper installation of a child restraint to the The seat belts in the passenger seating positions are LATCH anchorages can lead to failure of an infant equipped with a Switchable Automatic Locking Retractor or child restraint.
Page 92 90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lap/Shoulder Belt Systems for Installing Child Restraints in this Vehicle...
Page 93 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91 What is the weight limit (child’s Weight limit of the Child Restraint Always use the tether anchor when weight + weight of the child re- using the seat belt to install a for- straint) for using the Tether Anchor ward facing child restraint, up to the with the seat belt to attach a forward...
Page 94 92 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing A Child Restraint With A Switchable 4. Pull on the webbing to make the lap portion tight Automatic Locking Retractor (ALR) against the child seat. 1. Place the child seat in the center of the seating 5.
Page 95 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 93 the tether strap to the anchorage and tighten the tether rear-most position to make room for the child seat. strap. See the section “Installing Child Restraints You may also move the front seat forward to allow Using the Top Tether Anchorage”...
Page 96 94 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE strap. Refer to “Installing Child Restraints Using The If the belt still cannot be tightened after you shorten the Top Tether Anchorage” for directions to attach a tether buckle, disconnect the latch plate from the buckle, turn anchor.
Page 97 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 95 2. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat. If your vehicle is equipped with adjustable rear head restraints, raise the head restraint, and where possible, route the tether strap under the head restraint and between the two posts.
Page 98: Transporting Pets
96 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. Remove slack in the tether strap according to the child Transporting Pets restraint manufacturer’s instructions. Air Bags deploying in the front seat could harm your pet. An unrestrained pet will be thrown about and possibly WARNING! injured, or injure a passenger during panic braking or in a collision.
Page 99: Things To Know Before Starting Your Vehicle 11 Safety Tips
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 97 While cruising, brief full-throttle acceleration within the NOTE: A new engine may consume some oil during its limits of local traffic laws contributes to a good break-in. first few thousand miles (kilometers) of operation. This However, wide-open throttle acceleration in low gear can should be considered a normal part of the break-in and be detrimental and should be avoided.
Page 100: Exhaust Gas
98 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • It is extremely dangerous to ride in a cargo area, eventually poison you. To avoid breathing (CO), inside or outside of a vehicle. In a collision, people follow these safety tips: riding in these areas are more likely to be seriously •...
Page 101: Safety Checks You Should Make Inside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 99 Whenever a change is noticed in the sound of the exhaust Front seat belt assemblies must be replaced after a system, when exhaust fumes can be detected inside the collision. Rear seat belt assemblies must be replaced after vehicle, or when the underside or rear of the vehicle is a collision if they have been damaged (i.e., bent retractor, damaged, have a competent mechanic inspect the com-...
Page 102 100 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Floor Mat Safety Information WARNING! (Continued) Always use floor mats designed to fit the footwell of your • Never place or install floor mats or other floor vehicle. Use only floor mats that leave the pedal area coverings in the vehicle that cannot be properly unobstructed and that are firmly secured so that they secured to prevent them from moving and interfer-...
Page 103: Periodic Safety Checks You Should Make Outside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 101 lodged in the tread or sidewall. Inspect the tread for cuts WARNING! (Continued) and cracks. Inspect sidewalls for cuts, cracks and bulges. • Always make sure that objects cannot fall into the Check the wheel nuts for tightness.
Page 105 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS MIRRORS ......108 ▫ “Slide-On-Rod” And Extender Features Of Sun Visor .
Page 106 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE VOICE COMMAND — IF EQUIPPED ..144 LIGHTS ......162 ▫...
Page 107 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 ▫ Flash-To-Pass ......167 ▫ To Deactivate ......175 ▫...
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE OVERHEAD CONSOLE ....185 ▫ Opening Sunroof — Express ....195 ▫...
Page 109 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 ▫ Rear Cupholders .....203 ▫ Console Storage..... . .204 CONSOLE FEATURES .
Page 110: Mirrors
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night Mirror A single ball joint mirror is provided in the vehicle. It is a twist on mirror that has a fixed position at the wind- shield. The mirror installs on the windshield button with a counterclockwise rotation and requires no tools for mounting.
Page 111: Automatic Dimming Mirror - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 Automatic Dimming Mirror — If Equipped This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pressing the button at the base of the mirror. A light to the left of the button will illuminate to indicate when the dimming feature is activated.
Page 112: Outside Mirrors
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Outside Mirrors Outside Mirrors Folding Feature To receive maximum benefit, adjust the outside mirror(s) The mirrors are equipped with a rotational hinge. The to center on the adjacent lane of traffic and a slight mirrors have one detent (clockwise) towards the rear of overlap of the view obtained from the inside mirror.
Page 113: Power Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Power Mirrors The power mirror controls are located on the driver’s door trim panel. To adjust a mirror, turn the control wand toward the left or right mirror positions indicated. Tilt the control wand in the direction you want the mirror to move.
Page 114: Heated Mirrors - If Equipped
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Heated Mirrors — If Equipped Illuminated Vanity Mirrors An illuminated vanity mirror is on the sun visor. To use These mirrors are heated to melt frost or ice. This the mirror, rotate the sun visor downward and swing the feature can be activated whenever you turn on the mirror cover upward.
Page 115: Slide-On-Rod" And Extender Features Of Sun Visor
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 “Slide-On-Rod” And Extender Features Of Sun Visor To use the “Slide-On-Rod” feature of the sun visor, rotate the sun visor downward and swing the sun visor so it is parallel to the side window, grabbing the sun visor with your left hand pull rearwards until the sun visor is in the desired position.
Page 116: Uconnect® Phone - If Equipped
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect® Phone allows you to transfer calls between Uconnect® PHONE — IF EQUIPPED the system and your mobile phone as you enter or exit Uconnect® Phone is a voice-activated, hands-free, in- your vehicle and enables you to mute the system’s vehicle communications system.
Page 117 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 Voice Command Button WARNING! Actual button location may vary with the ra- Any voice commanded system should be used only dio. The individual buttons are described in the in safe driving conditions following all applicable “Operation”...
Page 118: Operation
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE part of the command when you are asked for it. For Operation example, you can use the compound form voice com- Voice commands can be used to operate the Uconnect® mand “Phonebook New Entry,” or you can break the Phone and to navigate through the Uconnect®...
Page 119 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 To activate the Uconnect® Phone, simply press the The following are general phone to Uconnect® Phone button and follow the audible prompts for direc- pairing instructions: tions. Uconnect® Phone sessions begin with a press of •...
Page 120 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • You will then be asked to give your mobile phone a • The system will prompt you to say the number you priority level between one and seven, with one being want to call. the highest priority.
Page 121 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 or downloaded phonebook. To learn how to store a • Automatic download and update, if supported, begins name in the phonebook, refer to “Add Names to Your as soon as the Bluetooth® wireless phone connection is Uconnect®...
Page 122 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • This downloaded phonebook cannot be edited or • When prompted, enter the number designation (e.g., deleted on the Uconnect® Phone. These can only be “Home,” “Work,” “Mobile,” or “Other”). This will edited on the mobile phone. The changes are trans- allow you to store multiple numbers for each phone- ferred and updated to Uconnect®...
Page 123 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 Edit Uconnect® Phonebook Entries After you are finished editing an entry in the phonebook, you will be given the opportunity to edit another entry in NOTE: the phonebook, call the number you just edited, or return •...
Page 124 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After you enter the Phonebook Delete menu, you will Delete/Erase “All” Uconnect® Phonebook Entries then be asked for the name of the entry that you wish • Press the button to begin. to delete.
Page 125: Phone Call Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 List All Names In The Uconnect® Phonebook Phone Call Features The following features can be accessed through the • Press the button to begin. Uconnect® Phone if the feature(s) are available on your •...
Page 126 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Answer Or Reject An Incoming Call — Call second call is in progress. To go back to the first call, Currently In Progress refer to “Toggling Between Calls” in this section. To combine two calls, refer to “Conference Call” in this If a call is currently in progress and you have another section.
Page 127 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 Conference Call call. If the active call is terminated by the phone far end, a call on hold may not become active automati- When two calls are in progress (one active and one on cally.
Page 128: Uconnect® Phone Features
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Call Continuation Uconnect® Phone Features Call continuation is the progression of a phone call on the Language Selection Uconnect® Phone after the vehicle ignition key has been To change the language that the Uconnect® Phone is switched to OFF.
Page 129 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 Emergency Assistance NOTE: If you are in an emergency and the mobile phone is • The emergency number dialed is based on the country reachable: where the vehicle is purchased (911 for the U.S. and Canada and 060 for Mexico).
Page 130 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: You should program the desired Towing Assis- WARNING! tance phone number using the Voice Command system. To do this, press the button and say “Setup,” followed by To use your Uconnect® Phone System in an emer- “Towing Assistance.”...
Page 131 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 Working With Automated Systems by “Send,” is also to be used for navigating through an automated customer service center menu structure, This method is used in instances where one generally has and to leave a number on a pager. to press numbers on the mobile phone keypad while navigating through an automated telephone system.
Page 132 130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Barge In — Overriding Prompts Phone And Network Status Indicators The “Voice Command” button can be used when you If available on the radio and/or on a premium display wish to skip part of a prompt and issue your voice such as the instrument panel cluster, and supported by command immediately.
Page 133: Advanced Phone Connectivity
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 NOTE: Certain brands of mobile phones do not send the Advanced Phone Connectivity dial ring to the Uconnect® Phone to play it on the vehicle Transfer Call To And From Mobile Phone audio system, so you will not hear it. Under this situation, The Uconnect®...
Page 134 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE List Paired Mobile Phone Names Select Another Mobile Phone This feature allows you to select and start using another • Press the button to begin. phone paired with the Uconnect® Phone. • After the “Ready” prompt and the following beep, say •...
Page 135: Things You Should Know About Your Uconnect® Phone
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 Delete Uconnect® Phone Paired Mobile Phones Voice Training For users experiencing difficulty with the system recog- • Press the button to begin. nizing their voice commands or numbers, the Uconnect® • After the “Ready” prompt and the following beep, say Phone Voice Training feature may be used.
Page 136 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE best results, the Voice Training session should be com- Voice Command pleted when the vehicle is parked with the engine • For best performance, adjust the rearview mirror to running, all windows closed, and the blower fan provide at least ½...
Page 137 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 • Fully closed windows • Numbers must be spoken in single digits. “800” must be spoken “eight-zero-zero” not “eight hundred.” • Dry weather condition • You can say “O” (letter “O”) for “0” (zero). NOTE: •...
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Fully closed windows Uconnect® Phone can read or send new messages on • Dry weather conditions, and your phone. • Operation from the driver’s seat. Read Messages: • Performance, such as audio clarity, echo, and loudness If you receive a new text message while your phone is to a large degree rely on the phone and network, and connected to Uconnect®...
Page 139 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 Send Messages: 3. Where are you? You can send messages using Uconnect® Phone. To send 4. I need more direction a new message: 5. L O L • Press the button. 6. Why •...
Page 140 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 16. Can this wait? Bluetooth® Communication Link Mobile phones have been found to lose connection to the 17. Bye for now Uconnect® Phone. When this happens, the connection 18. When can we meet? can generally be reestablished by switching the phone off/on.
Page 141 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139...
Page 142 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 143 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141...
Page 144 142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Voice Commands Primary Alternate (s) Primary Alternate (s) zero call cancel three confirmation prompts four continue five delete dial seven download eight edit nine emergency star (*) English plus (+) erase all pound (#) Espanol add location...
Page 145 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 Voice Commands Voice Commands Primary Alternate (s) Primary Alternate (s) help previous home record again language redial list names return to main menu return or main menu list phones select phone select mobile send mute set up...
Page 146: General Information
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE General Information VOICE COMMAND — IF EQUIPPED This device complies with Part 15 of the FCC rules and Voice Command System Operation RSS 210 of Industry Canada. Operation is subject to the following conditions: The Uconnect®...
Page 147 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 Pressing the Voice Command button while the WARNING! system is speaking is known as “barging in.” The system will be interrupted, and after the beep, you can Any voice commanded system should be used only add or change commands.
Page 148: Commands
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To hear the first available Menu, press the Voice Com- Main Menu mand button and say “Help” or “Main Menu.” Start a dialogue by pressing the Voice Command button. You may say “Main Menu” to switch to Commands the main menu.
Page 149 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 Radio AM • “Menu Radio” (to switch to the radio menu) To switch to the AM band, say “AM” or “Radio AM.” In • “Main Menu” (to switch to the main menu) this mode, you may say the following commands: Satellite Radio •...
Page 150 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Disc Mode Bluetooth® Streaming (BT) Mode To switch to the disc mode, say “Disc.” In this mode, you To switch to Bluetooth® Streaming (BT) mode, say may say the following commands: “Bluetooth Streaming.” In this mode, you may say the following commands: •...
Page 151 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 – “Continue” (to continue recording) • “Main menu system setup” – “Delete” (to delete the recording) • “Switch to system setup” • “Change to setup” • “Play Memos” (to play previously recorded memos) — During the playback you may press the Voice Com- •...
Page 152: Voice Training
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Training SEATS For users experiencing difficulty with the system recog- Seats are a part of the Occupant Restraint System of the nizing their voice commands or numbers the Uconnect® vehicle. Voice “Voice Training” feature may be used. WARNING! 1.
Page 153: Power Seats
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 Adjusting The Seat Forward Or Rearward Power Seats The power seat switches are located on the outboard side The seat can be adjusted both forward and rearward. of the front seat cushions. The power seat switches are Push the seat switch forward or rearward, the seat will used to control the position of the seat.
Page 154 152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Power Lumbar — If Equipped Vehicles equipped with power driver or passenger seats are also equipped with power lumbar. The power lumbar switch is located on the outboard side of the power seat. Push the switch forward to increase the lumbar support.
Page 155: Heated Seats - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 WARNING! CAUTION! • Adjusting a seat while driving may be dangerous. Do not place any article under a power seat or Moving a seat while driving could result in loss of impede its ability to move as it may cause damage to control which could cause a collision and serious the seat controls.
Page 156 154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE You can choose from HIGH, LOW or OFF heat settings. WARNING! Amber indicator lights in each switch indicate the level of heat in use. Two indicator lights will illuminate for • Persons who are unable to feel pain to the skin HIGH, one for LOW and none for OFF.
Page 157: Manual Forward Or Rearward Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 Manual Forward Or Rearward Adjustment Manual Front Seatback Recline The adjusting bar is located at the front of the seat, near To adjust the seatback, lift the lever located on the the floor. Pull the bar upward to move the seat forward or outboard side of the seat, lean back to the desired rearward.
Page 158: Passenger Seat Easy Entry
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Do not ride with the seatback reclined so that the shoulder belt is no longer resting against your chest. In a collision you could slide under the seat belt, which could result in serious injury or death. Passenger Seat Easy Entry On the passenger seat, pull forward on the lever located on the side of the seatback in order to dump the seatback...
Page 159 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 The AHRs will automatically return to their normal WARNING! position following a rear impact. If the AHRs do not return to their normal position see your authorized The head restraints for all occupants must be prop- dealer immediately.
Page 160: Folding Rear Seat
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players. These items may interfere with the operation of the Active Head Restraint in the event of a collision and could result in serious injury or death.
Page 161 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 Folding Rear Seat Folded Rear Seat When the seatback is folded to the upright position, make sure it is latched by strongly pulling on the top of the seatback above the seat strap.
Page 162: To Open And Close The Hood
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE TO OPEN AND CLOSE THE HOOD WARNING! Two latches must be released to open the hood. • Be certain that the seatback is securely locked into 1. Pull the hood release lever located under the left side position.
Page 163 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 2. Move to the outside of the vehicle and push the safety CAUTION! catch to the left. The safety catch is located under the center front edge of the hood. To prevent possible damage, do not slam the hood to close it.
Page 164: Lights
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS Headlights And Parking Lights The headlight switch is located on the left side of the instrument panel. This switch controls the operation of the headlights, parking lights, instrument panel lights, instrument panel light dimming, interior lights and fog lights.
Page 165: Automatic Headlights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 addition, the headlights will turn off when the wipers are Automatic Headlights — If Equipped turned off if they were turned on by this feature. This system automatically turns the headlights on or off according to ambient light levels.
Page 166: Daytime Running Lights - If Equipped
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE If you turn the headlights or parking lights on, or place If vehicle is equipped with High Intensity Discharge the ignition in the RUN position again, the system will (HID) headlights, the front turn signal lamps provide the cancel the delay.
Page 167: Fog Lights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 Fog Lights — If Equipped The front fog light switch is built into the head- light switch. To activate the front fog lights, turn on the parking lights or the low beam headlights and press the headlight switch.
Page 168: Multifunction Lever
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Multifunction Lever Turn Signals The multifunction lever controls the operation of the turn Move the multifunction lever up or down and the arrows signals, headlight beam selection and passing lights. The on each side of the instrument cluster flash to show multifunction lever is located on the left side of the proper operation of the front and rear turn signal lights.
Page 169: Lane Change Assist
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 Lane Change Assist Map/Reading Lights Tap the lever up or down once, without moving beyond These lights are mounted between the sun visors on the the detent, and the turn signal (right or left) will flash overhead console.
Page 170: Interior Lights
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE open. This includes the glove box light, but not the trunk light. To restore interior light operation, either place the ignition in the RUN position or cycle the light switch. Dimmer Control The dimmer control is located to the right of the head- light switch.
Page 171: Windshield Wipers And Washers
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 Interior Light Defeat (OFF) Rotate the dimmer control to the extreme bottom off position. The interior lights will remain off when the doors are open. Parade Mode (Daytime Brightness Feature) Rotate the dimmer control upward to the first detent. This feature brightens all text displays such as the odometer, Electronic Vehicle Information Center (EVIC), and radio when the parking lights or headlights are on.
Page 172: Intermittent Wiper System
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Mist Feature CAUTION! Rotate the end of the lever downward to the Mist position Turn the windshield wipers off when driving to activate a single wipe cycle to clear off road mist or spray through an automatic car wash.
Page 173: Headlights On With Wipers (Available With Automatic Headlights Only)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 three wipe cycles after releasing the multifunction lever Headlights On With Wipers (Available With and then resume the intermittent interval previously Automatic Headlights Only) selected. When this feature is active, the headlights will turn on If you activate the washer while the windshield wiper is approximately 10 seconds after the wipers are turned on turned off, the wipers will operate for three wipe cycles...
Page 174: Tilt/Telescoping Steering Column
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To unlock the steering column, pull the lever downward. TILT/TELESCOPING STEERING COLUMN To tilt the steering column, move the steering wheel This feature allows you to tilt the steering column upward or downward as desired. To lengthen or shorten upward or downward.
Page 175: Electronic Speed Control - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 ELECTRONIC SPEED CONTROL — IF EQUIPPED When engaged, the Electronic Speed Control takes over accelerator operations at speeds greater than 25 mph (40 km/h). The Electronic Speed Control buttons are located on the right side of the steering wheel.
Page 176: To Activate
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: In order to ensure proper operation, the Elec- WARNING! tronic Speed Control System has been designed to shut down if multiple Speed Control functions are operated at Leaving the Electronic Speed Control system on the same time.
Page 177: To Deactivate
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 The speed increment shown is dependant on the speed of To Deactivate U.S. (mph) or Metric (km/h) units: A soft tap on the brake pedal, pushing the CANCEL button, or normal brake pressure while slowing the U.S.
Page 178: To Accelerate For Passing
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Decrease Speed • If the button is continually pressed, the set speed will continue to decrease until the button is released, then When the Electronic Speed Control is set, you can de- the new set speed will be established.
Page 179: Parksense® Rear Park Assist - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177 ParkSense® will retain the last system state (enabled or WARNING! disabled) from the last ignition cycle when the ignition is changed to the ON/RUN position. Electronic Speed Control can be dangerous where the system cannot maintain a constant speed.
Page 180: Parksense® Warning Display
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ParkSense® Warning Display ParkSense® Display The ParkSense® Warning screen will only be displayed if When the vehicle is in REVERSE, the warning display Sound and Display is selected from the Customer- Pro- will turn ON indicating the system status. grammable Features section of the Electronic Vehicle Information Center (EVIC).
Page 181 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179 Park Assist System Off Slow Tone The system will indicate a detected obstacle by showing three solid arcs and will produce a one-half second tone. As the vehicle moves closer to the obstacle the EVIC display will show fewer arcs and the sound tone will change from slow, to fast, to continuous.
Page 182 180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Fast Tone Continuous Tone The vehicle is close to the obstacle when the EVIC display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert operation when the system is detecting an obstacle:...
Page 183 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 WARNING ALERTS Rear Distance Greater than 59-39 in 39-25 in 25-12 in Less than (in/cm) 59 in (150 cm) (150-100 cm) (100-65 cm) (65-30 cm) 12 in (30 cm) Audible Alert None Single 1/2 Slow Fast Continuous...
Page 184: Enabling/Disabling Parksense
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Enabling/Disabling ParkSense® Service The ParkSense® Rear Park Assist System ParkSense® can be enabled and disabled through the Customer-Programmable Features section of the EVIC. During vehicle start up, when the ParkSense® Rear Park The available choices are: OFF, Sound Only, or Sound and Assist System has detected a faulted condition, the Display.
Page 185: Cleaning The Parksense® System
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 or other obstruction and then cycle the ignition. If the • When you turn ParkSense® off in DRIVE, the instru- ment cluster will display PARK ASSIST SYSTEM message continues to appear see an authorized dealer. OFF for five seconds.
Page 186 184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Ensure the ParkSense® system is OFF if objects such as CAUTION! (Continued) bicycle carriers, trailer hitches, etc., are placed within • The vehicle must be driven slowly when using 30 cm from the rear fascia/bumper. Failure to do so ParkSense®...
Page 187: Overhead Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185 OVERHEAD CONSOLE Courtesy/Reading Lights The overhead console contains courtesy/reading lights At the forward end of the overhead console are two and sunglass storage. Universal Garage Door Opener courtesy/reading lights. (HomeLink®) button and a power sunroof switch may Press the lens to turn on the light.
Page 188: Garage Door Opener - If Equipped
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE GARAGE DOOR OPENER — IF EQUIPPED HomeLink® replaces up to three hand-held transmitters that operate devices such as garage door openers, motor- ized gates, lighting or home security systems. The HomeLink® unit is powered by your vehicles 12 Volt battery.
Page 189: Before You Begin Programming Homelink
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187 NOTE: Before You Begin Programming HomeLink® Ensure your vehicle is parked outside of the garage • Erasing all channels should only be performed when before you begin programming. programming HomeLink® for the first time. Do not erase channels when programming additional buttons.
Page 190 188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Place the hand - held transmitter 1 to 3 inches (3 to 8 cm) away from the HomeLink® button you wish to pro- gram. 3. Simultaneously press and hold both the Homelink® button you want to program and the hand - held transmitter button.
Page 191: Programming A Non-Rolling Code
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189 attached to the garage door opener/device motor. Reprogramming A Single HomeLink® Button Firmly press and release the “LEARN” or “TRAIN- To reprogram a channel that has been previously trained, ING” button. On some garage door openers/devices follow these steps: there may be a light that blinks when the garage door 1.
Page 192 190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Place the hand - held transmitter 1 to 3 inches (3 to 8 cm) To program the remaining two HomeLink® buttons, away from the HomeLink® button you wish to program. repeat each step for each remaining button. DO NOT erase the channels.
Page 193: Canadian/Gate Operator Programming
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191 3. Simultaneously press and hold both the Homelink® Canadian/Gate Operator Programming button while you press and release (“cycle”), your For programming transmitters in Canada/United States hand - held transmitter every two seconds. that require the transmitter signals to “time-out” after several seconds of transmission.
Page 194: Using Homelink
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Reprogramming A Single HomeLink® Button Security To reprogram a channel that has been previously trained, It is advised to erase all channels before you sell or turn follow these steps: in your vehicle. To erase the channels press and hold the two outside 1.
Page 195 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193 • Press the LEARN button on the Garage Door Opener WARNING! to complete the training for a Rolling Code. Your motorized door or gate will open and close • Did you unplug the device for programming and while you are programming the universal trans- remember to plug it back in? ceiver.
Page 196: General Information
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE General Information POWER SUNROOF — IF EQUIPPED This device complies with FCC rules Part 15 and Industry The power sunroof switch is located between the sun Canada RSS-210. Operation is subject to the following visors on the overhead console.
Page 197: Opening Sunroof - Express
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195 WARNING! WARNING! (Continued) • Do not allow small children to operate the sunroof. • Never leave children unattended in a vehicle, or Never allow your fingers, other body parts, or any with access to an unlocked vehicle. Never leave the object, to project through the sunroof opening.
Page 198: Closing Sunroof - Express
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE movement. The sunroof and sunshade will remain in a Pinch Protect Feature partially opened condition until the switch is pushed and This feature will detect an obstruction in the opening of held rearward again. the sunroof during Express Close operation.
Page 199: Sunshade Operation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197 Sunshade Operation Sunroof Maintenance The sunshade can be opened manually. However, the Use only a nonabrasive cleaner and a soft cloth to clean sunshade will open automatically as the sunroof opens. the glass panel. NOTE: The sunshade cannot be closed if the sunroof is Ignition Off Operation open.
Page 200: Electrical Power Outlets
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ELECTRICAL POWER OUTLETS CAUTION! There are two 12 Volt (13 Amp) electrical power outlets • Do not exceed the maximum power of 160 Watts (13 on this vehicle. Both of the outlets are protected by a fuse. Amps) at 12 Volts.
Page 201 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199 Front Power Outlet Center Console Power Outlet The center console power outlet is powered directly from Items plugged into this power outlet may discharge the the battery (power available at all times). battery and/or prevent the engine from starting.
Page 202 200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! To avoid serious injury or death: • Only devices designed for use in this type of outlet should be inserted into any 12 Volt outlet. • Do not touch with wet hands. •...
Page 203 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201 CAUTION! CAUTION! (Continued) • Power outlets are designed for accessory plugs • Many accessories that can be plugged in draw only. Do not insert any other object in the power power from the vehicle’s battery even when not in outlet as this will damage the outlet and blow the use (i.e., cellular phones, etc.).
Page 204: Cupholders
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Illuminated Front Cupholders — If Equipped CUPHOLDERS The front cupholders are illuminated with LEDs. They Front Cupholders are turned on with the headlights or parking lights. Refer The front cupholders are located in the center console. to “Lights”...
Page 205: Rear Cupholders
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203 Rear Cupholders CONSOLE FEATURES The rear seat cupholders are located in the center armrest Sliding Center Console Armrest between the rear seats. The cupholders are positioned The center console armrest slides forward with three forward in the armrest and side-by-side to provide conve- detents to provide flexibility for comfort, cupholder use nient access to beverage cans or bottles while maintaining...
Page 206: Console Storage
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Console Storage The center console has a storage compartment located underneath the armrest, and also contains a 12 Volt power outlet, a molded-in coin holder (designed to hold various size coins). The center console may also be equipped with a Universal Consumer Interface (UCI).
Page 207: Rear Window Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205 NOTE: To prevent excessive battery drain, use the rear WARNING! window defroster only when the engine is operating. Do not operate this vehicle with a console compart- CAUTION! ment lid in the open position. Driving with the console compartment lid open may result in injury in a colli- Failure to follow these cautions can cause damage to sion.
Page 209 UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS INSTRUMENT PANEL FEATURES ..210 ▫ Sport Mode......231 INSTRUMENT CLUSTER .
Page 210 208 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ Operating Instructions (Voice Command ▫ Notes On Playing MP3 Files ... . .258 System) — If Equipped ....240 ▫...
Page 211 UNDERSTANDING YOUR INSTRUMENT PANEL 209 ▫ List Or Browse Mode ....270 CD/DVD DISC MAINTENANCE ...276 ▫...
Page 212: Instrument Panel Features
210 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL FEATURES 1 — Air Outlets 6 — ESC OFF Switch 11 — Ignition Switch 2 — Instrument Cluster 7 — Sport Button 12 — Trunk Release Button 3 — Glove Compartment 8 — Hazard Warning Switch 13 —...
Page 213: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 211 INSTRUMENT CLUSTER...
Page 214: Instrument Cluster Descriptions
212 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Tachometer INSTRUMENT CLUSTER DESCRIPTIONS 1. Fuel Gauge The red segments indicate the maximum permissible engine revolutions per minute (RPM x 1000) for each gear The pointer shows the level of fuel in the fuel tank when range.
Page 215 UNDERSTANDING YOUR INSTRUMENT PANEL 213 7. Electronic Throttle Control (ETC) Warning Light Also, have the system checked by an authorized dealer if the light does not come on during starting. This light will turn on briefly as a bulb check 8.
Page 216 214 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: CAUTION! (Continued) • A continuous chime will sound if the vehicle is drops back into the normal range. If the pointer driven more than 1 mile (1.6 km) with either turn remains on the “H,” and you hear a chime, turn the signal on.
Page 217 UNDERSTANDING YOUR INSTRUMENT PANEL 215 11. Engine Temperature Warning Light running, a malfunction has been detected in the ESC system. If this light remains on after several ignition This light will turn on and a single chime will cycles, and the vehicle has been driven several miles sound to warn of an overheated engine condition.
Page 218 216 UNDERSTANDING YOUR INSTRUMENT PANEL 13. Electronic Stability Control (ESC) OFF Indicator 15. High Beam Indicator Light — If Equipped This indicator will turn on when the high beam This light indicates the Electronic Stability Con- headlights are on. Push the multifunction lever trol (ESC) is off.
Page 219 UNDERSTANDING YOUR INSTRUMENT PANEL 217 17. Shift Lever Indicator — Automatic Transmission NOTE: U.S. Federal regulations require that upon trans- Only fer of vehicle ownership, the seller certify to the pur- chaser the correct mileage that the vehicle has been The Shift Lever Indicator is self-contained within the driven.
Page 220 218 UNDERSTANDING YOUR INSTRUMENT PANEL 20. Brake Warning Light The light will remain on until the cause is corrected. This light monitors various brake functions, NOTE: The light may flash momentarily during sharp including brake fluid level and parking brake cornering maneuvers which change fluid level condi- application.
Page 221 UNDERSTANDING YOUR INSTRUMENT PANEL 219 Brake Warning Light will turn on along with the ABS 21. Vehicle Security Light — If Equipped Light. Immediate repair to the ABS system is required. This light will flash at a fast rate for approxi- Operation of the Brake Warning Light can be checked by mately 15 seconds, when the vehicle security turning the ignition switch from the OFF position to the...
Page 222 220 UNDERSTANDING YOUR INSTRUMENT PANEL one or more of your tires is significantly under-inflated. illuminated. This sequence will continue upon subse- quent vehicle start-ups as long as the malfunction exists. Accordingly, when the low tire pressure telltale illumi- When the malfunction indicator is illuminated, the sys- nates, you should stop and check your tires as soon as tem may not be able to detect or signal low tire pressure possible, and inflate them to the proper pressure.
Page 223 UNDERSTANDING YOUR INSTRUMENT PANEL 221 If the ABS light is on, the brake system should be serviced CAUTION! (Continued) as soon as possible to restore the benefits of Anti-Lock equipped on your vehicle. Undesirable system opera- Brakes. If the ABS light does not turn on when the tion or sensor damage may result when using re- ignition switch is placed in the ON/RUN position, have placement equipment that is not of the same size,...
Page 224: Electronic Vehicle Information Center (Evic)
222 UNDERSTANDING YOUR INSTRUMENT PANEL Certain conditions, such as a loose or missing gas cap, WARNING! poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the MIL A malfunctioning catalytic converter, as referenced stays on through several of your typical driving cycles.
Page 225 UNDERSTANDING YOUR INSTRUMENT PANEL 223 • Vehicle Information Warning Message Displays • Tire Pressure Monitor System • Personal Settings (Customer-Programmable Features) • Compass Display • Outside Temperature Display • Trip Computer Functions • Uconnect® phone (If Equipped) • Uconnect® gps Screens (If Equipped) Electronic Vehicle Information Center (EVIC) •...
Page 226 224 UNDERSTANDING YOUR INSTRUMENT PANEL The system allows the driver to select information by MENU Button pressing the following buttons mounted on the steering Press and release the MENU button to access wheel: the main menu, or to return to the main menu from the sub-menus.
Page 227: Electronic Vehicle Information Center (Evic) Displays
UNDERSTANDING YOUR INSTRUMENT PANEL 225 SELECT Button • Right Front Turn Signal Lamp Out (with a single chime) Press and release the SELECT button for access to main menus, sub-menus or to select a per- • Right Rear Turn Signal Lamp Out (with a single chime) sonal setting in the setup menu.
Page 228: Gear Shift Indicator (Gsi) - If Equipped
226 UNDERSTANDING YOUR INSTRUMENT PANEL • Channels Cleared • Key not Programmed • Did Not Train • Vehicle Not in Park • Low Tire Pressure (with a single chime) • Key Fob Not Detected • Service TPM System (with a single chime) •...
Page 229: Engine Oil Change Indicator System
UNDERSTANDING YOUR INSTRUMENT PANEL 227 When the shift up indicator (+) is shown on the display, indicator system is duty cycle based, which means the the GSI is advising the driver to engage a higher gear. engine oil change interval may fluctuate, dependent upon your personal driving style.
Page 230: Trip Functions
228 UNDERSTANDING YOUR INSTRUMENT PANEL 3. Without pressing the brake pedal, push the ENGINE Trip Functions START/STOP button once to return the ignition to the Press and release the MENU button until one of the OFF/LOCK position. following Trip Functions displays in the EVIC: Vehicles Not Equipped With Keyless Enter-N-Go™...
Page 231 UNDERSTANDING YOUR INSTRUMENT PANEL 229 Press the UP or DOWN buttons to cycle through all the Trip Computer functions. The Trip Functions mode displays the following. • Average Fuel Economy/Fuel Saver Mode — If Equipped • Shows the average fuel economy since the last reset. When the fuel economy is reset, the display will read “RESET”...
Page 232 230 UNDERSTANDING YOUR INSTRUMENT PANEL is determined by a weighted average of the instanta- neous and average fuel economy, according to the current fuel tank level. DTE cannot be reset through the SELECT button. NOTE: Significant changes in driving style or vehicle loading will greatly affect the actual drivable distance of the vehicle, regardless of the DTE displayed value.
Page 233: Sport Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 231 • Trip B a second time within three seconds of resetting the currently-displayed function. (>Reset ALL will display Shows the total distance traveled for Trip B since the last during this three-second window.) reset. Sport Mode •...
Page 234: Driver-Selectable Surround Sound (Dss) - If Equipped
232 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: Under certain conditions, the display may be superseded by another display of higher priority. But when the ignition switch position is changed, the display always re-appears. Driver-Selectable Surround Sound (DSS) — If Equipped Press and release the MENU button until “Surround Sound”...
Page 235: Compass Display - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 233 also calibrate the compass by completing one or more 360 Compass Display — If Equipped degree turns (in an area free from large metal or metallic MENU Button objects) until the “CAL” message displayed in the EVIC The compass readings indicate the direction turns off.
Page 236 234 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Slowly complete one or more 360-degree turns (in an area free from large metal or metallic objects) until the “CAL” message turns off. The compass will now function normally. Compass Variance Compass Variance is the difference between Magnetic North and Geographic North.
Page 237: System Warnings (Customer Information Features)
UNDERSTANDING YOUR INSTRUMENT PANEL 235 3. Press the UP or DOWN button until “COMPASS • Tire Pressure VARIANCE” message and the last variance zone Shows the actual tire pressure for each tire (EXCLUDING number displays in the EVIC. THE SPARE TIRE). 4.
Page 238 236 UNDERSTANDING YOUR INSTRUMENT PANEL SELECT button while in this display to select English, Remote Key Unlock Espanol, or Francais. Then, as you continue, the informa- When Driver Door 1st Press is selected, only the driver’s tion will display in the selected language. door will unlock on the first press of the Remote Keyless Entry (RKE) transmitter UNLOCK button.
Page 239 UNDERSTANDING YOUR INSTRUMENT PANEL 237 NOTE: If the vehicle is equipped with Keyless Enter- your selection, press and release the SELECT button until N-Go (Passive Entry) and the EVIC is programmed to a check-mark appears next to the feature showing the Unlock All Doors 1st Press, all doors will unlock no system has been activated or the check-mark is removed matter which Passive Entry equipped door handle is...
Page 240 238 UNDERSTANDING YOUR INSTRUMENT PANEL Flash Lights With Remote Key Lock NOTE: Turning the headlights on during the daytime causes the instrument panel lights to dim. To increase the When ON is selected, the front and rear turn signals will brightness, refer to “Lights”...
Page 241 UNDERSTANDING YOUR INSTRUMENT PANEL 239 Turn Headlights On With Remote Key Unlock Turn-by-Turn Navigation — If Equipped When this feature is selected, the headlights will activate When ON is selected, the Turn-by-Turn directions will and remain on for up to 90 seconds when the doors are appear in the display as the vehicle approaches a desig- unlocked with the RKE transmitter.
Page 242: Uconnect® 730N/430/430N Cd/Dvd/Hdd
240 UNDERSTANDING YOUR INSTRUMENT PANEL or the check-mark is removed showing the system has Display Units Of Measure In been deactivated. Refer to “Keyless Enter-N-Go™” in The EVIC, odometer, and Uconnect® gps (if equipped) “Things To Know Before Starting Your Vehicle”. can be changed between English and Metric units of measure.
Page 243: Uconnect® 130
UNDERSTANDING YOUR INSTRUMENT PANEL 241 Power Switch/Volume Control (Rotary) Uconnect® 130 Push the ON/VOLUME control knob to turn on the radio. Push the ON/VOLUME control knob a second time to turn off the radio. Electronic Volume Control The electronic volume control turns continuously (360 degrees) in either direction, without stopping.
Page 244 242 UNDERSTANDING YOUR INSTRUMENT PANEL TIME Button RW/FF Press the TIME button to alternate display of the time Pressing the RW (Rewind) or FF (Fast Forward) buttons and radio frequency. causes the tuner to search for the next frequency in the direction of the arrows.
Page 245 UNDERSTANDING YOUR INSTRUMENT PANEL 243 Push the rotary TUNE/SCROLL control knob a third AM/FM Button time and TREBLE will display. Turn the TUNE/SCROLL Press the buttons to select either AM or FM mode. control knob to the right or left to increase or decrease the SET/RND Button —...
Page 246: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
244 UNDERSTANDING YOUR INSTRUMENT PANEL and 12 FM stations to be stored into pushbutton memory. Operation Instructions — CD MODE For CD And The stations stored in SET 2 memory can be selected by MP3 Audio Play pressing the pushbutton twice. NOTE: Every time a preset button is used, a corresponding •...
Page 247 UNDERSTANDING YOUR INSTRUMENT PANEL 245 If you insert a disc with the ignition ON and the radio CAUTION! (Continued) ON, the unit will switch from radio to CD mode and • Dual-media disc types (one side is a DVD, the begin to play when you insert the disc.
Page 248: Notes On Playing Mp3 Files
246 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Button AM/FM Button Press the right SEEK button for the next selection on the Press the button to select either AM or FM mode. CD. Press the left SEEK button to return to the beginning SET/RND Button (Random Play Button) of the current selection, or return to the beginning of the Press this button while the CD is playing to activate...
Page 249 UNDERSTANDING YOUR INSTRUMENT PANEL 247 Supported Media (Disc Types) display the file name and folder name, and will assign a number instead. With a maximum number of files, The MP3 file recording media supported by the radio are exceeding 20 folders will result in this display. With CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
Page 250 248 UNDERSTANDING YOUR INSTRUMENT PANEL Supported MP3 File Formats MPEG Specifi- Sampling Fre- Bit Rate (kbps) cation quency (kHz) The radio will recognize only files with the *.MP3 exten- sion as MP3 files. Non-MP3 files named with the *.MP3 MPEG-1 Audio 48, 44.1, 32 320, 256, 224, extension may cause playback problems.
Page 251: Operation Instructions - Auxiliary Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 249 Playback Of MP3 Files Operation Instructions — Auxiliary Mode When a medium containing MP3 data is loaded, the The auxiliary (AUX) jack is an audio input jack, which radio checks all files on the medium. If the medium allows the user to plug in a portable device, such as an contains a lot of folders or files, the radio will take more MP3 player, or iPod®, and utilize the vehicle’s audio...
Page 252: Uconnect® 130 With Satellite Radio
250 UNDERSTANDING YOUR INSTRUMENT PANEL Uconnect® 130 WITH SATELLITE RADIO Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON/RUN or ACC position to operate the radio. Power Switch/Volume Control (Rotary) Push the ON/VOLUME control knob to turn on the radio.
Page 253 UNDERSTANDING YOUR INSTRUMENT PANEL 251 SEEK Buttons TIME Button Press and release the SEEK buttons to search for the next Press the TIME button to alternate display of the time listenable station in AM/FM mode. Press the right switch and radio frequency. to seek up and the left switch to seek down.
Page 254 252 UNDERSTANDING YOUR INSTRUMENT PANEL The clock can also be set by pressing the SETUP button. TUNE Control For vehicles equipped with satellite radio, press the Turn the rotary TUNE/SCROLL control knob clockwise SETUP button, use the TUNE/SCROLL control to select to increase or counterclockwise to decrease the frequency.
Page 255 UNDERSTANDING YOUR INSTRUMENT PANEL 253 Push the rotary TUNE/SCROLL control knob a fourth Toggle the MUSIC TYPE button to select the following time and BALANCE will display. Turn the TUNE/ format types: SCROLL control knob to the right or left to adjust the 16-Digit Character sound level from the right or left side speakers.
Page 256 254 UNDERSTANDING YOUR INSTRUMENT PANEL By pressing the SEEK button when the Music Type icon is 16-Digit Character Program Type displayed, the radio will be tuned to the next frequency Display station with the same selected Music Type name. The Oldies Oldies Music Type function only operates when in the FM mode.
Page 257 UNDERSTANDING YOUR INSTRUMENT PANEL 255 AM/FM Button and 12 FM stations to be stored into pushbutton memory. The stations stored in SET 2 memory can be selected by Press the button to select either AM or FM mode. pressing the pushbutton twice. SET/RND Button —...
Page 258: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
256 UNDERSTANDING YOUR INSTRUMENT PANEL If you insert a disc with the ignition ON and the radio Operation Instructions — CD MODE For CD And ON, the unit will switch from radio to CD mode and MP3 Audio Play begin to play when you insert the disc. The display will NOTE: show the track number, and index time in minutes and •...
Page 259 UNDERSTANDING YOUR INSTRUMENT PANEL 257 SEEK Button CAUTION! (Continued) Press the right SEEK button for the next selection on the • Dual-media disc types (one side is a DVD, the CD. Press the left SEEK button to return to the beginning other side is a CD) should not be used, and they can of the current selection, or return to the beginning of the cause damage to the player.
Page 260: Notes On Playing Mp3 Files
258 UNDERSTANDING YOUR INSTRUMENT PANEL AM/FM Button Supported Media (Disc Types) Press the button to select either AM or FM mode. The MP3 file recording media supported by the radio are CDDA, CD-R, CD-RW, MP3, and CDDA+MP3. SET/RND Button (Random Play Button) Supported Medium Formats (File Systems) Press this button while the CD is playing to activate Random Play.
Page 261 UNDERSTANDING YOUR INSTRUMENT PANEL 259 display the file name and folder name, and will assign Supported MP3 File Formats a number instead. With a maximum number of files, The radio will recognize only files with the *.MP3 exten- exceeding 20 folders will result in this display. With sion as MP3 files.
Page 262 260 UNDERSTANDING YOUR INSTRUMENT PANEL Playback Of MP3 Files MPEG Sampling Fre- Bit Rate (kbps) Specification quency (kHz) When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium MPEG-1 Audio 48, 44.1, 32 320, 256, 224, contains a lot of folders or files, the radio will take more Layer 3...
Page 263: List Button - Cd Mode For Mp3 Play
UNDERSTANDING YOUR INSTRUMENT PANEL 261 Press and hold the INFO button for three seconds or LIST Button — CD Mode For MP3 Play more and the radio will display song titles for each file. Pressing the LIST button will bring up a list of all folders on the disc.
Page 264: Operating Instructions (Uconnect® Phone) - If Equipped
262 UNDERSTANDING YOUR INSTRUMENT PANEL TIME Button (Auxiliary Mode) System Activation Press this button to change the display to time of day. The Sirius Satellite Radio service is pre-activated, and you time of day will display for five seconds (when the may begin listening immediately to the one year of audio ignition is OFF).
Page 265 UNDERSTANDING YOUR INSTRUMENT PANEL 263 To access the ESN/SID, refer to the following steps: decreased performance. Larger luggage items such as bikes should be placed as far rearward as possible, within ESN/SID Access the loading design of the rack. Do not place items directly With the ignition switch in the ON/RUN or ACC posi- on or above the antenna.
Page 266 264 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions — Uconnect® Multimedia INFO Button (Satellite) Mode Pressing the INFO button will cycle the display informa- tion between Artist, Song Title, and Composer (if avail- NOTE: The ignition switch must be in the ON/RUN or able).
Page 267 UNDERSTANDING YOUR INSTRUMENT PANEL 265 MUSIC TYPE Button SETUP Button Pressing this button once will turn on the Music Type Pressing the SETUP button allows you to select the mode for five seconds. Pressing the MUSIC TYPE button following items: or turning the TUNE/SCROLL control knob within five •...
Page 268: Ipod®/Usb/Mp3 Control - If Equipped
266 UNDERSTANDING YOUR INSTRUMENT PANEL You may add a second channel to each pushbutton by iPod®/USB/MP3 CONTROL — IF EQUIPPED repeating the above procedure with this exception: Press This feature allows an iPod® or external USB device to be the SET button twice and SET 2 will show in the display plugged into the USB port, located in the center console window.
Page 269: Connecting The Ipod® Or External Usb Device
UNDERSTANDING YOUR INSTRUMENT PANEL 267 NOTE: The center console will have a position where the Connecting The iPod® Or External USB Device iPod® or consumer electronic audio device cable can be Use the connection cable to connect an iPod® or external routed through without damaging the cable when clos- USB device to the vehicle’s USB/AUX connector port ing the lid.
Page 270: Using This Feature
268 UNDERSTANDING YOUR INSTRUMENT PANEL or Switch to USB. Once in the iPod®/USB/MP3 control Using This Feature mode, audio tracks (if available from audio device) start By using an iPod® cable, or an external USB device to playing over the vehicle’s audio system. connect to the USB port: Play Mode •...
Page 271 UNDERSTANDING YOUR INSTRUMENT PANEL 269 • Jump backward in the current track by pressing and • Pressing the REPEAT button will change the audio holding the << RW button. Holding the << RW button device mode to repeat the current playing track or long enough will jump to the beginning of the current press the VR button and say Repeat ON or Repeat track.
Page 272: List Or Browse Mode
270 UNDERSTANDING YOUR INSTRUMENT PANEL • During all List modes, the iPod® displays all lists in List Or Browse Mode “wrap-around” mode. So if the track is at the bottom of During Play mode, pressing any of the buttons described the list, just turn the wheel backward (counterclock- below, will bring up List mode.
Page 273 UNDERSTANDING YOUR INSTRUMENT PANEL 271 • Pressing a PRESET button will display the current list CAUTION! on the top line and the first item in that list on the second line. • Leaving the iPod® or external USB device (or any supported device) anywhere in the vehicle in ex- •...
Page 274: Bluetooth® Streaming Audio (Btsa)
272 UNDERSTANDING YOUR INSTRUMENT PANEL Selecting A Different Audio Device Bluetooth® Streaming Audio (BTSA) Music can be streamed from your cellular phone to the 1. Press the PHONE button to begin. Uconnect® phone system. 2. After the Ready prompt and following the beep, say Controlling BTSA Using Radio Buttons Setup , then say Select Audio Devices.
Page 275: Harman Kardon® Logic7® High
UNDERSTANDING YOUR INSTRUMENT PANEL 273 Browse supply and drives a 7.4-channel playback architecture. The Harman Kardon® audio system offers the ability to Browsing is not available on a Bluetooth® Streaming choose Logic 7® surround sound for any audio source. Audio (BTSA) device. Only the current song that is The GreenEdge™...
Page 276: Steering Wheel Audio Controls - If Equipped
274 UNDERSTANDING YOUR INSTRUMENT PANEL Selecting “Surround Sound” through the Uconnect® radio activates the Harman Kardon® Logic7® multichan- nel surround-sound technology in your vehicle. Some audio will sound better in DSS modes, others in Stereo mode. When in “Surround Sound” mode, balance is set auto- matically.
Page 277: Radio Operation
UNDERSTANDING YOUR INSTRUMENT PANEL 275 Pressing the center button will make the radio switch CD Player between the various modes available (AM/FM/SAT/ Pressing the top of the switch once will go to the next CD/HDD/AUX etc.). track on the CD. Pressing the bottom of the switch once will go to the beginning of the current track, or to the The left-hand control is a rocker-type switch with a beginning of the previous track if it is within eight...
Page 278: Cd/Dvd Disc Maintenance
276 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Store the disc in its case after playing. CD/DVD DISC MAINTENANCE To keep a CD/DVD in good condition, take the following 6. Do not expose the disc to direct sunlight. precautions: 7. Do not store the disc where temperatures may become 1.
Page 279: Radio Operation And Mobile Phones
UNDERSTANDING YOUR INSTRUMENT PANEL 277 RADIO OPERATION AND MOBILE PHONES CLIMATE CONTROLS Under certain conditions, the mobile phone being on in Automatic Temperature Control (ATC) your vehicle can cause erratic or noisy performance from The Automatic Temperature Control system automati- your radio.
Page 280: Automatic Operation
278 UNDERSTANDING YOUR INSTRUMENT PANEL You will experience the greatest efficiency by simply Automatic Operation allowing the system to function automatically. Selecting Operation of the system is quite simple. the “O” (OFF) position on the blower control stops the Turn the Mode Control knob (right knob) and the Blower system completely and closes the outside air intake.
Page 281: Blower Control
UNDERSTANDING YOUR INSTRUMENT PANEL 279 • If your air conditioning performance seems lower than Manual Operation expected, check the front of the A/C condenser located This system offers a full complement of manual override in front of the radiator for an accumulation of dirt or features, which consist of Blower Preferred Automatic, insects.
Page 282 280 UNDERSTANDING YOUR INSTRUMENT PANEL...
Page 283 UNDERSTANDING YOUR INSTRUMENT PANEL 281 The operator can override the AUTO mode setting to • Floor change airflow distribution by rotating the Mode Control Air is directed through the floor outlets with a knob (right knob) to one of the following positions. small amount flowing through the defrost and •...
Page 284 282 UNDERSTANDING YOUR INSTRUMENT PANEL • Air Conditioner Control NOTE: Press this button to turn on the air • When the ignition switch is turned to the LOCK conditioning during manual operation position, the recirculation feature will be cancelled. only. When the air conditioning is •...
Page 285: Operating Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 283 Vacation Storage Operating Tips Anytime you store your vehicle, or keep it out of service NOTE: Refer to the chart at the end of this section for (i.e., vacation) for two weeks or more, run the air suggested control settings for various weather condi- conditioning system at idle for about five minutes in the tions.
Page 286 284 UNDERSTANDING YOUR INSTRUMENT PANEL Side Window Demisters A/C Air Filter A side window demister outlet is located at each end of The A/C Filter prevents most dust and pollen from the instrument panel. These non-adjustable outlets direct entering the cabin. The filter acts on air coming from air toward the side windows when the system is in the outside the vehicle and recirculated air within the pas- FLOOR, MIX, or DEFROST mode.
Page 287 UNDERSTANDING YOUR INSTRUMENT PANEL 285 Control Setting Suggestions For Various Weather Conditions While In Manual Override...
Page 289 STARTING AND OPERATING CONTENTS STARTING PROCEDURES ....292 MANUAL TRANSMISSION — IF EQUIPPED . .301 ▫ Manual Transmission — If Equipped ..292 ▫...
Page 290 288 STARTING AND OPERATING ▫ Five-Speed Automatic Transmission ..308 FUEL SAVER TECHNOLOGY 5.7L ENGINE ONLY — IF EQUIPPED ....322 ▫...
Page 291 STARTING AND OPERATING 289 ▫ ESC Activation/Malfunction Indicator Light ▫ Run Flat Tires — If Equipped ... . .354 And ESC OFF Indicator Light ... .336 ▫...
Page 292 290 STARTING AND OPERATING ▫ 3.6L Engine — If Equipped....372 ▫ Loose Fuel Filler Cap Message ... .380 ▫...
Page 293 STARTING AND OPERATING 291 ▫ Towing Requirements ....389 RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) ....396 ▫...
Page 294: Starting Procedures
292 STARTING AND OPERATING STARTING PROCEDURES WARNING! (Continued) Before starting your vehicle, adjust your seat, adjust the • Do not leave the Key Fob in or near the vehicle (or inside and outside mirrors, fasten your seat belt, and if in a location accessible to children), and do not present, instruct all other occupants to buckle their seat leave the ignition of a vehicle equipped with...
Page 295: Automatic Transmission - If Equipped
STARTING AND OPERATING 293 Press the clutch pedal fully to the floor, and cycle the Automatic Transmission — If Equipped ignition switch to the START position and release when The shift lever must be in the NEUTRAL or PARK the engine starts. If the engine fails to start within 15 position before you can start the engine.
Page 296: Keyless Enter-N-Go™ - If Equipped
294 STARTING AND OPERATING Using Fob With Integrated Key (Tip Start) Keyless Enter-N-Go™ — If Equipped NOTE: Normal starting of either a cold or a warm This feature allows the driver to operate engine is obtained without pumping or pressing the the ignition switch with the push of a accelerator pedal.
Page 297: Normal Starting
STARTING AND OPERATING 295 Removing The Button 3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will 1. The ENGINE START/STOP button can be removed disengage automatically after 10 seconds. from the ignition switch for key fob use.
Page 298 296 STARTING AND OPERATING 3. If you wish to stop the cranking of the engine prior to position. If the shift lever is not in PARK and the the engine starting, release the button. ENGINE START/STOP button is pressed once, the EVIC (if equipped) will display a “VEHICLE NOT IN NOTE: Normal starting of either a cold or a warm PARK”...
Page 299 STARTING AND OPERATING 297 2. The ignition switch will return to the OFF position. switch position will remain in the ACC position until the vehicle is stopped and the button is pressed twice 3. Place the shift lever in first gear or Reverse and then to the OFF position.
Page 300: Extreme Cold Weather
298 STARTING AND OPERATING 3. Press the ENGINE START/STOP button a second time If Engine Fails To Start to change the ignition switch to the RUN position (EVIC displays “IGNITION MODE RUN”), WARNING! 4. Press the ENGINE START/STOP button a third time •...
Page 301 STARTING AND OPERATING 299 disengage. Once this occurs, release the accelerator pedal WARNING! (Continued) and the brake pedal, wait 10 to 15 seconds, then repeat • If the vehicle has a discharged battery, booster the “Normal Starting” procedure. cables may be used to obtain a start from a booster Clearing A Flooded Engine (Using ENGINE battery or the battery in another vehicle.
Page 302: After Starting
300 STARTING AND OPERATING Clearing A Flooded Engine (Using Fob With After Starting Integrated Key) The idle speed is controlled automatically and it will If the engine fails to start after you have followed the decrease as the engine warms up. “Normal Starting”...
Page 303: Manual Transmission - If Equipped
STARTING AND OPERATING 301 WARNING! CAUTION! Remember to disconnect the engine block heater • Never drive with your foot resting on the clutch cord before driving. Damage to the 110-115 Volt pedal, or try to hold the vehicle on a hill with the electrical cord could cause electrocution.
Page 304: Shifting
302 STARTING AND OPERATING NOTE: During cold weather, you may experience in- Shifting creased effort in shifting until the transmission fluid Fully press the clutch pedal and lift your foot off the warms up. This is normal. accelerator pedal before shifting gears. As you release the clutch pedal, lightly press the accelerator pedal.
Page 305: Recommended Shift Speeds
STARTING AND OPERATING 303 MANUAL TRANSMISSION RECOMMENDED CAUTION! SHIFT SPEEDS Always make sure the vehicle comes to a complete Axle stop before shifting into REVERSE. Failure to do so Ratio may result in transmission damage. 3.73 You must always use first gear (or Reverse) when starting (km/h) (32) (40)
Page 306: 1-4 Skip Shift
304 STARTING AND OPERATING NOTE: Also, this may be more noticeable when the transmis- sion is warm. This is a normal condition and is not an • Your vehicle is equipped with a transmission reverse indication of a problem with your clutch or transmis- inhibitor system.
Page 307: Downshifting
STARTING AND OPERATING 305 When the “1–4 Skip Shift Indicator Message” is dis- CAUTION! played, the shift mechanism will only allow shifts from first gear to fourth gear. After you shift the transmission • If you skip more than one gear while downshifting to fourth gear, you can press the clutch in and shift to or downshift at too high an engine speed, you another forward gear.
Page 308 306 STARTING AND OPERATING CAUTION! (Continued) WARNING! • Shift into or out of REVERSE only after the vehicle • Unintended movement of a vehicle could injure has come to a complete stop and the engine is at those in or near the vehicle. As with all vehicles, idle speed.
Page 309: Key Ignition Park Interlock
STARTING AND OPERATING 307 WARNING! (Continued) WARNING! (Continued) • It is dangerous to shift out of PARK or NEUTRAL • Children should be warned not to touch the park- if the engine speed is higher than idle speed. If ing brake, brake pedal or the shift lever. your foot is not firmly pressing the brake pedal, the •...
Page 310: Brake/Transmission Shift Interlock System
308 STARTING AND OPERATING vehicle may be somewhat abrupt. This is a normal Brake/Transmission Shift Interlock System condition, and precision shifts will develop within a few This vehicle is equipped with a Brake Transmission Shift hundred miles (kilometers). Interlock system (BTSI) that holds the shift lever in PARK unless the brakes are applied.
Page 311: Gear Ranges
STARTING AND OPERATING 309 NOTE: • After selecting any gear range, wait a moment to allow the selected gear to engage before accelerating. This is especially important when the engine is cold. • If there is a need to restart the engine, be sure to cycle the ignition to the OFF position before restarting.
Page 312 310 STARTING AND OPERATING When parking on a level surface, you may shift the WARNING! (Continued) transmission into PARK first, and then apply the parking • Your vehicle could move and injure you and others brake. if it is not completely in PARK. Check by trying to When parking on a hill, apply the parking brake before move the shift lever out of PARK with the brake shifting the transmission to PARK, otherwise the load on...
Page 313 STARTING AND OPERATING 311 WARNING! (Continued) WARNING! (Continued) • Unintended movement of a vehicle could injure • Never leave children alone in a vehicle, or with those in or near the vehicle. As with all vehicles, access to an unlocked vehicle. Allowing children to you should never exit a vehicle while the engine is be in a vehicle unattended is dangerous for a running.
Page 314 312 STARTING AND OPERATING • Look at the transmission gear position display and CAUTION! verify that it indicates the PARK position. • Before moving the shift lever out of PARK, you • With brake pedal released, verify that the shift lever must turn the ignition switch from the LOCK/OFF will not move out of PARK.
Page 315 STARTING AND OPERATING 313 DRIVE (D) WARNING! This range should be used for most city and highway Do not coast in NEUTRAL and never turn off the driving. It provides the smoothest upshifts and down- ignition to coast down a hill. These are unsafe shifts, and the best fuel economy.
Page 316 314 STARTING AND OPERATING SPORT — If Equipped may be illuminated. Limp Home Mode allows the vehicle to be driven to an authorized dealer for service without This mode alters the transmission’s automatic shift damaging the transmission. schedule for sportier driving. Upshift speeds are in- creased to make full use of available engine power.
Page 317: Autostick
STARTING AND OPERATING 315 NOTE: Even if the transmission can be reset, we recom- AUTOSTICK® mend that you visit your authorized dealer at your AutoStick® is a driver-interactive transmission feature earliest possible convenience. Your authorized dealer has providing manual shift control, giving you more control diagnostic equipment to determine if the problem could of the vehicle.
Page 318 316 STARTING AND OPERATING AutoStick® mode will retain the current gear. When • The transmission will automatically downshift as the AutoStick® is active, the current transmission gear is vehicle slows (to prevent engine lugging) and will displayed in the instrument cluster. In AutoStick® mode, display the current gear.
Page 319: Sport Mode - If Equipped
STARTING AND OPERATING 317 To disengage AutoStick® mode, hold the shift lever to the SPORT MODE — IF EQUIPPED right or press and hold the (+) shift paddle (if equipped) This mode alters the transmission’s automatic shift until “D” is once again displayed in the instrument schedule for sportier driving.
Page 320: Driving On Slippery Surfaces
318 STARTING AND OPERATING DRIVING ON SLIPPERY SURFACES Traction When driving on wet or slushy roads, it is possible for a Acceleration wedge of water to build up between the tire and road Rapid acceleration on snow covered, wet, or other slip- surface.
Page 321: Driving Through Water
STARTING AND OPERATING 319 Your vehicle may be equipped with a Limited Slip WARNING! (Continued) Differential (LSD) that reduces, but does not eliminate, carry your vehicle away swiftly. Failure to follow this the amount of wheel slip across a given axle for im- warning may result in injuries that are serious or proved handling.
Page 322 320 STARTING AND OPERATING WARNING! (Continued) CAUTION! (Continued) • Driving through standing water limits your vehi- • Determine the condition of the road or the path cle’s braking capabilities, which increases stopping that is under water and if there are any obstacles in distances.
Page 323: Power Steering
STARTING AND OPERATING 321 CAUTION! (Continued) CAUTION! • Getting water inside your vehicle’s engine can Extreme steering maneuvers may cause the electri- cause it to lock up and stall out, and cause serious cally driven pump to reduce or stop power steering internal damage to the engine.
Page 324: Fuel Saver Technology 5.7L Engine Only - If Equipped
322 STARTING AND OPERATING steering maneuvers may have occurred, which caused an FUEL SAVER TECHNOLOGY 5.7L ENGINE ONLY — over temperature condition in the power steering system. IF EQUIPPED You will lose power steering assistance momentarily This feature offers improved fuel economy by shutting until the over temperature condition no longer exists.
Page 325: Manual Transmission - If Equipped
STARTING AND OPERATING 323 NOTE: Manual Transmission — If Equipped The foot operated parking brake is positioned below the • When the parking brake is applied and the transmis- lower left corner of the instrument panel. To release the sion is placed in gear, the “Brake Warning Light” will parking brake, pull the parking brake release handle.
Page 326: Automatic Transmission - If Equipped
324 STARTING AND OPERATING Automatic Transmission — If Equipped WARNING! The foot operated parking brake is located below the lower • Never use the PARK position as a substitute for the left corner of the instrument panel. To apply the park parking brake.
Page 327: Brake System
STARTING AND OPERATING 325 WARNING! (Continued) CAUTION! • Do not leave the Key Fob in or near the vehicle (or If the “Brake Warning Light” remains on with the in a location accessible to children), and do not parking brake released, a brake system malfunction leave the ignition of a vehicle equipped with is indicated.
Page 328: Anti-Lock Brake System (Abs)
326 STARTING AND OPERATING In the event power assist is lost for any reason (for is working properly. This self check occurs each time the example, repeated brake applications with the engine vehicle is started and accelerated past 7 mph (11 km/h). OFF) the brakes will still function.
Page 329 STARTING AND OPERATING 327 WARNING! WARNING! (Continued) • The Anti-Lock Brake System (ABS) cannot prevent • The Anti-Lock Brake System (ABS) contains so- the natural laws of physics from acting on the phisticated electronic equipment that may be sus- vehicle, nor can it increase braking or steering ceptible to interference caused by improperly in- efficiency beyond that afforded by the condition of stalled...
Page 330: Electronic Brake Control System
328 STARTING AND OPERATING Anti-Lock Brake Warning Light If both the “Brake Warning Light” and the “ABS Warning Light” remain on, the ABS and EBD systems are not functioning. Immediate repair to the ABS system is The “Anti-Lock Brake System (ABS) Warning required.
Page 331: Anti-Lock Brake System (Abs)
STARTING AND OPERATING 329 Anti-Lock Brake System (ABS) Traction Control System (TCS) This system aids the driver in maintaining vehicle control This system monitors the amount of wheel spin of each under adverse braking conditions by controlling hydrau- driven wheel. If wheel spin is detected, brake pressure is lic brake pressure.
Page 332: Brake Assist System (Bas)
330 STARTING AND OPERATING Brake Assist System (BAS) WARNING! This system complements the ABS by optimizing the The BAS cannot prevent the natural laws of physics vehicle braking capability during emergency braking from acting on the vehicle, nor can it increase the maneuvers.
Page 333: Hill Start Assist (Hsa)
STARTING AND OPERATING 331 • Vehicle must be on a 3% (approximate) for manual Hill Start Assist (HSA) transmission and 6% (approximate) for automatic The HSA system is designed to assist the driver when transmissions. starting a vehicle from a stop on a hill. HSA will maintain the level of brake pressure the driver applied for a short •...
Page 334 332 STARTING AND OPERATING Disabling/Enabling HSA 5. Release the clutch pedal (if equipped). If you wish to turn on or off the HSA system, it can be 6. Rotate the steering wheel one-half turn to the left. done using the Customer Programmable Features in the 7.
Page 335: Electronic Stability Control (Esc)
STARTING AND OPERATING 333 Electronic Stability Control (ESC) WARNING! This system enhances directional control and stability of The Electronic Stability Control System (ESC) cannot the vehicle under various driving conditions. The ESC prevent the natural laws of physics from acting on corrects for oversteering and understeering the vehicle the vehicle, nor can it increase the traction afforded by applying the brake of the appropriate wheel.
Page 336 334 STARTING AND OPERATING ESC Operating Modes The “ESC Off” switch is located in the switch bank near the bottom center of the instrument panel. To enter the “Partial The ESC system has two or three available operating Off” mode, momentarily press the “ESC Off” switch and modes: the ESC Off Indicator Light will illuminate.
Page 337 STARTING AND OPERATING 335 in the Electronic Vehicle Information Center (EVIC). WARNING! Refer to “Electronic Vehicle Information Center (EVIC)” in “Understanding Your Instrument Panel” for further When in “Partial Off” mode, the TCS portion of ESC, information. To turn ESC ON again, momentarily press except for the limited wheel spin feature described in the “ESC Off”...
Page 338: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
336 STARTING AND OPERATING ESC Activation/Malfunction Indicator Light And WARNING! (Continued) ESC OFF Indicator Light stability. ESC Off mode is intended for off-highway or off-road use only. The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on NOTE: When the ESC is switched OFF, a feature of the when the ignition switch is cycled to the ON/ system remains active.
Page 339 STARTING AND OPERATING 337 The “ESC Activation/Malfunction Indicator Light” (lo- • Each time the ignition is cycled to the ON/RUN cated in the instrument cluster) starts to flash as soon as position, the ESC system will be ON even if it was the tires lose traction and the ESC system becomes active.
Page 340: Tire Safety Information
338 STARTING AND OPERATING NOTE: TIRE SAFETY INFORMATION • P (Passenger) - Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
Page 341 STARTING AND OPERATING 339 • Temporary spare tires are designed for temporary • High flotation tire sizing is based on U.S. design emergency use only. Temporary high pressure com- standards and it begins with the tire diameter molded pact spare tires have the letter “T” or “S” molded into into the sidewall.
Page 342 340 STARTING AND OPERATING EXAMPLE: R = Construction code – R means radial construction – D means diagonal or bias construction 15 = Rim diameter in inches (in) Service Description: 95 = Load Index – A numerical code associated with the maximum load a tire can carry H = Speed Symbol –...
Page 343: Tire Identification Number (Tin)
STARTING AND OPERATING 341 EXAMPLE: Load Identification: ..blank..= Absence of any text on the sidewall of the tire indicates a Standard Load (SL) tire Extra Load (XL) = Extra load (or reinforced) tire Light Load (LL) = Light load tire C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure Maximum Load –...
Page 344 342 STARTING AND OPERATING EXAMPLE: DOT MA L9 ABCD 0301 DOT = Department of Transportation – This symbol certifies that the tire is in compliance with the U.S. Department of Transportation tire safety standards and is approved for highway use MA = Code representing the tire manufacturing location (two digits) L9 = Code representing the tire size (two digits) ABCD = Code used by the tire manufacturer (one to four digits)
Page 345: Tire Terminology And Definitions
STARTING AND OPERATING 343 Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is the structural member of the body located behind the front door. Cold Tire Inflation Pressure Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 346: Tire Loading And Tire Pressure
344 STARTING AND OPERATING Tire Loading And Tire Pressure Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door. B-Pillar Location For Tire And Loading Information Placard...
Page 347 STARTING AND OPERATING 345 Tire And Loading Information Placard This placard tells you important information about the: 1. Number of people that can be carried in the vehicle. 2. Total weight your vehicle can carry. 3. Tire size designed for your vehicle. 4.
Page 348 346 STARTING AND OPERATING Loading To determine the maximum loading conditions of your vehicle, locate the statement “The combined weight of The vehicle maximum load on the tire must not exceed occupants and cargo should never exceed XXX lbs or the load carrying capacity of the tire on your vehicle.
Page 349 STARTING AND OPERATING 347 4. The resulting figure equals the available amount of NOTE: cargo and luggage load capacity. For example, if • If your vehicle will be towing a trailer, load from your “XXX” amount equals 1,400 lbs (635 kg) and there will trailer will be transferred to your vehicle.
Page 350 348 STARTING AND OPERATING...
Page 351: Tires - General Information
STARTING AND OPERATING 349 Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.
Page 352: Tire Inflation Pressures
350 STARTING AND OPERATING NOTE: WARNING! (Continued) • Unequal tire pressures from side to side may cause • Unequal tire pressures from one side of the vehicle erratic and unpredictable steering response. to the other can cause the vehicle to drift to the right or left.
Page 353 STARTING AND OPERATING 351 Tire pressures change by approximately 1 psi (7 kPa) per CAUTION! 12°F (7°C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in After inspecting or adjusting the tire pressure, al- the winter.
Page 354: Tire Pressures For High Speed Operation
352 STARTING AND OPERATING Tire Pressures For High Speed Operation Radial Ply Tires The manufacturer advocates driving at safe speeds and WARNING! within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high Combining radial ply tires with other types of tires speeds, maintaining correct tire inflation pressure is very on your vehicle will cause your vehicle to handle...
Page 355: Tire Types
STARTING AND OPERATING 353 Consult an authorized tire dealer for tire repairs and Summer Or Three Season Tires — If Equipped additional information. Summer tires provide traction in both wet and dry Damaged Run Flat tires, or Run Flat tires that have conditions, and are not intended to be driven in snow or experienced a loss of pressure should be replaced imme- on ice.
Page 356: Run Flat Tires - If Equipped
354 STARTING AND OPERATING If you need snow tires, select tires equivalent in size and Run Flat Tires — If Equipped type to the original equipment tires. Use snow tires only Run Flat tires allow you the capability to drive 50 miles in sets of four;...
Page 357: Spare Tires - If Equipped
STARTING AND OPERATING 355 rotation for your vehicle. If your vehicle has this option, Spare Tires — If Equipped refer to an authorized tire dealer for the recommended NOTE: For vehicles equipped with TIREFIT instead of a tire rotation pattern. spare tire, please refer to “TIREFIT KIT”...
Page 358 356 STARTING AND OPERATING Do not install a wheel cover or attempt to mount a Full Size Spare — If Equipped conventional tire on the compact spare wheel, since the The full size spare is for temporary emergency use only. wheel is designed specifically for the compact spare tire.
Page 359: Tire Spinning
STARTING AND OPERATING 357 your original equipment tire, replace (or repair) the Tire Spinning original equipment tire and reinstall on the vehicle at the When stuck in mud, sand, snow, or ice conditions, do not first opportunity. spin your vehicle’s wheels above 30 mph (48 km/h) or for longer than 30 seconds continuously without stop- WARNING! ping.
Page 360: Tread Wear Indicators
358 STARTING AND OPERATING These indicators are molded into the bottom of the tread Tread Wear Indicators grooves. They will appear as bands when the tread depth Tread wear indicators are in the original equipment tires becomes 1/16 in (2 mm). When the tread is worn to the to help you in determining when your tires should be tread wear indicators, the tire should be replaced.
Page 361: Replacement Tires
STARTING AND OPERATING 359 Information placard or the Vehicle Certification Label for WARNING! the size designation of your tire. The Load Index and Speed Symbol for your tire will be found on the original Tires and the spare tire should be replaced after six equipment tire sidewall.
Page 362 360 STARTING AND OPERATING WARNING! WARNING! (Continued) • Failure to equip your vehicle with tires having • Do not use a tire, wheel size or rating other than adequate speed capability can result in sudden tire that specified for your vehicle. Some combinations failure and loss of vehicle control.
Page 363: Tire Chains (Traction Devices)
STARTING AND OPERATING 361 TIRE CHAINS (TRACTION DEVICES) CAUTION! Use of traction devices require sufficient tire-to-body To avoid damage to your vehicle or tires, observe the clearance. Follow these recommendations to guard following precautions: against damage. • Because of restricted traction device clearance be- •...
Page 364: Tire Rotation Recommendations
362 STARTING AND OPERATING These effects can be reduced by timely rotation of tires. CAUTION! (Continued) The benefits of rotation are especially worthwhile with • Observe the traction device manufacturer’s instruc- aggressive tread designs such as those on all season type tions on the method of installation, operating tires.
Page 365: Tire Pressure Monitor System (Tpms)
STARTING AND OPERATING 363 TIRE PRESSURE MONITOR SYSTEM (TPMS) The Tire Pressure Monitor System (TPMS) will warn the driver of a low tire pressure based on the vehicle recom- mended cold placard pressure. The tire pressure will vary with temperature by about 1 psi (7 kPa) for every 12°F (6.5°C).
Page 366 364 STARTING AND OPERATING The TPMS will warn the driver of a low tire pressure if For example, your vehicle may have a recommended the tire pressure falls below the low-pressure warning cold (parked for more than three hours) placard pressure limit for any reason, including low temperature effects of 30 psi (207 kPa).
Page 367 STARTING AND OPERATING 365 NOTE: CAUTION! • The TPMS is not intended to replace normal tire care • The TPMS has been optimized for the original and maintenance or to provide warning of a tire failure equipment tires and wheels. TPMS pressures and or condition.
Page 368: Base System
366 STARTING AND OPERATING • Seasonal temperature changes will affect tire pressure, Tire Pressure Monitoring Low Pressure Warnings and the TPMS will monitor the actual tire pressure in the tire. The “TPM Telltale Light” will illuminate in the instrument cluster, a “LOW TIRE” message will Base System be displayed and a chime will sound when tire pressure The Tire Pressure Monitor System (TPMS) uses wireless...
Page 369 STARTING AND OPERATING 367 Service TPMS Warning Vehicles with Compact Spare If a system fault is detected, the “TPM Telltale Light” will 1. The compact spare tire does not have a TPM sensor. flash on and off for 75 seconds and then remain on solid. Therefore, the TPMS will not monitor the pressure in The system fault will also sound a chime.
Page 370: Premium System - If Equipped
368 STARTING AND OPERATING 5. Once you repair or replace the original road tire, and The TPMS consists of the following components: reinstall it on the vehicle in place of the compact spare, • Receiver module, the TPMS will update automatically and the “TPM Telltale Light”...
Page 371 STARTING AND OPERATING 369 will automatically update, the graphic display in the EVIC will stop flashing, and the “TPM Telltale Light” will turn off. The vehicle may need to be driven for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to receive this information.
Page 372 370 STARTING AND OPERATING longer display, and a pressure value will display in place of the dashes. A system fault can occur due to any of the following: 1. Signal interference due to electronic devices or driving next to facilities emitting the same radio frequencies as the TPM sensors.
Page 373 STARTING AND OPERATING 371 The EVIC will also display a SERVICE TPM SYSTEM sound. In addition, the graphic in the EVIC will still message for a minimum of five seconds when a system display a flashing pressure value and the Inflate Tire fault related to an incorrect sensor location fault is to XX message.
Page 374: General Information
372 STARTING AND OPERATING 5. Once you repair or replace the original road tire and The TPM sensors are regulated under one of the follow- reinstall it on the vehicle in place of the compact spare, ing licenses: the TPMS will update automatically. In addition, the United States MRXC4W4MA4 “TPM Telltale Light”...
Page 375: L Engine (With Automatic Transmission)
STARTING AND OPERATING 373 Light spark knock at low engine speeds is not harmful to 5.7L Engine (With Automatic Transmission) your engine. However, continued heavy spark knock at high speeds can cause damage and immediate service is The 3.6L and 5.7L engine (with automatic required.
Page 376: L Engine (With Manual Transmission)
374 STARTING AND OPERATING Over 40 auto manufacturers worldwide have issued and Reformulated Gasoline endorsed consistent gasoline specifications (the World Many areas of the country require the use of cleaner Wide Fuel Charter, WWFC) which define fuel properties burning gasoline referred to as “Reformulated Gasoline.” necessary to deliver enhanced emissions, performance, Reformulated gasoline contain oxygenates and are spe- and durability for your vehicle.
Page 377: E-85 Usage In Non-Flex Fuel Vehicles
STARTING AND OPERATING 375 If a Non-FFV vehicle is inadvertently fueled with E-85 CAUTION! fuel, the engine will have some or all of these symptoms: Do not use gasolines containing Methanol. Use of • Operate in a lean mode. these blends may result in starting and drivability •...
Page 378: Mmt In Gasoline
376 STARTING AND OPERATING MMT In Gasoline Materials Added To Fuel Methylcyclopentadienyl Manganese Tricarbonyl (MMT) All gasoline sold in the United States is required to is a manganese-containing metallic additive that is contain effective detergent additives. Use of additional blended into some gasoline to increase octane. Gasoline detergents or other additives is not needed under normal blended with MMT provides no performance advantage conditions and they would result in additional cost.
Page 379: Carbon Monoxide Warnings
STARTING AND OPERATING 377 Carbon Monoxide Warnings CAUTION! (Continued) • An out-of-tune engine or certain fuel or ignition WARNING! malfunctions can cause the catalytic converter to Carbon monoxide (CO) in exhaust gases is deadly. overheat. If you notice a pungent burning odor or Follow the precautions below to prevent carbon some light smoke, your engine may be out of tune monoxide poisoning:...
Page 380: Adding Fuel
378 STARTING AND OPERATING WARNING! (Continued) • Guard against carbon monoxide with proper main- tenance. Have the exhaust system inspected every time the vehicle is raised. Have any abnormal conditions repaired promptly. Until repaired, drive with all side windows fully open. •...
Page 381 STARTING AND OPERATING 379 CAUTION! WARNING! (Continued) • Never add fuel to the vehicle when the engine is • Damage to the fuel system or emissions control running. system could result from using an improper fuel • A fire may result if gasoline is pumped into a tank filler tube cap (gas cap).
Page 382: Loose Fuel Filler Cap Message
380 STARTING AND OPERATING Loose Fuel Filler Cap Message VEHICLE LOADING If the vehicle diagnostic system determines that the fuel The load carrying capacity of your vehicle is shown on the filler cap is loose, improperly installed, or damaged, a “Vehicle Certification Label”.
Page 383: Gross Vehicle Weight Rating (Gvwr)
STARTING AND OPERATING 381 • Gross Axle Weight Rating (GAWR) rear Gross Axle Weight Rating (GAWR) • Vehicle Identification Number (VIN) The GAWR is the maximum capacity of the front and rear axles. Distribute the load over the front and rear axles •...
Page 384: Loading
382 STARTING AND OPERATING The best way to figure out the total weight of your Loading vehicle is to weigh it when it is fully loaded and ready for To load your vehicle properly, first figure out its empty operation. Weigh it on a commercial scale to ensure that weight, axle-by-axle and side-by-side.
Page 385: Trailer Towing
STARTING AND OPERATING 383 Gross Vehicle Weight Rating (GVWR) TRAILER TOWING In this section, you will find safety tips and information The GVWR is the total allowable weight of your vehicle. on limits to the type of towing you can reasonably do This includes driver, passengers, cargo and tongue weight.
Page 386 384 STARTING AND OPERATING Gross Axle Weight Rating (GAWR) Tongue Weight (TW) The tongue weight is the downward force exerted on the The GAWR is the maximum capacity of the front and rear hitch ball by the trailer. In most cases it should not be less axles.
Page 387 STARTING AND OPERATING 385 Weight-Carrying Hitch equalizing) hitch are recommended for heavier Tongue Weights (TW) and may be required depending on vehicle A weight-carrying hitch supports the trailer tongue weight, and trailer configuration/loading to comply with Gross just as if it were luggage located at a hitch ball or some other Axle Weight Rating (GAWR) requirements.
Page 388: Trailer Hitch Classification
386 STARTING AND OPERATING Trailer Hitch Classification Trailer Hitch Classification Definitions The following chart provides the industry standard for Class Max. Trailer Hitch the maximum trailer weight a given trailer hitch class can Industry Standards tow and should be used to assist you in selecting the Class IV - Extra Heavy 10,000 lbs (4 540 kg) correct trailer hitch for your intended towing condition.
Page 389: Trailer Towing Weights
STARTING AND OPERATING 387 Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Max. GTW (Gross Engine/Transmission Frontal Area Max. Tongue Wt. Trailer Wt.) 3.6L Automatic 12 sq ft (1.11 sq m) 1,000 lbs (454 kg) 100 lbs (45 kg) 5.7L Automatic...
Page 390: Trailer And Tongue Weight
388 STARTING AND OPERATING Trailer And Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle.
Page 391: Starting And Operating
STARTING AND OPERATING 389 NOTE: Remember that everything put into or on the CAUTION! (Continued) trailer adds to the load on your vehicle. Also, additional • Then, during the first 500 miles (805 km) that a factory-installed options or dealer-installed options must trailer is towed, do not drive over 50 mph (80 km/h) be considered as part of the total load on your vehicle.
Page 392 390 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • When hauling cargo or towing a trailer, do not • Total weight must be distributed between the tow overload your vehicle or trailer. Overloading can vehicle and the trailer such that the following four cause a loss of control, poor performance, or dam- ratings are not exceeded: age to brakes, axle, engine, transmission, steering,...
Page 393 STARTING AND OPERATING 391 • Proper tire inflation pressures are essential to the safe Towing Requirements — Trailer Brakes and satisfactory operation of your vehicle. Refer to • Do not interconnect the hydraulic brake system or “Tires – General Information” in “Starting And Oper- vacuum system of your vehicle with that of the trailer.
Page 394 392 STARTING AND OPERATING Towing Requirements — Trailer Lights And Wiring WARNING! Whenever you pull a trailer, regardless of the trailer size, • Do not connect trailer brakes to your vehicle’s hy- stoplights and turn signals on the trailer are required for draulic brake lines.
Page 395 STARTING AND OPERATING 393 Four-Pin Connector Seven-Pin Connector 1 — Female Pins 4 — Park 1 — Battery 5 — Ground 2 — Male Pin 5 — Left Stop/Turn 2 — Backup Lamps 6 — Left Stop/Turn 3 — Ground 6 —...
Page 396: Towing Tips
394 STARTING AND OPERATING If you REGULARLY tow a trailer for more than 45 Towing Tips minutes of continuous operation, then change the trans- Before setting out on a trip, practice turning, stopping, mission fluid and filter as specified for “police, taxi, fleet, and backing up the trailer in an area located away from or frequent trailer towing.”...
Page 397 STARTING AND OPERATING 395 AutoStick® Cooling System To reduce potential for engine and transmission over- • When using the AutoStick® shift control, select the heating, take the following actions: highest gear that allows for adequate performance and avoids frequent downshifts. For example, choose “4” if City Driving the desired speed can be maintained.
Page 398: Recreational Towing
396 STARTING AND OPERATING RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Wheels OFF The Towing Condition Manual Transmission Automatic Transmission Ground Flat Tow None NOT ALLOWED NOT ALLOWED Dolly Tow Front NOT ALLOWED NOT ALLOWED Rear NOT RECOMMENDED NOT RECOMMENDED On Trailer...
Page 399 STARTING AND OPERATING 397 Automatic Transmission — If Equipped Manual Transmission — If Equipped Recreational towing (with rear wheels on the ground) is Recreational towing (with rear wheels on the ground) is NOT ALLOWED. The only acceptable method for tow- NOT ALLOWED.
Page 401 WHAT TO DO IN EMERGENCIES CONTENTS HAZARD WARNING FLASHERS ...401 JACKING AND TIRE CHANGING ..414 IF YOUR ENGINE OVERHEATS ... .401 ▫...
Page 402 400 WHAT TO DO IN EMERGENCIES SHIFT LEVER OVERRIDE ....430 ▫ Automatic Transmission ....433 TOWING A DISABLED VEHICLE .
Page 403: Hazard Warning Flashers
WHAT TO DO IN EMERGENCIES 401 NOTE: With extended use the Hazard Warning flashers HAZARD WARNING FLASHERS may wear down your battery. The Hazard Warning flasher switch is located in the switch bank near the bottom center of the instrument IF YOUR ENGINE OVERHEATS panel.
Page 404: Tirefit Kit - If Equipped
402 WHAT TO DO IN EMERGENCIES • You can also turn the temperature control to maximum WARNING! heat, the mode control to floor and the blower control to high. This allows the heater core to act as a You or others can be badly burned by hot engine supplement to the radiator and aids in removing heat coolant (antifreeze) or steam from your radiator.
Page 405: Tirefit Storage
WHAT TO DO IN EMERGENCIES 403 TIREFIT Storage TIREFIT Kit Components And Operation The TIREFIT kit is located in the trunk. TIREFIT Components 1 — Sealant Bottle 5 — Mode Select Knob 2 — Deflation Button 6 — Sealant Hose (Clear) TIREFIT Location 3 —...
Page 406: Tirefit Usage Precautions
404 WHAT TO DO IN EMERGENCIES Using The Mode Select Knob And Hoses Using The Power Button Your TIREFIT kit is equipped with the following symbols Push and release the Power Button (4) once to to indicate the air or sealant mode. turn On the TIREFIT kit.
Page 407 WHAT TO DO IN EMERGENCIES 405 the vehicle or tire and wheel components. Once the sealant dries, it can easily be peeled off and properly discarded. • For optimum performance, make sure the valve stem on the wheel is free of debris before connecting the TIREFIT kit.
Page 408 406 WHAT TO DO IN EMERGENCIES WARNING! WARNING! (Continued) • Keep TIREFIT away from open flames or heat • Do not attempt to seal a tire on the side of the source. vehicle closest to traffic. Pull far enough off the •...
Page 409: Sealing A Tire With Tirefit
WHAT TO DO IN EMERGENCIES 407 kit when injecting the sealant into the deflated tire and WARNING! (Continued) running the air pump. Move the vehicle as necessary • TIREFIT Sealant solution contains latex. In case of to place the valve stem in this position before proceed- an allergic reaction or rash, consult a physician ing.
Page 410 408 WHAT TO DO IN EMERGENCIES 4. Remove the cap from the valve stem and then screw NOTE: Sealant may leak out through the puncture in the the fitting at the end of the Sealant Hose (6) onto the tire. valve stem.
Page 411 WHAT TO DO IN EMERGENCIES 409 NOTE: If the Mode Select Knob (5) is on Air Mode and If the tire does not inflate to at least 26 psi (1.8 Bar) the pump is operating, air will dispense from the Air pressure within 15 minutes: Pump Hose (7) only, not the Sealant Hose (6).
Page 412 410 WHAT TO DO IN EMERGENCIES CAUTION! WARNING! • The metal end fitting from Power Plug (8) may get TIREFIT is not a permanent flat tire repair. Have the tire inspected and repaired or replaced after using hot after use, so it should be handled carefully. TIREFIT.
Page 413 WHAT TO DO IN EMERGENCIES 411 3. Uncoil the Air Pump Hose (7) (black in color) and 2. Disconnect the TIREFIT kit from the valve stem, screw the fitting at the end of hose (7) onto the valve reinstall the cap on the valve stem and unplug from 12 stem.
Page 414: Wheel And Tire Torque Specifications
412 WHAT TO DO IN EMERGENCIES (F) Sealant Bottle And Hose Replacement: 7. Return the TIREFIT kit to its storage location in the vehicle. 1. Uncoil the Sealant Hose (6) (clear in color). WHEEL AND TIRE TORQUE SPECIFICATIONS 2. Locate the round Sealant Bottle release button in the recessed area under the sealant bottle.
Page 415 WHAT TO DO IN EMERGENCIES 413 Inspect the wheel mounting surface prior to mounting After 25 miles (40 km) check the lug nut/bolt torque to be the tire and remove any corrosion or loose particles. sure that all the lug nuts/bolts are properly seated against the wheel.
Page 416: Jacking And Tire Changing
414 WHAT TO DO IN EMERGENCIES WARNING! WARNING! (Continued) • Being under a jacked-up vehicle is dangerous. The To avoid the risk of forcing the vehicle off the jack, vehicle could slip off the jack and fall on you. You do not tighten the lug nuts fully until the vehicle has could be crushed.
Page 417: Jack Location/Spare Tire Stowage
WHAT TO DO IN EMERGENCIES 415 Jack Location/Spare Tire Stowage The jack and spare tire are both stowed under an access cover in the trunk. Follow these steps to access the jack and spare tire. NOTE: The spare tire must be removed in order to access the jack.
Page 418 416 WHAT TO DO IN EMERGENCIES Spare Tire Fastener Jack Fastener 4. Remove the spare tire. 6. Remove the jack and lug wrench assembly from under the spare tire. Turn the jack screw to the left to loosen 5. Remove the fastener securing the jack. the lug wrench, and remove the wrench from the jack assembly.
Page 419: Preparations For Jacking
WHAT TO DO IN EMERGENCIES 417 2. Turn on the Hazard Warning flasher. WARNING! 3. Set the parking brake. A loose tire or jack thrown forward in a collision or 4. Place the shift lever into PARK (automatic transmis- hard stop could endanger the occupants of the ve- sion) or 1st gear (manual transmission).
Page 420: Jacking And Changing A Tire
418 WHAT TO DO IN EMERGENCIES Jacking And Changing A Tire WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a WARNING! jack. Carefully follow these tire changing warnings to • Do not get under the vehicle when it is on a jack. If help prevent personal injury or damage to your you need to get under a raised vehicle, take it to a vehicle:...
Page 421 WHAT TO DO IN EMERGENCIES 419 2. If equipped with aluminum wheels where the center CAUTION! cap covers the lug nuts, use the lug wrench to pry the center cap off carefully before raising the vehicle. Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking 3.
Page 422 420 WHAT TO DO IN EMERGENCIES Front Jacking Location Rear Jacking Location 5. Raise the vehicle just enough to remove the flat tire and install the spare tire.
Page 423 WHAT TO DO IN EMERGENCIES 421 WARNING! Raising the vehicle higher than necessary can make the vehicle less stable. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire. 6. Remove the lug nuts and tire. 7.
Page 424 422 WHAT TO DO IN EMERGENCIES NOTE: 9. Lower the vehicle to the ground by turning the jack handle counterclockwise. • For vehicles so equipped, do not attempt to install a center cap or wheel cover on the compact spare. 10.
Page 425: Road Tire Installation
WHAT TO DO IN EMERGENCIES 423 5. After 25 miles (40 km) check the lug nut torque with a Road Tire Installation torque wrench to ensure that all lug nuts are properly 1. Mount the road tire on the axle. seated against the wheel.
Page 426: Preparations For Jump-Start
424 WHAT TO DO IN EMERGENCIES CAUTION! Do not use a portable battery booster pack or any other booster source with a system voltage greater than 12 Volts or damage to the battery, starter motor, alternator or electrical system may occur. WARNING! Do not attempt jump-starting if the battery is frozen.
Page 427: Jump-Starting Procedure
WHAT TO DO IN EMERGENCIES 425 3. If using another vehicle to jump-start the battery, park WARNING! the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. • Take care to avoid the radiator cooling fan when- ever the hood is raised.
Page 428 426 WHAT TO DO IN EMERGENCIES 4. Connect the opposite end of the negative (-) jumper CAUTION! cable to the remote negative (-) post of the vehicle with the discharged battery. Failure to follow these procedures could result in damage to the charging system of the booster vehicle WARNING! or the discharged vehicle.
Page 429 WHAT TO DO IN EMERGENCIES 427 6. Once the engine is started, remove the jumper cables If frequent jump-starting is required to start your vehicle in the reverse sequence: you should have the battery and charging system in- spected at your authorized dealer. Disconnecting The Jumper Cables 1.
Page 430: Freeing A Stuck Vehicle
428 WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE CAUTION! (Continued) If your vehicle becomes stuck in mud, sand, or snow, it can the risk of clutch or transmission failure during often be moved using a rocking motion. Turn the steering prolonged efforts to free a stuck vehicle.
Page 431 WHAT TO DO IN EMERGENCIES 429 CAUTION! WARNING! Fast spinning tires can be dangerous. Forces gener- • When “rocking” a stuck vehicle by shifting be- ated by excessive wheel speeds may cause damage, or tween DRIVE and REVERSE (with automatic even failure, of the axle and tires.
Page 432: Shift Lever Override
430 WHAT TO DO IN EMERGENCIES SHIFT LEVER OVERRIDE If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever: 1. Turn the engine OFF. 2.
Page 433: Towing A Disabled Vehicle
WHAT TO DO IN EMERGENCIES 431 TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial wrecker service. Towing Condition Wheels OFF The AUTOMATIC TRANS- MANUAL TRANSMIS- Ground MISSION SION Flat Tow NONE If transmission is If transmission is operable: operable:...
Page 434 432 WHAT TO DO IN EMERGENCIES Proper towing or lifting equipment is required to prevent CAUTION! damage to your vehicle. Use only tow bars and other equipment designed for this purpose, following equip- • Do not use sling type equipment when towing. ment manufacturer’s instructions.
Page 435: Automatic Transmission
WHAT TO DO IN EMERGENCIES 433 Automatic Transmission CAUTION! The manufacturer recommends towing your vehicle with Towing this vehicle in violation of the above require- all four wheels OFF the ground using a flatbed. ments can cause severe transmission damage. Dam- If flatbed equipment is not available, and the transmis- age from improper towing is not covered under the sion is operable, the vehicle may be flat towed (with all...
Page 436: Manual Transmission
434 WHAT TO DO IN EMERGENCIES Manual Transmission CAUTION! The manufacturer recommends towing your vehicle with Towing this vehicle in violation of the above require- all four wheels OFF the ground using a flatbed. ments can cause severe transmission damage. Dam- If flatbed equipment is not available, and the transmis- age from improper towing is not covered under the sion is operable, the vehicle may be flat towed (with all...
Page 437 MAINTAINING YOUR VEHICLE CONTENTS ENGINE COMPARTMENT — 3.6L ..438 ▫ Engine Oil Filter ..... .448 ENGINE COMPARTMENT —...
Page 438 436 MAINTAINING YOUR VEHICLE ▫ Brake System ......464 BULB REPLACEMENT ....486 ▫...
Page 439 MAINTAINING YOUR VEHICLE 437 FLUID CAPACITIES ....492 ▫ Engine ......493 FLUIDS, LUBRICANTS AND GENUINE ▫...
Page 440: Engine Compartment - 3.6L
438 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 3.6L 1 — Remote Jump Start (Positive Battery Post) 4 — Engine Oil Dipstick 7 — Air Cleaner Filter 2 — Power Distribution Center (Fuses) 5 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Fill 3 —...
Page 441: Engine Compartment - 5.7L
MAINTAINING YOUR VEHICLE 439 ENGINE COMPARTMENT — 5.7L 1 — Remote Jump Start (Positive Battery Post) 4 — Brake Fluid Reservoir Access Cover 7 — Engine Oil Fill 2 — Power Distribution Center (Fuses) 5 — Engine Coolant Reservoir 8 — Engine Oil Dipstick 3 —...
Page 442: Onboard Diagnostic System - Obd Ii
440 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard • Prolonged driving with the MIL on could cause diagnostic system called OBD II. This system monitors further damage to the emission control system. It the performance of the emissions, engine, and automatic could also affect fuel economy and driveability.
Page 443: Emissions Inspection And Maintenance Programs
MAINTAINING YOUR VEHICLE 441 Trip Odometer button to turn off the message. If the Normally, the OBD II system will be ready. The OBD II problem continues, the message will appear the next time system may not be ready if your vehicle was recently the vehicle is started.
Page 444: Replacement Parts
442 MAINTAINING YOUR VEHICLE 3. Approximately 15 seconds later, one of two things will system to update. A recheck with the above test routine happen: may then indicate that the system is now ready. • The MIL will flash for about 10 seconds and then Regardless of whether your vehicle’s OBD II system is return to being fully illuminated until you turn OFF ready or not, if the MIL is illuminated during normal...
Page 445: Dealer Service
MAINTAINING YOUR VEHICLE 443 DEALER SERVICE MAINTENANCE PROCEDURES Your authorized dealer has the qualified service person- The pages that follow contain the required maintenance nel, special tools, and equipment to perform all service services determined by the engineers who designed your operations in an expert manner.
Page 446: Engine Oil
444 MAINTAINING YOUR VEHICLE regular intervals, such as every fuel stop. The best time to CAUTION! (Continued) check the engine oil level is about five minutes after a • Your vehicle has been built with improved fluids fully warmed engine is shut off. that protect the performance and durability of your Checking the oil while the vehicle is on level ground will vehicle and also allow extended maintenance inter-...
Page 447 MAINTAINING YOUR VEHICLE 445 Checking Oil Level — 5.7L Engine Change Engine Oil To assure proper engine lubrication, the engine oil must The oil change indicator system will remind you that it is be maintained at the correct level. Check the oil level at time to take your vehicle in for scheduled maintenance.
Page 448 446 MAINTAINING YOUR VEHICLE American Petroleum Institute (API) Engine Oil Engine Oil Viscosity — 3.6L Engine Identification Symbol MOPAR® SAE 5W-20 engine oil approved to Chrysler Material Standard MS-6395 such as Pennzoil®, Shell This symbol means that the oil has Helix®...
Page 449 MAINTAINING YOUR VEHICLE 447 Engine Oil Viscosity — 5.7L Engine Materials Added To Engine Oil MOPAR® SAE 5W-20 engine oil or equivalent such as The manufacturer strongly recommends against the addi- Pennzoil® or Shell Helix® is recommended for all oper- tion of any additives (other than leak detection dyes) to the engine oil.
Page 450: Engine Oil Filter
448 MAINTAINING YOUR VEHICLE Engine Oil Filter WARNING! The engine oil filter should be replaced with a new filter The air induction system (air cleaner, hoses, etc.) can at every engine oil change. provide a measure of protection in the case of engine Engine Oil Filter Selection backfire.
Page 451: Maintenance-Free Battery
MAINTAINING YOUR VEHICLE 449 Maintenance-Free Battery Your vehicle is equipped with a maintenance-free battery. You will never have to add water, nor is periodic main- tenance required. NOTE: The battery is stored under an access cover in the trunk. Remote battery terminals are located in the engine compartment for jump-starting.
Page 452 450 MAINTAINING YOUR VEHICLE WARNING! CAUTION! • Battery fluid is a corrosive acid solution and can • It is essential when replacing the cables on the burn or even blind you. Do not allow battery fluid battery that the positive cable is attached to the to contact your eyes, skin, or clothing.
Page 453: Air Conditioner Maintenance
MAINTAINING YOUR VEHICLE 451 Air Conditioner Maintenance WARNING! (Continued) For best possible performance, your air conditioner • The air conditioning system contains refrigerant should be checked and serviced by an authorized dealer under high pressure. To avoid risk of personal at the start of each warm season.
Page 454 452 MAINTAINING YOUR VEHICLE Refrigerant Recovery And Recycling R-134a Air Conditioning Refrigerant is a hydrofluoro- carbon (HFC) that is endorsed by the Environmental Protection Agency and is an ozone-saving product. How- ever, the manufacturer recommends that air conditioning service be performed by authorized dealer or other service facilities using recovery and recycling equipment.
Page 455 MAINTAINING YOUR VEHICLE 453 Filter Access Cover A/C Air Filter 3. Remove the used filter. 5. Close the filter access cover. 4. Install the new filter with arrows pointing in the Refer to the “Maintenance Schedule” for the proper direction of airflow, which is toward the rear of the maintenance intervals.
Page 456: Body Lubrication
454 MAINTAINING YOUR VEHICLE Body Lubrication Windshield Wiper Blades Locks and all body pivot points, including such items as Clean the rubber edges of the wiper blades and the seat tracks, door hinge pivot points and rollers, liftgate, windshield periodically with a sponge or soft cloth and a tailgate, decklid, sliding doors and hood hinges, should mild nonabrasive cleaner.
Page 457: Adding Washer Fluid
MAINTAINING YOUR VEHICLE 455 Adding Washer Fluid WARNING! The windshield washer fluid reservoir is located in the Commercially available windshield washer solvents front of the engine compartment. Be sure to check the are flammable. They could ignite and burn you. Care fluid level at regular intervals.
Page 458 456 MAINTAINING YOUR VEHICLE exhaust system inspected each time the vehicle is raised CAUTION! for lubrication or oil change. Replace as required. • The catalytic converter requires the use of un- WARNING! leaded fuel only. Leaded gasoline will destroy the effectiveness of the catalyst as an emissions control •...
Page 459 MAINTAINING YOUR VEHICLE 457 Under normal operating conditions, the catalytic con- To minimize the possibility of catalytic converter dam- verter will not require maintenance. However, it is im- age: portant to keep the engine properly tuned to assure • Do not shut off the engine or interrupt the ignition, proper catalyst operation and prevent possible catalyst when the transmission is in gear and the vehicle is in damage.
Page 460: Cooling System
458 MAINTAINING YOUR VEHICLE Coolant Checks Cooling System Check engine coolant (antifreeze) protection every 12 WARNING! months (before the onset of freezing weather, where applicable). If coolant is dirty or rusty in appearance, the • When working near the radiator cooling fan, system should be drained, flushed, and refilled with disconnect the fan motor lead or turn the ignition fresh coolant.
Page 461 MAINTAINING YOUR VEHICLE 459 drain from the coolant recovery bottle. DO NOT RE- CAUTION! MOVE THE COOLANT PRESSURE CAP WHEN THE COOLING SYSTEM IS HOT. • Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) en- Cooling System — Drain Flush And Refill gine coolant (antifreeze), may result in engine If the engine coolant (antifreeze) is dirty or contains a damage and may decrease corrosion protection.
Page 462 460 MAINTAINING YOUR VEHICLE you use the same engine coolant (OAT coolant conform- CAUTION! (Continued) ing to MS-12106) throughout the life of your vehicle. • Do not use water alone or alcohol-based engine Please review these recommendations for using Organic coolant (antifreeze) products.
Page 463 MAINTAINING YOUR VEHICLE 461 • Use only high purity water such as distilled or deion- • Mixing engine coolant (antifreeze) types is not recom- ized water when mixing the water/engine coolant mended and can result in cooling system damage. If (antifreeze) solution.
Page 464 462 MAINTAINING YOUR VEHICLE Disposal Of Used Engine Coolant WARNING! Used ethylene glycol-based engine coolant (antifreeze) is • The warning words “DO NOT OPEN HOT” on the a regulated substance requiring proper disposal. Check cooling system pressure cap are a safety precaution. with your local authorities to determine the disposal Never add engine coolant (antifreeze) when the rules for your community.
Page 465 MAINTAINING YOUR VEHICLE 463 The radiator normally remains completely full, so there is If an examination of your engine compartment shows no no need to remove the radiator cap unless checking for evidence of radiator or hose leaks, the vehicle may be engine coolant (antifreeze) freeze point or replacing en- safely driven.
Page 466: Brake System
464 MAINTAINING YOUR VEHICLE • Make sure that the coolant expansion bottle overflow WARNING! hoses are not kinked or obstructed. Riding the brakes can lead to brake failure and • Keep the front of the radiator clean. If your vehicle is possibly a collision.
Page 467 MAINTAINING YOUR VEHICLE 465 Overfilling of fluid is not recommended because it may WARNING! cause leaking in the system. • Use only manufacturer’s recommended brake Add enough fluid to bring the level up to the require- fluid. Refer to “Fluids, Lubricants, and Genuine ments described on the brake fluid reservoir.
Page 468: Clutch Hydraulic System - Manual Transmission (If Equipped)
466 MAINTAINING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • To avoid contamination from foreign matter or • Do not allow petroleum based fluid to contaminate moisture, use only new brake fluid or fluid that has the brake fluid. Brake seal components could be been in a tightly closed container.
Page 469: Manual Transmission - If Equipped
MAINTAINING YOUR VEHICLE 467 Change Transmission Fluid Manual Transmission — If Equipped If contaminated with water, change the fluid immedi- Fluid Level Check ately. See your authorized dealer for service. Check the fluid level by removing the fill plug on the left side of the transmission.
Page 470 468 MAINTAINING YOUR VEHICLE CAUTION! CAUTION! Using a transmission fluid other than the manufactur- Do not use chemical flushes in your transmission as er’s recommended fluid may cause deterioration in the chemicals can damage your transmission compo- transmission shift quality and/or torque converter nents.
Page 471: Rear Axle
MAINTAINING YOUR VEHICLE 469 Rear Axle CAUTION! Fluid Level Check If a transmission fluid leak occurs, visit your autho- Checking the fluid level while the vehicle is on level rized dealer immediately. Severe transmission dam- ground will improve the accuracy of the fluid level age may occur.
Page 472: Appearance Care And Protection From Corrosion
470 MAINTAINING YOUR VEHICLE What Causes Corrosion? Appearance Care And Protection From Corrosion Corrosion is the result of deterioration or removal of Protection Of Body And Paint From Corrosion paint and protective coatings from your vehicle. Vehicle body care requirements vary according to geo- graphic locations and usage.
Page 473 MAINTAINING YOUR VEHICLE 471 • If insects, tar, or other similar deposits have accumu- Special Care lated on your vehicle, use MOPAR® Super Kleen Bug • If you drive on salted or dusty roads or if you drive and Tar Remover to remove. near the ocean, hose off the undercarriage at least once a month.
Page 474 472 MAINTAINING YOUR VEHICLE • If you carry special cargo such as chemicals, fertilizers, NOTE: If your vehicle is equipped with Dark Vapor de-icer salt, etc., be sure that such materials are well Chrome wheels DO NOT USE wheel cleaners, abrasives packaged and sealed.
Page 475 MAINTAINING YOUR VEHICLE 473 Stain Repel Fabric Cleaning Procedure — If Interior Care Equipped Use MOPAR® Total Clean to clean fabric upholstery and Stain Repel seats may be cleaned in the following man- carpeting. ner: Use MOPAR® Total Clean to clean vinyl upholstery. •...
Page 476 474 MAINTAINING YOUR VEHICLE To minimize the possibility of scratching the lenses and WARNING! reducing light output, avoid wiping with a dry cloth. To remove road dirt, wash with a mild soap solution fol- Do not use volatile solvents for cleaning purposes. lowed by rinsing.
Page 477 MAINTAINING YOUR VEHICLE 475 When cleaning the rear view mirror, spray cleaner on the If the belts need cleaning, use MOPAR® Total Clean, a towel or rag that you are using. Do not spray cleaner mild soap solution, or lukewarm water. Do not remove directly on the mirror.
Page 478: Fuses
476 MAINTAINING YOUR VEHICLE Cleaning The Center Console Cupholders WARNING! (Continued) Clean with a damp cloth or towel using a mild detergent • Before replacing a fuse, make sure that the ignition with the cupholder in the center console. is off and that all the other services are switched off and/or disengaged.
Page 479: Integrated Power Module
MAINTAINING YOUR VEHICLE 477 Integrated Power Module CAUTION! The Integrated Power Module is located in the engine • When installing the integrated power module compartment. This module contains fuses and relays. cover, it is important to ensure the cover is properly positioned and fully latched.
Page 480 478 MAINTAINING YOUR VEHICLE Cavity Cartridge Fuse Mini-Fuse Description — 15 Amp Blue Washer Motor — 25 Amp Natural Powertrain Control Module (PCM)/NGS Module Feed (Batt) — 25 Amp Natural Ignition Run/Start — 25 Amp Natural EGR Solenoid/Alternator — 15 Amp Blue Powertrain Control Module —...
Page 481 MAINTAINING YOUR VEHICLE 479 Cavity Cartridge Fuse Mini-Fuse Description 50 Amp Red — Radiator Fan — — — — — — — — — — — — — — — — — — — — —...
Page 482: Rear Power Distribution Center
480 MAINTAINING YOUR VEHICLE Rear Power Distribution Center CAUTION! There is also a power distribution center located in the • When installing the power distribution center trunk under the spare tire access panel. This center cover, it is important to ensure the cover is properly contains fuses and relays.
Page 483 MAINTAINING YOUR VEHICLE 481 Cavity Cartridge Fuse Mini-Fuse Description 60 Amp Yellow — Ignition Off Draw (IOD) Cavity 1 of the Rear Power Distribution Center con- tains a black IOD fuse needed for vehicle processing during assembly. The service replacement part is a 60 Amp yellow cartridge fuse.
Page 484 482 MAINTAINING YOUR VEHICLE Cavity Cartridge Fuse Mini-Fuse Description 12 * — — — 13 * — — — — 10 Amp Red AC Heater Control/Cluster/Security Module – If Equipped — 20 Amp Yellow Active Damper – If Equipped — 20 Amp Yellow Heated Seat Module –...
Page 485 MAINTAINING YOUR VEHICLE 483 Cavity Cartridge Fuse Mini-Fuse Description — 10 Amp Red Occupant Restraint Controller (ORC) — 15 Amp Blue Ignition Run, AC Heater Control/Occupant Re- straint Controller (ORC) — 5 Amp Tan Cluster/Electronic Stability Control (ESC)/ Powertrain Control Module (PCM)/STOP LIGHT Switch —...
Page 486 484 MAINTAINING YOUR VEHICLE Cavity Cartridge Fuse Mini-Fuse Description — 10 Amp Red Cargo Light/Vehicle Information Module – If Equipped — 10 Amp Red Heated Mirrors – If Equipped — 5 Amp Orange Auto Inside Rearview Mirror/Heated Seats – If Equipped/Switch Bank —...
Page 487: Vehicle Storage
MAINTAINING YOUR VEHICLE 485 VEHICLE STORAGE Interior Bulbs Bulb Number If you are leaving your vehicle dormant for more than 21 days, you may want to take these steps to protect your Rear Courtesy/Reading battery. Lamps Rear Compartment • Disconnect the negative cable from the battery. (Trunk) Lamp •...
Page 488: Bulb Replacement
486 MAINTAINING YOUR VEHICLE Exterior Bulbs BULB REPLACEMENT Bulb Number NOTE: Lens fogging can occur under certain atmo- Headlamp – High Inten- D1S (Serviced at spheric conditions. This will usually clear as atmospheric sity Discharge (HID) Authorized Dealer) conditions change to allow the condensation to change back into a vapor.
Page 489: Front/Rear Side Marker Lamp
MAINTAINING YOUR VEHICLE 487 this, you should not attempt to service a headlamp bulb Front/Rear Side Marker Lamp yourself. If a headlamp bulb fails, take your vehicle to 1. Remove the front/rear side marker. Use a fiber stick or an authorized dealer for service. similar tool to gently pry the lamp on the outboard side to disengage the clip.
Page 490: Tail/Turn And Stop Lamp
488 MAINTAINING YOUR VEHICLE Tail/Turn And Stop Lamp 1. Open the trunk. 2. Using a screwdriver, remove the tail lamp retainer. Tail Lamp Fasteners 4. Pull back the trunk liner. 5. Remove the remaining fasteners from the back of the tail lamp assembly.
Page 491 MAINTAINING YOUR VEHICLE 489 10. Disconnect the bulb from the socket assembly and install the replacement bulb. 11. Reinstall the bulb and socket assembly into the tail lamp assembly, and then turn it clockwise. 12. Reinstall the tail lamp assembly, fasteners, electrical connector, and trunk liner.
Page 492: Center Tail/Backup Lamp
490 MAINTAINING YOUR VEHICLE Center Tail/Backup Lamp See your authorized dealer for bulb replacement. Center High-Mounted Stop Lamp (CHMSL) The CHMSL uses LED lamps that are not serviceable separately. The CHMSL must be replaced as an assembly, see your authorized dealer. License Lamp 1.
Page 493 MAINTAINING YOUR VEHICLE 491 4. Reinstall the bulb and socket assembly. 5. Reattach the lamp to the rear fascia, and then install the screws. Socket Assembly 1 — License Lamp Bulb 2 — Socket...
Page 494 492 MAINTAINING YOUR VEHICLE FLUID CAPACITIES U.S. Metric Fuel (Approximate) All Engines 19 Gallons 72 Liters Engine Oil With Filter 3.6 Liter Engine (SAE 5W-20, API Certified) 6 Quarts 5.6 Liters 5.7 Liter Engine (SAE 5W-20, API Certified) 7 Quarts 6.6 Liters Cooling System* 3.6 Liter Engine (MOPAR®...
Page 495 MAINTAINING YOUR VEHICLE 493 FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant We recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology). Engine Oil – 3.6L Engine We recommend you use API Certified SAE 5W-20 En- gine Oil, meeting the requirements of Chrysler Mate- rial Standard MS-6395 such as MOPAR®, Pennzoil®, and Shell Helix®.
Page 496 494 MAINTAINING YOUR VEHICLE Component Fluid, Lubricant, or Genuine Part Engine Oil Filter We recommend you use MOPAR® Engine Oil Filters. Spark Plugs – 3.6L Engine We recommend you use MOPAR® Spark Plugs (Gap 0.043 in [1.1 mm]). Spark Plugs – 5.7L Engine We recommend you use MOPAR®...
Page 497 MAINTAINING YOUR VEHICLE 495 Chassis Component Fluid, Lubricant, or Genuine Part Manual Transmission – If We recommend you use MOPAR® ATF+4® Automatic Transmission Equipped Fluid. Automatic Transmission – If Use only ATF+4® Automatic Transmission Fluid. Equipped Failure to use ATF+4® fluid may affect the function or performance of your transmission.
Page 499: Maintenance Schedules
MAINTENANCE SCHEDULES CONTENTS MAINTENANCE SCHEDULE ... . .498 ▫ Maintenance Chart.....500...
Page 500 498 MAINTENANCE SCHEDULES On Electronic Vehicle Information Center (EVIC) MAINTENANCE SCHEDULE equipped vehicles, “Oil Change Required” will be dis- Your vehicle is equipped with an automatic oil change played in the EVIC and a single chime will sound, indicator system. The oil change indicator system will indicating that an oil change is necessary.
Page 501 MAINTENANCE SCHEDULES 499 Severe Duty All Models Required Maintenance Intervals. Change Engine Oil at 4000 miles (6,500 km) if the vehicle Refer to the maintenance schedules on the following is operated in a dusty and off road environment. This page for the required maintenance intervals. type of vehicle use is considered Severe Duty At Every Oil Change Interval As Indicated By Oil Once A Month Or Before A Long Trip:...
Page 502 500 MAINTENANCE SCHEDULES Maintenance Chart Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Inspections Inspect the CV joints. Inspect front suspension, tie rod ends, boot seals and replace if necessary. Inspect the rear axle fluid. Inspect the manual transmission fluid (if equipped), add as neces- sary.
Page 503 MAINTENANCE SCHEDULES 501 Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Inspect the brake linings, replace as necessary. Adjust park brake on vehicles equipped with four wheel disc brakes. Additional Maintenance Replace engine air filter. Replace cabin/air conditioning filter.
Page 504 502 MAINTENANCE SCHEDULES Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Replace spark plugs (5.7L en- gine). ** Flush and replace the engine coolant at 10 years or 150,000 miles (240,000 km) whichever comes first.
Page 505 MAINTENANCE SCHEDULES 503 Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Change the manual transmission fluid (if equipped) if using your vehicle for any of the following: Most of your driving is at sus- tained speeds during hot weather, above 90°F (32°C), driving in dusty conditions, or stop and go driving.
Page 506 504 MAINTENANCE SCHEDULES Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Change automatic transmission fluid and filter. Change the rear axle fluid if us- ing your vehicle for any of the following: police, taxi, fleet, off- road, or frequent trailer towing. Inspect and replace PCV valve if necessary.
Page 507 MAINTENANCE SCHEDULES 505 WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent me- chanic.
Page 509 IF YOU NEED CONSUMER ASSISTANCE CONTENTS SUGGESTIONS FOR OBTAINING SERVICE FOR ▫ Customer Assistance For The Hearing Or YOUR VEHICLE ..... . .509 Speech Impaired (TDD/TTY) .
Page 510 508 IF YOU NEED CONSUMER ASSISTANCE DEPARTMENT OF TRANSPORTATION UNIFORM ▫ Traction Grades ..... . .515 TIRE QUALITY GRADES ....515 ▫...
Page 511: Suggestions For Obtaining Service For Your Vehicle
IF YOU NEED CONSUMER ASSISTANCE 509 the service advisor and list the items in order of priority. SUGGESTIONS FOR OBTAINING SERVICE FOR At many authorized dealers, you may obtain a rental YOUR VEHICLE vehicle at a minimal daily charge. If you need a rental, it Prepare For The Appointment is advisable to make these arrangements when you call If you are having warranty work done, be sure to have the...
Page 512: Chrysler Group Llc Customer Center
510 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized Chrysler Group LLC Customer Center dealer service manager first. Most matters can be re- P.O. Box 21–8004 solved with this process. Auburn Hills, MI 48321–8004 •...
Page 513: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
IF YOU NEED CONSUMER ASSISTANCE 511 Warranty expires. The manufacturer stands behind only Customer Assistance For The Hearing Or Speech the manufacturer’s service contracts. If you purchased a Impaired (TDD/TTY) manufacturer’s service contract, you will receive Plan To assist customers who have hearing difficulties, the Provisions and an Owner Identification Card in the mail manufacturer has installed special TDD (Telecommuni- within three weeks of the vehicle delivery date.
Page 514: Warranty Information
512 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment WARRANTY INFORMATION when you purchased the vehicle. An authorized dealer See the Warranty Information Booklet, located on the has also made a major investment in facilities, tools, and DVD, for the terms and provisions of Chrysler Group training to assure that you are absolutely delighted with LLC warranties applicable to this vehicle and market.
Page 515: In Canada
IF YOU NEED CONSUMER ASSISTANCE 513 If NHTSA receives similar complaints, it may open an In Canada investigation, and if it finds that a safety defect exists in If you believe that your vehicle has a safety defect, you a group of vehicles, it may order a recall and remedy should contact the Customer Service Department imme- campaign.
Page 516 514 IF YOU NEED CONSUMER ASSISTANCE Service Manuals Owner’s Manuals These comprehensive Service Manuals provide the infor- These Owner’s Manuals have been prepared with the mation that students and professional technicians need in assistance of service and engineering specialists to ac- diagnosing/troubleshooting, problem solving, maintain- quaint you with specific Chrysler Group LLC vehicles.
Page 517 IF YOU NEED CONSUMER ASSISTANCE 515 significantly from the norm due to variations in driving DEPARTMENT OF TRANSPORTATION UNIFORM habits, service practices, and differences in road charac- TIRE QUALITY GRADES teristics and climate. The following tire grading categories were established by the National Highway Traffic Safety Administration.
Page 518 516 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades WARNING! The temperature grades are A (the highest), B, and C, The temperature grade for this tire is established for representing the tire’s resistance to the generation of heat a tire that is properly inflated and not overloaded. and its ability to dissipate heat, when tested under Excessive speed, under-inflation, or excessive load- controlled conditions on a specified indoor laboratory...
Page 519 INDEX...
Page 520 518 INDEX About Your Brakes ......322 Alarm ABS (Anti-Lock Brake System) ....326 Arm The System .
Page 521 INDEX 519 Automatic Temperature Control (ATC) ..277 B-Pillar Location ......344 Automatic Transmission .
Page 522 520 INDEX Capacities, Fluid ......492 Child Seat Installation .....92 Caps, Filler Install A LATCH-compatible Child Restraint .
Page 523 INDEX 521 Universal Consumer Interface (UCI) ..266 Corrosion Protection ..... . .470 Conserving Fuel .
Page 524 522 INDEX Disposal Electronic Stability Control (ESC) ....333 Antifreeze (Engine Coolant) ....462 Electronic Throttle Control Warning Light .
Page 525 INDEX 523 Compartment Identification ....438 Ethanol ....... .374 Coolant (Antifreeze) .
Page 526 524 INDEX Fluid, Brake ......495 Gasoline ......372 Fluid Capacities .
Page 527 INDEX 525 Conserving ......228 Hazard Warning Flasher ....401 Gasoline, Reformulated .
Page 528 526 INDEX Hill Start Assist......331 Interior Lights ......168 Hitches Intermittent Wipers (Delay Wipers).
Page 529 INDEX 527 Key, Replacement ......18 Automatic Headlights ....163 Keys .
Page 530 528 INDEX High Beam Indicator .....216 Tire Pressure Monitoring (TPMS) ... .219 High Beam/Low Beam Select .
Page 531 INDEX 529 Maintenance Procedures ....443 Mode Maintenance Schedule ..... .498 Fuel Saver .
Page 532 530 INDEX Change Interval ......445 Overheating, Engine ..... . .213 Checking .
Page 533 INDEX 531 Seats ....... .151 Rear Window Defroster .....205 Steering .
Page 534 532 INDEX Replacement Keys ......18 Seat Belt Reminder ......57 Replacement Parts.
Page 535 INDEX 533 Seatback Release ......158 Shift Lever Override ..... . .430 Tilting .
Page 536 534 INDEX Cold Weather ......298 Supplemental Restraint System - Airbag ..59 Engine Fails to Start .
Page 537 INDEX 535 General Information .....349 Tire Safety Information .....338 High Speed .
Page 538 536 INDEX Wiring .......392 Turn Signals ......166 Trailer Towing Guide.
Page 539 INDEX 537 Vanity Mirrors ......112 Washer Variance, Compass ......234 Adding Fluid .
Page 540 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this vehi- The antenna cable should be as short as practical and routed cle’s electronic system to provide immunity to radio frequency away from the vehicle wiring when possible. Use only fully signals.
Page 541 Chrysler Group LLC 14D491-126-AC Third Edition Rev 1 Printed in U.S.A.

Dodge Challenger 2014 Owner's Manual

Introduction

Things to Know before Starting Your Vehicle

A Word about Your Keys

Sentry Key

Vehicle Security Alarm

Illuminated Entry

Remote Keyless Entry (Rke)

Remote Starting System - if Equipped

Door Locks

Keyless Enter-N-Go

Windows

Trunk Lock and Release

Trunk Safety Warning

Occupant Restraints

Engine Break-In Recommendations

Things to Know before Starting Your Vehicle 11 Safety Tips

Understanding the Features of Your Vehicle

Understanding Your Instrument Panel

Starting and Operating

Starting Procedures

Engine Block Heater - if Equipped

Manual Transmission - if Equipped

Automatic Transmission

If Equipped

Autostick

Sport Mode - if Equipped

Driving on Slippery Surfaces

Driving through Water

Power Steering

Fuel Saver Technology 5.7L Engine Only - if Equipped

Parking Brake

Brake System

Electronic Brake Control System

Tire Safety Information

Tires - General Information

Tire Chains (Traction Devices)

Tire Rotation Recommendations

Tire Pressure Monitor System (Tpms)

Fuel Requirements

Adding Fuel

Vehicle Loading

Trailer Towing

Towing Requirements

Towing Tips

Motorhome, Etc.)

Recreational Towing

Quick Links

Chapters

Related Manuals for Dodge Challenger 2014

Summary of Contents for Dodge Challenger 2014
