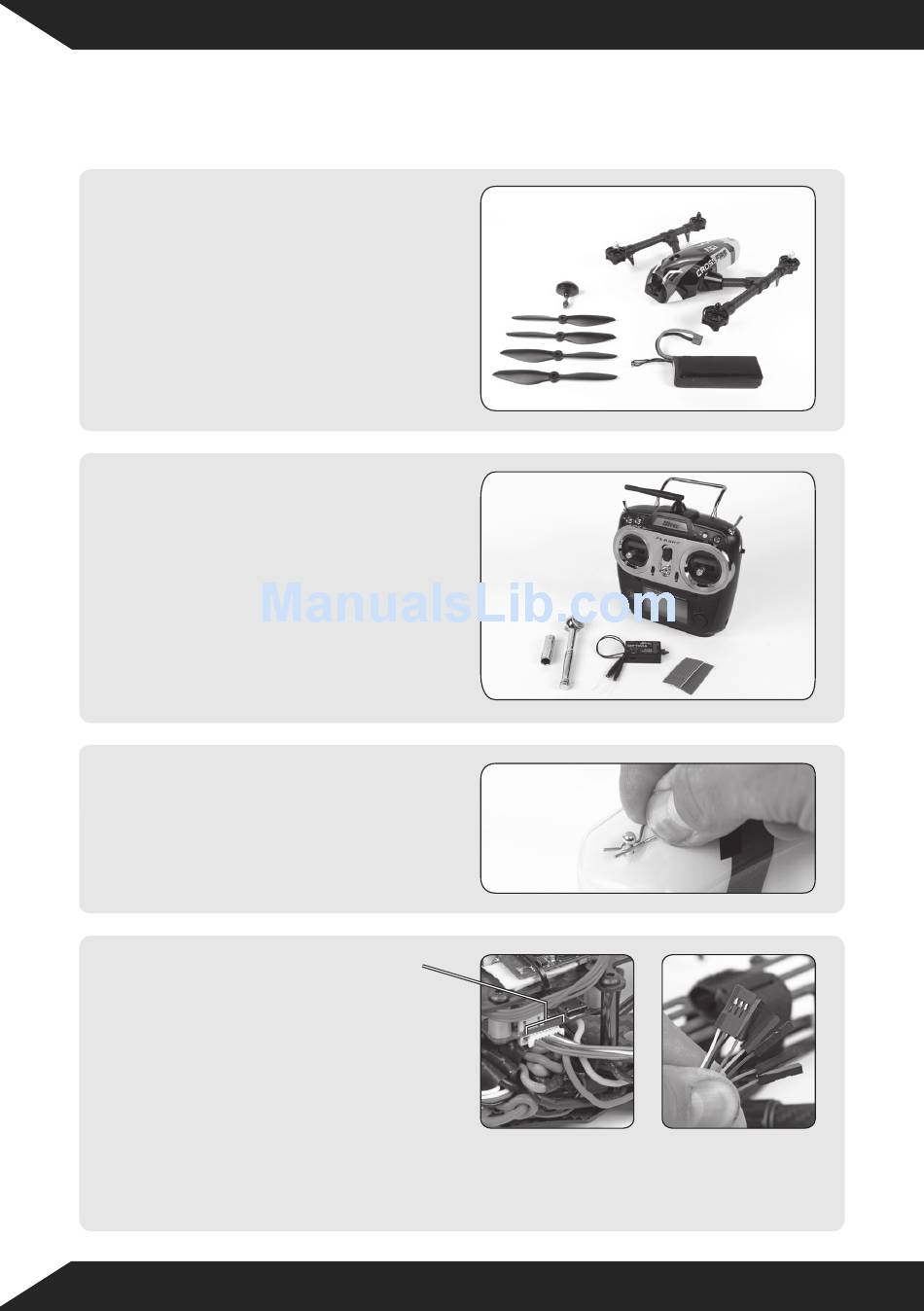

QUICK-START GUIDE
This Quick Start guide is written for the RFR (Ready for Receiver) version of the Crossfire.
A full instruction manual is available to download from www.ares-rc.com
1
Remove the components from
the box and ensure you have the
following parts:
• Factory assembled quad
• Propeller set
• 3S 2200mAh Li-Po battery
• Protected cloverleaf antenna
2
Before starting, make sure you
have the following items to hand:
• 1x 6-channel (minimum)
computer radio set
• 1x 6-channel (minimum) end
pin receiver
• 1x Strip of self adhesive hook
and loop tape
• 1x 10mm prop wrench
3
Remove the rear body clip and
gently ease the fuselage moulding
from the airframe.
4
Locate the receiver wiring loom
on the left-hand side of the
electronics board and note the
location ID for each wire:
• Red/Black/White – Aileron
• Yellow
• Green
• Blue
• Orange
• Brown
– Elevator
– Throttle
– Rudder
– Auxiliary 1 (flight parameters)
– Auxiliary 2 (motor lock)
Full manual available to download from: www.Ares-RC.com
