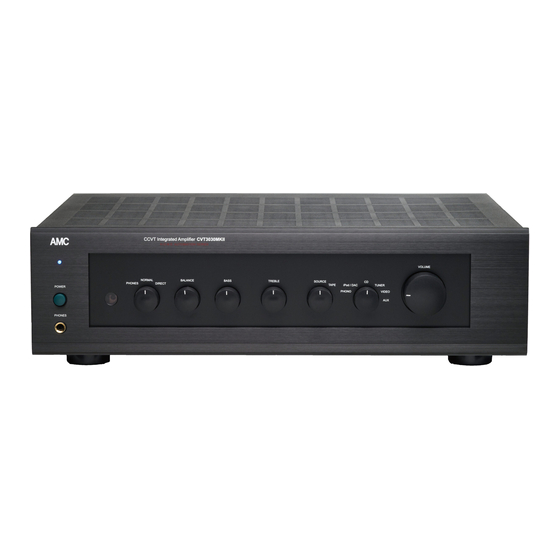

CCVT Integrated Amplifier
H.O.M.E. AUTOMATION SERIES
NORMAL
PHONES
DIRECT
POWER
PHONES
CVT3030MKII
INTEGRATED VALVE
AMPLIFIER
IA
CVT3030MKII
BALANCE
BASS
TREBLE
Cold Cathode Vacuum Tube design to
give superb sound quality
AMC proprietary design of operate high
voltage FET under Vacuum Tube mode
to give warm, soft and high dynamic
music quality
With motorized remote control on
Volume and Input Selecting
VOLUME
SOURCE
CD
TAPE
iPod / DAC
TUNER
PHONO
VIDEO
AUX
Advertisement
Table of Contents
Related Manuals for AMC CVT3030MKII
Summary of Contents for AMC CVT3030MKII
- Page 1 CVT3030MKII INTEGRATED VALVE AMPLIFIER Cold Cathode Vacuum Tube design to give superb sound quality AMC proprietary design of operate high voltage FET under Vacuum Tube mode to give warm, soft and high dynamic music quality With motorized remote control on...
-
Page 3: Installation
These should only be this is carried out by your AMC dealer. inspected and replaced by a conpetent It is only a five minute job for an engineer using the correct replacement engineer. -
Page 4: Front Panel
REAR PANEL CONNECTIONS/FRONT PANEL CONTROLS REAR PANEL CCVT Integrated Amplifier CVT3030MKII 230V 50Hz 230V 50Hz UNSWITCHED 1A MAX SPEAKERS PHONO iPod / DAC TUNER VIDEO TAPE IN TAPE OUT PRE OUT MAINS 1.PHONO GROUND TERMINAL 8.TAPE INPUT PHONO INPUT (OPTION: COAXIAL INPUT) 9.TAPE OUTPUT... - Page 5 All audio Inputs and tape outputs are via gold plated RCA type phono connectors. VIDEO All the phono sockets on your AMC The video input is suitable for most VCR's amplifier are marked "L" for left and "R" with an audio output. Connect your VCR for right channels, with the left channels using the phono socket marked "Video."...
- Page 6 8 ohm, but the positive or red connection must be to the 4 ohm binding post. Your AMC amplifier is capable of generating high peak currents, so all connections must be checked to avoid inadvertent short circuits, and to ensure a good clean contact.
-
Page 7: Front Panel Controls
The small indicator TONE CONTROLS above the switch will glow blue. Before The tone controls on your AMC amplifier switching on, always set the volume use low coloration passive circuitry to control to minimum to avoid damage to ensure the minimum degradation of the your loudspeakers. - Page 8 For "Phones / Normal / Direct" switch, Power on and LED illuminated but no please don't switch it until 5 minutes after output turning CVT3030MKII on or you will hear 1. Check that the amplifier is connected some switching sound...
-
Page 9: Input Sources
CD USB 24192 INFO MANUAL TRK/TITLE PRESET RC-S8 1.INPUT SOURCES 2.VOLUME CONTROL These buttons select any one of the Six : VOLUME UP sources that are connected to the : VOLUME DOWN inputs of the CVT3030MKII (PHONO, iPod/DAC, CD, TUNER, VIDEO, AUX). -
Page 10: Specifications
SPECIFICATIONS Rated Power into 8/4 ohms................30W With both channels driven Rated T.H.D.20Hz-20KHz..................1.0% 1KHz clipping power into 8/4 ohms............36W Input Sensitivity for 1W/Rated Power into 8 ohms: High level inputs..................34mV/180mV Phono MM input..................0.4mV/2.2mV Phono MC input..................0.04mV/0.2mV Input impedance: High level inputs...................20K ohms/100pF Phono input ..................47K ohms/100pF Frequency response: Tone bypass 20Hz-20KHz.................+/-0.5dB... -
Page 11: Safety Instruction
15. SERVICING stores, or National Fire Protection Association (Batterymarch Park, Quincy. MA 02269). The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. AMC 21-4153... - Page 12 21R- C3030I I _S8 PN: 21R-C3030II_S8...
