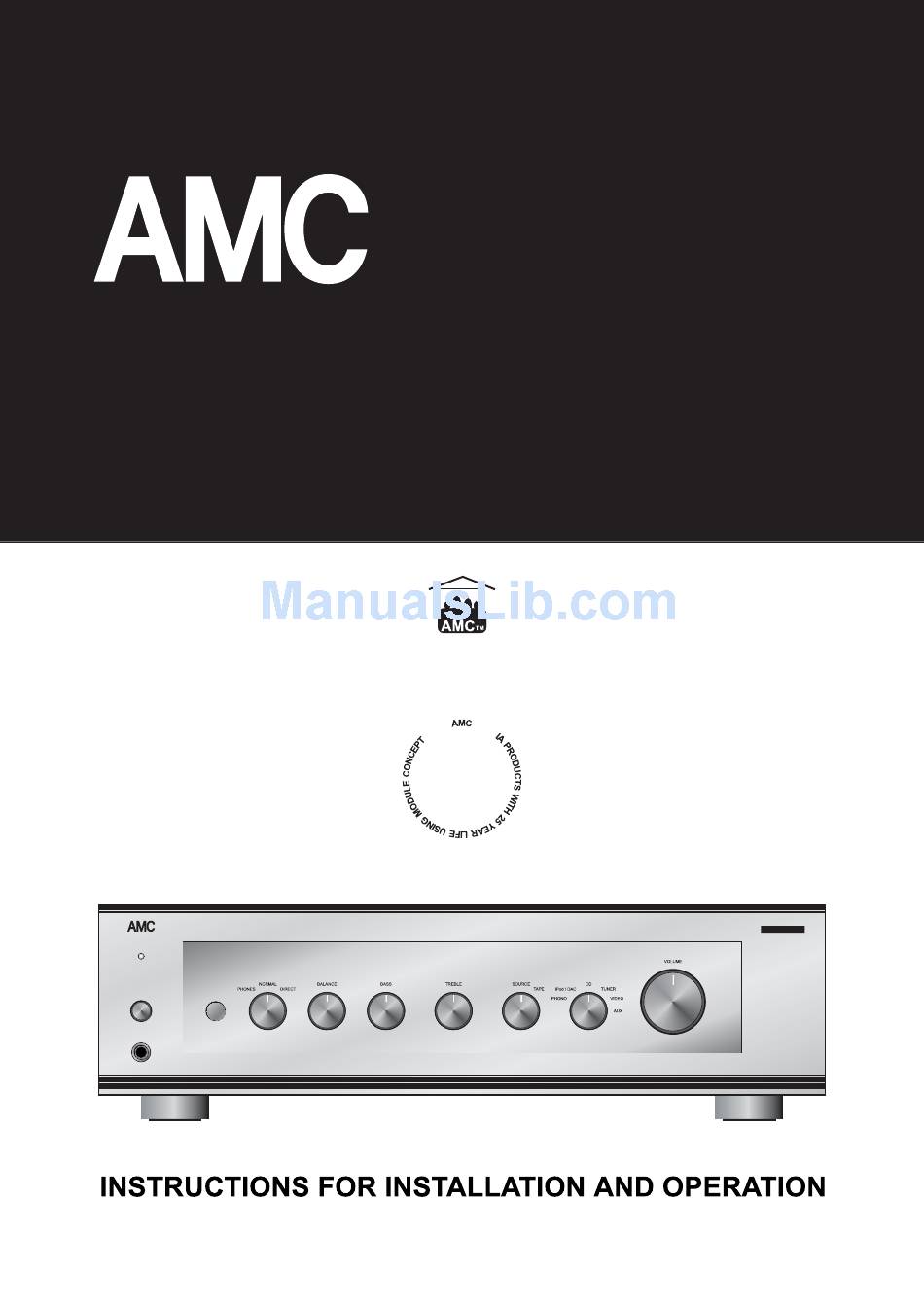

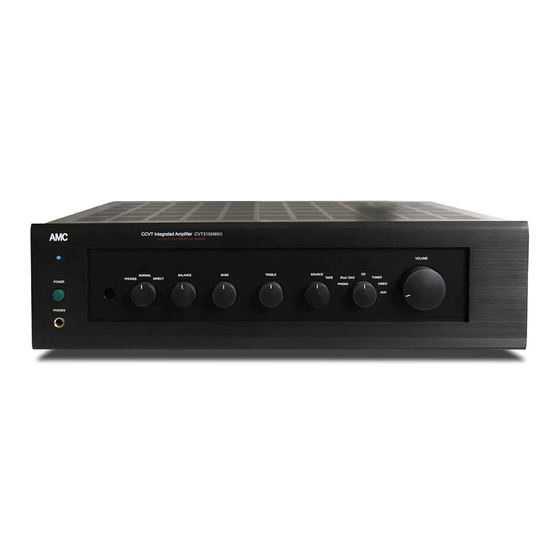

- Page 1 CVT3100MKII INTEGRATED VALVE AMPLIFIER CVT3100MKII H.O.M.E. AUTOMATION SERIES POWER PHONES...
- Page 3 MOS-FET Valve can keep the same this is carried out by your AMC dealer. It superb sound quality throughout the is only a five minute job for an engineer.
-
Page 4: Installation
INSTALLATION CHECK LIST Your AMC amplifier is supplied set to Should yo have any difficulty in operating work on your local mains supply your amplifier, switch off and check the voltage. Check that your local mains following before suspecting that a fault... -
Page 5: Front Panel
REAR PANEL CONNECTIONS/FRONT PANEL CONTROLS REAR PANEL CCVT Integrated Amplifier CVT3100MKII 230V 50Hz 230V 50Hz 1.8A UNSWITCHED 1A MAX SPEAKERS PHONO iPod / DAC TUNER VIDEO TAPE IN TAPE OUT PRE OUT MAINS 1.PHONO GROUND TERMINAL 8.TAPE INPUT 2.PHONO INPUT (OPTION: COAXIAL INPUT) 9.TAPE OUTPUT... -
Page 6: Phono Input
All audio Inputs and tape outputs are via recorder wired for replay only. gold plated RCA type phono connectors. All the phono sockets on your AMC TAPE INPUT amplifier are marked "L" for left and "R" This input is suitable for use with most for right channels, with the left channels cassette, reel to reel or video recorders. -
Page 7: Front Panel Controls
AMC 24bit/192KHz S/PDIF DAC Module, The amplifier is turned on by depressing MD1108s, can replace PHONO module to the power switch. The small indicator have digital input in CVT3100mKII. above the switch will glow blue. Before switching on, always set the volume LOUDSPEAKER CONNECTIONS... - Page 8 TONE CONTROLS PLAYBACK The tone controls on your AMC amplifier Set the Tape Monitor switch to the "Tape" use low coloration passive circuitry to position and set your recorder into the ensure the minimum degradation of the playback mode.
-
Page 9: Input Selector
1.INPUT SELECTOR 2.VOLUME CONTROL These buttons select any one of the Six : VOLUME UP sources that are connected to the : VOLUME DOWN inputs of the CVT3100MKII (PHONO, iPod/DAC, CD, TUNER, VIDEO, AUX). -
Page 10: Specifications
SPECIFICATIONS Rated Power into 8/4 ohms................80W With both channels driven Rated T.H.D. 45Hz-20KHz..................1.0% 1KHz clipping power into 8/4 ohms............85W Input Sensitivity for 1W/Rated Power into 8 ohms: High level inputs..................34mV/180mV Phono input..................0.5mV/2.7mV Input impedance: High level inputs...................20K ohms/100pF Phono input ..................47K ohms/100pF Frequency response: Tone bypass 20Hz-20KHz.................+/-0.5dB Normal 20Hz-20KHz..................+/-1.0dB... -
Page 11: Safety Instruction
15. SERVICING stores, or National Fire Protection Association (Batterymarch Park, Quincy. MA 02269). The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. AMC 21-4153... - Page 12 21R- 4265 PN: 21R-4265...
