Page 1: Quick Installation Guide

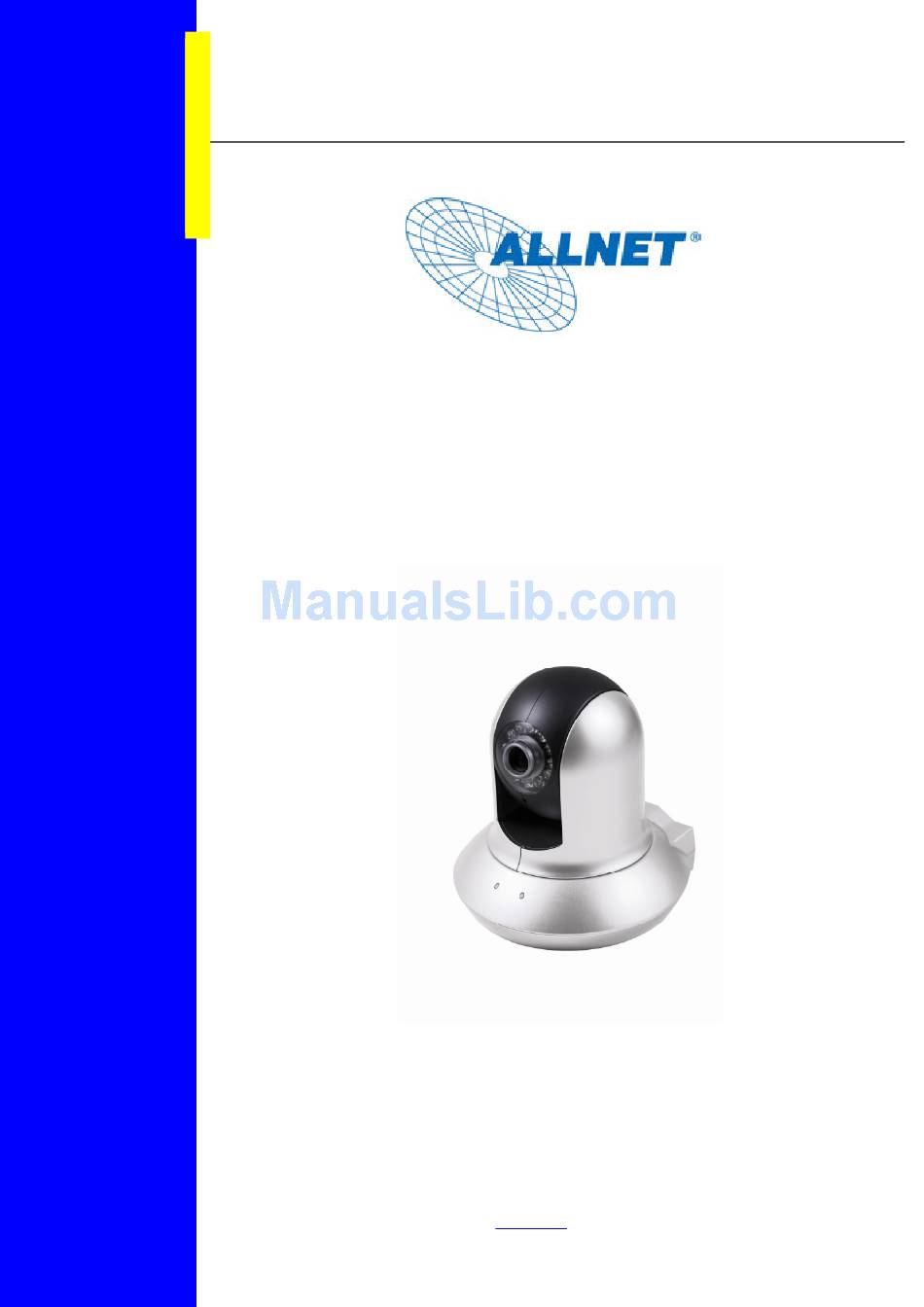

ALL2272 QIG ALL2272 Quick Installation Guide Day/Night Pan/Tilt IP Camera ALL2272 Day/Nigh Pan/Tilt IP Camera Quick Installation Guide V1.0 ALLNET GmbH © 2009 – www.allnet.de... - Page 2 ALL2272 QIG ALL2272 Quick Installation Guide Please follow the installation steps below to set up your ALL2272 Day/Night Pan/Tilt IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.2 Use the software CD to install Intelligent IP Installer.
- Page 3 2. Using a standard RJ-45 network cable, connect the IP Camera to a normal Hub / Switch / Router. b2. Power over Ethernet (PoE) (ALL2272 ) 1. Using a standard RJ-45 network cable, connect the IP Camera to a PoE-enabled Hub / Switch / Router b3.
- Page 4 Access the IP Camera using Intelligent IP Installer 1. Before using Intelligent IP Installer, please check two setting. b. In Security setting page, find Download a. Browser’s Internet Properties → Security unsigned ActiveX controls, change the setting to Enable or Prompt. ALLNET GmbH © 2009 – www.allnet.de...
- Page 5 4. When accessing the IP Camera for the first time, yellow information appears below the address bar: To help protect your security, Internet Explorer stopped this site from installing an ActiveX control on your computer. Click here for options…. ALLNET GmbH © 2009 – www.allnet.de...
- Page 6 ALL2272 QIG 5. Click the information bar, and select Install ActiveX control. 6. Click Install. 7. Live video displays in the centre of your web browser. ALLNET GmbH © 2009 – www.allnet.de...
- Page 7 3. Enter name and password to login to the IP camera. (Default is admin / admin) 2. Click Bonjour function and select the camera you wish to access. 4. The monitor image will be displayed in your browser. ALLNET GmbH © 2009 – www.allnet.de...
- Page 8 1. Insert Software CD into your CD-ROM. 2. Browse and select the preferred language from language pack in the Software CD and then click OK. 3. The web interface will change into your preferred language. ALLNET GmbH © 2009 – www.allnet.de...
- Page 9 4. Under the Privacy Option, Click “On” to create an allow list. 5. Use your existing account to login to MSN Messenger. 6. Add the new MSN Messenger account (e.g.: Camerathome@hotmail.com) to your contact list. ALLNET GmbH © 2009 – www.allnet.de...
- Page 10 7. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 8. Click on the small camera icon. Then, choose “View a new contact's webcam”. Camera at home says: 9. The IP Camera automatically accepts your invitation and its live video is displayed. ALLNET GmbH © 2009 – www.allnet.de...
- Page 11 (Please go to Setting → Basic → Network→ PPPoE) Note 1: Please reboot the IP Camera, after changing the PPPoE settings. Note 2: Please turn on the DDNS and IP Notification function when using the PPPoE function. ALLNET GmbH © 2009 – www.allnet.de...
- Page 12 If your router is not a UPnP Internet Gateway Device, please setup Port Forwarding or Port Mapping Note 1: Home Routers manufactured before 2006 do not support UPnP IGD function. Note 2: Enterprise Routers do not support UPnP IGD function. ALLNET GmbH © 2009 – www.allnet.de...
- Page 13 The conformity to the above directive is indicated by the CE sign on the device. The ALL2272 Day/Night Pan/Tilt IP Camera conforms to the 73/23/EEC Low Voltage Equipment directive, amended by 93/68/EEC This equipment meets the following conformance standards:...
- Page 14 Manufacturer: ALLNET GmbH ALLNET Deutschland GmbH Maistrasse 2 82110 Germering Tel. +49 89 894 222 22 Fax +49 89 894 222 33 E-Mail: info@allnet.de ALLNET GmbH © 2009 – www.allnet.de...
