Touchclone™ EEPROM Reader
24
When it comes to Eeprom work we know (from electrical datasheets) how to read a specific Eeprom type,
•
however due to other components on an immobiliser board many more design factors will affect a successful
data read.
Getting Started

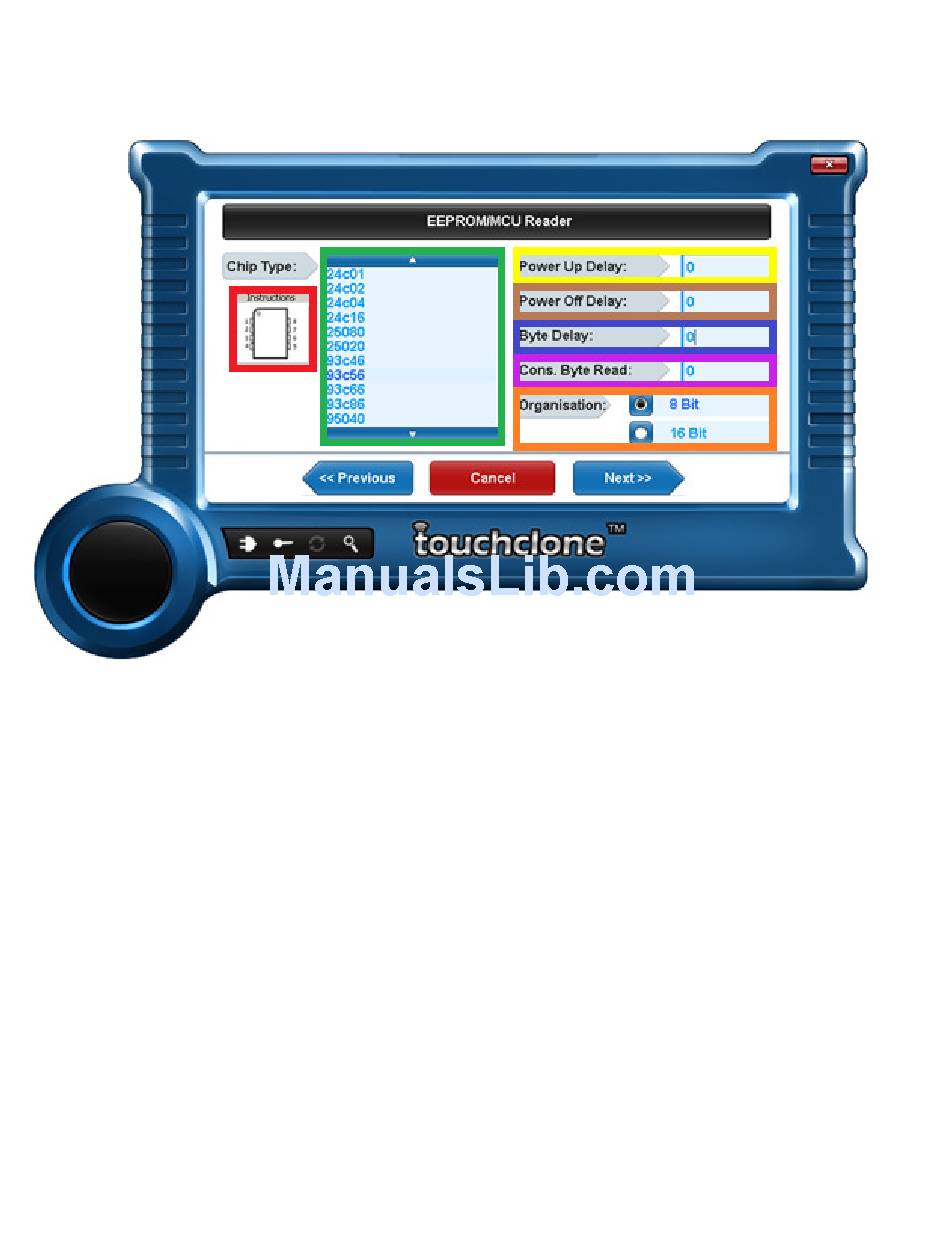

When using Touchclone first of all we will need to clip onto the Eeprom correctly. We then have 5 different
parameters (the boxes highlighted from Yellow through to Orange) that we can change to allow for a
successful read. We will break down what each parameter means and then give you a real life example so that
you can try it for yourself. This knowledge will allow you to experiment on Eeproms in circuit with the goal of
obtaining all the data off the device without having to desolder.
Clip-on Instructions
For each chip type supported by TouchClone we give you a button which once clicked opens up a page with
instructions of how to clip onto that Eeprom chip
Chip Type Select
Select the chip that you will be clipping onto (this information can be read off the chip itself).
