Touchclone™ the latest in automotive technology. Touchclone™ is the first all in one

Welcome to

cloner of car keys with the extra function to create programmed transponders via communication

with a cars immobiliser.

Touchclone™

... keys cloned at a touch

Table of Contents

Need help?

Do you have a question about the TouchClone version 1.5 and is the answer not in the manual?

Questions and answers

Summary of Contents for 1st Call Lockouts TouchClone version 1.5

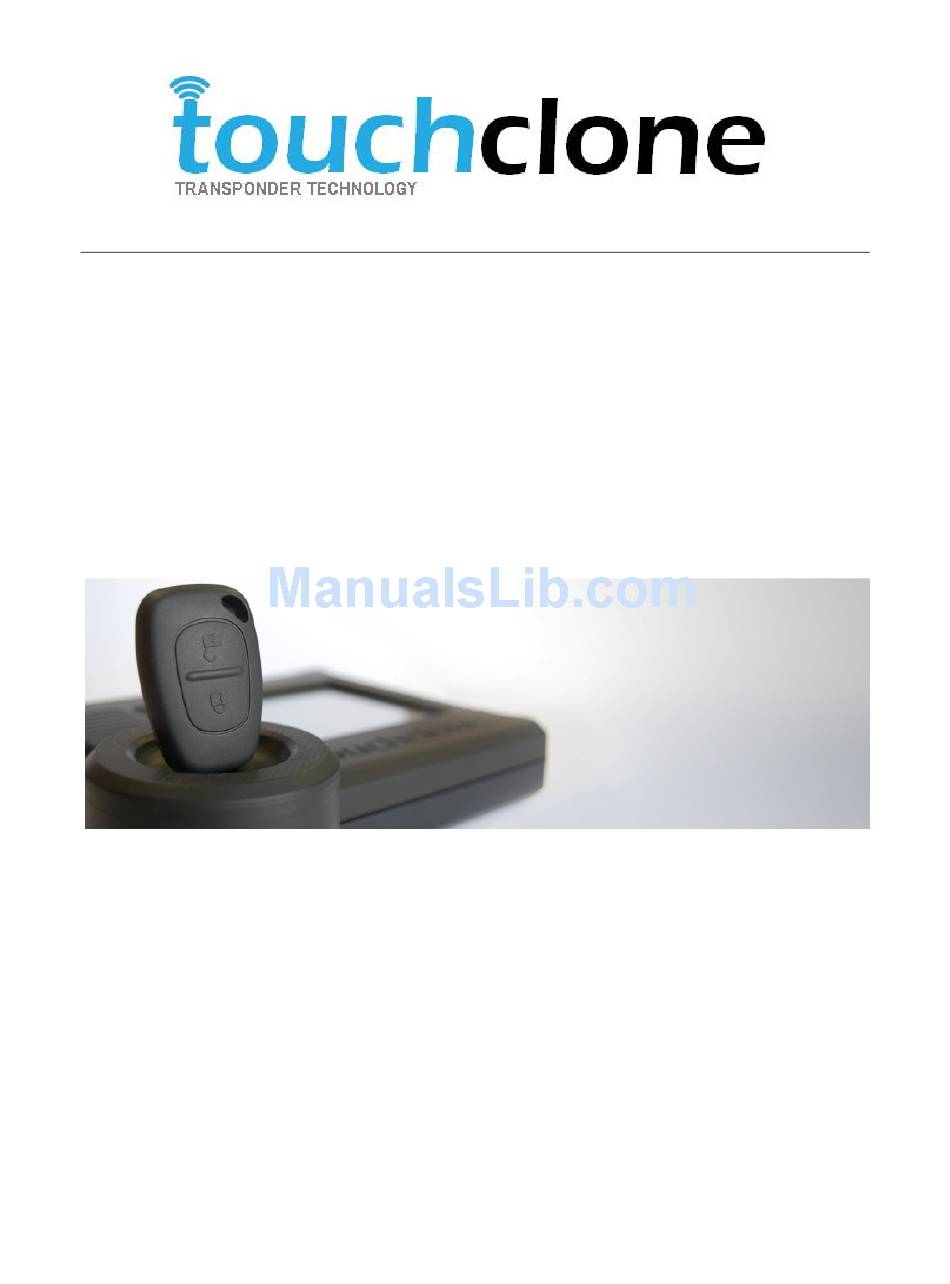

Page 1 Touchclone™ the latest in automotive technology. Touchclone™ is the first all in one Welcome to cloner of car keys with the extra function to create programmed transponders via communication with a cars immobiliser. Touchclone™ ... keys cloned at a touch...
Page 2: Table Of Contents
Table of Contents Getting Started ............................3 Touchclone™ Product Specification ......................4 Touchclone™ Pairing ..........................6 Touchclone™ Identification of Transponders ..................7 Touchclone™ Cloning ..........................8 Touchclone™ Transponder Production ....................9 Touchclone™ Transponder Production (Continued)................10 Touchclone™ Immobiliser Transponder Production Modules ............. 11 Touchclone™...
Page 3: Getting Started
Getting Started Getting Started In The Box TouchClone USB Drive (Installer and Digital information) Box of clip-on probes (box of 10) 2x D-Sub 9 way looms 12v Power adapter High-speed USB cable Installation and activation card Touchclone™ Version 1.5 – Manufactured & Developed by 1 Call Lockouts Limited.
Page 4: Touchclone™ Product Specification
Touchclone™ Product Specification Touchclone™ Product Specification Touchclone™ Identification of Transponders ID 11,12,13,14,33,4C • ID a large range of the ID46 transponder family which includes:- pcf7936, 7941, 7943, 7946, 7952, • 7947. Blank 7935 • Blank T5 • Blank 7936 • Blank 7946 •...
Page 5 Touchclone™ Product Specification Touchclone™ Reference Libraries OBD socket locator (coming soon) • Immobiliser and ECU box locator • Immobliser and ECU high res identification pictures • Key blank reference/per vehicle • Eeprom and/or mcu identification • Wiring diagrams for EEPROM and MCU inline reading •...
Page 6: Touchclone™ Pairing
Touchclone™ Pairing Touchclone™ Pairing Touchclone uses sophisticated encryption pairing to ensure that only activated computers can get full access to all the functions within the TouchClone software. The activation process occurs during the installation of the software. Note: TouchClone can be activated on two PCs at any one time. Each time TouchClone is connected to a PC and the software is running the pairing will occur.
Page 7: Touchclone™ Identification Of Transponders
Touchclone™ Identification of Transponders Touchclone™ Identification of Transponders Read Transponder: Touchclone has been designed to read a vast range of RFID transponders on the market place today, from the first fixed code transponder (T5), through to the latest Hitag and 4D 80 bit transponders. To read and ID the transponder simply place it into the Touchclone holder (next to the key holder) and then...
Page 8: Touchclone™ Cloning
Touchclone™ Cloning Touchclone™ Cloning Clone Transponder: Touchclone can clone the following fixed code transponders:- ID 11,12,13,14,33 • Texas 4C • ID40 (non crypto), 41, 42, some 44, and 45 • Touchclone also clones all the 4D prefixed transponders onto a TPX2. •...
Page 9: Touchclone™ Transponder Production
Touchclone™ Transponder Production Touchclone™ Transponder Production Transponder production is a function of Touchclone which enables you to produce a variety of transponder Ids from stocking only a small range of low cost blank transponders. This benefits the auto locksmith or heel bar as their stock holding of transponders can be greatly minimised Why? –...
Page 10: Touchclone™ Transponder Production (Continued)
Touchclone™ Transponder Production (Continued)... Touchclone™ Transponder Production (Continued)... Step Select: From the list select the ID you wish to produce. The transponder in the ‘brackets’ denotes the blank transponder that will be used in the ID production. Step Insert blank transponder: Touchclone will prompt you once you have made your selection to insert the correct blank transponder.
Page 11: Touchclone™ Immobiliser Transponder Production Modules
Touchclone™ Immobiliser Transponder Production Modules Touchclone™ Immobiliser Transponder Production Modules Read immobiliser: This advanced function brings up an array of vehicles which Touchclone™ supports by reading the vehicles immobiliser unit. The immobilisers PCB security device (eeprom or MCU) is read in or out of circuit.
Page 12 Touchclone™ Feature Lookup Understanding the on screen information:- Car Model: This field indicates your selection of make, model and year. This is a summary line of the selected vehicle you are working on (from the previous screen). Chip: This is a description of the device you will find on the PCB, its generic name, and the file date size found on the device.
Page 13: Touchclone™ Feature Lookup
Touchclone™ Feature Lookup Touchclone™ Feature Lookup Feature Lookup: This feature allows the user to thoroughly research the vehicle they are working on using a simple make, model and year selector chart. This culminates into a printable ‘car selector datasheet’ which contains the following useful fields of information, a first in the automotive industry:- Manufacturer, Model and Year summary fields •...
Page 14: Touchclone™ Database Lookup
Touchclone™ Database Lookup Touchclone™ Database Lookup Database Lookup: This feature conveniently allows you to store customer data, car information etc which can be recalled at any time. Touchclone™ Version 1.5 – Manufactured & Developed by 1 Call Lockouts Limited. All rights reserved 2012.
Page 15: Touchclone™ Id46 Diagnostics
Touchclone™ ID46 Diagnostics Touchclone™ ID46 Diagnostics ID46 Diagnostics: This function allows any remote with a 46 ID (i.e. pcf7946, pcf7947 etc) to be read & diagnosed. The full test indicates the state of each button to see if they are functioning correctly, the battery life, and the LED status.
Page 16: Touchclone™ Id48 Unlock
Touchclone™ ID48 Unlock Touchclone™ ID48 Unlock ID48 Unlock: Megamos ID48 Magic II transponders become locked once they have been programmed into a vehicle. As they can’t be automatically be reused (unless on the same vehicle), this function will UNLOCK the transponder.
Page 17: Touchclone™ Settings
Touchclone™ Settings Touchclone™ Settings TouchClone settings: This option allows access to view the user and TouchClone specific information, from this option you will see the owner of the TouchClone and their company. Version allows the user to determine which version of TouchClone they are running, an indication of whether an update is due.
Page 18 Touchclone™ Website Once the updates have been downloaded the text in the updates field will change to “available” and the “check” button will change to “apply.” Click “apply” and you will see the following window: Follow the on screen instruction by powering the TouchClone device off and then back on using the power switch.
Page 19: Touchclone™ Website
Touchclone™ Website Touchclone™ Website Website: This simple function is a shortcut to the Touchclone website, allowing you fast access to the technical support forum and videos, as well as seeing what new software is contained on the latest updates. Touchclone™ Version 1.5 – Manufactured & Developed by 1 Call Lockouts Limited.
Page 20: Touchclone™ Vag Group Id48 Pre-Coding
Touchclone™ VAG Group ID48 Pre-Coding Touchclone™ VAG Group ID48 Pre-Coding There are three types of immobilisers on VAG cars that use three distinct types of ID48 transponders: 1. ID48 2. ID48 CAN (Audi/Seat/Skoda/VW) 3. ID48 CAN (Audi/Seat/Skoda/VW) Precoded The ID48 precoding section of TouchClone allows you to program the latest type (type 3) to the customer’s vehicle by writing vehicle specific data to the transponder.
Page 21 In the screen above choose whether you have extracted 6 or 7 bytes from the vehicle, once an option is selected the boxes below become available. Type the extracted bytes in order into the boxes and select the manufacturer of the vehicle. If the bytes have been extracted using the Advanced Diagnostics OBD equipment then check the option, if not leave unchecked.
Page 22 Touchclone™ EEPROM Reader First, select the 6 bytes option and in the fields below type in the extracted data. Then select manufacturer and check or uncheck the source button depending on whether you used AD equipment. Then, insert an ID48 Magic II CAN transponder (of the correct manufacturer type) into the provided transponder bucket and press next so Touchclone can then write out the extracted data and the 7...
Page 23: Touchclone™ Eeprom Reader
Touchclone™ EEPROM Reader (Please note this section is for advanced users only and 1st Call Lockouts Ltd cannot be held responsible for any damage or corruption that may occur through misuse) This function allows the user to take on a more advanced approach when reading an Eeprom. We provide the user with a set of parameters which they can alter to get an Eeprom to read in or out of circuit.
Page 24 Touchclone™ EEPROM Reader When it comes to Eeprom work we know (from electrical datasheets) how to read a specific Eeprom type, • however due to other components on an immobiliser board many more design factors will affect a successful data read. Getting Started When using Touchclone first of all we will need to clip onto the Eeprom correctly.
Page 25 Touchclone™ EEPROM Reader Power up Delay This is the time period after the immobiliser box is powered up before reading commences. Measured in milliseconds, generally speaking the larger capacitors and more components on the board, the larger this value should be (As you have to wait for the capacitors to have sufficient chargeto create a stable voltage across the circuit).
Page 26 Touchclone™ EEPROM Reader Ok the theory is all well and good but let’s work our way through a real example. The following is an example of how the Touchclone developers have managed to work out custom read methods for lots of different vehicles in circuit.
Page 27 Touchclone™ EEPROM Reader Default method data When reading an Eeprom in circuit using the default read method you should check the data to make sure it contains all the relevant data needed to be identified as a working module with TouchClone. At first glance, the data read from the Eeprom would seem to look valid, but upon closer inspection you can see that the data is copied in a 2 byte sequence.
Page 28 Touchclone™ EEPROM Reader Let’s analyse the results further... Let us now create your own custom read method Consecutive byte read Up to address 40 hex data is visibly changing but after that we are getting “FF” bytes. We now need to determine whether the “FF”...
Page 29 Touchclone™ EEPROM Reader Organisation The reason for the duplication of data is because the read commands for 8bit and 16bit organisations are different. The eeprom organisation is set by the circuit itself and if the option here is incorrect, each two consecutive bytes in the data will duplicate.
Page 30 Touchclone™ EEPROM Reader The data in comparison has vastly changed, there are no more duplications and we have eradicated the large amount of “FF” bytes. Now, click the “next” button on the Touchclone application to see if it can be recognised as a supported vehicle module by TouchClone.
Page 31: Touchclone™ Deactivation
Touchclone™ Deactivation Touchclone™ Deactivation Touchclone can be activated on 2 PCs at any one time, to see number of activation slots currently Touchclone being used run in standalone mode (no connection to PC) then select device settings on the touch screen. The activation of each Touchclone on each PC will take place during the installation, but in the case...
Page 32 Touchclone™ Deactivation Below is the system settings menu, from here we can see several customisable options within Touchclone. For the purpose of deactivation click the device tab. In the device tab below select which PC you would like to de-activate from the system and then click “deactivate.”...
Page 33: Touchclone™ Manual Activation
Touchclone™ Manual Activation Touchclone™ Manual Activation This next section will be running through the functionality of an application on your Installation disk. The application supports several activation functions that will be explained. Possible reasons why you might use this application: Problem during install meaning you could not activate TouchClone e.g.
Page 34 Touchclone™ Manual Activation The above function will assign the current PC to one of the 2 available slots on the Touchclone device. Make sure that the Touchclone is connect but switched off. Turn on the device when prompted by the software. Above is Online activation, this should be used if no prior online activation has occurred or if there was an Internet connection problem when installing Touchclone...
Page 35: Touchclone™ How To Apply Touchclone Manual Updates
Touchclone™ How to Apply TouchClone Manual Updates Touchclone™ How to Apply TouchClone Manual Updates Press the “Start” button In the following window open the folder highlighted below: Copy all Touchclone update (.tc) files into the above updates folder. Touchclone Next, go to the program files folder below: And run this file inside that folder: TouchClone will now apply the TouchClone files that were moved to the updates folder in previous...
