Touchclone™ Feature Lookup

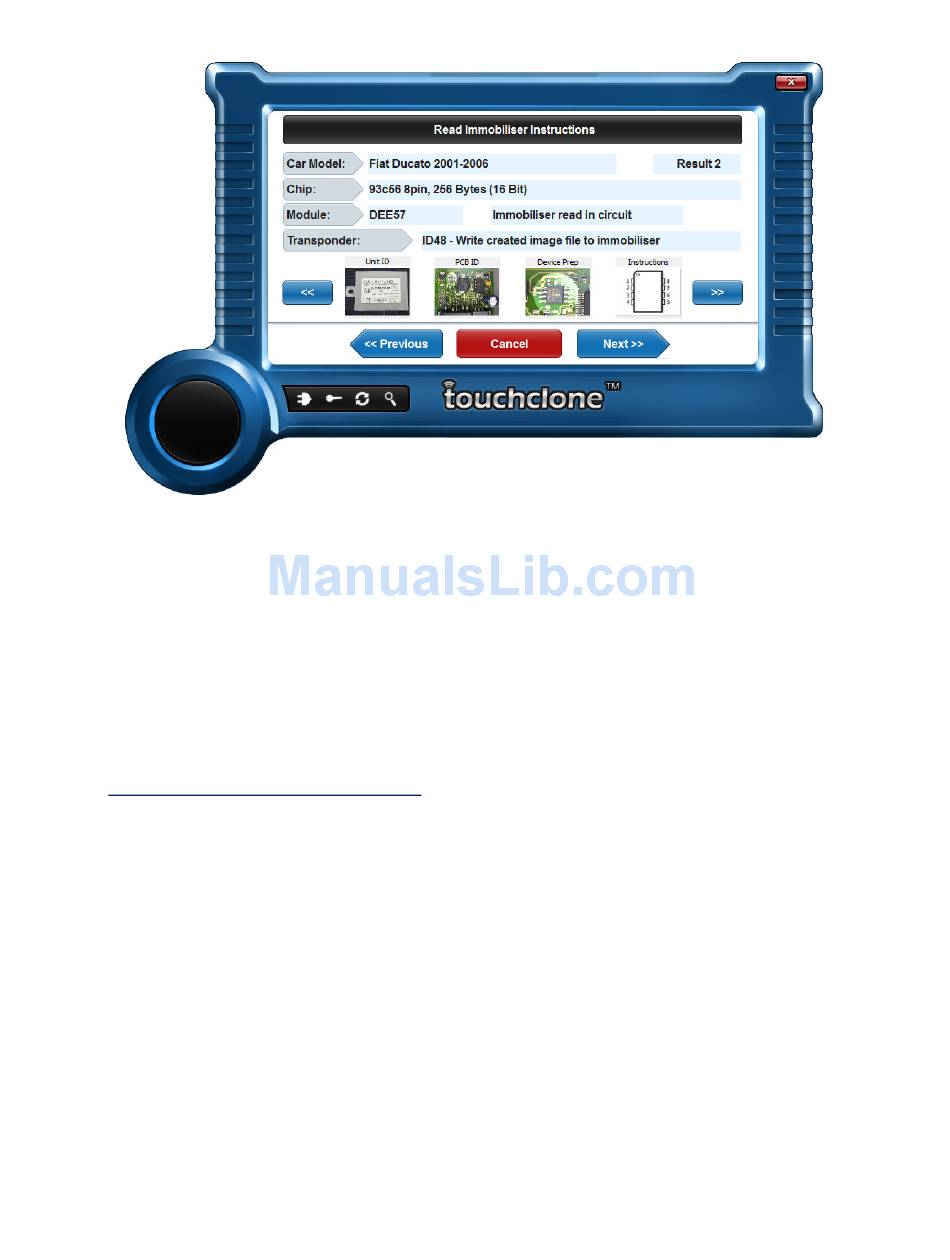

Understanding the on screen information:-
Car Model:
This field indicates your selection of make, model and year. This is a summary line of the selected
vehicle you are working on (from the previous screen).
Chip:
This is a description of the device you will find on the PCB, its generic name, and the file date size found
on the device.
Module:
This is the
Touchclone™
Transponder:
This is the transponder ID which you will need in order to work successfully with this software
module.
How to read the immobiliser - 4 Simple Steps:-
Step
1:
Unit ID:
Identify the ECU/Immobiliser you have removed from the vehicle matches exactly the UNIT ID for the
Touchclone™
module. If they do NOT match we strongly recommend you do not continue (unless otherwise
advised).
Step
2:
PCB ID:
Before working with any device on the board ensure that the PCB components and their layout match
the PCB ID picture exactly. Remember there can be several module options for the same vehicle, so please
check you select the correct module if it is available.
Step
3:
Device Prep:
Now you have confirmed this immobiliser is an exact match for this module, you must now follow
the on screen preparations;- These will always indicate which is pin 1, but may also indicate a leg/track/or
component which must be de-soldered.
Step
4:
Instructions:
Finally attach the microprobes to the PCB device, following the colour coding diagram and
establishing which is PIN 1 from the pictures supplied.
Touchclone™ Version 1.5 – Manufactured & Developed by 1
reference for that particular module.
st
Call Lockouts Limited. All rights reserved 2012.
