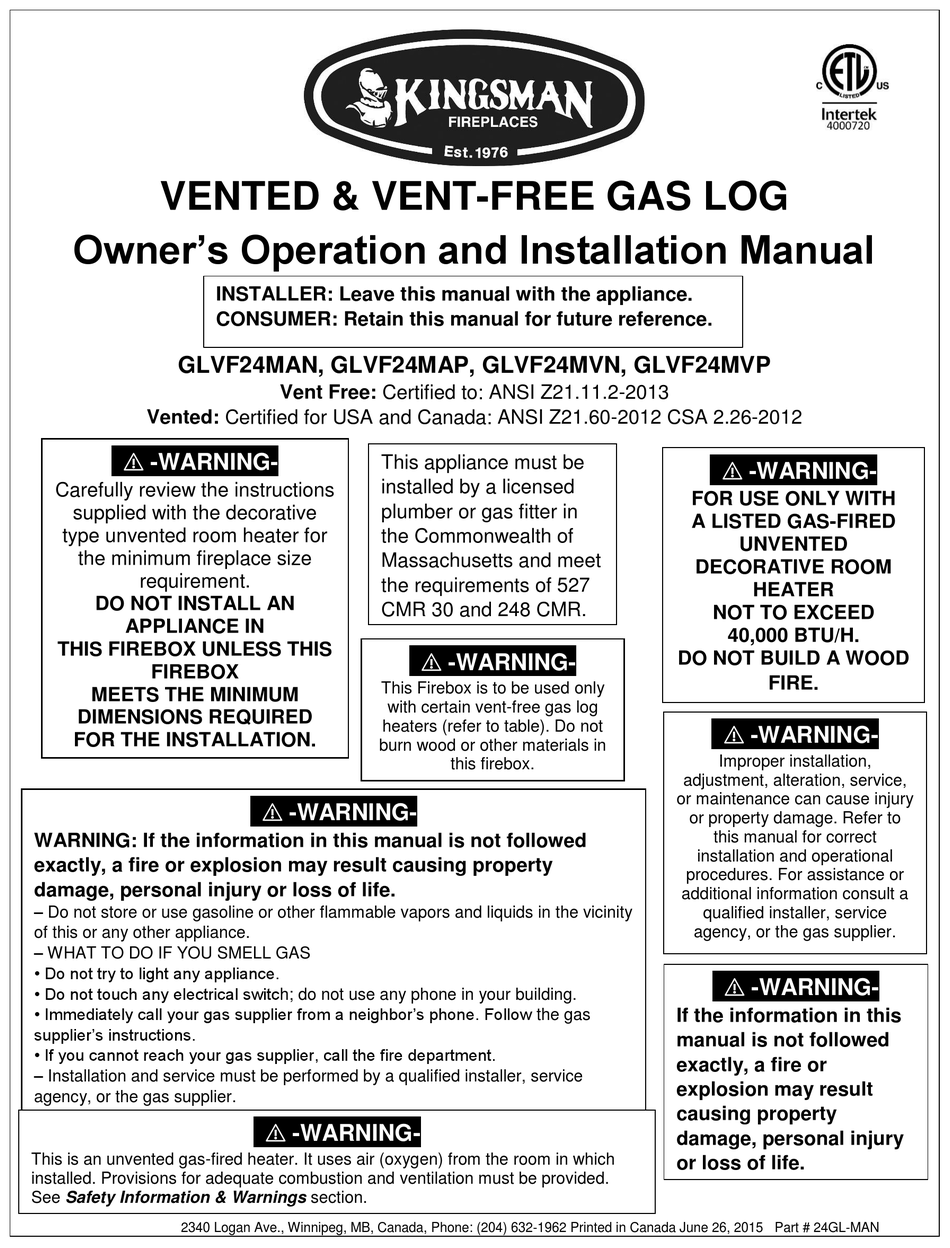

VENTED & VENT-FREE GAS LOG
Owner's Operation and Installation Manual
GLVF24MAN, GLVF24MAP, GLVF24MVN, GLVF24MVP
Vented: Certified for USA and Canada: ANSI Z21.60-2012 CSA 2.26-2012
⚠ -WARNING-
Carefully review the instructions
supplied with the decorative
type unvented room heater for
the minimum fireplace size
requirement.
DO NOT INSTALL AN
APPLIANCE IN
THIS FIREBOX UNLESS THIS
FIREBOX
MEETS THE MINIMUM
DIMENSIONS REQUIRED
FOR THE INSTALLATION.
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
– Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which
installed. Provisions for adequate combustion and ventilation must be provided.
See Safety Information & Warnings section.
2340 Logan Ave., Winnipeg, MB, Canada, Phone: (204) 632-1962 Printed in Canada June 26, 2015 Part # 24GL-MAN
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Vent Free: Certified to: ANSI Z21.11.2-2013
This appliance must be
installed by a licensed
plumber or gas fitter in
the Commonwealth of
Massachusetts and meet
the requirements of 527
CMR 30 and 248 CMR.
This Firebox is to be used only
with certain vent-free gas log
heaters (refer to table). Do not
burn wood or other materials in
⚠ -WARNING-
⚠ -WARNING-
⚠ -WARNING-
this firebox.
⚠ -WARNING-
FOR USE ONLY WITH
A LISTED GAS-FIRED
UNVENTED
DECORATIVE ROOM
HEATER
NOT TO EXCEED
40,000 BTU/H.
DO NOT BUILD A WOOD
FIRE.
⚠ -WARNING-
Improper installation,
adjustment, alteration, service,
or maintenance can cause injury
or property damage. Refer to
this manual for correct
installation and operational
procedures. For assistance or
additional information consult a
qualified installer, service
agency, or the gas supplier.
⚠ -WARNING-
If the information in this
manual is not followed
exactly, a fire or
explosion may result
causing property
damage, personal injury
or loss of life.

Advertisement

Table of Contents
loading

Related Manuals for Kingsman GLVF24MAN

Summary of Contents for Kingsman GLVF24MAN

  • Page 1 Owner’s Operation and Installation Manual INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. GLVF24MAN, GLVF24MAP, GLVF24MVN, GLVF24MVP Vent Free: Certified to: ANSI Z21.11.2-2013 Vented: Certified for USA and Canada: ANSI Z21.60-2012 CSA 2.26-2012 ⚠ -WARNING- ⚠...

  • Page 3: Pre-Installation Questions And Answers / Operating Instructions

    Pre-installation Questions and Answers About curing of the paint Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20 minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure when heat is applied to the appliance as it is first used.

  • Page 4: Table Of Contents

    LOGF24 Placement Guidelines……………………………………………………………………………….. 19-20 LOGF30 Log Installation……………………………………………………………………………………….. 21 LOGF30 Placement Guidelines……………………………………………………………………………….. 2-23 Millivolt System, Lighting, and Burner Control………………………………………………………………. Parts List GLVF24MVN / GLVF24MVP………………………………………………………………………. 25 Parts List GLVF24MAN / GLVF24MAP………………………………………………………………………. 26 Troubleshooting………………………………………………………………………………………………… 27-28 Limited Lifetime Warranty……………………………………………………………………………………… Gas Specifications Vent Free – Vented Gas Log Sets (Burner and Log Set are sold separately)

  • Page 5: Warning

    ⚠ WARNINGS SAFETY INFORMATION Important: Read this owner’s manual carefully and “WARNING: Any change to this heater or its completely before trying to assemble, operate, or controls can be dangerous.” service this logset. Improper use of this logset can This appliance is intended for supplemental cause serious injury or death from burns, fire, heating.
  • Page 6 The appliance area must be kept clear and free from combustible materials, gasoline, and other WARNING: This appliance is for installation only in flammable vapors and liquids. a solid-fuel burning masonry or UL 127 factory-built fireplace or in a listed ventless firebox enclosure. It The front of the fireplace gives off high has been design certified for these installations.

  • Page 7: Air For Combustion And Ventilation

    AIR FOR COMBUSTION AND VENTILATION Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in.
  • Page 8 AIR FOR COMBUSTION AND VENTILATION Cont. 1. Determine the volume of the space (length x width x height). Length x Width x Height = ______________ cu. ft. (volume of space) Example: Space size 22ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.
  • Page 9 AIR FOR COMBUSTION AND VENTILATION Cont. VENTILATION AIR FROM INSIDE BUILDING This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor on the wall connecting the two spaces.
  • Page 10 AIR FOR COMBUSTION AND VENTILATION Cont. Ventilation Air From Outdoors Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces.
  • Page 11 INSTALLING – Clearances INSTALLATION Minimum Firebox Width CLEARANCES (VENT FREE APPLICATION ONLY) Minimum Firebox Depth Minimum noncombustible material above fireplace opening must be no less than shown in the figures above. Noncombustible materials (slate, marble, tile, etc.) must be at least 1/2” thick, if sheet metal is used, you must have a non- combustible material behind it.

  • Page 12: Installing

    INSTALLING INSTALLATION OF GLVF24 INTO WARNING EXISTING FIREPLACE If installing in Canada or as a vented logset: Before installing in a solid fuel burning fireplace, the NOTE: When used as a vented heater, appliance must be chimney flue and firebox must be cleaned of soot, installed only in a solid fuel burning fireplace with a working creosote, ashes, and loose paint by a qualified chimney flue and constructed of non-combustible material.

  • Page 13: Installing Gas Line

    INSTALLING – Gas Line INSTALLING GAS LINE DANGER Early signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, and / or nausea. If you have these CARBON MONOXIDE POISONING signs, the heater may not be working properly. Get fresh air at once! Turn off gas appliance.

  • Page 14: Installing Gas Line

    INSTALLING – Gas Line Cont. regulator. Check pressure at the pressure test point, which is CAUTION located on the side of the gas control near the pilot outlet. Make sure that the pressure tap is completely closed after checking gas pressure. The pressure should be checked with Any safety screen or guard removed for servicing an the appliance burning and the control set on high.

  • Page 15: Installing Burner System

    INSTALLING – Burner System CLEANING AND SERVICING OF BURNER / ODS PILOT It is recommended to annually inspect and clean the unit to prevent malfunction and / or sooting. This operation should be performed by your dealer or a qualified technician. WARNING Remove log set, handling carefully by holding gently at each end.

  • Page 16: Installing Log Grate

    2. Place crossover log on locating pins on top of rear main damage or personal injury. log. 3. Position front log flat surface up to main log. ➃ ➁ ➀ Kingsman Replacement Log Listing Reference Part Number Number Description 24F-A Front Main Log A, LOGF24 ➂...

  • Page 21: Logf30 Log Installation

    LOGF30 Log Installation 1. Align front hole of log support plate with original log locator pin. 2. Slide log support over pin & using two 10-24 DT screws, mount plate to burner grate. NOTE: Make sure log support is tight against side of burner grate before fastening. Log Locator Log Support Original Log...

  • Page 24: Millivolt System, Lighting, And Burner Control

    Millivolt System, Lighting, and Burner Control FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. BEFORE LIGHTING  This appliance has a pilot which must be lighted by hand. When Immediately call your gas supplier from a neighbour’s phone.

  • Page 25: Parts List Glvf24Mvn / Glvf24Mvp

    Parts List GLVF24MVN / GLVF24MVP 9-10 GLVF24MVN GLVF24MVP Description GLVF24MVN GLVF24MVP Description 4200-132 4200-132 Burner Hold Down 39ZVFCV-113 39ZVFCV-113 Valve Bracket Spacer 24GL-200A 24GL-200A Burner Assembly 33VF-113 33VF-113 Oxygen Depletion 6000-112 6000-112 Valve Bracket Shield 1000-214 1000-214 Piezo-Igniter 33VF-P8214 33VF-P8214 ODS Pilot 1000-255 1000-255...

  • Page 26: Parts List Glvf24Man / Glvf24Map

    Parts List GLVF24MAN / GLVF24MAP GLVF24MAN GLVF24MAP Description GLVF24MAN GLVF24MAP Description 4200-132 4200-132 Burner Hold Down 1000-253 1000-253 Closed Nipple 24GL-200A 24GL-200A Burner Assembly 2000-213 2000-213 Elbow 1/8” 33VF-113 33VF-113 Oxygen Depletion 6000-P113VE 6000-P113VE 1/8 x 1-1/2 Nipple Shield 1000-P203VE 1000-P203VE Lock Nut 1/8”...

  • Page 27: Troubleshooting

    TROUBLESHOOTING WARNING Turn off and let cool before servicing. Only a qualified NOTE: all troubleshooting items are listed in order of service person should service and repair heater. operation. When igniter button is pressed, there is no spark at ODS/Pilot. Remedy Possible Cause 1.
  • Page 28 TROUBLESHOOTING Cont. 5. Pilot flame not touching thermocouple, which allows 5. Contact local gas company. thermocouple to cool, causing pilot flame to go out. Problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot. 6.

  • Page 29: Limited Lifetime Warranty

    During the first year after installation, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer.
