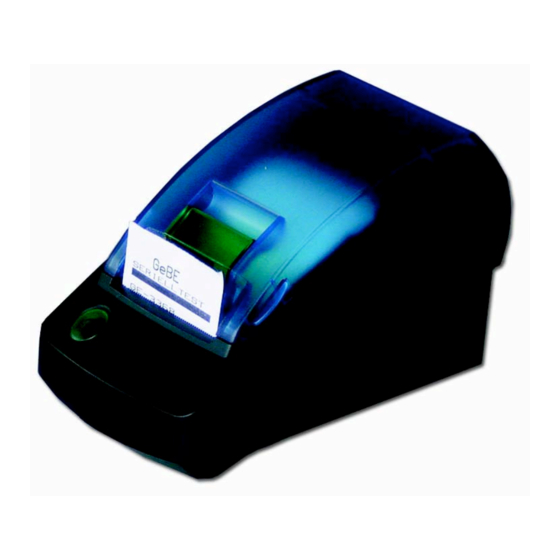

Easy-Loading Thermal Printer
GeBE-SKY
GPT-4389
RS232 • Infrared • USB
Real Time Clock
Operation Manual
Printers: GeBE Elektronik und Feinwerktechnik GmbH • Email: sales.ef@gebe.net • www.oem-printer.com
Keyboards: GeBE Computer & Peripherie GmbH • Email: sales@tastaturen.com • www.tastaturen.com
The GeBE logo is a registered trademark of GeBE Elektronik und Feinwerktechnik GmbH. All other brands named in this brochure are properties of the respective
companies. Errors and changes reserved. The technical data given are non-committal information and do not represent any assurance of certain features. Our terms
of payment and delivery apply. Copyright © 2010 GeBE Elektronik und Feinwerktechnik GmbH. All rights reserved.
GeBE Elektronik und Feinwerktechnik GmbH
Beethovenstr. 15 • 82110 Germering • Germany • www.GeBE.net
Phone:++49 (0) 89/894141-0 • Fax:++49 (0) 89/8402168 • E-Mail: sales.ef@GeBE.net
GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389
®
Contacts at GeBE
Internet Applications: www.GeBE.net
Elektronik und
Feinwerktechnik GmbH
Module und Geräte zum Eingeben,
Auswerten, Anzeigen und Ausdrucken
analoger und digitaler Daten.
GeBE Document No.:
SMAN-E-549-V1.1
Status: 23.08.2010
Gedruckt: 23.08.2010
German: SMAN-E-548
®
Advertisement
Table of Contents
Related Manuals for GeBe GPT-4389
Summary of Contents for GeBe GPT-4389
- Page 1 Internet Applications: www.GeBE.net The GeBE logo is a registered trademark of GeBE Elektronik und Feinwerktechnik GmbH. All other brands named in this brochure are properties of the respective companies. Errors and changes reserved. The technical data given are non-committal information and do not represent any assurance of certain features. Our terms of payment and delivery apply.
-
Page 2: Table Of Contents
Documents or Internet links are marked with a , referring to more detailed or additional information. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 3: Safety Instructions
All parts included are listed in the chapter "Packing List", while the original accessories are listed in the chapter "Parts and Accessories ". GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 4: Packing List
2.1 Standard Versions of the Thermal Printers come in different versions packed as sets. The printer sets contain the parts listed below (see table). OEM versions of the GeBE-GPT-4389 series are not supplied as sets since they come without any accessories. Accessories are available separately. -
Page 5: Description
3 Button {FEED/ENTER} 4 LED "STATUS" Button {OFF/NEXT} not shown 5 Window for IR transmitter/receiver 6 RS232 connection 7 USB connection 8 Power 4.5 - 6.6 VDC GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 6: Interfaces
8 data bits 7/8 data bits no parity bit ODD, EVEN, no parity bit 1 stop bit 1,2 stop bit TX line on TX line turned on/off GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 7: Infrared Interfaces
IrDA: Automatic setting in accordance with IrDA ; 9,600; 38,400; Interface parameters 57,600; or 115,200 baud GeBE-IR GeBE-IR protocol: 9,600; 38,400;57600; or 115,200 baud, Interface parameters 8 data bits, no parity, 1 stop bit GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 8: Usb Interface
USB suspend / printer sleeping 300 µA Never activate an action in the printer driver at the end of a job. This can cause a loss of data. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 9: Changing The Paper
Two-Color Paper prints red with the normal setting, black with a higher temperature set- ting. The temperature can be set by command. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 10: Maintenance, Cleaning
5. Other stubborn debris may also be removed with 9 sensor a Q-Tip (IPA). 10 paper tear bar 11 print head Never use sharp objects for cleaning. This may damage the print head. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 11: 8 Button Functions • Menu Guide
By holding down the OFF/NEXT button for more than three seconds during operation, the processing of batch file T2 is initiated. In the µ-P-GPT-4389, the command for power-off (after one second) is filed in batch file T2. This way, the button is programmed as OFF button for the printer (controller with power-off mode). - Page 12 W0/H0, W0/H1, W0/H2, W0/H3, W1/H0, W1/H1, W1/H2, W1/H3 Char. spacing : 0,1,2,3,4,5,6,7 Print width : 48 mm (Values depending on type of printer) 48 mm, ..32 mm GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389...
- Page 13 01 .. 07, * the alarm is called every day at the set time Hour : 00 .. 23, * 00 .. 59, * Minute : ON, OFF Mode: GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389...
-
Page 14: Status Messages Through Leds
EE-password "E2" wrong password for EEPRROM access EE-overflow "E3" text file memory overflow EE-time-out "E4" programming time for EEPROM byte exceeded EE-KO "E5" EEPROM not located GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 15: Batch Files
If not, the TMenu and/or the TINIT will be processed in the GPT-4389 with the factory settings. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 16: Character Sets
Character Sets 12 Character Sets The four character sets in the GPT-4389 memory of a standard controller can be selected by command. Other character sets on request. The Euro character is located at 16 hex. GeBE Standard Character Set: Resembles IBM II Code Table 850... -
Page 17: Accessories And Spare Parts
Documents for the System GPT-4389-GPT-4389 All further documents are listed on the Internet at www.oem-printer.com/GPT-4389. You can request the software manual SoMAN-D-484 or -E-485 (English) from GeBE via email (sales.ef@gebe.net). GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 18: Troubleshooting And Recovery
Set virtual COM port according to installation instructi- short time or is repeated action activated in Windows® driver. ons. Deactivate "job end" action in Windows® driver. constantly. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 19: Ce Certification
The failure-free operation of the printer (assessment criterion A) is achieved, when all printed information remains recognizable in case of a short-term failure, and the printer, on the other hand, automatically returns to its normal functional status afterwards. GeBE E + F GmbH • www.GeBE.net • GeBE Dok.Nr.: SMAN-E-549-V1.1 Thermodrucker GPT-4389... -
Page 20: Mechanical Dimensions
255 bytes / XOFF at 224 bytes / XON at 32 bytes Infrared interfaces / GeBE-IR protocol: 9,600; 38,400; 57,600; or 115,200 baud, 8 data bits, no parity, 1 stop bit interface parameters IrDA: automatic setting acc. to IrDA ; 9,600; 38,400; 57,600; or 115,200 baud Batch files text and graphics (logo printing);...
