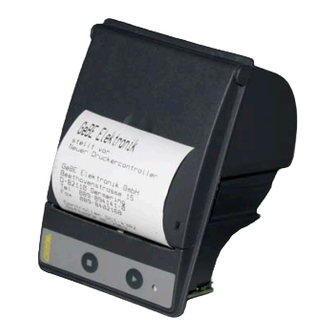

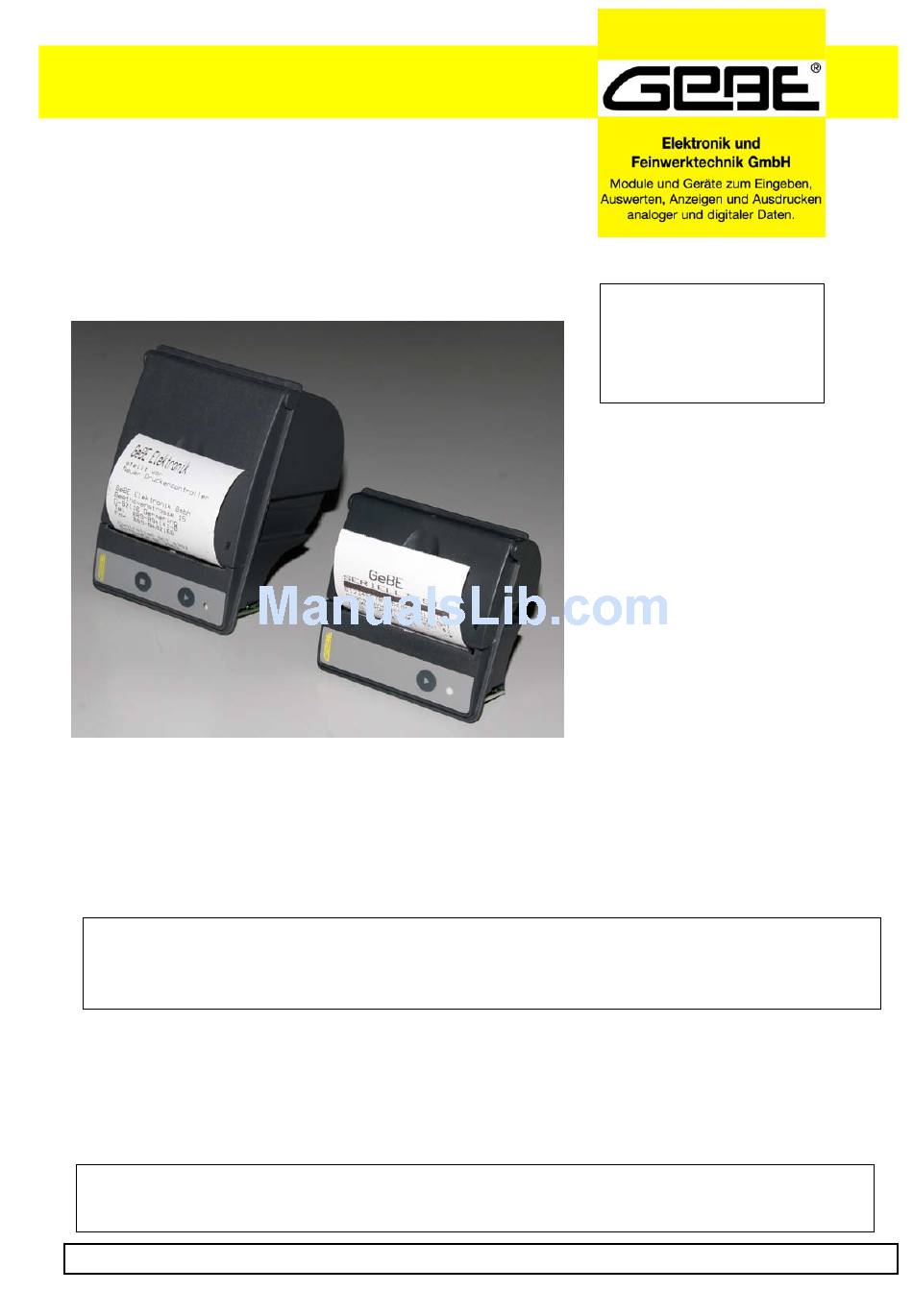

Easy-Loading Thermal Printer
Mulde Mini
GPT-4352
GPT-4352-60
with controller system N78
GeBE Document No.:
SMAN-E-413-V4.1
Printed: 05.10.2009
Status: 05.10.2009
German: SMAN-D-412
Operating Manual
Activities at GeBE
Printer: GeBE Elektronik und Feinwerktechnik GmbH • E-Mail: sales.ef@gebe.net • www.oem-printer.com
Key boards: GeBE Computer & Peripherie GmbH • E-Mail: sales@tastaturen.com • www.tastaturen.com
Internet applications: www.GeBE.net
The GeBE logo is a registered trademark of GeBE Elektronik und Feinwerktechnik GmbH. All other brands named in this brochure are properties of the respective
companies.Errors and changes reserved. The technical data given are non-committal information and do not represent any assurance of certain features.
Our terms of payment and delivery apply. Copyright © 2009 GeBE Elektronik und Feinwerktechnik GmbH. All rights reserved.
GeBE Elektronik und Feinwerktechnik GmbH
Beethovenstr. 15 • Germering • Germany • www.oem-printer.com
Phone:++49 (0) 89/894141-0 • Fax:++49 (0) 89/8402168 • email: sales.ef@gebe.net
GeBE E + F GmbH • www.oem-printer.com • GeBE Doc.No.: SMAN-E-413-V4.1 Easy-Loading Thermal Printer GPT-4352(-60)
