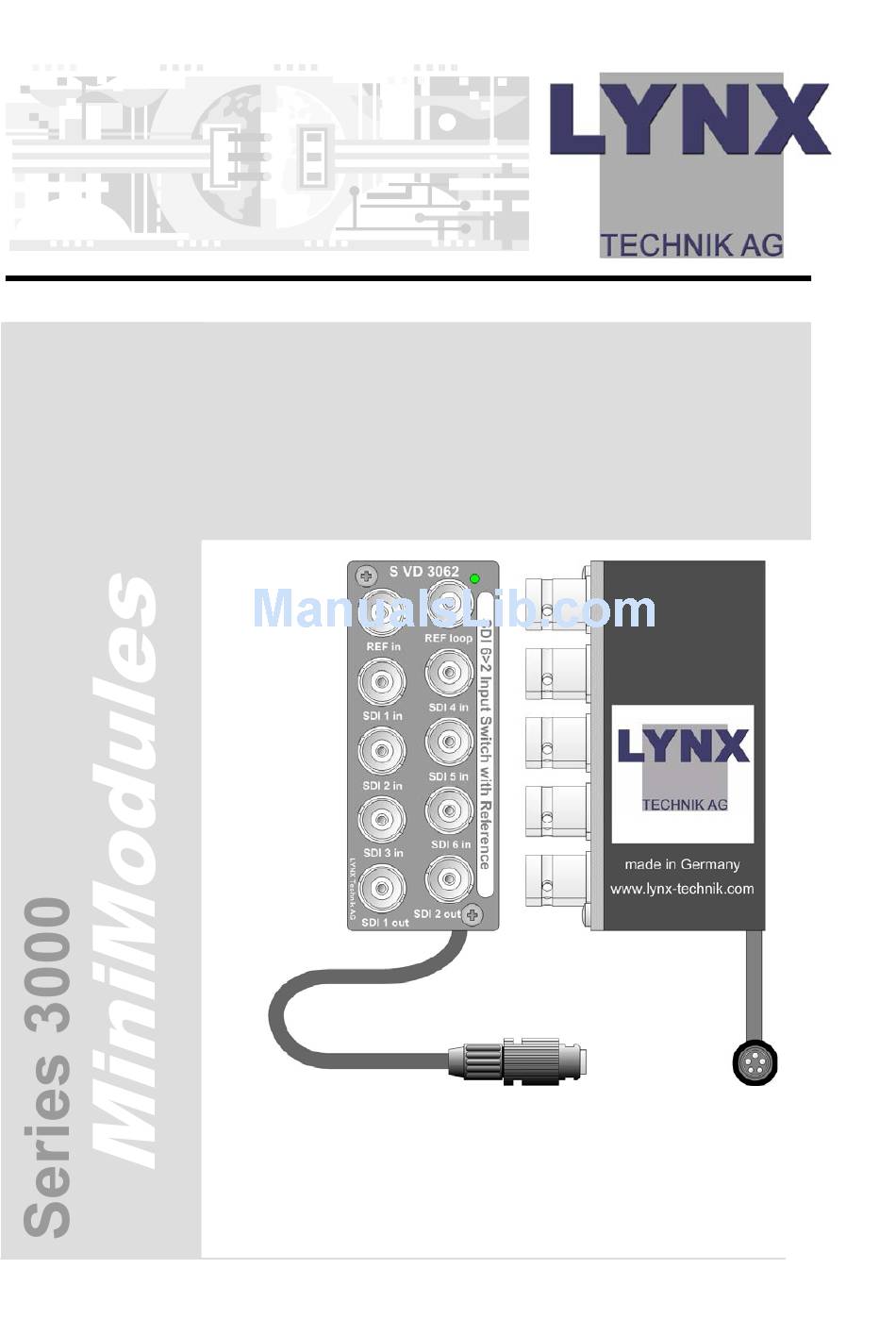

- Page 1 Reference Manual Version 1.4 S VD 3062 SDI 6 > 2 Input Switch © LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany www.lynx-technik.com...
- Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.
-
Page 3: Warranty
LYNX Technik supplies; or d) to service a product which has been modified or integrated with other products when the effect of such modification or integration increases the time or difficulty servicing the product. -
Page 4: Regulatory Information
Reference Manual S VD 3062 Version1.4 Regulatory information Europe Declaration of Conformity LYNX Technik AG Sandstrasse 7 D-64404 Bickenbach Germany Declare under our sole responsibility that the product TYPE: S VD 3062 To which this declaration relates is in conformity with the following... -
Page 5: Table Of Contents
Reference Manual S VD 3062 Version1.4 Contents Warranty..................3 Regulatory information ............4 Europe......................4 Declaration of Conformity ..............4 USA ......................4 FCC 47 Part 15..................4 Contents..................5 Getting Started .................7 Packaging....................7 Product Description .................7 Functional Diagram .................8 Module Layout..................8 Connections ................10 Video Connections.................10 Remote Control Panel................11 Connector....................11 for Remote Control Panels..............11 Power Connections ................12... - Page 6 Reference Manual S VD 3062 Version1.4 Auto Store..................26 Specifications (S VD3062) ............. 27 Available Options..............28 Parts List .................. 29 Service..................29 Contact Information.............. 30 Page 6...
-
Page 7: Getting Started
Inputs can be switched either via the service adapter and the associated PC GUI SW (LYNX c3_local) or via an optional remote control panel R CP 3062. Up to six S VD 3062 can be controlled from one control panel. -
Page 8: Functional Diagram
Reference Manual S VD 3062 Version1.4 Functional Diagram Figure 1 below is the basic functional diagram for the S VD 3062 MiniModule. Figure 1- S VD 3062 Functional Diagram Module Layout Figure 2 shows the physical layout of the S VD 3062 MiniModule. - Page 9 Reference Manual S VD 3062 Version1.4 Figure 2 – Module Layout Page 9...
-
Page 10: Connections
Reference Manual S VD 3062 Version1.4 Connections Video Connections The S VD 3062 MiniModule is configured with standard 75 Ohm BNC connectors. Connection is self- explanatory. We recommend the use of high quality video cable for digital video connections to reduce the risk of interference or errors due to excessive cable attenuation. -
Page 11: Remote Control Panel
Reference Manual S VD 3062 Version1.4 Remote Control Panel There are different possibilities for Remote control panels. LYNX Technik AG provides one solution, the R CP 3062, which is described on page 22 and 23 (parallel panel type Connector for Remote Control Panels... -
Page 12: Power Connections
Data Connection Power Connection i2C-SDA (data) + 5V i2C-SCL (clock) Male Connector (view looking into connector from front) Caution Only use the optional LYNX R PS power modules. Ensure the 5-pin power connector is locked securely in place. Page 12... -
Page 13: Installation
Reference Manual S VD 3062 Version1.4 Installation Mechanical Stand Alone Operation The S VD 3062 MiniModule can be used in a stand alone application. There are two options for the use of the module in this way. a) Using the R FR 3005 Rack Frame 1 option. This allows up to any 10 of the MiniModules to be secured onto a rack frame assembly for 19 inch rack mounting. -
Page 14: Multiple Units
Reference Manual S VD 3062 Version1.4 Multiple Units Most applications will require more than one MiniModule, which can include any of the available Series 3000 MiniModule product range. There are two options for mounting multiple units. a) Using the R FR 3005 Rack Frame option. This allows up to any 10 of the MiniModules to be secured onto a rack frame assembly for 19 inch rack mounting. -
Page 15: Electrical Installation
/ receiving the signals from the module or damage can result. Caution. Only use the optional Lynx R PS 3001 power modules. Ensure the 5-pin power connector is locked securely in place. -
Page 16: Multiple Units
R FR 3010 Rack Frame and control system. Input switching is possible via the LYNX Control SW or an optional remote control panel, the module provides a connector for control via an optional Remote Control Panel. -
Page 17: Switch Settings
Set to OFF will prevent any switch settings taking effect. If any setting is executed via the optional LYNX control system, the local control will be disabled. In this case DIP Switch one has to be toggled ON-OFF-ON to reaquire local control. -
Page 18: Factory Preset Condition
Reference Manual S VD 3062 Version1.4 Dip Switch 2 When set to ON this configures output 1 as reclocked, if set to OFF output 1 is non-reclocked Dip Switch 3 When set to ON this configures output 2 as reclocked, if set to OFF output 2 is non-reclocked Dip Switch 4 This switch configures enables emergency switching. -
Page 19: Connector For Remote Control Panels
Reference Manual S VD 3062 Version1.4 Connector for Remote Control Panels The module provides a connector for optional remote control panels. There are several possibilities: Simple panel, driven by the module. Distance is restricted to 10m. Two versions are possible. Control Panel with RS422 interface for longer distances For connection of remote control panels an adapter to... -
Page 20: Parallel Interface
Reference Manual S VD 3062 Version1.4 Parallel Interface Version 1 Channel IN Control-Panel Internal Hardware for a simple Control Panel with a parallel connection PIN1 PIN2 PIN3 PIN4 PIN5 PIN6 PIN7 PIN8 PIN12/25 PIN13 PIN20 PIN21 (connect to GND (unconnect for for Panel detect) Panel Version 1) OUT1... -
Page 21: Panel Version 1
Reference Manual S VD 3062 Version1.4 Panel Version 1 25 pin Sub D Connector female (this table shows relevant subset from table, page 18) PIN Function config Input select config Output select config Connect to GND for Panel connect config Not connect for Panel Version 1 9/22 Not used Not used... -
Page 22: Panel Version 3
Reference Manual S VD 3062 Version1.4 Panel Version 3 – R CP 3062 D-Sub 25-polig male Page 22... - Page 23 Reference Manual S VD 3062 Version1.4 Interface-panel side (25polig D-Sub Connector male) Panel Version 3 function config Input select config Output 1 select config Output 2 select 14-19 config Select SVD3062 1-6 config not connect config connect to GND 9/22 not used not used not used...
- Page 24 Reference Manual S VD 3062 Version1.4 Serial Interface (RS422/485) Channel IN Control-Panel Internal Hardware for a intelligent Control Panel with a serial interface Input Output RS485 SVD3062 Controller Loop Address Dip-Switch 25 pin Sub D Connector female (this table shows relevant subset from table, page 18) PIN function 14 - 21 not used...
-
Page 25: Alarm/Led Status Indicators
Reference Manual S VD 3062 Version1.4 Alarm/LED Status Indicators The S VD 3062 module has built in LED indicators, which serve as alarm and status indication for the module. Function is described below. The Indicators are found on the bottom of the module and can be seen through the access hole provided. -
Page 26: Locate Function
Reference Manual S VD 3062 Version1.4 Locate Function For large systems which have many modules in various locations we have added a utility which will help visually identify a module quickly. (When used in conjunction with the optional control system and software) Once the module has been identified on the control system it is possible to initiate the “locate”... -
Page 27: Specifications (S Vd3062)
Reference Manual S VD 3062 Version1.4 Specifications (S VD3062) Digital Inputs Signal 6 x Serial Digital Video. SMPTE 259M-C Input Impedance 75 Ohms Input level 0.8V p-p Return loss > 15dB (270MHz) Connection Reference input Composite sync (black burst) Signal Input Impedance High impedance, loop through Connection... -
Page 28: Available Options
Reference Manual S VD 3062 Version1.4 Available Options Below is a list of available options for the S VD 3062 MiniModule. Please refer to product brochures or our web site for more detailed information. Model Description External brick power supply module for Series 3000 MiniModules. -
Page 29: Parts List
Please contact your distributor or check our web site for details on this program. More detailed information and product updates may be available on our web site: www.lynx-technik.com You will also find links to contact us directly for assistance. Page 29... -
Page 30: Contact Information
Reference Manual S VD 3062 Version1.4 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG Brunnenweg 3 64331 Weiterstadt Germany. - Page 31 Reference Manual S VD 3062 Version1.4 This Page is intentionally left blank Page 31...
- Page 32 Reference Manual S VD 3062 Version1.4 Notes Page 32...
