Lynx yellobrik OET 1510 Quick Reference

Technical Specifications
Ethernet
2 x Ethernet ports, RJ 45 Connectors.
10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
Automatic crossover detection or force manually for each port (selectable)
Port speed / activity LED indication (next to Ethernet port)
Fiber Optic
1 x fiber optic input (TX)
1 x fiber optic output (RX)
Duplex using LC/PC Connections
IEEE 802.3z
(1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
Singlemode Version
TX wavelength 1310nm, power -3dBm
RX input range 1260nm to 1620nm, sensitivity -3dBm to -21dBm
Max distance 10km (6.2miles)
Multimode Version
TX wavelength 850nm, power -2dBm to -7dBm
RX input 850nm sensitivity 0dBm to -15dBm
Max distance approx 550m (1804 feet)
Fiber TX active and RX active LEDs on side of module
Power
+12VDC @ 2.2W nominal - ( supports 7 - 15VDC input range )
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG
yellobrik
®
Broadcast Television Equipment

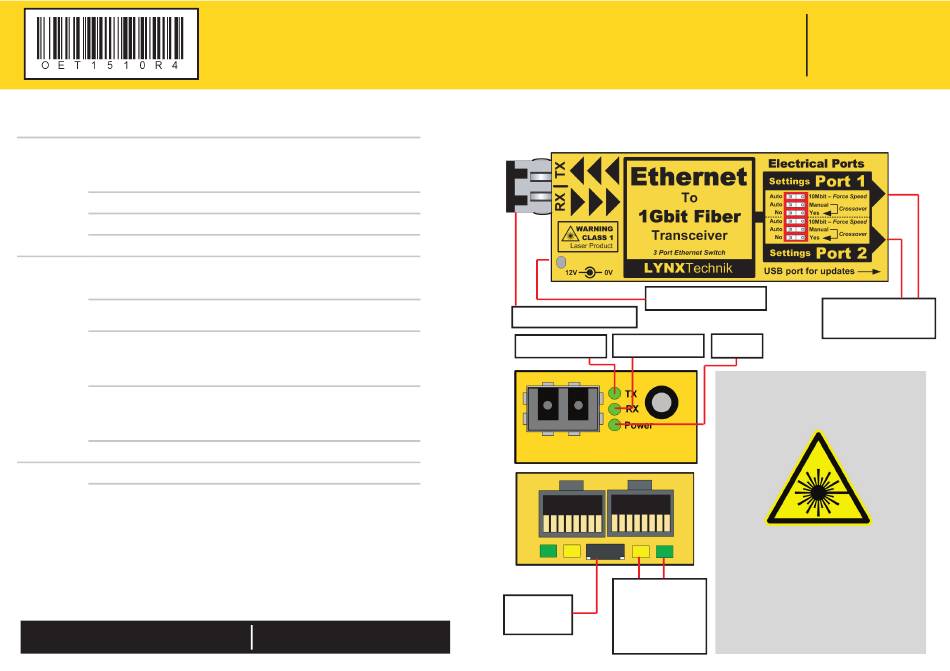

yellobrik
®
OET 1510
Ethernet to Fiber Transceiver (switch)
Fiber I/O
TX Active
USB
(firmware update)
®
DC Power Input
RX Active Power
WARNING WARNING
LASER RADIATION
Do not view directly with
optical instruments
Port LEDs
Green LED
3 blinks = 1Gbit
2 Blinks = 100Mbit
CLASS 1M LASER PRODUCT
3 blinks = 10Mbit
Yellow LED = Activity
Quick
Reference
Electrical
Ethernet Ports (2)
