LIGHTS/METER/SWITCHES

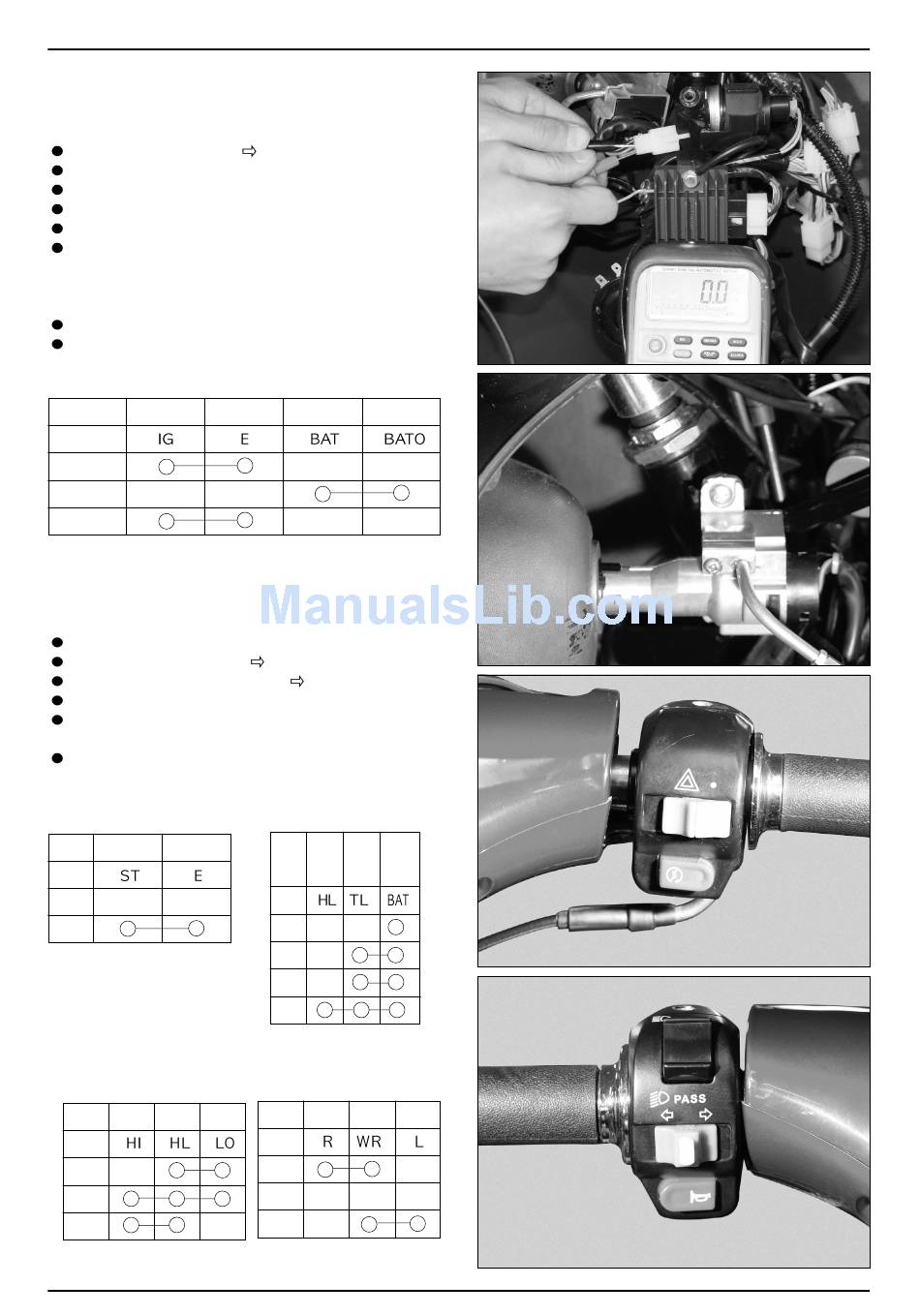

MAIN SWITCH

REMOVAL
Remove the front cover. ( 4-3)
Disconnect the main switch coupler.
Release the lock, remove the main key cover.
Remove the seat lock cable.
Loosen the 3 screws and remove the main switch.
Install in the reverse order of removal.
INSPECTION
Check for continuity between the terminals
There should be continuity between the O---O positions
on the continuity chart.
COLOR BLACK/WHITE GREEN
TERMINAL
OFF
ON
LOCK

HANDLE BAR SWITCH

INSPECTION
Remove the back mirror.
Remove the wind screen. ( 4-10)
Remove the front handle cover. ( 4-10)
Disconnect the RH./LH. winker wire.
Disconnect the handle bar switch connector and
coupler, check for continuity between the terminals.
There should be continuity between the O---O positions
on the continuity chart.

STARTER SWITCH

COLOR YELLOW/RED GREEN
TERMINAL
FREE
PUSH
DIMMER SWITCH
BROWN/
COLOR
BLUE WHITE
WHITE
TERMINAL
LO
(N)
HI
RED BLACK

LIGHTING SWITCH

BROWN/
COLOR
BROWN BLACK
WHITE
TERMI N AL
OFF
PO
(N)
H
WINKER SWITCH
COLOR SKY BLUE GRAY ORANGE
TERMINAL
R
N
L
STARTER SYSTEM
