D222TD
Installation Instructions
EN
Keypad

Advertisement

loading
Need help?

Need help?

Do you have a question about the D222TD and is the answer not in the manual?

Questions and answers

Related Manuals for Bosch D222TD

Summary of Contents for Bosch D222TD

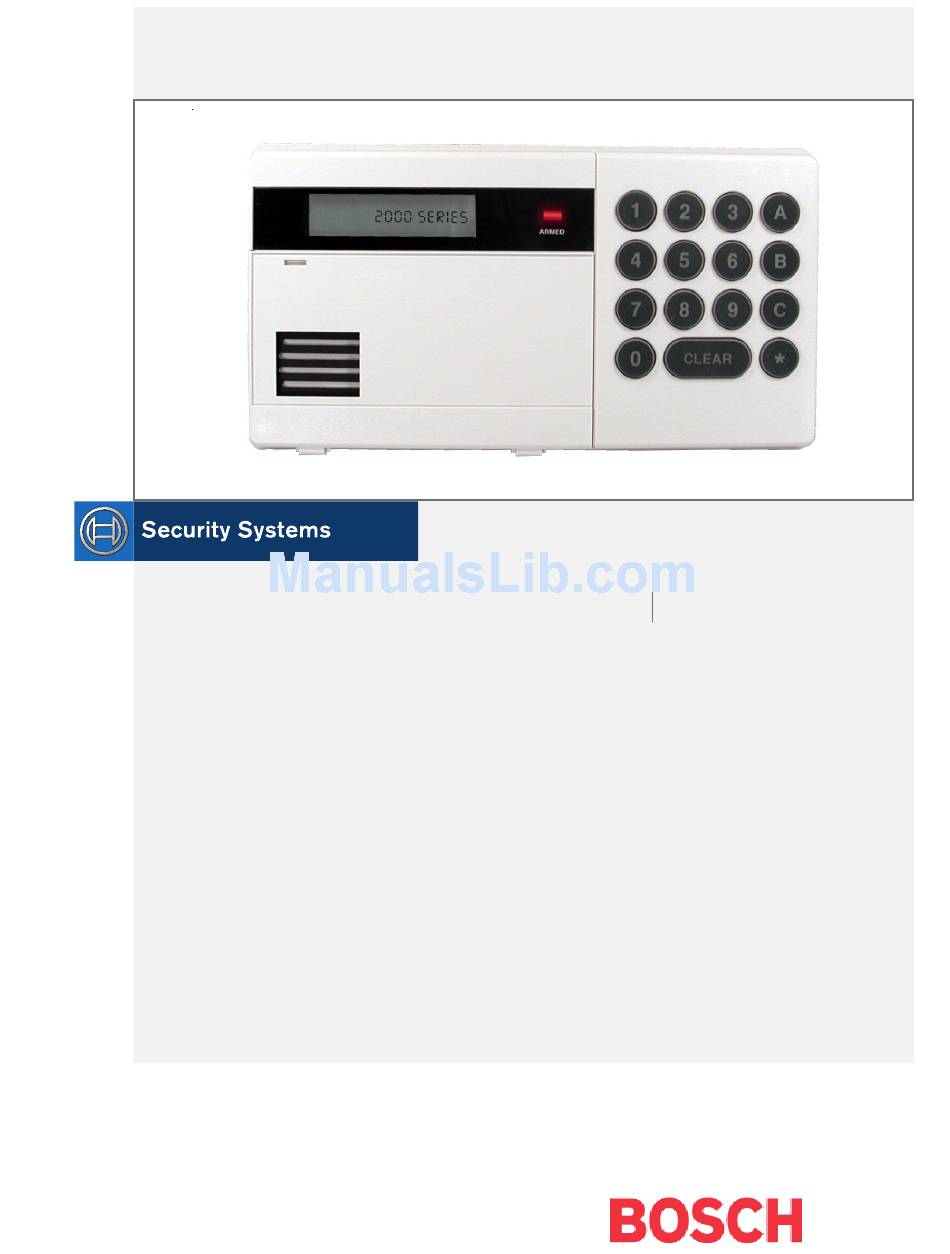

  • Page 1 D222TD Installation Instructions Keypad...

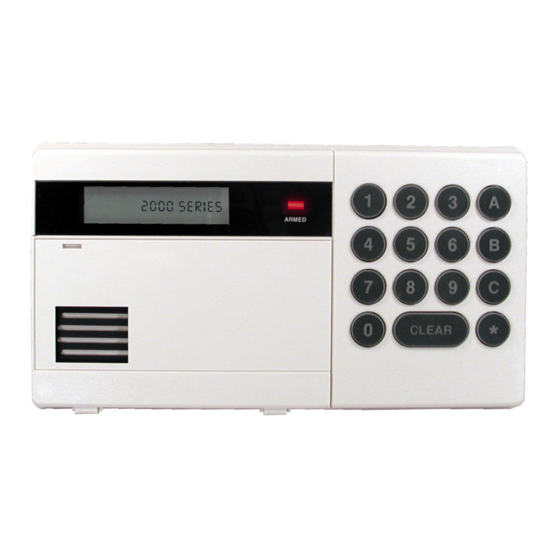

  • Page 2 English text display Function keys Status indicator 4 - Sounder Description The D222TD Keypad (see Figure 1) is a low-profile, Display surface-mount, three-wire unit with four hard-wired The D222TD continuously displays the latest status expansion points for use with the Bosch Security conditions of the security system.

  • Page 3: Installation

    Program the control panel with a point code for each protective point. The point codes determine how each Mount the D222TD on a flat wall, or on the point responds to faults and keypads. following Bosch Security Systems accessories: •...
  • Page 4 S1 DIP switch Wire opening 3. Wire the point connector. The D222TD has two sets of color-coded flying Insulate all exposed splices with tape so leads attached to the connector plugs. The point they do not short to one another.
  • Page 5 Guide (P/N: 74-07386-000) for more information. D222TD Keypad. Use parallel connections for additional keypads or expanders. When replacing a D222TD at Address 1, if the system has custom text, preserve the custom text by: For more information, refer to the D2212 Installation Guide (P/N: 74-07361-000).

  • Page 6: Specifications

    D222TD | Installation Instructions | 4.0 Specifications EN | 6 Specifications Table 1: D222TD Keypad Specifications Nominal 12 VDC supplied by the control panel auxiliary power supply. Operating Voltage Current Requirements Maximum: 140 mA Normal: 85 mA (LCD on) Standby: 30 mA (no keypad backlighting)
  • Page 7 D222TD | Installation Instructions | EN | 7 Notes: Bosch Security Systems | 12/03 | 74-07391-000-B...
  • Page 8 Bosch Security Systems 130 Perinton Parkway Fairport, NY 14450-9199 USA www.boschsecurity.us Customer Service: (800) 289-0096 Technical Support: (888) 886-6189 © 2003 Bosch Security Systems 74-07391-000-B...
