Page 1: Table Of Contents
INDEX STRUCTURE AND PRINCIPLE Features Specifications How dehumidifying works Structure of dehumidifier OPERATION Operation panel Switch function Operation steps 39-40 Draining the water 40-41 MAINTENANCE Caring for the dehumidifier Storing the dehumidifier Notation for safe operation Removing breakdowns 43-44 APÉNDIX Electric Schematic Diagram - 35 -... -

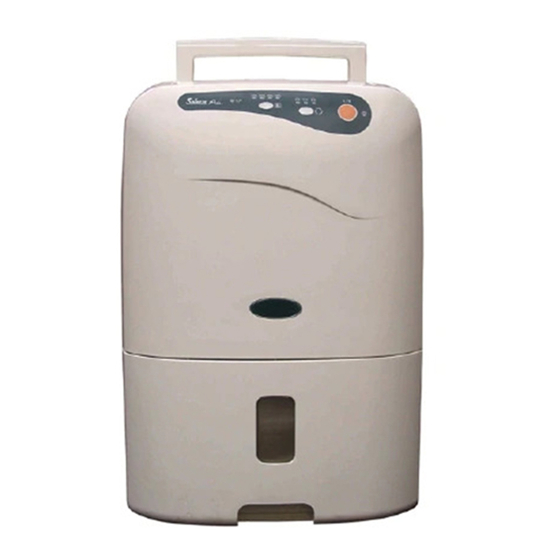

Page 2: Structure And Principle
The power consumption is low. The dehumidifier uses the no CFC refrigerant for protecting environment to reduce to pollu- te environment. Structure and Principle Specifications Model ADD12 ADD20 Power Supply 220~230V, 50Hz Dehumidifying Capacity 12 L/day 20 L/day Power Consumption... -
Page 3: How Dehumidifying Works
Structure and Principle How dehumidifying works If you pour cold water into a cup, the air around the cup is cooled, and drops of water form on the surface of the cup. The dehumidifier takes advantage of this phenomenon to remove moisture. Cooling unit Re-heating unit Œ... -
Page 4: Operation
Structure and Principle Air filter (Air intake port, do not obstruct!) Continuous drainage port Power supply plug Operation Operation panel Indicator lamp 1. “ ”: Tank full indicator lamp It will light when the drainage tank is full or positioned incorrectly. Empty the water out of the drainage tank, and make sure the tank is positioned properly. -
Page 5: Switch Function
Operation Switch function 1. “1/0” switch Press the switch once to start operation, press it again to stop operation. 2. “ ”switch Each time the switch is pressed, the operation mode changes in the order of “DEHUMIDIFY”, “LAUNDRY” and “QUIET” and the corresponding mode indicator lamp will change with the opera- tion mode. -
Page 6: Draining The Water
Operation 3. Switch the operation mode • Press the “1/0” switch, the unit operates in CONTINOUS mode automatically. • DEHUMIDIFY mode: Press ” ” switch until the “ ” lamp lights. Operation is continue with the amount of discharged air at the middle level. •... -
Page 7: Draining The Water
Operation Drainage steps Notation for drainage When place back the drainage tank, press the 2. Discard the water tank firmly into place with both hands. If the tank is not positioned properly, the “Tank Full” sensor will be activated, and the dehumidifier will not operate. -
Page 8: Maintenance
Maintenance Caring for the dehumidifier Clean the main unitl Wipe it with a soft cloth Gasoline, benzene, thinners, scouring powder, chemically treated dus- tcloths, and detergents may damage the main unit and should not be used. Clean the air filter The air filter should be cleaned approximately once two week. -
Page 9: Notation For Safe Operation
Maintenance Notation for safe operation When use the unit, please observe the following safety precautions: 1. When the unit works in LAUNDRY mode, keep it an appropriate distance away from the clothings, and prevent the water from dropping onto it. 2. -
Page 10: Removing Breakdowns
Maintenance Clean the air filter as instructed under Is the air filter clogged? “Caring for the dehumidifier”. The dehumidifying function does not work. Is air intake port or discharge Remove whatever is obstructing the port obstructed? discharge port or intake port. Clean the air filter as instructed under Is the air filter clogged? No air is discharged. -
Page 11: Apéndix
Maintenance If the unit is used in a room with wood flooring or in a The unit echoes. small room, it may echo. When operation is started or the opera- The refrigerant may take some sound until circulation tion mode is changed, an unusual noise is stabilizes.
