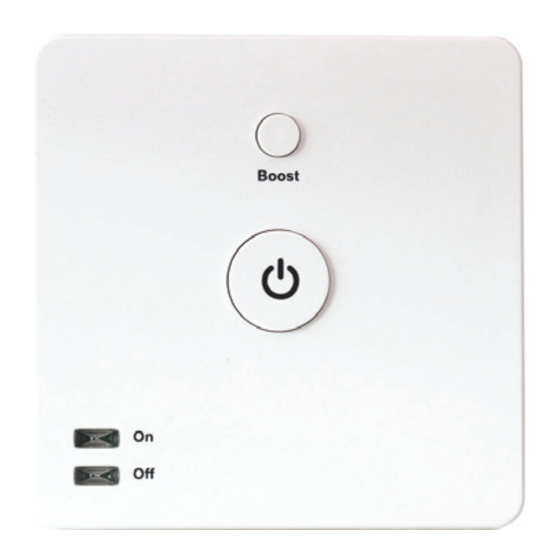

- Page 1 Electric Radiator Switch Model No. JSJSLW934 Instruction Manual Professional Series www.megamanuk.com/lightwaverf...
-
Page 3: How Do I Get Started
fit the LightwaveRF Electric Radiator Switch to a radiator. The setup guide will explain how to link it to other LightwaveRF heating devices. For guidance on how to use the Electric Switch with the LightwaveRF App & Web App, visit www.lightwaverf.com or scan the QR code below. -
Page 4: Installation
‘O ’ LED. When illuminated radiator is o . IMPORTANT: Please retain these instructions for guidance on how to link other LightwaveRF Heating devices to the Electric Radiator Switch. For App setup and additional guidance please visit www.megamanuk.com/lightwaverf... - Page 5 Once mounted, the main unit can be slotted back into place and the screws tightened. As the Switch has to be wired to the radiator, ensure that the is long enough to reach from the unit to the radiator (see www.lightwaverf.com for advice).
- Page 6 NOTE: it is important to install this product in accordance with the following instructions. Failure to do so may void your warranty. LightwaveRF is fully legal to install in your own home. However, if in doubt, always consult a qualified electrician.
-
Page 7: Device Setup
The following section will show you how to link the Electric Radiator Switch to a Thermostat, and other LightwaveRF Heating devices, to integrate it into your heating system. It is always recommended to use the Electric Radiator Switch with the Lightwave Link if anything more than a basic setup is desired. - Page 8 ‘Running’ mode and ‘Standby’. Holding the Standby button (3 secs) activates ‘Away’ mode. When the Electric Switch is operating alone (without a linked Thermostat or the LightwaveRF App controlling it) Running mode will set it to a default temperature of 22 degrees. Standby will...
- Page 9 Using the Heating Handset A LightwaveRF Heating Handset can be linked to one or more Electric Radiator Switches to directly control them (see Handset instructions). It can also be linked to a Room Thermostat which will, in turn, control Switches.
- Page 10 Heating System Setup How LightwaveRF heating devices work together To use the Switch, with other LightwaveRF Heating Devices, you will need to ‘link’ it. The devices that you link depends on the setup that you want to achieve. You can create a basic setup (e.g. Switch plus a Heating Remote) by linking the devices directly (see later section).
- Page 11 Heating System Setup Home Thermostat Lightwave App Boiler Switch (monitors house temp.) (control any room from anywhere) (turns boiler on/o ) Lounge Room Thermostat (controls several TRVs) Lightwave link Heating Remote (runs the show) (sets house temp.) Bedroom 2 Bedroom 1 Window Trigger Electric Switch (open window turns o TRV)
- Page 12 Heating System Setup 1. Recommended: Using Switches with the Lightwave Link The most comprehensive and recommend- ed way to use Electric Switches is by linking them to the App using the Lightwave Link. This will allow you complete control of the temperature in each room from your smartphone or tablet.
- Page 13 ‘heating zone’ which can appear on the LightwaveRF App or Web App. NOTE: If linked to the LightwaveRF App or Web App, Electric Switches in the same room or area of the house can also be linked to each other to form...
- Page 14 5. Using an Electric Switch with a Magnetic Trigger The LightwaveRF Magnetic Trigger is designed to send an alert to a linked LightwaveRF device or to the Lightwa- veRF App when a door or window has been opened. If such an alert is sent to a linked Electric Radiator Switch, the valve will automatically be turned o .
- Page 15 Heating System Setup Linking the TRV to other LightwaveRF heating devices If you intend to use a LightwaveRF Heating Remote, Home / Room Thermostat or Magnetic Trigger to control the Switch directly then you will need to ‘link’ them. The Switch can be linked to other LightwaveRF heating devices using the following method.
- Page 16 Thermostat that, in turn, controls the Electric Switches in that room. IMPORTANT: LightwaveRF Electric Switches can link to a limited number of heating devices. If this limit is exceeded and an extra device linked, the link to the former device will be overwritten.
- Page 17 Heating System Setup Heating System Setup Linking to the LightwaveRF Apps If you intend to use the LightwaveRF App or Web App to control the Electric Switch, you will need the ‘Lightwave Link’. This allows LightwaveRF heating devices to be linked to and controlled by a smartphone, tablet or PC.
- Page 18 Heating System Setup Using the Home Thermostat with the LightwaveRF Apps IMPORTANT: For full instructions on how to use the Home Thermostat with the LightwaveRF App and Web App, follow the in-App help or visit www.lightwaverf.com. The main use of the Home Thermostat, if...
- Page 19 Installing a LightwaveRF Window Trigger means that, if a window is opened, the LightwaveRF Electric Radiator Switch or TRV on the radiator is automatically turned o , therefore saving energy. Once the...
- Page 20 It is really comfortable and convenient to be able to have direct control over the room temperature without having to get up and alter the thermostat. This can be achieved quickly and easily using LightwaveRF TRVs, or, if you have electric radiators, the Electric Radiator Switch and a Heating Remote.
- Page 21 3. (Advanced): Electric Zoned Heating Required: Electric Switches, Lightwave Link, Boiler Switch, etc. With the LightwaveRF App and the Lightwave Link you can create an expandable zoned system that can take care of your entire home. Tempera- tures can be set for each room or ‘heating zone’, and heating can be planned week by week and room by room.
-
Page 22: Troubleshooting
Solution: There is a limited number of devices that the Thermostat and other LightwaveRF heating devices can link to. If this is exceeded, previously linked devices will lose their connections. Note also that if linking several devices of the same type, they must be ‘daisy chained’ together (see previous instruc-... - Page 23 Can I link more than one Electric Switch to a Thermostat or Remote? Yes. Please refer to www.lightwaverf.com for current device limits. Is it legal for me to install a LightwaveRF Electric Switch myself? Yes, LightwaveRF products are fully legal to install in your own home.
-
Page 24: Specification
Technical Specification Specification RF frequency: 868 MHz Input rating: 230V Output Rating: 13A Warranty: 2 year standard warranty... - Page 25 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.megamanuk.com/lightwaverf...
