- Page 1 Version 2.3 Electric Switch Model No. LW934 Instruction Manual Professional Series www.lightwaverf.com...
-
Page 2: Ec Declaration Of Conformity
EN 55022: 2010, EN 61000-3-2: 2006 +A1: 2009 +A2: 2009 Class A, EN 61000-3-3: 2008, EN61000-4-2: 2009, EN 61000-4-3: 2006 +A1: 2008 +A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5: 2006, EN 61000-4-6: 2009, EN 61000-4-11: 2004 For and on behalf of LightwaveRF PLC ---------------------------------------- Name J Shermer... -
Page 3: How Do I Get Started
You will also need suitable electrical screwdrivers. Help video & further guidance For additional guidance, and to watch a video that will help guide you through the installation process, please visit the support section on www.lightwaverf.com... -

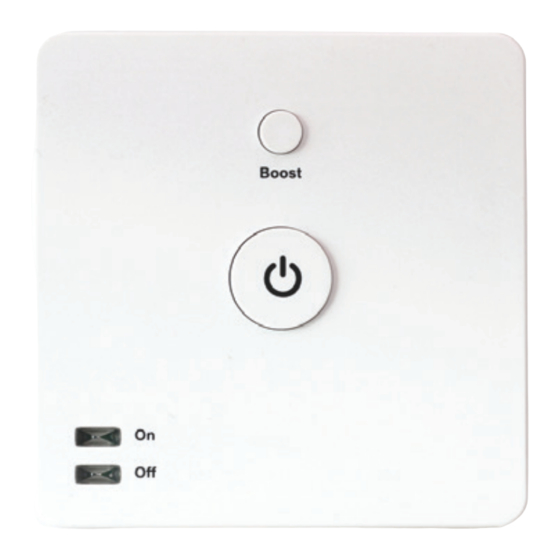

Page 4: Front View
. IMPORTANT: All LightwaveRF products can be legally DIY installed in your own home; however, if in doubt, always consult a qualified electrician or heating engineer. It is important to install this product in accordance with... - Page 5 Screws Cable clamp Wiring mount (clamp terminals removed) Cable hole (cover not Backplate removed) screw hole Close-up of wiring terminals IMPORTANT: If conducting an insulation resistance test, all LightwaveRF products must be disconnected from the mains, or damage will occur.
-
Page 6: Installation Preparation
Installation Installation preparation Key installation tools and materials Flat-head Wire-cutters Wire-strippers Cross-head screwdriver screwdriver Torch Sharp Knife Electrical tape 5 core cable IMPORTANT: If you are unsure about how to use any of these tools and materials, or any stage of the installation process, always consult a qualified electrician or heating engineer. -
Page 7: Safety Precautions
Installation Safety precautions • Prior to installing the Electric Switch, read through the wiring instructions provided thoroughly. • Before proceeding with the installation, check and ensure that no mains power is being received. If a separate wiring centre needs to be accessed, make sure that no power is being received. - Page 8 Installation Remove the backplate and cable clamp Hook To gain access to the wiring terminals on the Electric Switch, you must first remove the backplate. This can be done by loosening the two screws sited at the base of the unit using a suitable screwdriver.
- Page 9 Installation Controlling an immersion heater or towel rail or other electrical devices The Electric Switch can be used to remotely turn on/o any connected electrical devices up to 3000W. It can be set to operate thermostatically or as an on/o relay only (see device setup section for details). Any connected loads must be resistive loads such as immersion heaters, towel rails, electric heaters, lighting circuits or electric gates.
- Page 10 Installation Typical wiring plan for electrical heaters and other devices Link the mains cables to the Electric Switch as shown in the diagram. Be aware, the diagram assumes the switching of mains power NOT a volts free system. Turn o the mains power first! Electric Switch terminals...
- Page 11 Installation Typical low voltage wiring plan Link the mains cables to the Electric Switch as shown in the diagram. Be aware, the diagram assumes the switching of a volts free system. volts free contacts...
-
Page 12: Completing The Install
Installation Completing the Install Install the cable clamp Once the cable(s) have been connected, the cable clamp needs to be reattached in order to secure them and to ensure that they cannot become dislodged from the terminal connections. The cable(s) should run through holes situated at the base of Clamp Holes... -
Page 13: Basic Operation
The Electric Switch can be controlled manually or by linking it to the LightwaveRF Link and App to enable remote control from a smartphone, tablet or PC. The following section will show you how to use the basic features and how to link the Electric Switch to the App. - Page 14 Manual operation The Standby button Standby button If not connected to the App, pressing the Standby button on the Electric Switch toggles the connected heater or electrical device on/o . When connected to the App, if the connected device is on, pressing the Standby button overrides the current schedule and turns o the device until the next scheduled ‘on period’.
- Page 15 Using the Heating Handset A LightwaveRF Heating Handset can be linked to an Electric Switch directly, or via a linked Home Thermostat (see thermostat instructions). Once linked, the Standby button on the Handset will toggle between Running and Standby modes in the same way as the Standby button on the Switch.
- Page 16 Setting up the LightwaveRF App Linking to the LightwaveRF Apps To use the LightwaveRF App or Web App to control the Electric Switch, you will first need to install the ‘Lightwave Link’. This allows any LightwaveRF devices to be linked to and controlled by a smartphone, tablet or PC.
- Page 17 Setting up the LightwaveRF App Using the switch with the LightwaveRF App NOTE: For full instructions on how to use the Electric Switch with the LightwaveRF App or Web App follow the in-App help or visit www.lightwaverf.com. The Heating Page allows you to view every LightwaveRF Heating Device that you have set up on the App.
- Page 18 Setting up the LightwaveRF App Thermostatic or on/o control Once you have linked the Electric Switch to the App, you can chose how you want it to behave. The Electric Switch has the capability to utilise its in-built thermostat to monitor and set the temperature.
- Page 19 Add other heating devices Home Thermostat Boiler Switch Lightwave App (monitors house temp.) (turns boiler on/o ) (control from anywhere) Home or Away button Lightwave Link Heating Remote (turn house on/o ) (runs the show) (sets house temp.) Electric Switch Magnetic Trigger (controls electric radiators) (open window turns o TRV)
- Page 20 This can be achieved quickly and easily using the LightwaveRF Electric Switch and Heating Remote. Installed in seconds, they can turn o the radiator in the room and allow you to be comfortable without having to a ect the rest of the house heating.
- Page 21 2. (Advanced): Zoned Heating Required: TRVs, Lightwave Link, Boiler Switch, Thermostat etc. With the LightwaveRF App and the Lightwave Link you can create an expandable zoned system that can take care of your entire home. Tempera- tures can be set for each room or ‘heating zone’, and heating can be planned week by week and room by room.
- Page 22 (not house) controller. The Home thermostat NOT the Electric Switch should be linked to the App in this instance. Is it legal for me to install a LightwaveRF Electric Switch myself? Yes, LightwaveRF products are fully legal to install in your own home.
-
Page 23: Specification
Technical Specification Specification RF frequency: 868 MHz Input: 230V Rating: 13 Amps Warranty: 2 year standard warranty Indoor use only... - Page 24 Version 2.3 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.lightwaverf.com...
