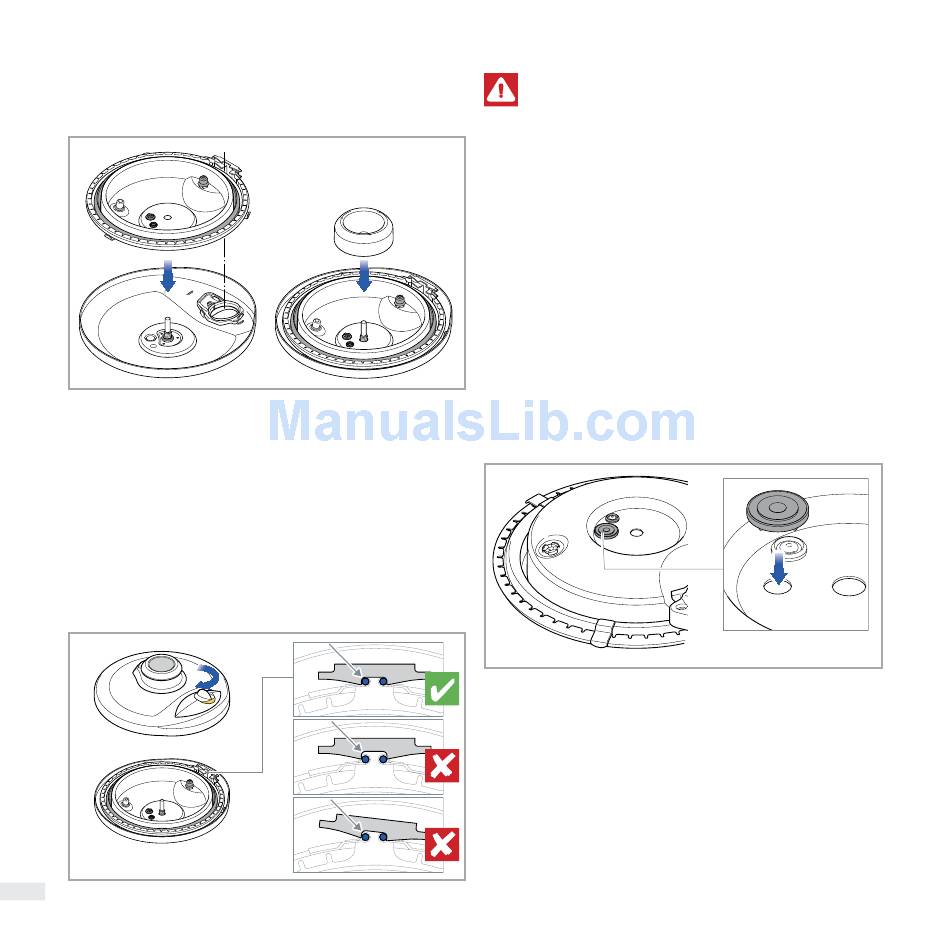

Place bottom lid
Screw on bellnut and turn until tight

Checking lid clip

Check lock, the lid must lie on it such that the Visiotherm
S points towards the top.
You must be able to turn the turning knob easily.
ƒ
In closed position:
The safety lock should not be bent towards the
ƒ
outside.
Both bolts must be held in completely.
ƒ
18
If the lid clip does not function properly,
the Secuquick softline is no longer to
be used. Contact an AMC service
centre.

4.4 Replacing seals

Replace seals only by hand or with the help of a blunt
ƒ
tool.
Seals and sealing ring can be obtained at AMC as a
ƒ
package. See back page for contact address.
Use only AMC original spare parts for model 4200.
ƒ
Sealing shim for operating pressure valve
Place sealing shim in the opening
Pay attention to the installation position: smaller diameter
ƒ
below.
