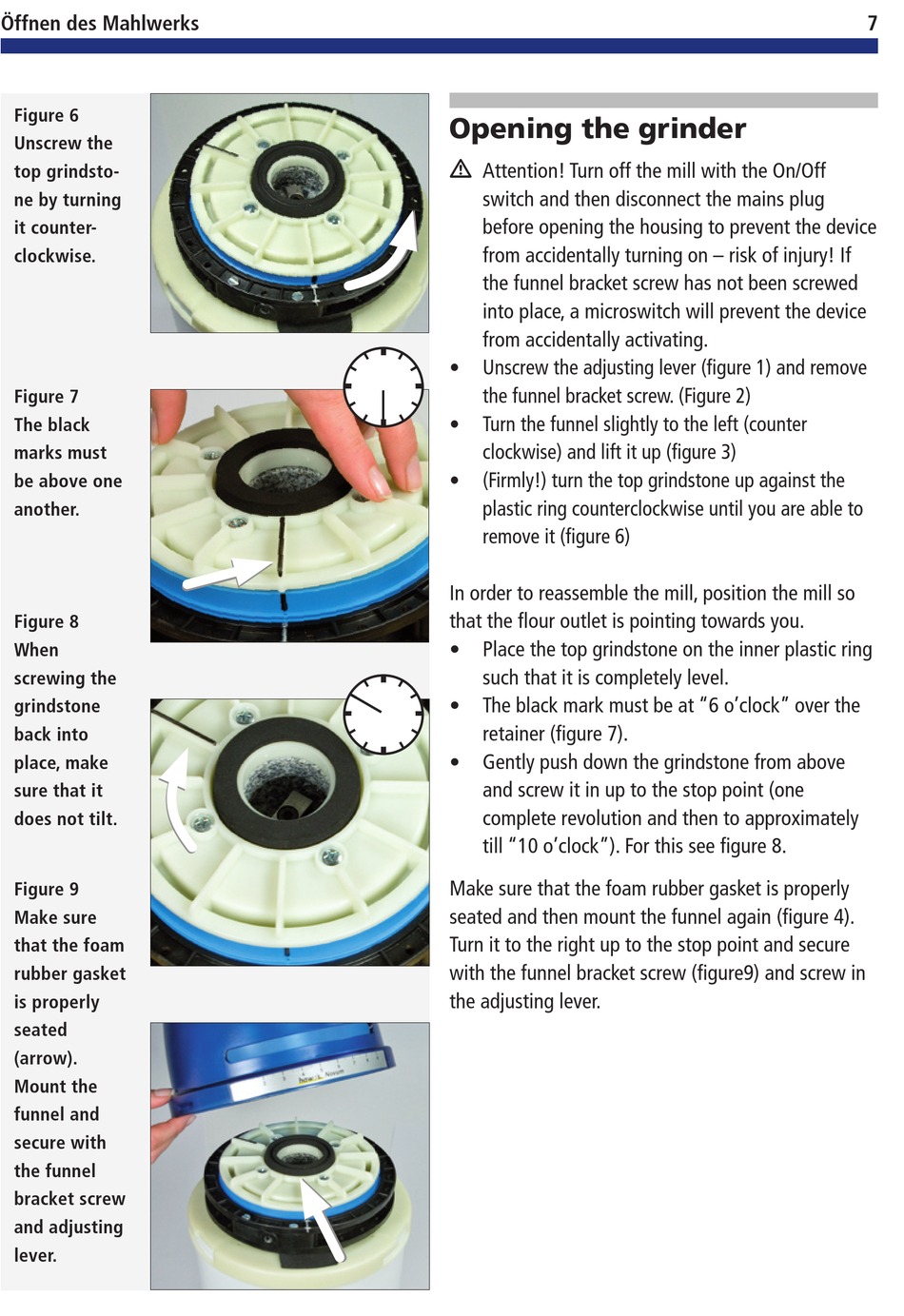

hawos Novum Operating Instructions Manual page 7

Öffnen des Mahlwerks
Figure 6
Unscrew the
top grindsto-
ne by turning
it counter-
clockwise.
Figure 7
The black
marks must
be above one
another.
Figure 8
When
screwing the
grindstone
back into
place, make
sure that it
does not tilt.
Figure 9
Make sure
that the foam
rubber gasket
is properly
seated
(arrow).
Mount the
funnel and
secure with
the funnel
bracket screw
and adjusting
lever.
Opening the grinder

Attention! Turn off the mill with the On/Off
switch and then disconnect the mains plug
before opening the housing to prevent the device
from accidentally turning on – risk of injury! If
the funnel bracket screw has not been screwed
into place, a microswitch will prevent the device
from accidentally activating.
• Unscrew the adjusting lever (figure 1) and remove
the funnel bracket screw. (Figure 2)
• Turn the funnel slightly to the left (counter
clockwise) and lift it up (figure 3)
• (Firmly!) turn the top grindstone up against the
plastic ring counterclockwise until you are able to
remove it (figure 6)
In order to reassemble the mill, position the mill so
that the flour outlet is pointing towards you.
• Place the top grindstone on the inner plastic ring
such that it is completely level.
• The black mark must be at "6 o'clock" over the
retainer (figure 7).
• Gently push down the grindstone from above
and screw it in up to the stop point (one
complete revolution and then to approximately
till "10 o'clock"). For this see figure 8.
Make sure that the foam rubber gasket is properly
seated and then mount the funnel again (figure 4).
Turn it to the right up to the stop point and secure
with the funnel bracket screw (figure9) and screw in
the adjusting lever.
