Disassembly; See Figs.1 And - JVC AX-V8000 Service Manual

Audio/video control amplifier
Hide thumbs

Advertisement

Table of Contents
3.1
Main body section

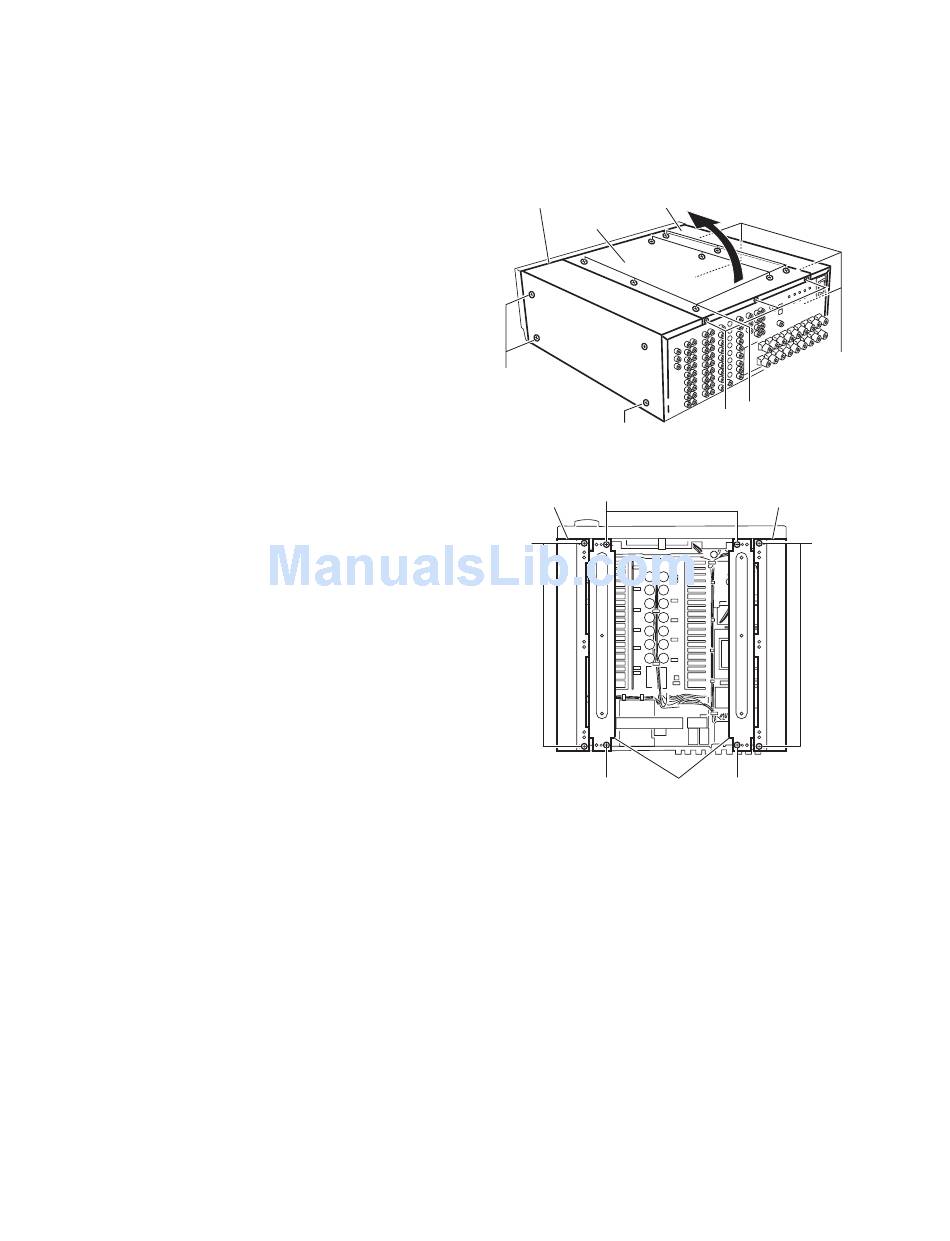

3.1.1 Removing the top cover
(See Fig.1)
(1) From the top sides of the main body, remove the nine
screws A attaching the top cover.
(2) From the back side of the main body, remove the three
screws B attaching the top cover.
(3) Take out the top cover upward in the direction of the arrow.
3.1.2 Removing the side panel (L) & side panel (R) & stay bkt

(See Figs.1 and 2)

• Prior to performing the following procedure, remove the top
cover.
(1) From the left sides of the main body, remove the four
screws C attaching the side panel (L). (See fig.1)
(2) From the right sides of the main body, remove the three
screws C attaching the side panel (R). (See fig.1)
(3) From the top side of the main body, remove the four screws
D attaching the side panel (L) and the side panel (R). (See
fig.2)
(4) Remove the four screws E attaching the stay bkt, and take
out the stay bkt. (See fig.2)
1-4 (No.MB177)
SECTION 3

DISASSEMBLY

Side panel (R)
C
Side panel(R)
D
Side panel (L)
Top cover
B
C
Fig.1
E
Side panel(L)
E
E
Stay bkt
Fig.2
C
A
D
