Read entire instructions thoroughly before starting.

TOOLS REQUIRED:

• Marker
• Utility knife
• Phillips screwdriver
• Foam tape
• 2 1/4 " Holesaw
CONTENTS:
4
8
6
7
14
15
12
VP2DJF-19A016-EB
• Drill motor
• 8mm socket
• 10mm socket
• Wire pulling tool
2
1
3
11
9

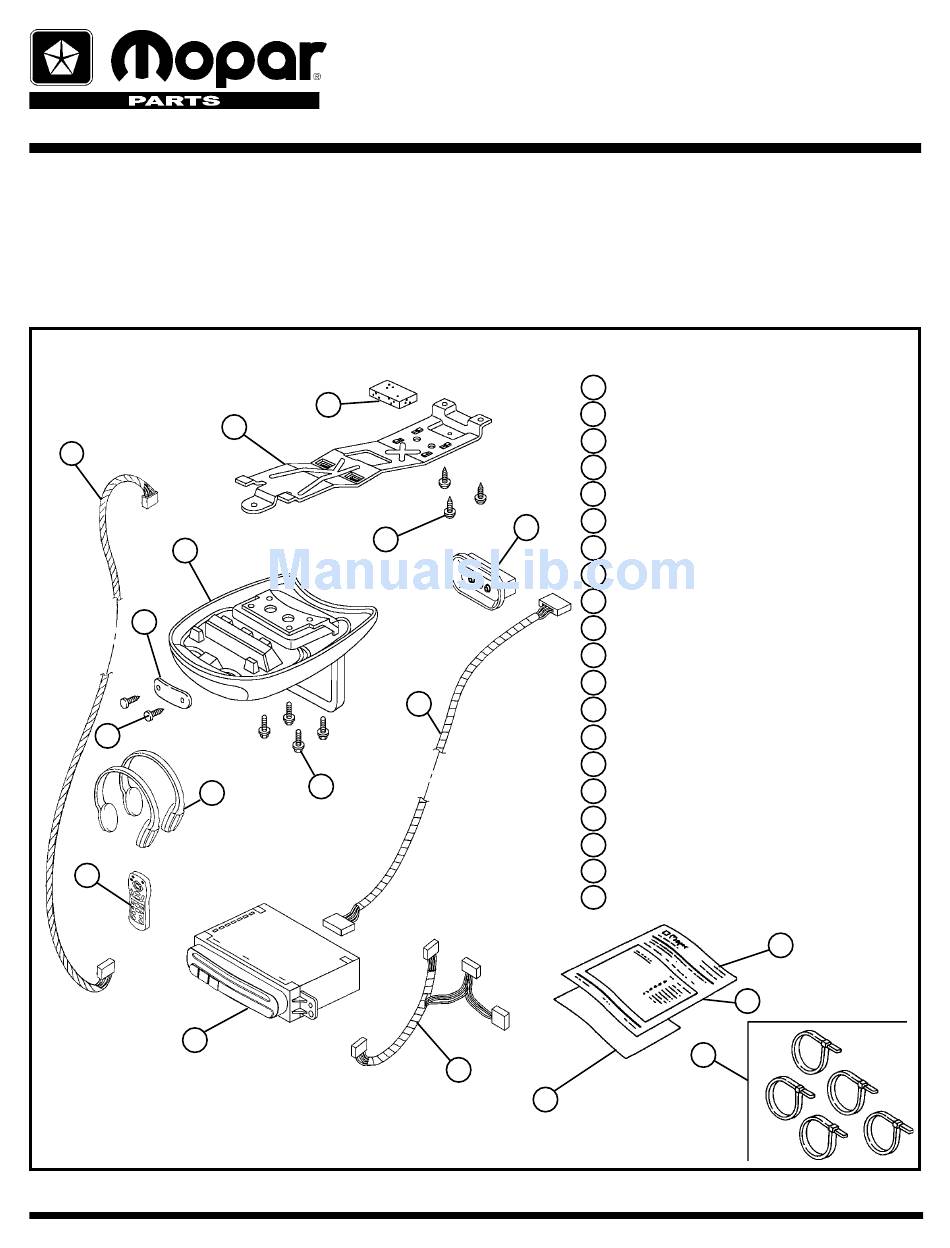

DVD REAR SEAT VIDEO SYSTEM

INSTALLATION INSTRUCTIONS

• Socket wrench
• 7mm socket
Item Qty.
1
2
3
4
5
6
19
7
8
9
10
11
12
13
14
15
16
17
18
19
20
10
18
4/30/04
MINI-VANS (RG)
• Non-metal trim stick
• 3/8" Drill Bit
Description
1
Mounting Bracket
1
Foam Block
3
Self Drilling Screw
1
Overhead Harness
12
Tie Strap
1
Climate Control Cover
2
Climate Control Screws
1
Screen Console
4
Hex Screw
1
Power Harness
1
Aux. Harness
1
DVD Player
4
AAA Batteries (not shown)
2
Headphones
1
DVD Remote
1
Owners Manual (not shown)
1
Installation Instructions
1
Paper Template
1
Aux. Module
2
Aux. Module Template
17
20
5
Page 1 of 7
