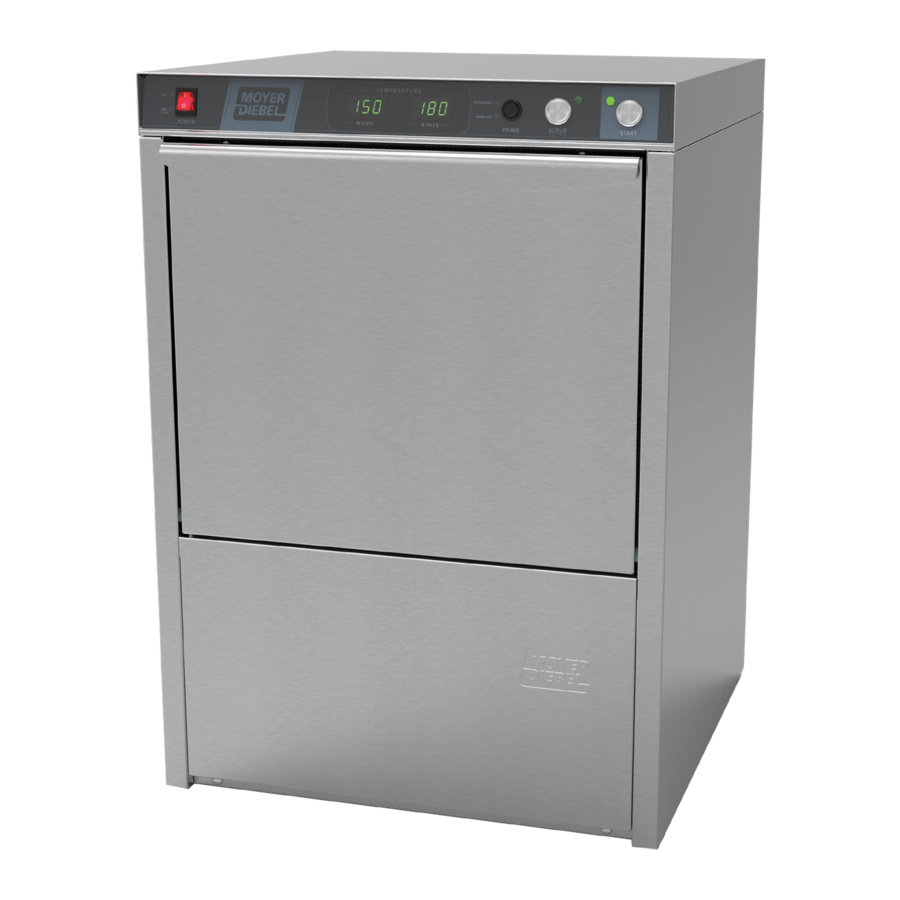

Moyer Diebel 501-HT Technical Manual

Undercounter dishwasher
Hide thumbs Also See for 501-HT:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual , Installation/operation Manual With Service Replacement Parts
Simply Engineered Better
July, 2003
P.O. Box 4183
Winston-Salem, North Carolina 27115-4183
Moyer Diebel, U.S.
336/661-1992
Fax: 336/661-1979
Technical Manual
Undercounter
Dishwasher
Machine Serial No.
P/N
Manual
2674 N. Service Road
Jordan Station, Ontario, Canada L0R 1S0
Model
501-HT
501-HTN
501-LT
0508576
REV. J
Moyer Diebel, Ltd.
905/562-4195
Fax: 905/562-4618

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 501-HT and is the answer not in the manual?

Questions and answers

Pam
May 31, 2025

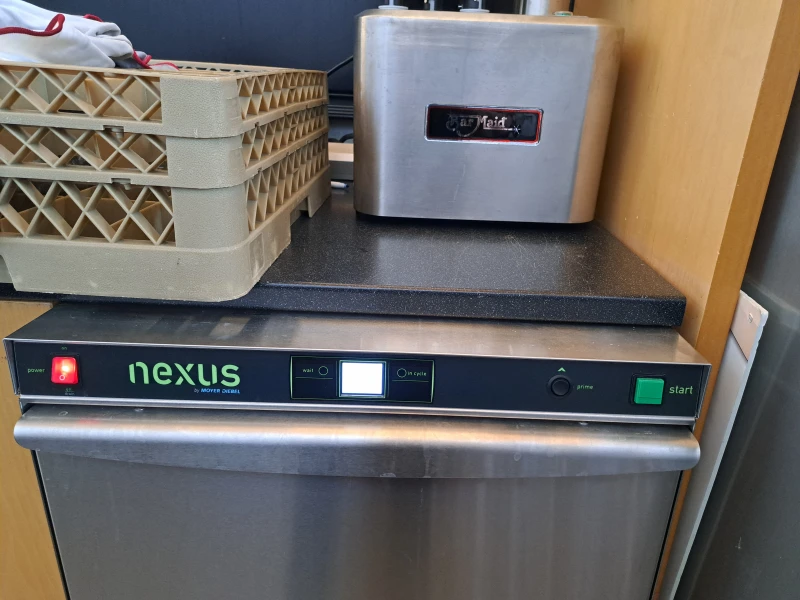

Dishwasher is say Insert SD card
