Sonar

The Sonar function provides a view of the water and bottom
beneath your vessel, allowing you to detect fish and examine the
structure of the sea floor.

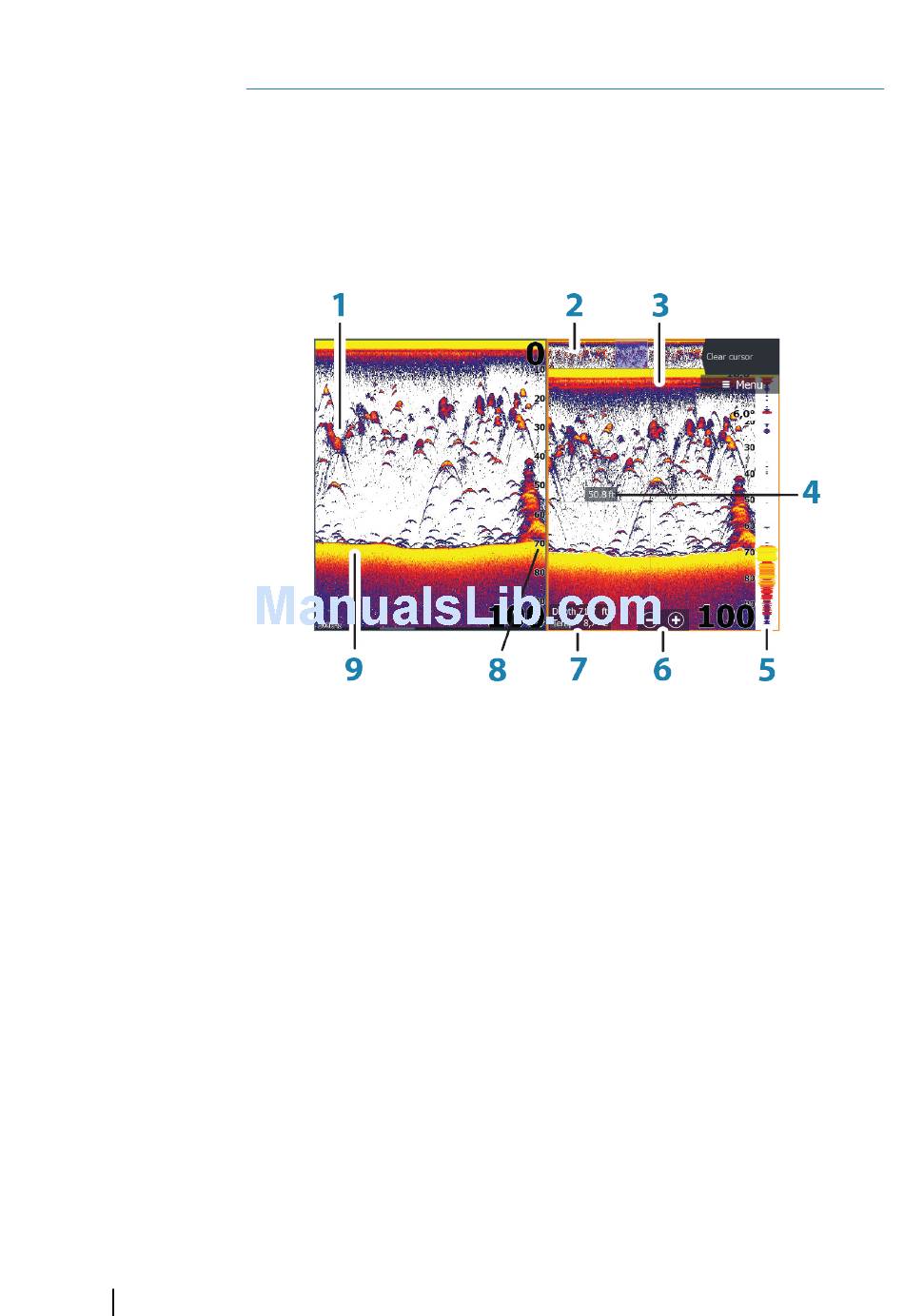

The Sonar image

1
Fish arches
2
History preview*
3
Temperature graph*
4
Depth at cursor
5
Amplitude scope*
6
Zoom (range) buttons
7
Water depth and Water temperature at cursor location
8
Range scale
9
Bottom
* Optional Sonar items that you turn on/off individually.
