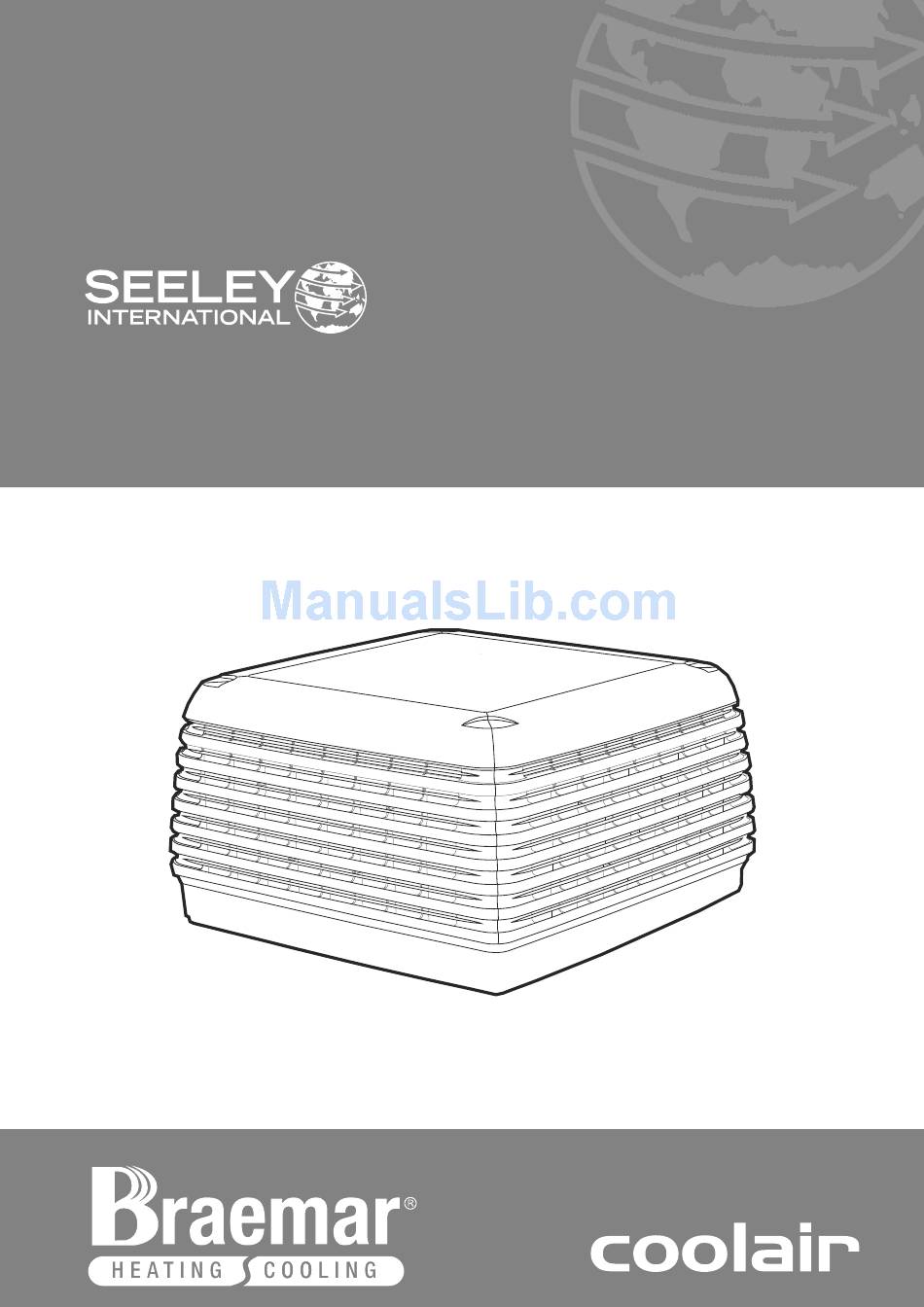

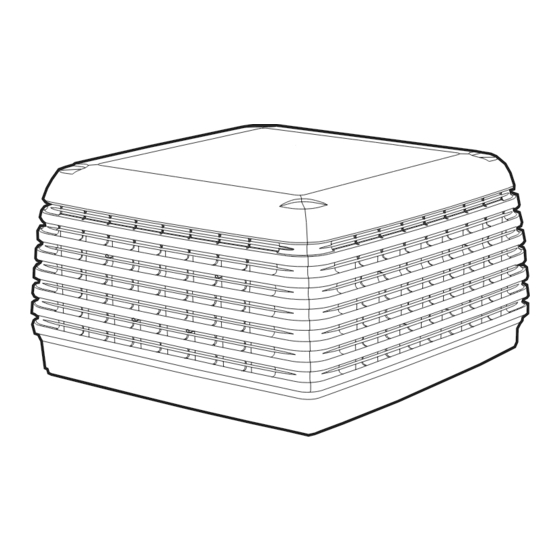

- Page 1 INSTALLATION MANUAL CPL CPS LCB BM Evaporative Cooler ILL1456-A (English) (CPL CPS LCB BM) (Original English Instructions) ®...
- Page 2 WARNING: Failure to install and commission the product in compliance with these instructions, or failure to do the job properly and competently, may void the customer's warranty. Further, it could expose the Installer and/or the Retailer to serious liability.
- Page 3 Step 1 Step 2 Step 3 Step 4 SAFETY FIRST! ILL1048-A 1. Unwrap the Cooler. 1. Remove pads. 1. Read & understand 1. Remove the venturi. Page Page Page Page the safety section. 2. Remove the transition. Step 5 Step 6 Step 7 Step 8 ILL969-A...
-
Page 5: Employer And Employee Responsibilities
SAFETY EMPLOYER AND EMPLOYEE RESPONSIBILITIES The installation and maintenance of evaporative air conditioning units at height has the potential to create Occupational Health and Safety issues for those involved. Installers are advised to ensure they are familiar with the relevant State and Federal legislation, such as Acts, Regulations, approved Codes of Practice and Australian Standards, which offer practical guidance on these health and safety issues. -
Page 6: Removing The Venturi
For LCB & CPS models, disengage the two venturi clips as shown (Fig 3A). For CPL & BM models, undo the two screws that retain the venturi during transport (Fig 3B) and dispose of the screws thoughtfully, as they are no longer required. -
Page 7: Cooler Location
COOLER LOCATION Check the proposed cooler location, to ensure that it is structurally capable of supporting the weight of the cooler, or provide an adequate alternate load bearing structure. Always locate the cooler where it will receive a plentiful supply of fresh air. Not in a recess where it may be starved for air or where the air is polluted. - Page 8 (Fig 11) . Ensure that the weatherdamper flaps open all the way and do not interfere with the dropper or any screws. The flaps should move freely through 90º. BREAK CLIP ILL988-A ILL983-A ® ® CPL CPS LCB BM Evaporative Cooler...
- Page 9 Use safety equipment, appropriate procedures and always have assistance. It is recommended that at least two (2) people move LCB, CPS CPL, BM the cooler into position and that the transition, pad frames, venturi assembly and any unsecured objects are removed beforehand.
-
Page 10: Cable Installation
CONNECTING THE COOLER TO A BRAEMAR SPECTROLINK GAS HEATER CONTROLLER This cooler can be inter-connected to a Braemar Gas Heater and operated from the Braemar SCC Spectrolink Heater controller. Any Seeley International evaporative cooler equipped with a CPMD Electronic Module can be operated this way. -
Page 11: Electrical Requirements
ELECTRICAL REQUIREMENTS Installation of the cooler must conform to National, State and Local electrical rules, regulations and standards. It is a requirement of Seeley International that all coolers be wired with a dedicated circuit to the distribution board adhering to local and national wiring standards A 10A socket outlet within one metre of the dropper’s cable exit hole is also required. -
Page 12: Locating The Wall Control
Connect the cable to the wall control and mount the wall control onto it’s bracket. Always seal the cable entry hole. Important ! Take care not to damage the cable or plug during this process. ® ® CPL CPS LCB BM Evaporative Cooler... -
Page 13: Water Connection
See page 15 for setting the correct water level. BLEED TRAY (Standard for CPL, CPS & BM models, optional for LCB models) The bleed funnel reduces the accumulation of salts and minerals in the cooler. It also acts as an overflow and a drain. -
Page 14: Solenoid Valve
SOLENOID VALVE (Standard for LCB models, optional for CPL, CPS & BM models) If the drain valve is to be installed instead of the bleed funnel, assemble the float valve to the cooler with the solenoid valve as shown (Fig 23). Ensure all washers and o-rings are in place. -
Page 15: Water Sensor
WATER SENSOR (Standard for LCB models, optional for CPL, CPS & BM models) If you installed the drain valve, assemble the water sensor as shown by clipping the sensor to the tank (Fig 27). Ensure that the clip fully engages. -
Page 16: Electrical Connection
Plug the wall control cable to the electronics module according to Fig 32. If you have installed the drain valve, remove the shorting plug (pre-installed for CPL, CPS and BM models), which will be connected to the water sensor socket on the control box (Fig. 32) Then connect the water sensor and solenoid valve plugs as shown. - Page 17 For LCB models, the drain frequency is managed by salinity control. There is no need for adjustment. For CPL, CPS and BM models (optional Drain Valve operation) NOTE: The following process must be carried out within four (4) minutes of mains power being applied to the Cooler.
-
Page 18: Water Pump Connection
The “Pre-Cool” will be in operation for 2 minutes after the pump starts, then the fan will start automatically. Stop the cooler and check that each of the pads are evenly saturated. ® ® CPL CPS LCB BM Evaporative Cooler... -
Page 19: Testing The Cooler
TESTING THE COOLER Once you are satisfied that the Cooler is installed and commissioned correctly, it is important to run the cooler and ensure that everything is working as it should. Check that the unit runs quietly and with an even distribution of air to all outlets. If a drain valve is fitted, initiate a drain of the tank by pressing both the up and down buttons together, with the wall control in the “OFF”... - Page 20 PROBLEM: No variable speed CAUSE REMEDY Faulty electronics module or wall control. Replace electronics module or wall control. Minimum fan speed set too high. Adjust minimum fan speed (Fig 32 page 14). ® ® CPL CPS LCB BM Evaporative Cooler...
- Page 21 PROBLEM: Noisy unit CAUSE REMEDY Resistance in the ducting system. Check that sufficient outlets are provided and are open. Insufficient exhaust openings Refer to minimum exhaust opening requirements for the particular cooler, as shown in the table in the Owners Manual. Fan is hitting the venturi.
- Page 22 Drain or Bleed systems. The customer has been given the Owners Manual & Warranty Card. All the installation rubbish has been removed and, if applicable, any property damage repaired. Signed by Installer: ………………………………………………… Dated: ……………………………………………………………… ® ® CPL CPS LCB BM Evaporative Cooler...
- Page 24 Seeley International Technical Support 1300 650 399 Seeley Spare Parts Distributors 1300 367 437 Authorised Service Agents 1300 650 644 For access to Technical/Installation/Service Information register online seeleyinternational.com/service Spare Parts Information To identify and order spare parts for Seeley International products online go to: seeleyinternational.com/get-support/spare-parts It is the policy of Seeley International to introduce continuous product improvement.
