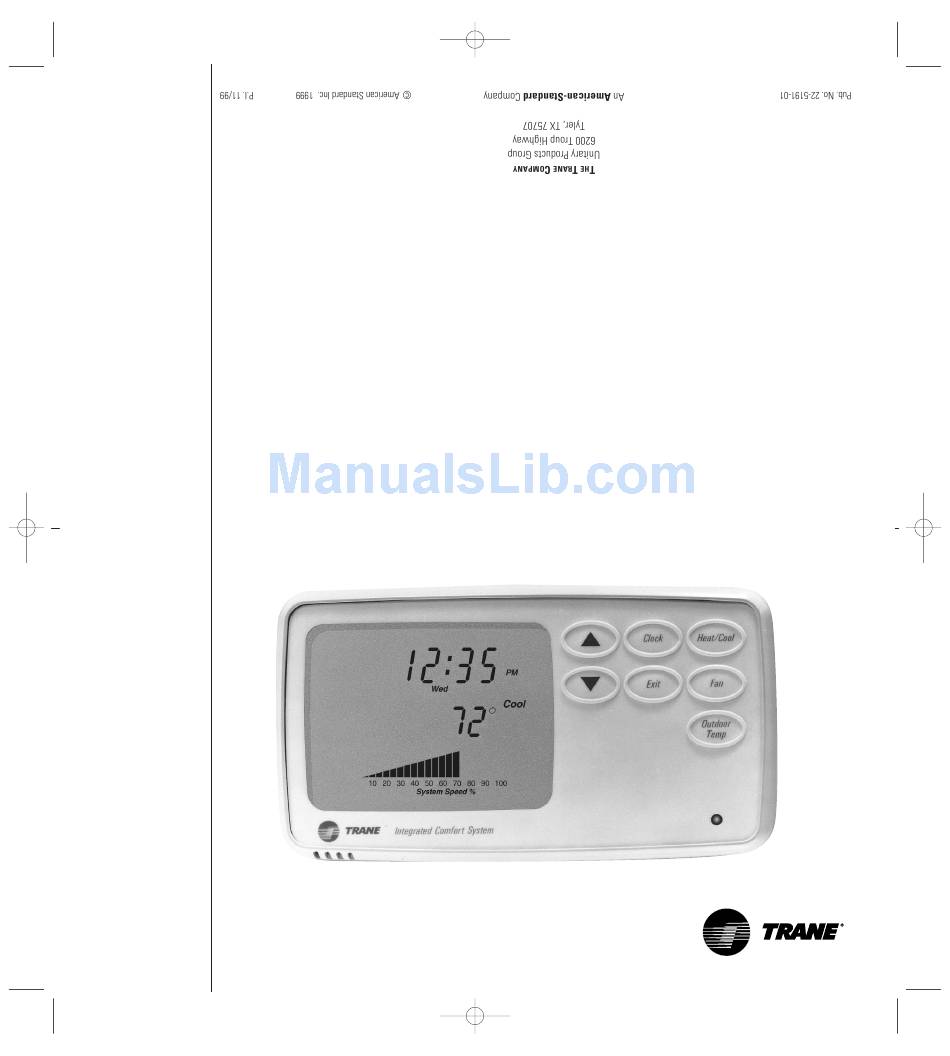

- Page 1 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 1 OMFORT ENSOR ZUSTATALS510...
- Page 2 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 2 ABLE ONTENTS 1 ................Introduction 2–3................. Getting Started 4–8................. Basic Procedures 9 ................Changing Setpoints 10–12..............System Set-Up 13–16..............Other Features 17 ................Factory Settings and Specifications 18 ................Index...
- Page 3 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 3 NTRODUCTION ou’re a very bright person. How do we know? Well, for one thing you just bought a Trane Home Comfort Sensor, the communications inter- face for the Trane Integrated Comfort System. This means you’ve opted for energy efficiency, lower utility bills and doing a little something to save the planet–all in one bold move.

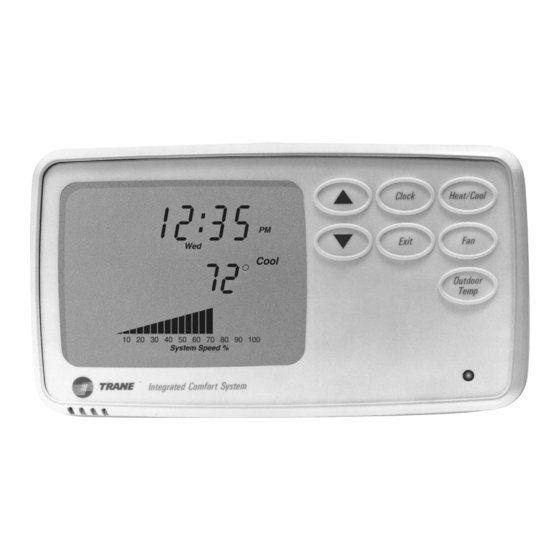

- Page 4 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 4 ETTING ow To Bring The Home Comfort Sensor, To Life. TARTED You can start by pushing the right buttons. Displays outside temperature. Outdoor Temp Adjusts settings in various modes; pressed once, they reveal current set- Initiates setting the clock.
- Page 5 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 5 hat The Home Comfort Sensor Can Do For You: For one thing, it can take a load off your mind. The Home Comfort Sensor spends Once you’ve entered the setpoints on the Home practically all of its time connected to AC house Comfort Sensor, it will maintain comfort control power, but when the word Connect is displayed in...
- Page 6 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 6 ASIC eady, Set…Relax. ROCEDURES Start-up begins with four simple steps: 1. Find a comfortable, well-lit spot to sit down with the Home Comfort Sensor and this manual. (Relaxing in an easy chair is the most comfortable way to meet new challenges.) 2.
- Page 7 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 7 ASIC our First Question Is Probably Going To Be: ROCEDURES LOCK HOW DO I MAKE IT STOP FLASHING? Answer: Tell the Home Comfort Sensor what time it is. TIME, PLEASE? CLOCK triggers the Set Time mode. It Clock also hides everything else on the LCD so you can focus on the job at hand.
- Page 8 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 8 ASIC hat Makes You Comfortable? ROCEDURES Depends on the season, right? HEAT/COOL sets the mode, just as the flip switch did on your old thermostat. But HEAT/COOL gives you more options. Cool As you press HEAT/COOL, Heat/Cool the LCD offers...
- Page 9 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 9 ASIC ow’s Your Circulation? ROCEDURES FAN toggles between: • Fan On – the fan runs continuously, going to 50 percent speed when the Cool compressor isn’t running • Automatic – the fan runs only when the compressor is on Fan On is displayed when the fan is...
- Page 10 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 10 ASIC Matter Of Degrees. ROCEDURES EMPERATURE •To check the outdoor temperature, Outdoor Temp press OUTDOOR TEMP. The outdoor temperature ranges from -20° F to 120° F. (Note: If the outdoor sensor is Outdoor Temp not installed, the outdoor tempera- ture displayed on the thermostat will...
- Page 11 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 11 HANGING hange Can Do A Body Good. ETPOINTS Maybe you wish the temperature were dif- ferent. Here’s how to change the setpoints from the factory settings. •Press either ARROW, and you’ll see Cool Set Pt the current setpoint on the left side of...
- Page 12 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 12 YSTEM etting Really Fancy. Let’s say you prefer military time on your LCD clock. Or you’d rather see the temperature in Cel- sius degrees. Or you think the temperature read- ing needs adjusting. Or you just feel like going beyond the basics.
- Page 13 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 13 YSTEM •Press HEAT/COOL for the next Set-Up, SYSTEM SET-UP Heat/Cool which is the time format. If you oper- ate on a 24-hour clock and you don’t have to think twice to remember that 1500 hours means 3:00 p.m., this one’s for you.
- Page 14 •Press EXIT to return to normal Exit operations. You have now completed the set-up and scheduling of your Home Comfort Sensor. Replace the unit to its mounting bracket. When the word “connect” disappears, your Trane Integrated Comfort System is ready for operation.
- Page 15 Home Comfort Sensor is operating on batteries. Either the unit is not Cool properly connected to its base, or your building power has gone out. If everything else checks out, this Connect could mean a bad power connection. Call your Trane dealer for service.
- Page 16 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 16 THER EATURES •When the Home Comfort Sensor is running on batteries, it will automatically kick into a power-conserving mode if no buttons have been activated within one minute. If the clock says Off, the system is conserv- ing its batteries.
- Page 17 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 17 THER roubleshooting. EATURES ROUBLE The LCD says the Outdoor Temperature is SHOOTING -13° F or below. • The system is not connected to an outdoor sensor. The green light stops flashing. • Call a technician. Whenever unwanted words appear on the LCD.
- Page 18 Home Comfort Sensor automatically adjusted one of your points. The word Service flashes. SERVICE • Press HEAT/COOL and set Heat/Cool the operating mode to Off or Emerg Ht. If Service still Cool flashes, call your Trane dealer for service.
- Page 19 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 19 ACTORY ETTINGS PECIFICATIONS Default Settings (Factory) Cooling 76°F / 25°C Setpoint Heating 70°F / 21°C Setpoint DEFAULT SET-UP MODE SETTINGS • Fahrenheit Temperatures • 12 Hour Time • 01 Zone Address REPLACEMENT BATTERIES Eveready #357VP #A76VP...
- Page 20 15345 ZUSTATALS51Ø Manual 2/22/05 8:28 AM Page 20 NDEX Addr Setpoints ARROW keys Set Time Auto Speed bar Aux Ht –Auxiliary Heat SYSTEM SET-UP Batteries 3, 17 System Speed % CLOCK key Temperature format Connect Time format Cool TIME/TEMP key Emerg Ht –Emergency Heat Troubleshooting EXIT key...
