Sony CDX-424RF Service Manual

Compact disc changer system
Hide thumbs Also See for CDX-424RF:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions
CDX-424RF
SERVICE MANUAL
US Model
Canadian Model
E Model
Model Name Using Similar Mechanism
CDX-505RF
CD Drive Mechanism Type
MG-250C-137
Optical Pick-up Name
KSS-521A/J2N
SPECIFICATIONS
COMPACT DISC CHANGER SYSTEM
MICROFILM

Advertisement

Table of Contents
loading

Related Manuals for Sony CDX-424RF

Summary of Contents for Sony CDX-424RF

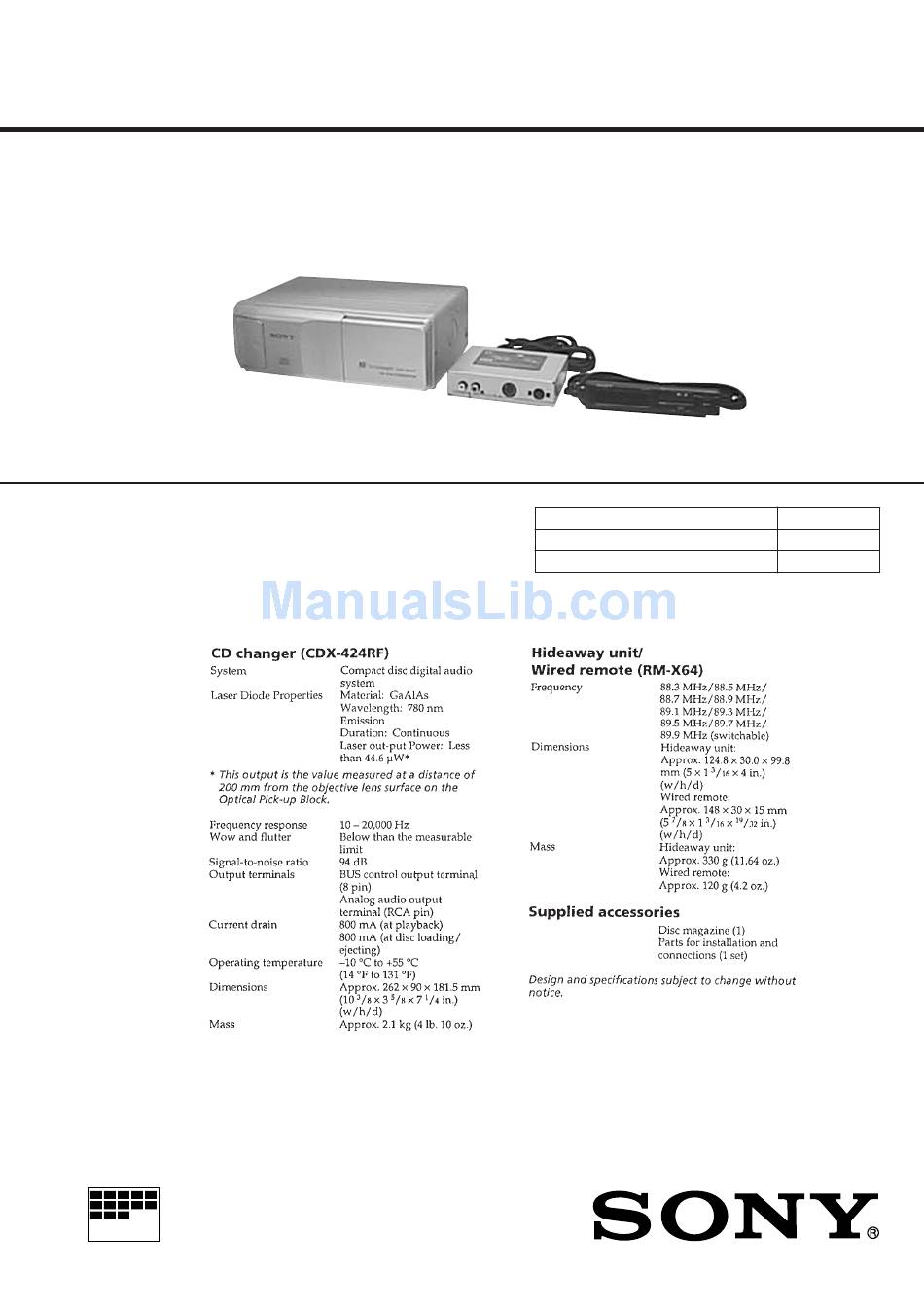

  • Page 1 CDX-424RF SERVICE MANUAL US Model Canadian Model E Model Model Name Using Similar Mechanism CDX-505RF CD Drive Mechanism Type MG-250C-137 Optical Pick-up Name KSS-521A/J2N SPECIFICATIONS COMPACT DISC CHANGER SYSTEM MICROFILM...
